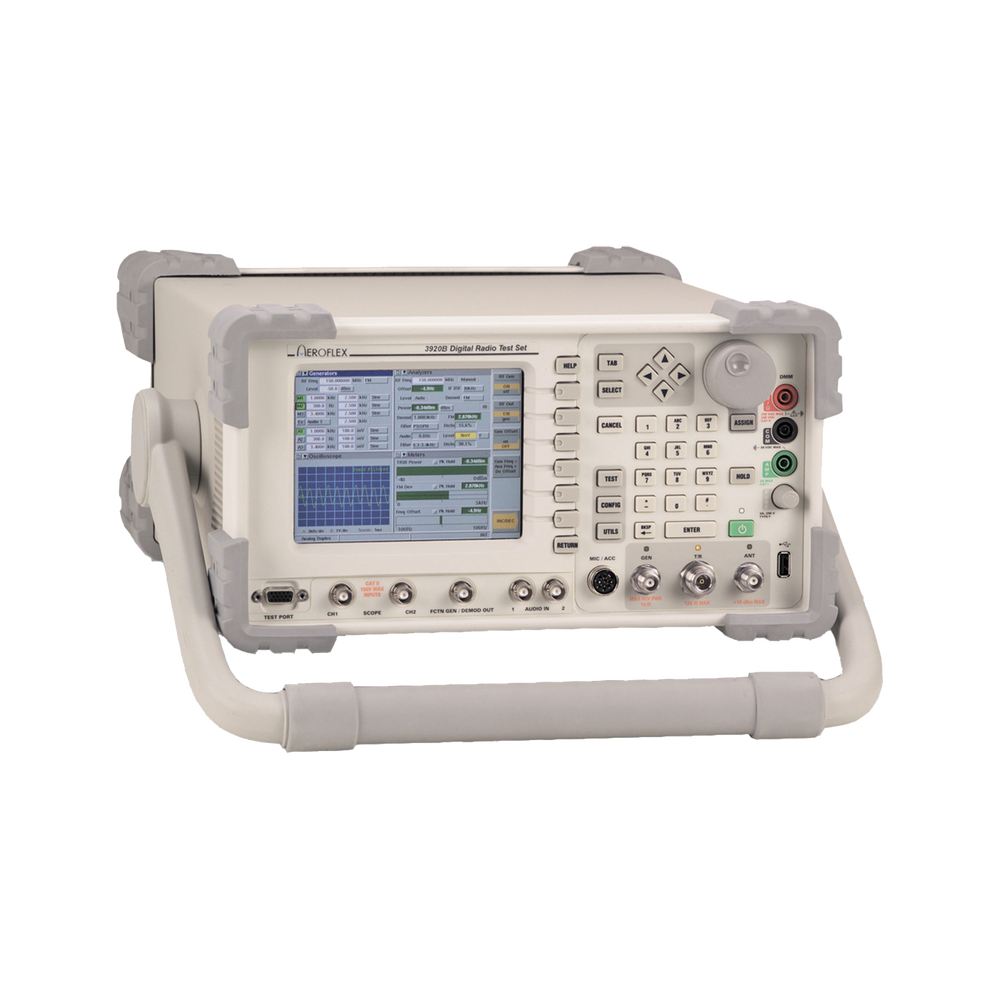

Analog and Digital Systems Analyzer for Laboratory.
COBHAM introduces its latest solution for radio testing in applications of
engineering, production and field.
The 3920B offers a significant improvement in the RF signal generator phase noise specification of -110 dBC/Hz at 10 kHz offset.
The instrument has a wide variety of functionalities for general-purpose analog measurements, as well as advanced digital test options, and incorporates many standard functions, digital personalities, and optional test capabilities.

Standard features of the 3920B include:

• 1 GHz frequency range.
• High performance FM/AM/SSB duplex analog testing capability.
• High-sensitivity receiver with built-in pre-amp for off-air measurements.
• Color-coded pass/fail results.
• DANL spectrum analyzer of -140 dBm (typical) with 8 markers.
• 4 MHz Dual Channel Oscilloscope.
• Complete audio analysis for AF level, frequency, SINAD and distortion measurements.
• 3 high-precision audio function generators/modulators.
• 3 high-precision audio baseband generators.
• Tone decoding/encoding functionality including DTMF, DCS, remote, sequential 2-tone and 5/6-tone.
• GPIB, Ethernet, USB and RS-232 interfaces.
• HP/Agilent 8920B remote emulation.

The 3920B also features additional options such as:

• 2.7 GHz frequency range extension.( 392XOPT058 )
• Spurious and harmonic measurements. ( 390XOPT060 )
• Trace generator. ( 390XOPT061 )
• Audio spectrum analyzer and audio tracking generator (used for simultaneous analog transmission alignment). ( 390XOPT055 )
• IQ Generator for use with IQCreator®. ( 390XOPT054 )
• Conventional P25 operation with advanced protocol/parametric analysis. ( 390XOPT200 )
• P25 trunking operation. ( 390XOPT201 )
• LSM generation/reception analysis. ( 390XOPT204 )
• TDMA P25 Phase II physical layer transmission and reception tests.
• Off Air Monitor for P25 Message Logging/Protocol Analysis Tool.
• AES P25 encryption. ( 390XOPT240 )
• Trunking SmartZone™ and SMARTNET™. ( 390XOPT207 )
• DMR (MOTOTRBO™) testing for mobile and repeater devices.
• DMO and TETRA testing for mobile and base station.
• HPD (High Performance Data) simulation for mobile and base.
• NXDN™, dPMR and ARIB STD T98. ( 390XOPT460 )

Automatic testing and alignment options:

• KENWOOD P25 series TK-5X10, 5X20 and NXDN™ radios.
• Motorola ASTRO®, ASTRO®25 and APX™ series radios.
• EF Johnson ES series radios.
• BK DPHZ5102X series radios.
• Software for TIA/EIA-603 testing on FM land mobile radios.
• MOTOTRBO radios.
• Harris P7300, P5500 and XG-75 series equipment.
• DMR repeaters.
