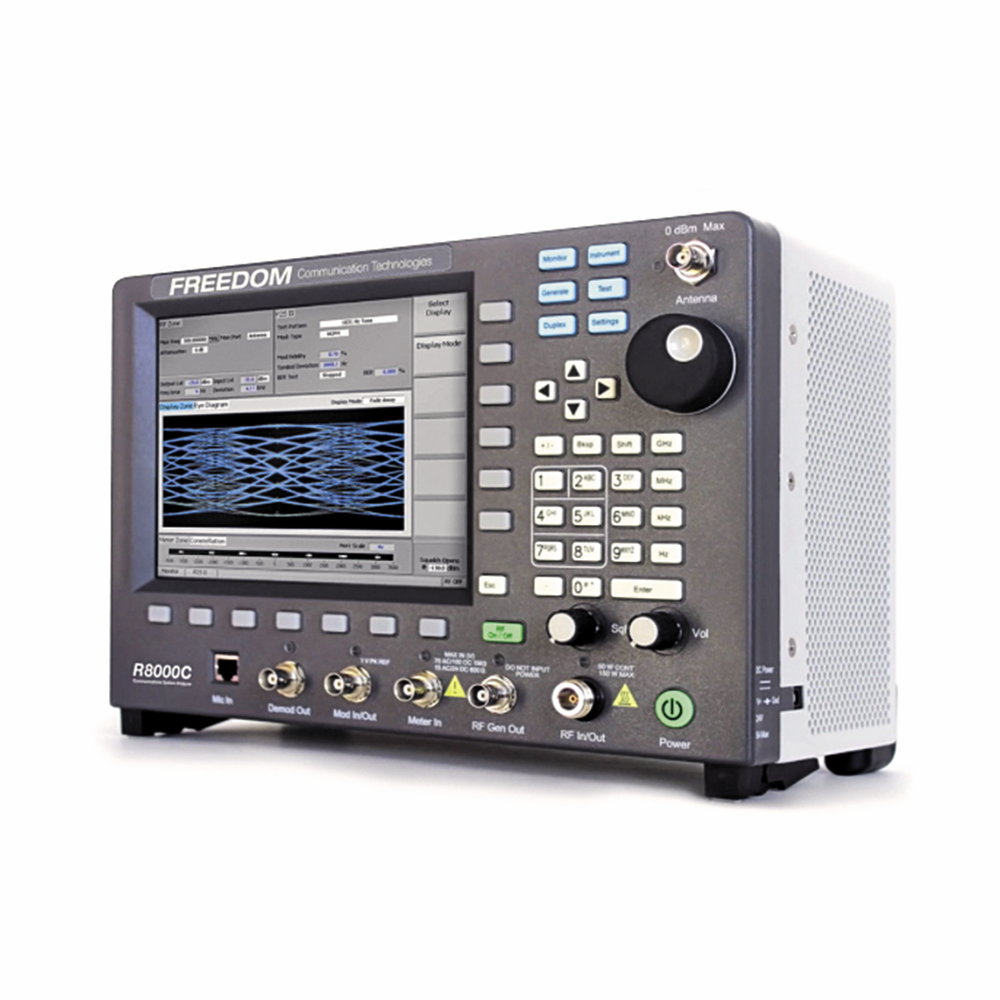

The R8000C is unique in the market, as it has all the features of a communications analyzer in a truly portable , easy-to-use package, combining key navigation and the 'zone' screen segmentation common to FREEDOM Communication Technologies equipment.

• Frequency range: 250 kHz - 1000 MHz (1 GHz).
• Fully Duplex Operation.
• 8.4' (213.36 mm) color LCD display, 800 x 600 (VGA) resolution, viewable under any lighting conditions.
• Spectrum analyzer with noise floor of -120 dBm.
• Power Meter: 50 Watts continuous, 150 Watts maximum.
• AM/FM modulation.
• Includes tracking generator.

Functions and measurement capacity:

• Signal generator.
• High sensitivity signal strength meter.
• SINAD and distortion meter.
• Modulation analyzer.
• Oscilloscope.
• Frequency error meter.
• AM modulation and FM deviation meter.
• Audio frequency generator and controller.
• AC and DC voltage meter.

RECEIVER MODE (Transmitter Test)

• Frequency range: 250 kHz - 1 GHz (250 kHz-3 GHz optional).

RF I/O port.

• VSWR: Less than 1.20:1.
• Maximum continuous power: 50 W for 5 minutes.
• Absolute maximum power: 150 W for 30 seconds.

Antenna Port.

• Maximum power: 0 dBm.
• Alarm: When detecting an input of +10 dBm.

Intermediate Frequency Filters

• 6.25, 12.5, 25, 50 and 200 kHz.

Meters.

• Frequency error, FM deviation, AM modulation, received signal strength, RF power, audio frequency, SINAD, distortion.

TIME BASE

• Output frequency: 10 MHz.
• Stability: Drift: ± 0.01 ppm/year.
• Temperature: ± 0.01 ppm.
• Stabilization time (Warm Up): 3 minutes (within 0.1 ppm).

GENERAL

• Power supply: 24 Vdc @ 5.5 A (includes AC/DC adapter).
• Weight: 6.3 Kg (14 lb).
• Operating temperature: 0 to 50ºC.

Specs:

GENERATOR MODE (Receiver Test).

• Frequency range: 250 kHz - 1 GHz (250 kHz - 3 GHz optional).
• Frequency resolution: 1 Hz.
• Output level (GEN port): -95 to + 5 dBm.
• Output level (Rf port I/0): -130 dBm to -30 dBm.
• Resolution: 0.1 dB.
• Accuracy: ± 1 dB.
• Harmonic emissions: - 20 dBc maximum.
• Non-harmonic emissions: -35 dBc maximum.
• FM Residual Noise: 20 Hz maximum, 300 Hz to 3 kHz.
• AM Residual Noise: 1% maximum, 300 Hz to 3 kHz.

FM Modulation

• Deviation range: 0 to 75 kHz.
• Deviation accuracy: 5%.
• Resolution: 10 Hz.
• Bandwidth: 5 Hz to 20 kHz.

AM Modulation

• Modulation depth: 0 to 90%.
• Accuracy: 5%.
• Resolution: 1%.
• Bandwidth: 100 Hz to 10 kHz.

Signaling.

• 1000Hz Fixed Tone, Dual Tone, CTCSS, DCS, DTMF.
• Audio input: Microphone and BNC.

SPECTRUM ANALYZER

• Frequency range: 250 kHz - 1 GHz (250 kHz 3 GHz optional).
• Frequency resolution: 1 Hz.
• Dynamic range: 80 dB.

Amplitude.

• Accuracy:± 2 dB.
• Vertical scales (dB/div): 1, 2, 5, and 10.
• Reference level resolution: 1 dB.
• Attenuator range: 0 to 50 dB (in 2 dB increments).
• Input range (antenna gate): -120 to 0 dBm.

OSCILLOSCOPE

• Input impedance: 1 Mega Ω / 600 Ω.
• Range: ± 100 Vdc, ± 70 Vrms Vac.
• Maximum frequency: 50 kHz.

*Product on Request.
