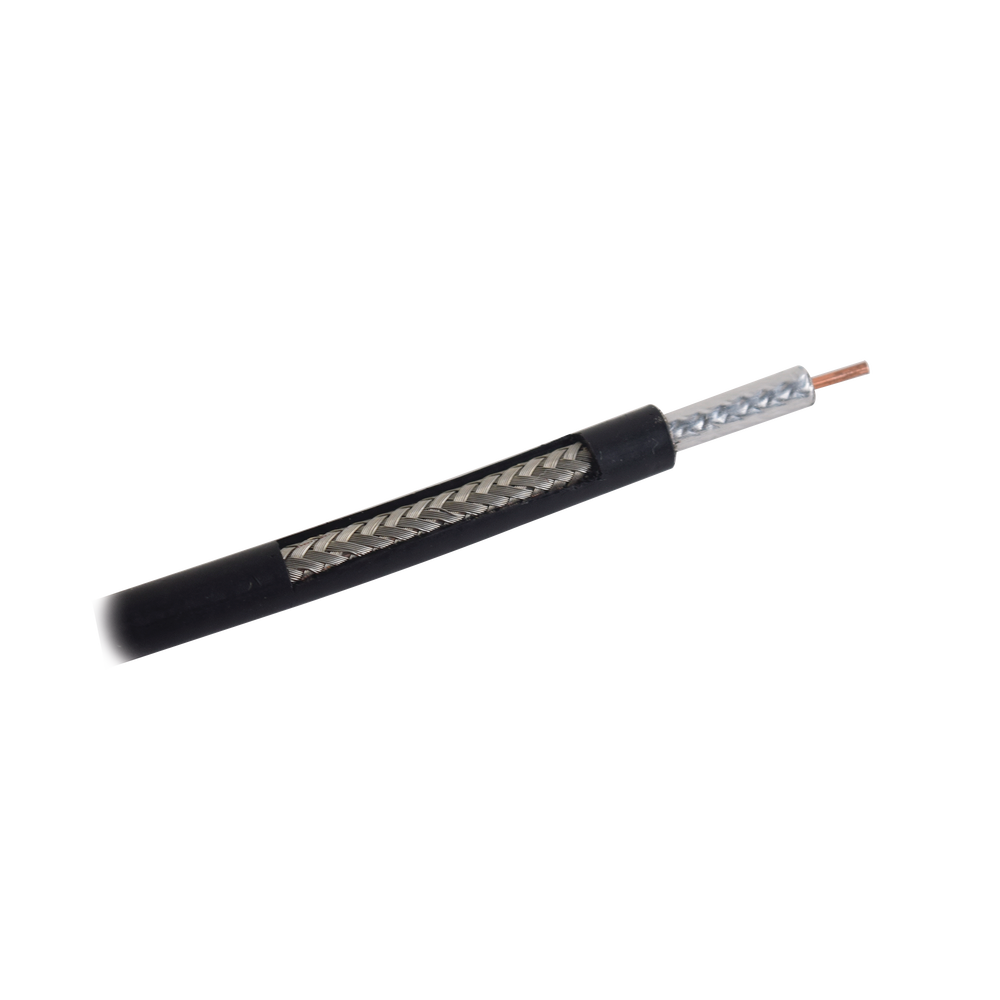

RG-58 LMR-195 Coaxial Cable Meter, Low Loss 50 Ohms, Solid Copper Conductor

RG-58 LMR-195 Coaxial Cable Meter, Low Loss 50 Ohms, Solid Copper Conductor

50 Ohm Coaxial Cable per Meter, Solid Copper Conductor

• High-performance Times LMR coaxial cable.
• Superior design with high flexibility and low loss, recommended for a wide variety of applications requiring a low-loss, easy-to-install RF cable.

Advantages offered by the LMR-195 cable

• Performance similar to that offered by corrugated copper cables.
• Superior flexibility.
• Easier and faster installation.
• Better shielding and lower loss compared to other RG type cables.

Ideal for:

• Short cable installations.
• Jumpers for communication systems.
• Any application such as: radio communication systems, GPS, WiMax, Satellite, RF ID, DAS Systems, Etc.

Technical Specifications

• Impedance: 50 Ohm.
• Attenuation at 30 mts. at 150 MHz: 4.4 dB.
• Attenuation at 30 mts. at 450 MHz: 7.8 dB.
• Shielding Effectiveness: greater than 90 dB
• Speed ​​Factor: 80%.
• Maximum Frequency: 6 GHz.
• Nominal Power: 0.22 kW at 450 MHz.

Construction Specifications

• Center Conductor Material: Solid Copper.
• Cable Outer Diameter: 4.95 mm
• Inner Conductor Diameter: 0.94 mm.
• Shielding: Tinned Copper Mesh.
• Dielectric Insulation: Polyethylene foam.

20 years of service abroad, Solid Copper Conductor, Tinned Copper Braid
