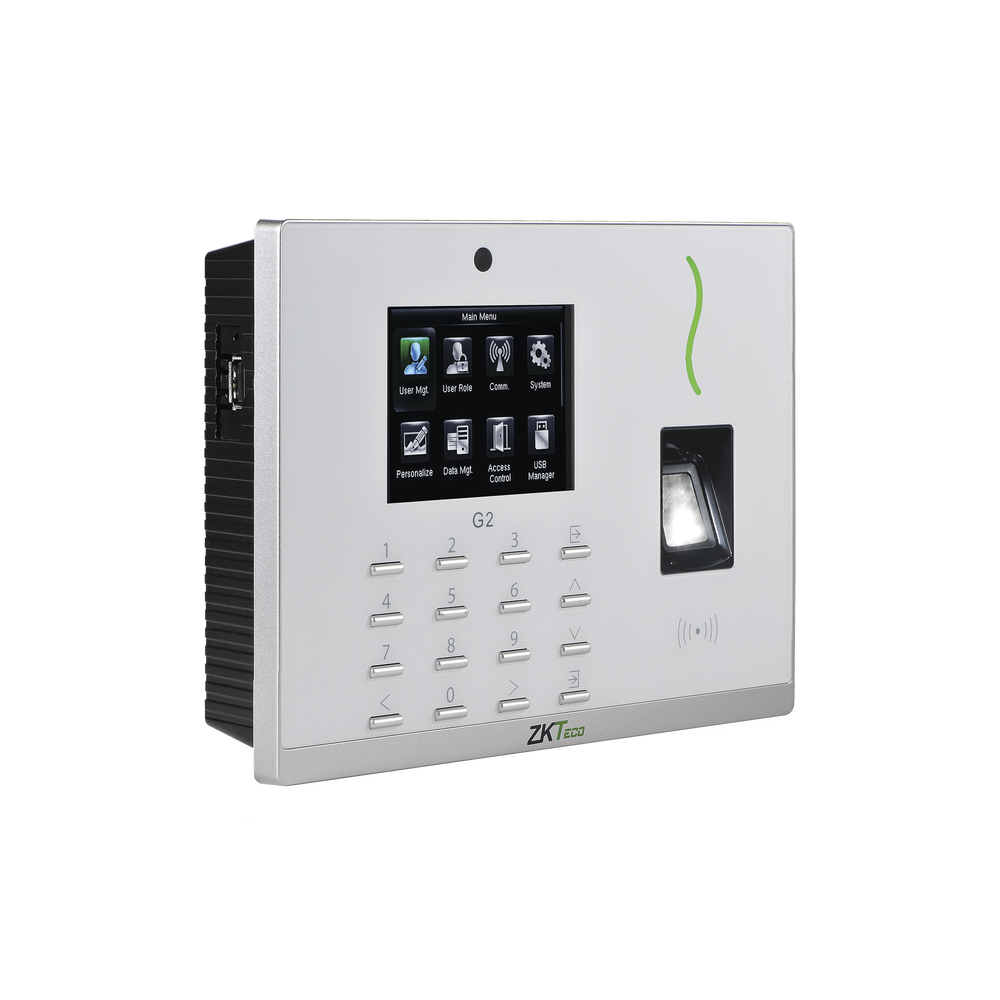

Biometric Reader / 20,000 Fingerprints and Cards / SilkID Sensor / PUSH ADMS / 3.5" Screen / Relay Output

Compatible software:

* User capacity depends directly on the capacity of the biometric.

Grades:
Support is only provided for software supplied with the equipment or provided by SYSCOM, provided it uses the same database engine included. Any other implementation to other software or database versions is the responsibility of the integrator or developer in charge.

Ability

Footprints 20,000 (Standard) 40,000 (Optional)
20,000 cards
Events 200,000

Communication

TCP/IP
USB Host
Wiegand Input/Output

Access Control Interface

Relay for Lock
Alarm Output
Exit Button
Door Sensor
Doorbell Output

Hardware

1.2GHz Dual Core CPU
Memory 128MB RAM / 256MB Flash
SilkID Fingerprint Sensor
3.5' TFT-LCD display
Voice and Hi-Fi Indicator
Tamper Switch Alarm

Standard Functions

Labor Code / WDMS
Daylight Savings Time / SMS / Scheduled Ring
Automatic Status Change
Event Search / User Photo
Anti-Passback
Customizable Screensaver and Wallpaper

Optional Features

HID / MIFARE reader
External Printer
Wi-Fi / 3G

Special Features

Multiple Verification Methods
Live Finger Detection

Additional information

Operating Temperature: 0°c to 45°c
Operating humidity 20% - 80%
Dimensions: 206 x 153 x 42.9 mm
ZKFinger Algorithm v10.0

Energy

Operating Voltage 12VDC
Current consumption < 500mA
Does not include power supply
