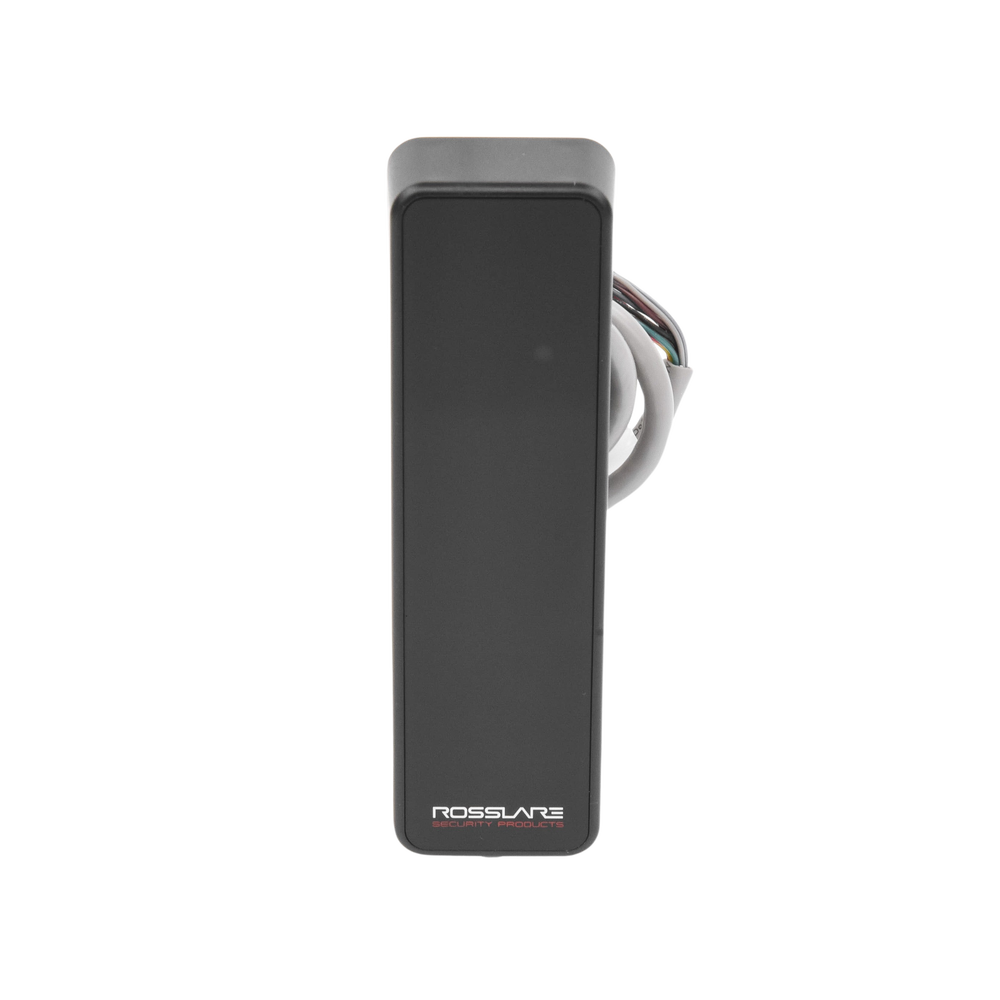

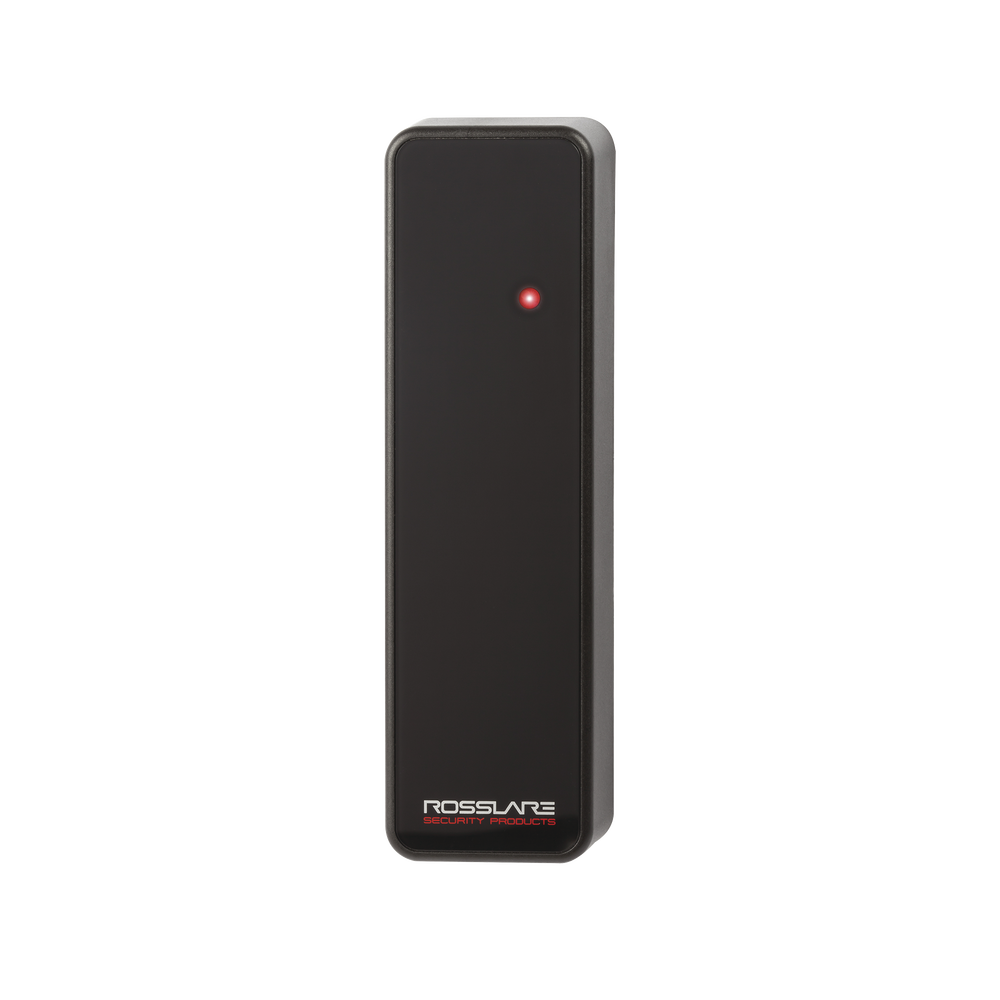

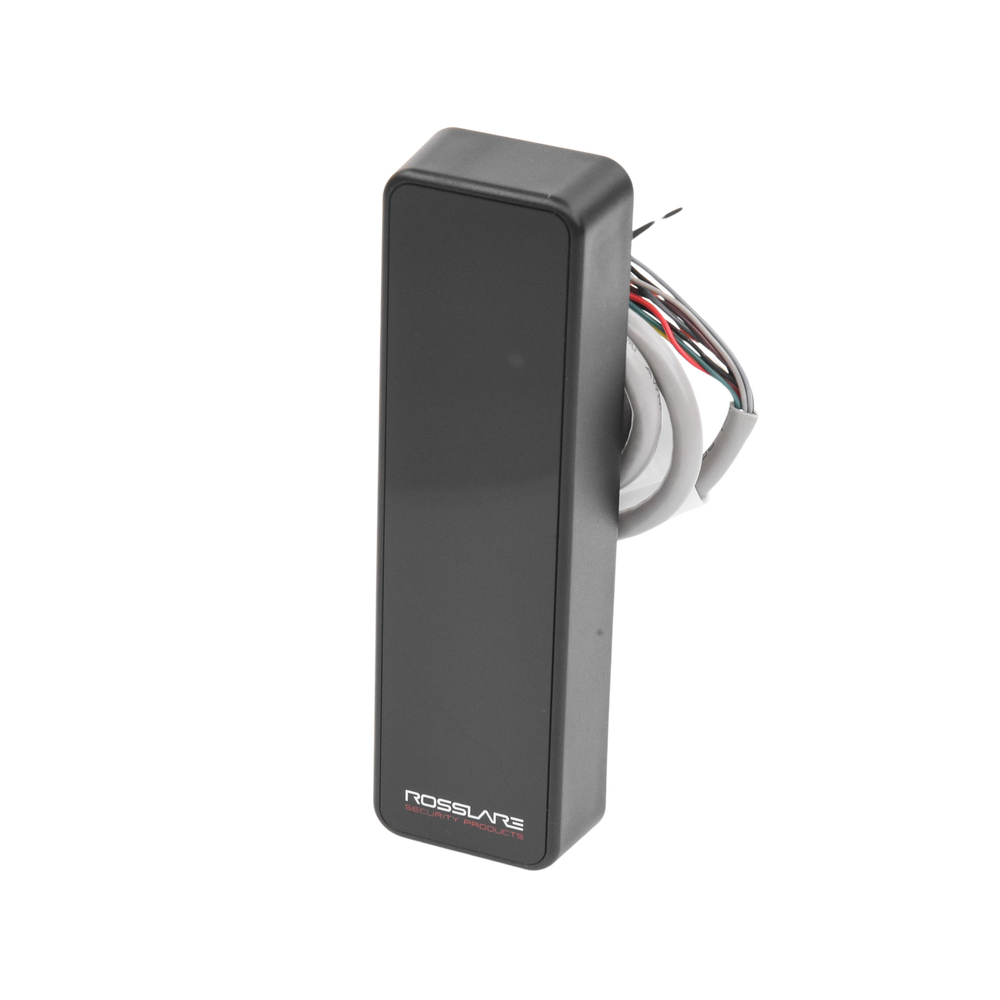

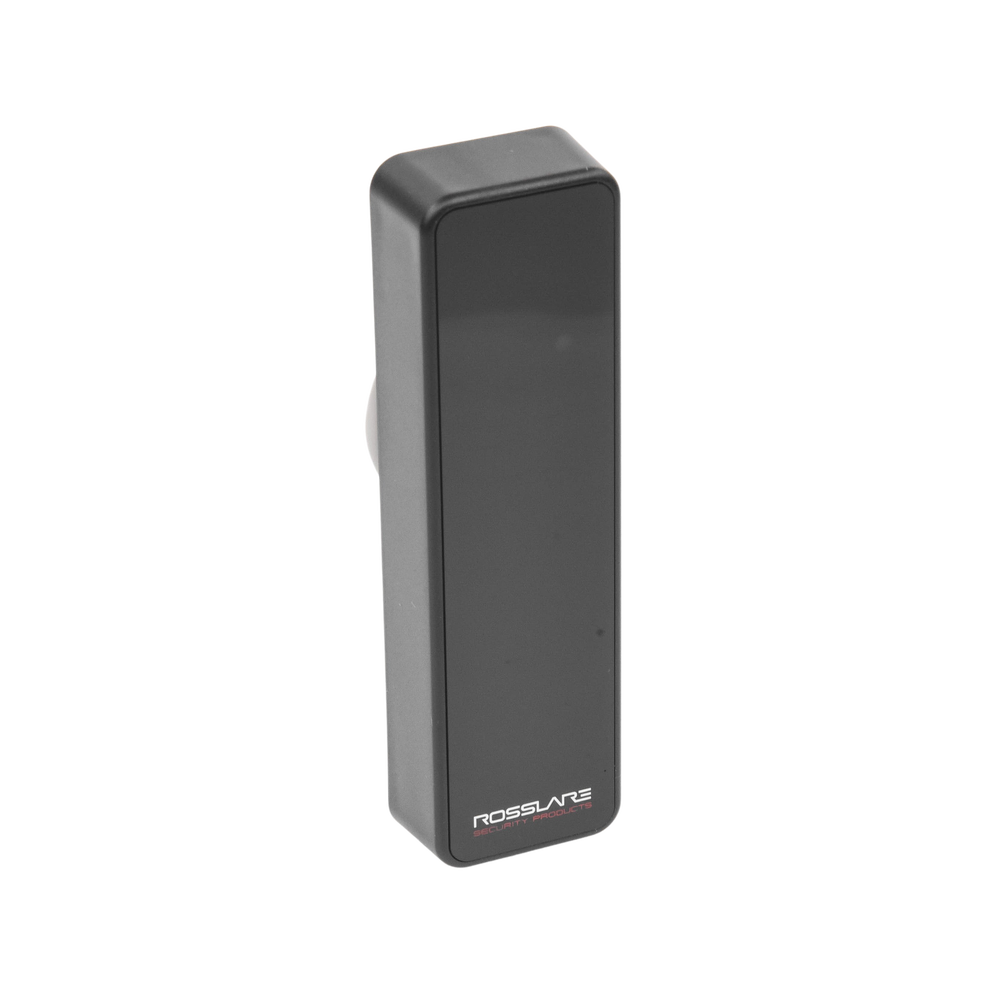

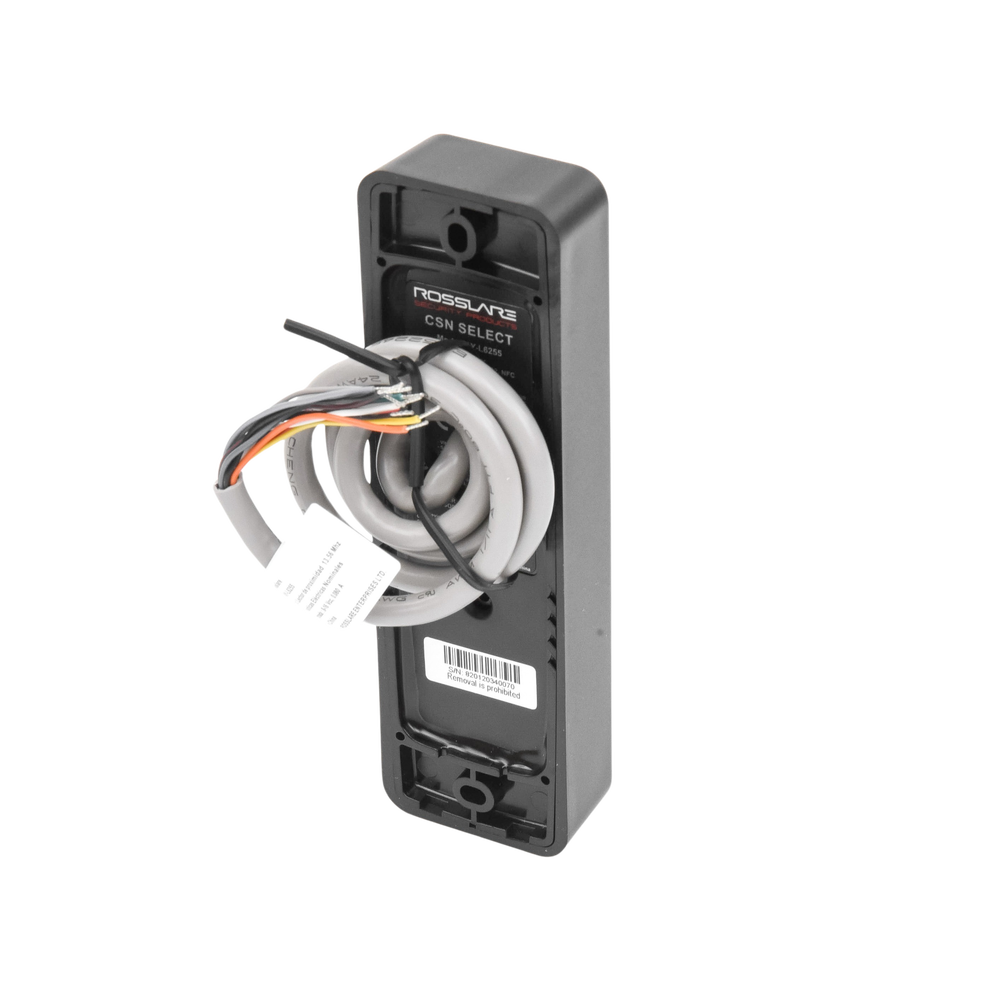

The most powerful Smart Readers are the AY-K/M/H/L/R 6255 series from ROSSLARE, Multi-format for 13.56 MHz credentials, feature multi-format output and excellent read range and use in any environment. Main features of CSN readers
CSN reads the following formats:
MIFARE Ultralight / Ultralight C
MIFARE Classic
MIFARE Plus S / Plus X
MIFARE DESFire EV1
ISO 14443A/ ISO 18092 (NFCIP-1)
ISO 14443B
ISO 15693/Felica/Topaz/iClass
NFC (ask for device compatibility)
Compatible with AC-015, AC-115, AC215, AC-215IPL, AC-225IPL, AC425IPL and AC825
• Reading range 3 cm. • 26-bit Wiegand output. • Requires 5 22 gauge wires (120m max). • Power supply 12 Vdc, 80 mA. • Dimensions 144.9 × 42.9 × 22.1 mm • Weight 126 grms.
