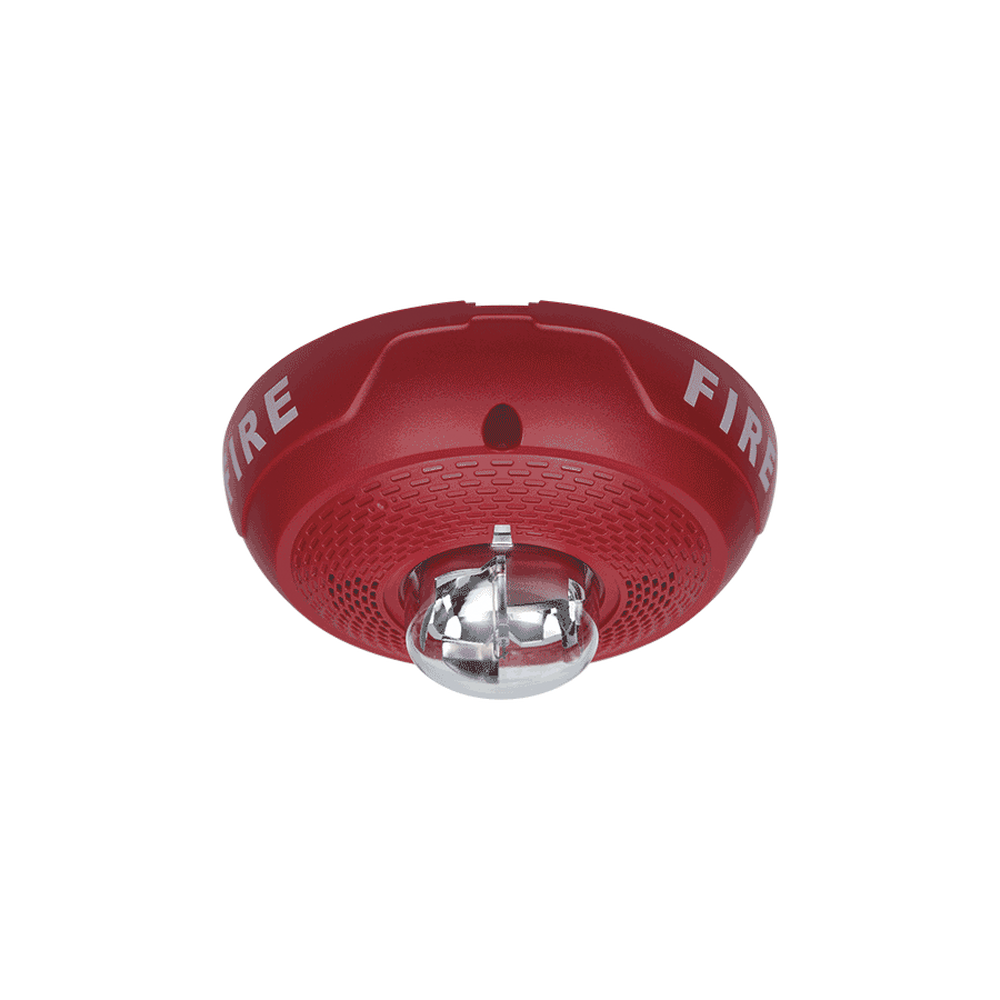

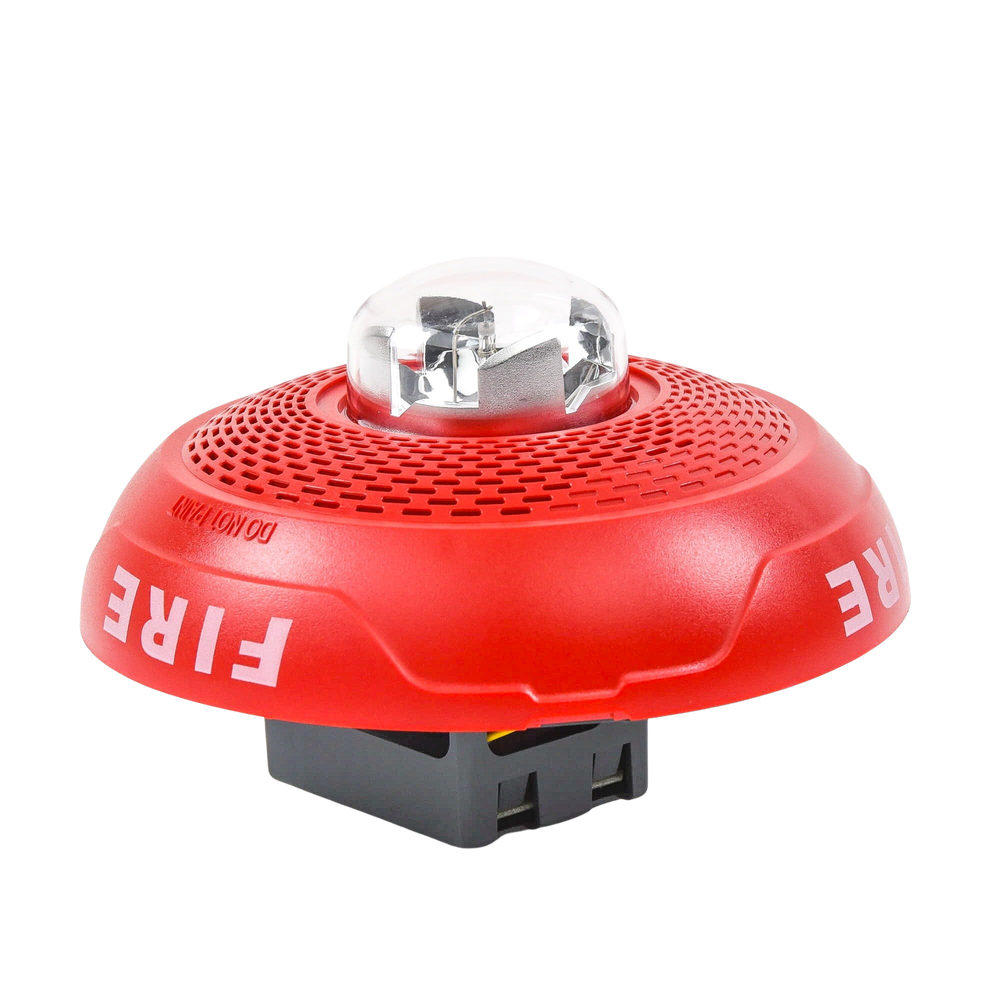

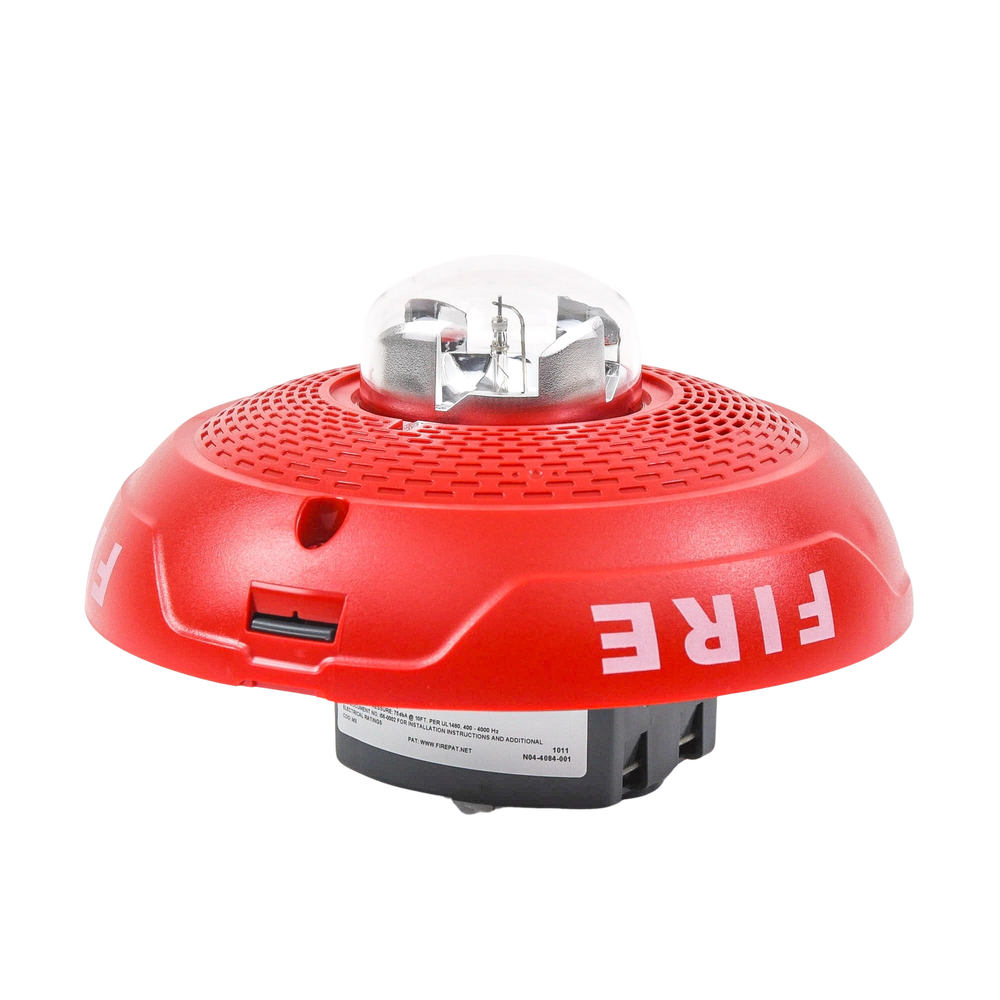

Red Ceiling Mount Strobe Horn with New Modern Elegant Design and Lower Power Consumption

Red Ceiling Mount Strobe Horn with New Modern Elegant Design and Lower Power Consumption

New L Series Indoor Notification Appliances from System Sensor

System Sensor’s new L-Series of notification appliances is a Xenon-based platform that replaces the SpectrAlert Advance product line offering lower current draw, a sleek, modern design, and a smaller footprint. The new L-Series line includes sirens, siren/strobes, bells, bell/strobes, strobes, horns, and horn/strobes along with a variety of accessories including colored lenses. New additions to the portfolio include compact sirens and strobes, ceiling strobes, 8’ speaker with ceiling bridge, as well as bezel kits for alternate dialing.

Enhanced solutions with the new competitive platform include:

Lower cost of ownership

• Up to 38% less current draw on strobe devices reducing the number of power supplies per system
• Option available to use single frame boxes versus double frame boxes

Easily customize devices for emergency communication systems

• Colored lenses and modular marking bezels eliminate difficult-to-apply decals for quick field customization

Quickly add, replace, or upgrade existing systems

• The devices are backward compatible and can share the same circuitry as existing System Sensor SpectrAlert and SpectrAlert Advance notification appliances.
• Standard size devices match the same footprint as SpectrAlert Advance

Simplification when ordering

• Unique version with a wide range of candle power offerings, covering standard and high candle power.

Characteristics:

• Modern and updated aesthetics
• High fidelity and high volume sound output
• Small profile
• Rotary switch simplifies field selection of voltage and power
• Plug-in design with minimal intrusion into the rear box
• Automatic selection of 12 or 24 volt operation at 15 and 30 candela
• Field-selectable candle settings
• Tamper-resistant construction
• Mounting plate for all standard and compact wall units
• The mounting plate's shorting spring checks wiring continuity before device installation
• Compatible with the SpectrAlert and SpectrAlert Advance line of devices
• Compatible with MDL3 synchronization module
• Listed for ceiling mount only
• Standard operating temperature: 0°C to 49°C (32°F to 120°F)
• Humidity range: 10 to 93% non-condensing
• Strobe flash rate: 1 flash per second
• Nominal Voltage (strobe): Regulated 12 DC or regulated 24 DC / FWR1,2
• Operating voltage range (strobe): 8 to 17.5 V (nominal 12 V) or 16 to 33 V (nominal 24 V)
• Operating voltage range (strobe) with MDL3 Sync Module: 8.5 to 17.5 V (nominal 12 V) or 16.5 to 33 V (nominal 24 V)
• Nominal Voltage (horn): 25 or 70.7 Volts
• Input terminal for wire gauges: 12 to 18 AWG
• Frequency range: 400 to 4000 Hz
• Power: ¼, ½, 1, 2 watts
• Dimensions: 6.8' Diameter x 2.8' Depth (173 mm Diameter x 73 mm Depth)
