IP Managed Panel with Remote Power Control, 12 and 24 VDC Applications.

IP Managed Panel with Remote Power Control, 12 and 24 VDC Applications.

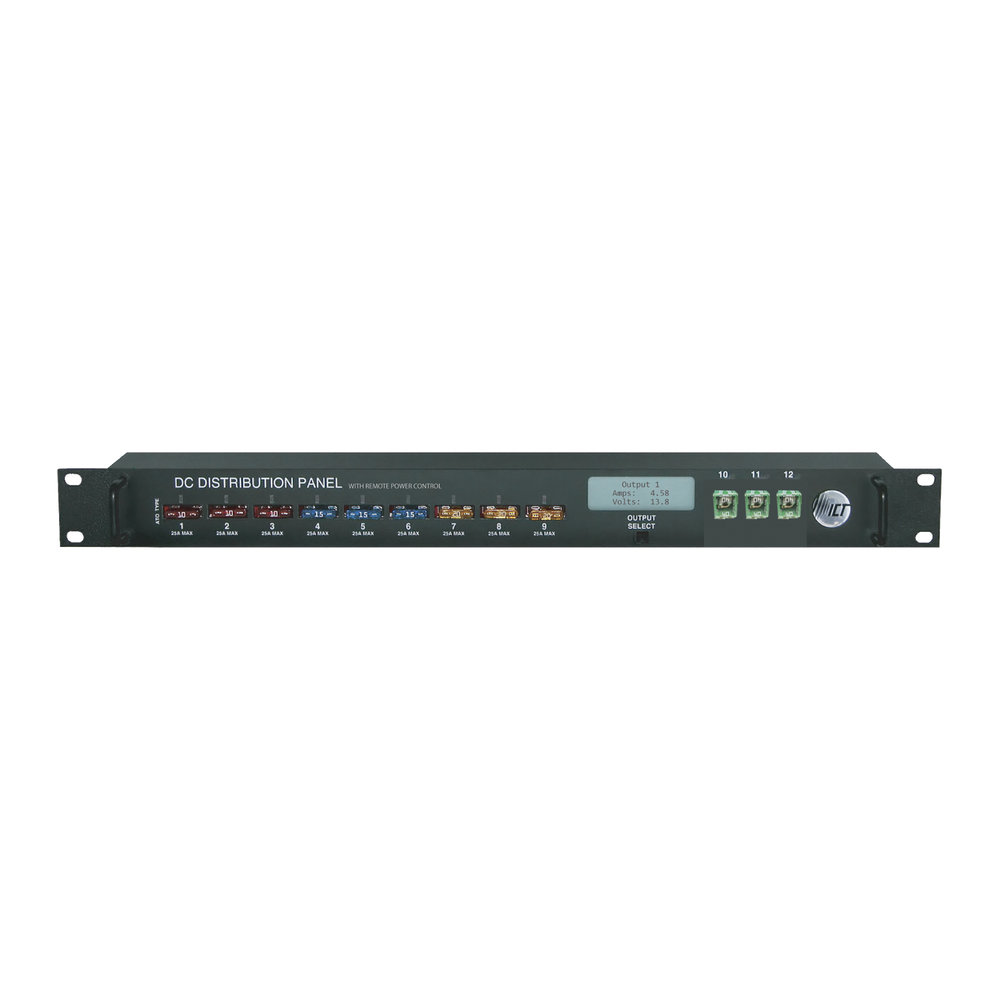

The ICT Series 2 Smart Distribution Panel allows you to connect up to 12 loads to a single power source. Avoid unnecessary trips to installation sites thanks to its monitoring and remote control features.

Remote Monitoring

Using the network port and the included management software, it allows the user to remotely monitor the panel's condition, voltage and current, as well as the consumption of each outlet in real time, which can be very useful for identifying possible faults in connected equipment such as radios, repeaters, amplifiers, etc.

Remote Power Control via Ethernet

It allows you to remotely and individually turn on or off each of the panel's outputs via the Ethernet connection. This allows you to turn your equipment on, off, or restart it in the event of a fault or maintenance.
Additionally, it has a "Watchdog" function, which pings a specific IP address to specifically reboot special devices such as routers to avoid loss of communication.

General Characteristics

• 12 output circuits protected by individual fuses, 9 outputs with ATO type fuses and 3 outputs with JCASE type fuses.
• Operating voltage range: 12-30 VDC.
• Peak current for the panel: 180 A
• Continuous current for the panel: 150A
• 25A (Max) ATO fuses.
• JCASE 40A (Max) fuses.
• LED indicators and alarm contacts for fault detection.
• 1RU design for maximum space savings in 19-inch racks.
