Linear Power Supply Type Printed Circuit for 6, 12, and 24 VDC with Battery-Based Backup Capacity.
AL624

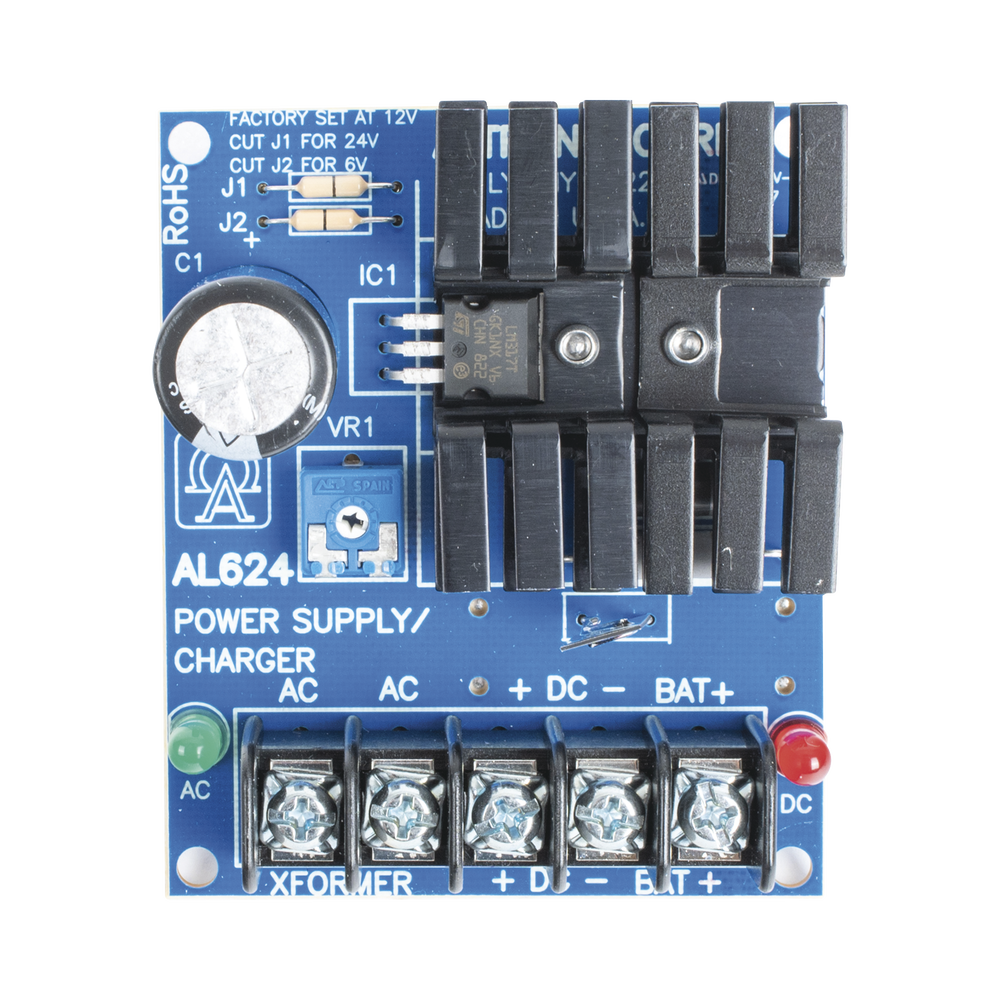

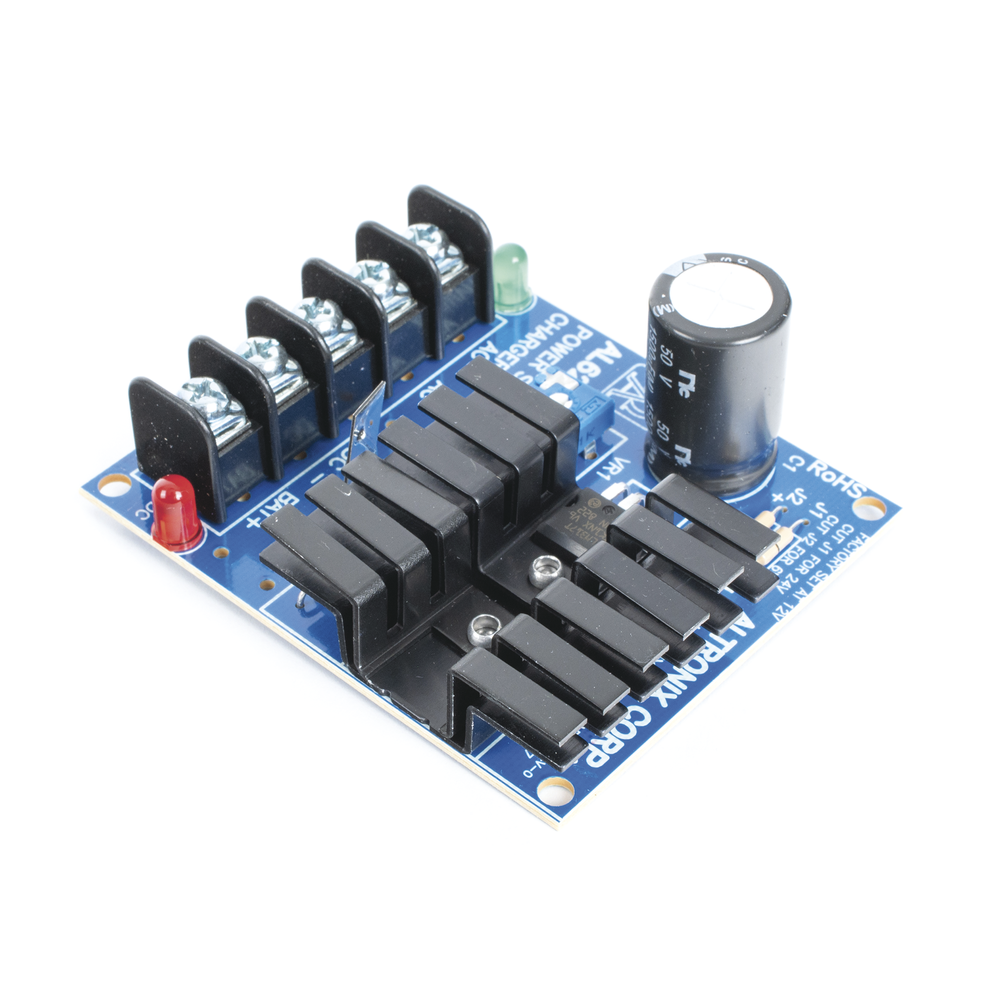

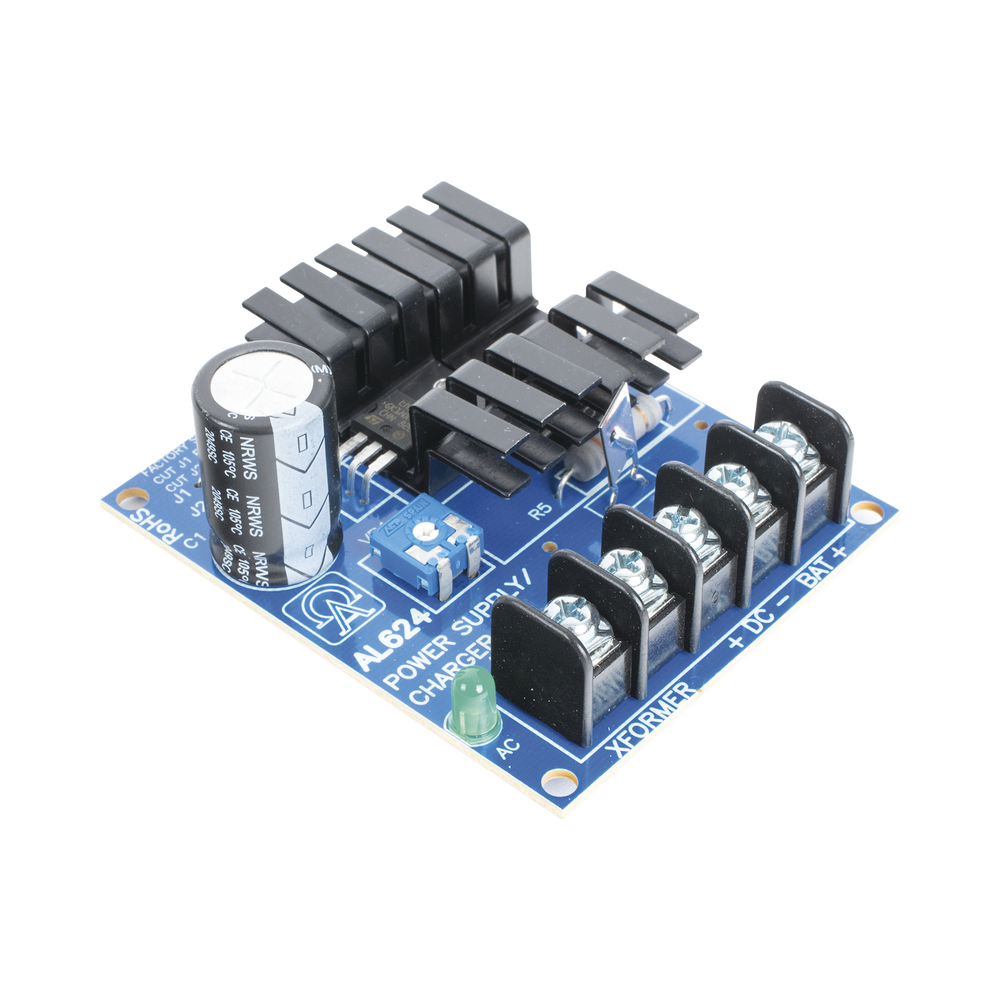

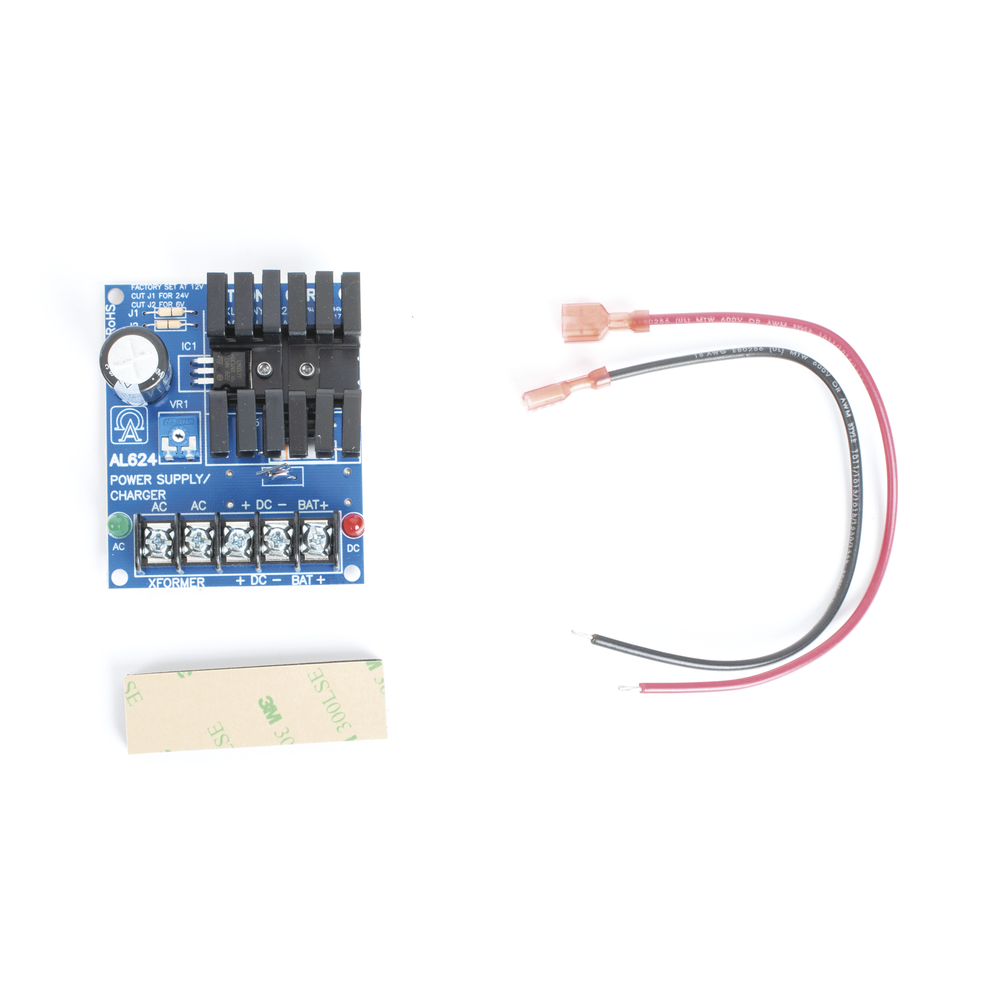

Linear power supply charger, single class 2 output, 6/12/24 VDC at 1.2 A, 16 to 24 VAC, board
The Altronix AL624 power supply/charger converts a low-voltage AC input to a 6V DC, 12V DC, or 24V DC output. This general-purpose power supply has a wide range of applications for access control accessories, security, and CCTV systems that require additional power.
Main Features:
- Selectable output of 6VDC, 12VDC or 24VDC
- Supply current of 6VDC or 12VDC @ 1.2A or supply current of 24VDC @ 0.75A.
- Power input of 16 Vac of 40 VA, 24 Vac of 20 VA or 40 VA (not included).
- Requires 16 Vac to 24 Vac input transformer
Physical and Electrical Characteristics:
- Dimensions: (63.5 mm wide x 76.2 mm long x 38.1 mm high).
- Operating Temperature: 0°C to 49°C (32°F to 120°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Product Weight: 0.1 lbs. (0.05 kg).
- Shipping Weight: 0.15 Lbs. (0.07 kg).
Highlighted Features:
- AC input and DC output LED indicators.
- Extremely compact design.
- Protection against short circuits and thermal overloads
- Input transformer compatible with RT1640, RT2420 and RT2440.
Out of stock
MODELO: AL-624
