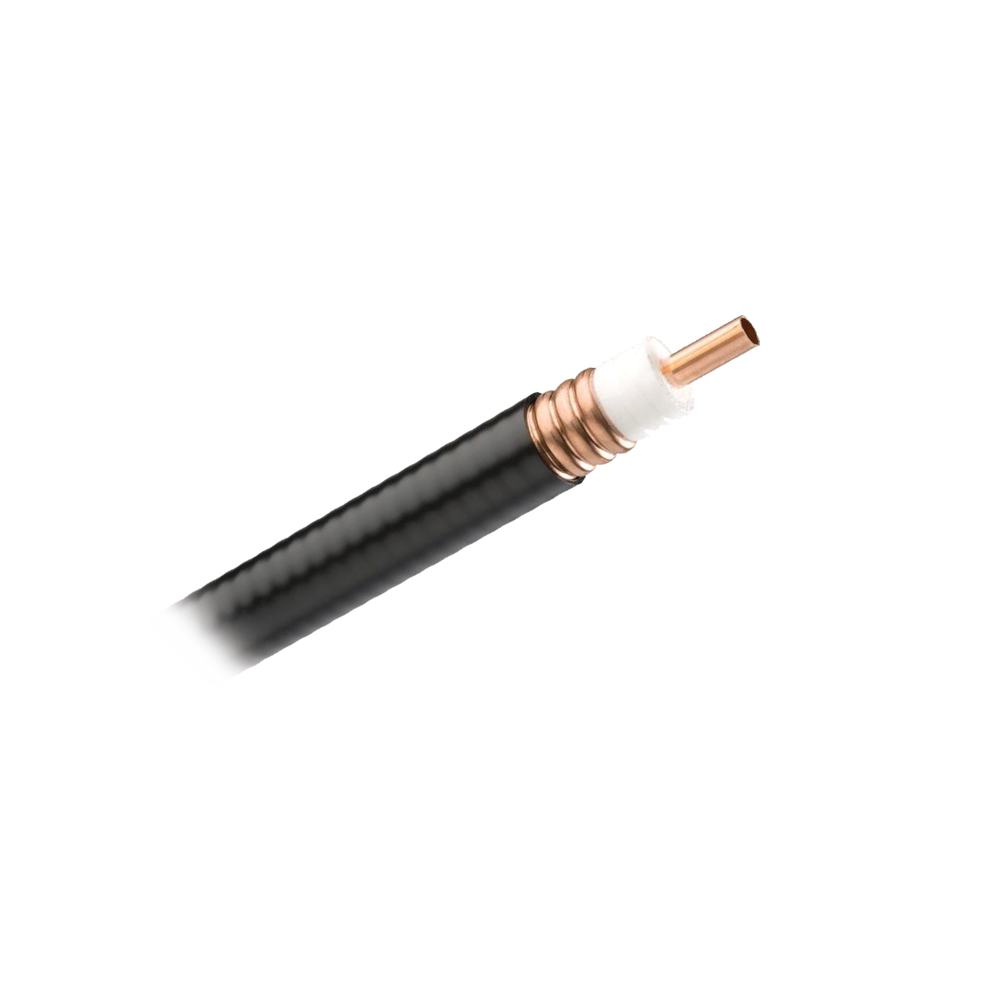

7/8" HELIAX coaxial cable. Corrugated copper, 100% shielded.

7/8" HELIAX coaxial cable. Corrugated copper, 100% shielded.

• Impedance: 50 Ω.
• Outer Diameter: 28.13 mm.
• Speed ​​Factor: 91%.
• Attenuation at 30 meters UHF 450 MHz: 0.778 dB.
• Attenuation at 30 meters UHF 800 MHz: 1.06 dB.
• Internal Conductor Diameter (mm): 9.44
• Insulation: Low density dielectric foam.
• Shielding: 100% solid corrugated copper.
• Weight per Meter (Kg): 0.45

*PRICE PER METER*

Differences against the AVA550FX

Hollow central connector.

Weight 0.45 kg/m | 0.302 lb/ft

Operating temperature -55 °C to +85 °C (-67 °F to +185 °F)

Storage temperature -70 °C to +85 °C (-94 °F to +185 °F)

Speed ​​91%

Central connector resistance 1,435 ohms/km | 0.437 ohms/kft

External connector resistance 1,116 ohms/km | 0.34 ohms/kft

Hollow center connector
