MIKROTIK

(PowerBox Pro) Outdoor router 5 Gigabit ports, PoE 802.3af/at

Name: (PowerBox Pro) Outdoor router 5 Gigabit ports, PoE 802.3af/at
Brand: MIKROTIK
SKU: RB960PGS-PB
Price: 611613.00 COP
Availability: InStock

$611.613 COP

~~$668.952 COP~~ $611.613 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

(PowerBox Pro) Outdoor router 5 Gigabit ports, PoE 802.3af/at

PowerBox Pro

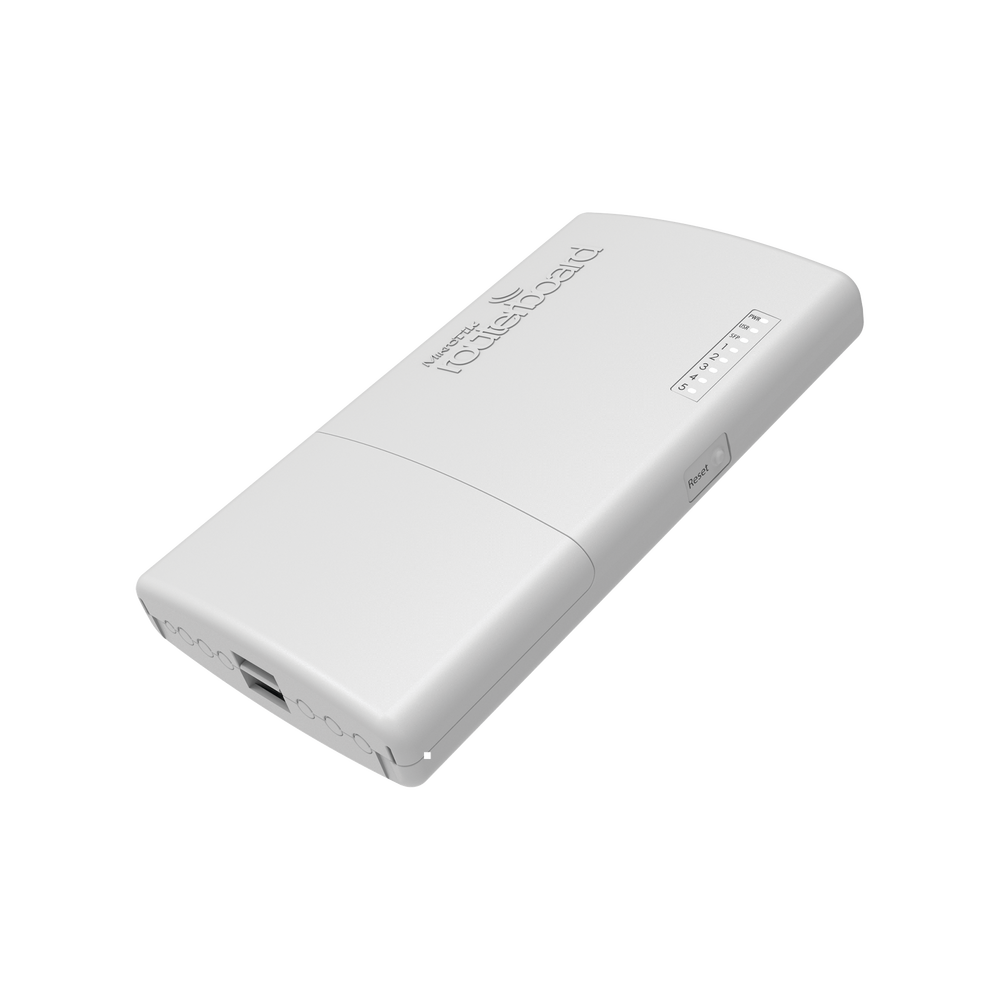

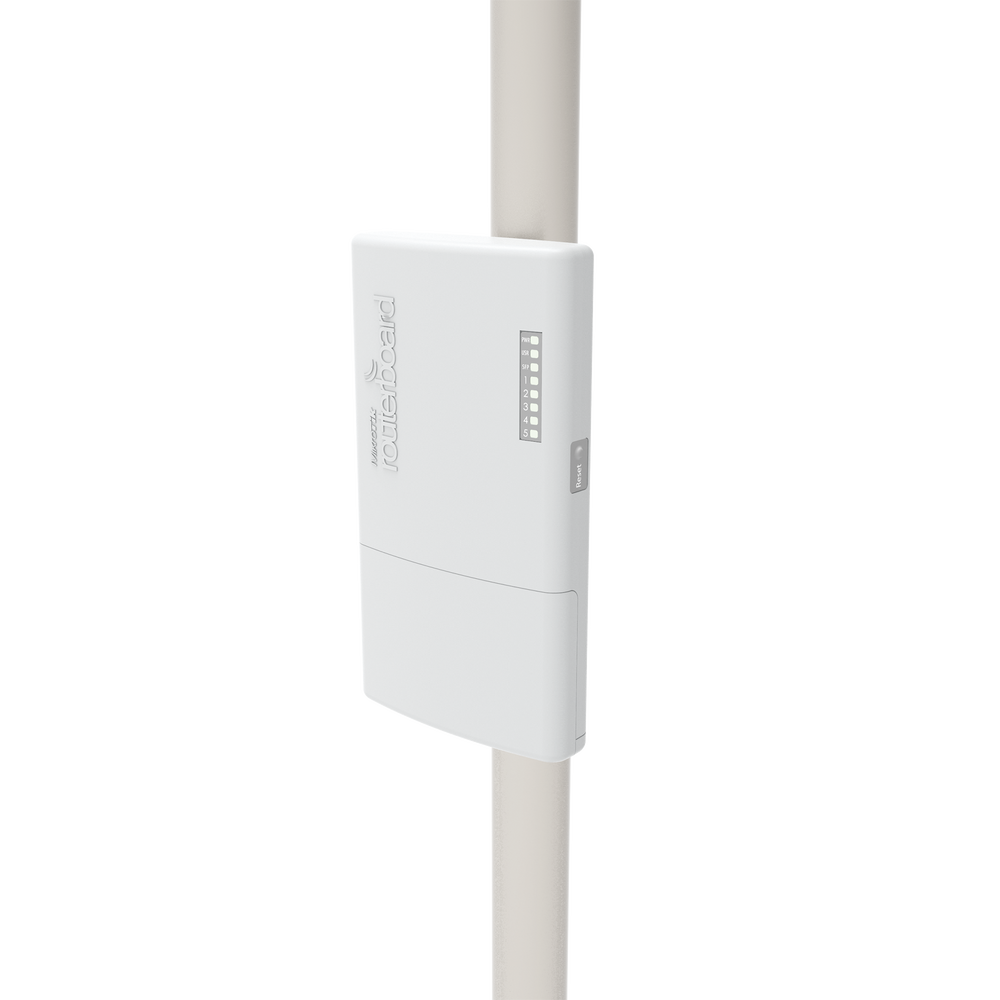

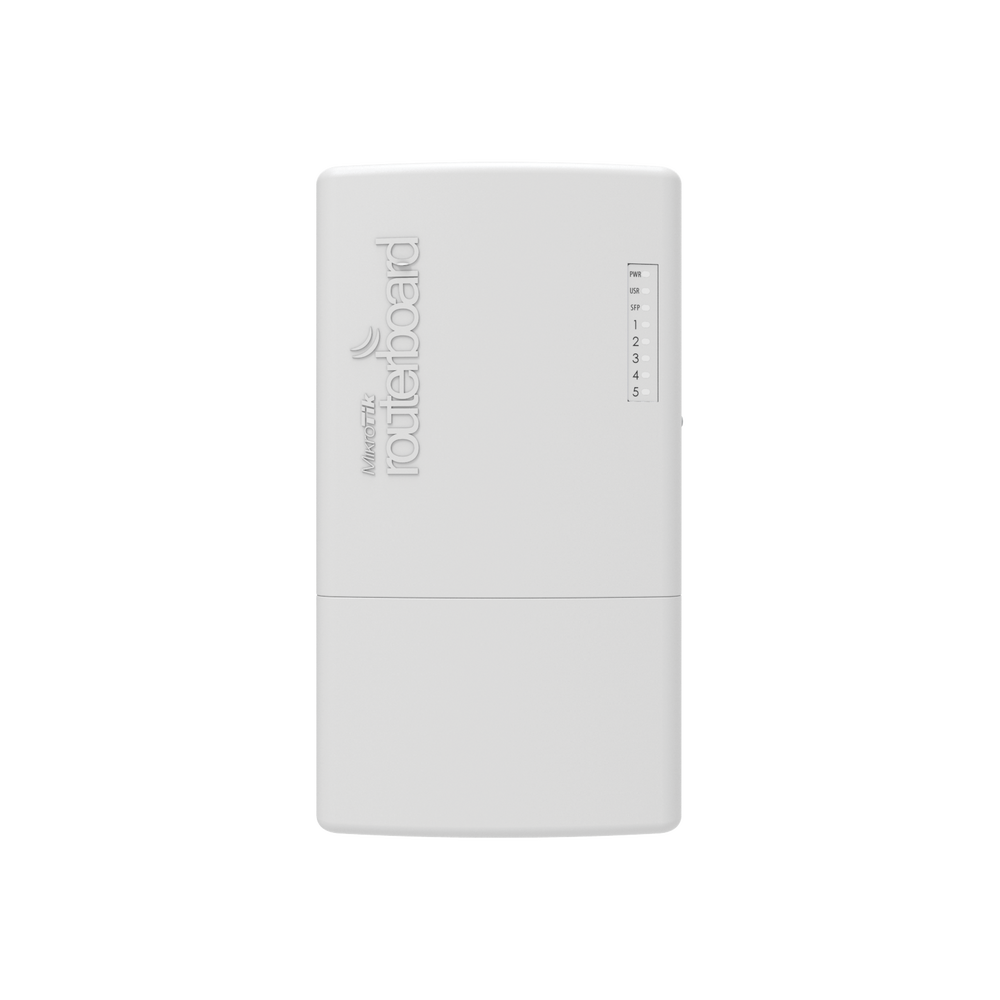

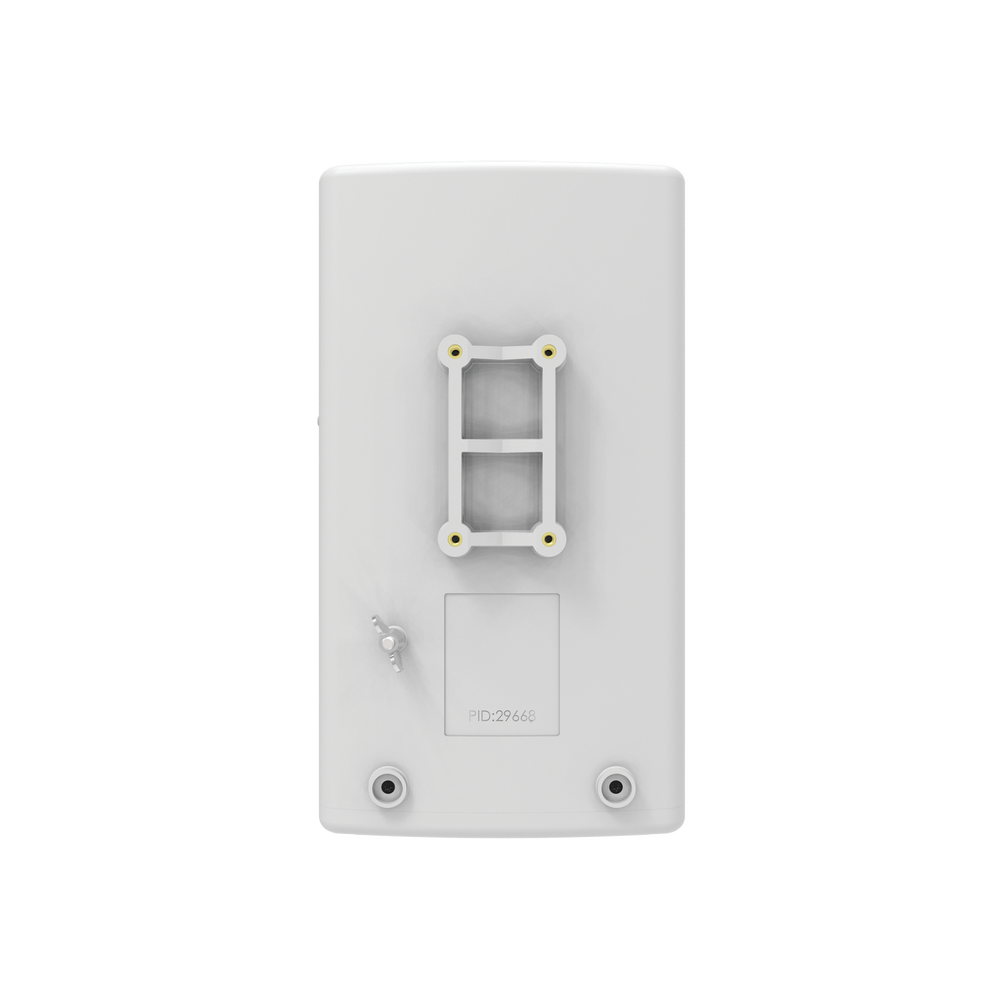

The PowerBox Pro is a five-port Gigabit Ethernet router with PoE on four ports. Because the device has a weatherproof outdoor housing, it can be mounted on a tower or in other outdoor locations.

It also supports standardized 802.3at/af PoE and passive PoE input/output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage applied to the unit. Fewer power adapters and cables to worry about! 802.3af/at Mode B compliant devices can be powered using a 48-57 VDC input voltage.

The device has an SFP port for adding fiber optic connectivity. It's affordable, small, and easy to use, yet comes with a very powerful 800 MHz CPU, capable of all the advanced configurations that RouterOS supports.

Important Note: When using the 48 ~ 56 V source, it will only power 802.3af/at devices.

*1 year warranty.

Main features of RouterOS

General Specifications

Details
Product Code	RB960PGS-PB
Architecture	MIPS-BE
CPU	QCA9557
Number of CPU cores	1
CPU frequency	800 MHz
Dimensions	125 x 52 x 225 mm
License Level	4
Operating System	RouterOS
RAM memory	128 MB
Storage	16 MB
Storage type	FLASH
Operating temperature	-40°C .. +70°C

Feeding

Details
Energy consumption	9W
Power supplies	2 (DC jack, PoE-IN)
PoE power type	Passive PoE
Jack input voltage	12-57 V DC
PoE input voltage	12-57 V DC
PoE output	802.3af/at requires 48-57 V DC power supply

Ethernet

Details
Ethernet ports	5 x 10/100/1000 Mbps

Optical fiber

Details
SFP port	1

Others

Details
PCB Temperature Monitor	Yeah
Voltage Monitor	Yeah

Ethernet Test Results

RB960PGS-PB		QCA9557 (800Mhz) 1G all port test
Mode	Configuration	1518 bytes		512 bytes		64 bytes
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	161.9	1,966.1	401.5	1,644.5	542.3	277.7
Bridging	25 bridge filter rules	143.2	1,739.0	145.5	596.0	146.2	74.9
Routing	none (fast path)	161.9	1,966.1	396.3	1,623.2	521.7	267.1
Routing	25 simple queues	161.9	1,966.1	217.2	889.7	216.0	110.6
Routing	25 IP filter rules	74.6	905.9	78.0	319.5	76.5	39.2

All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
