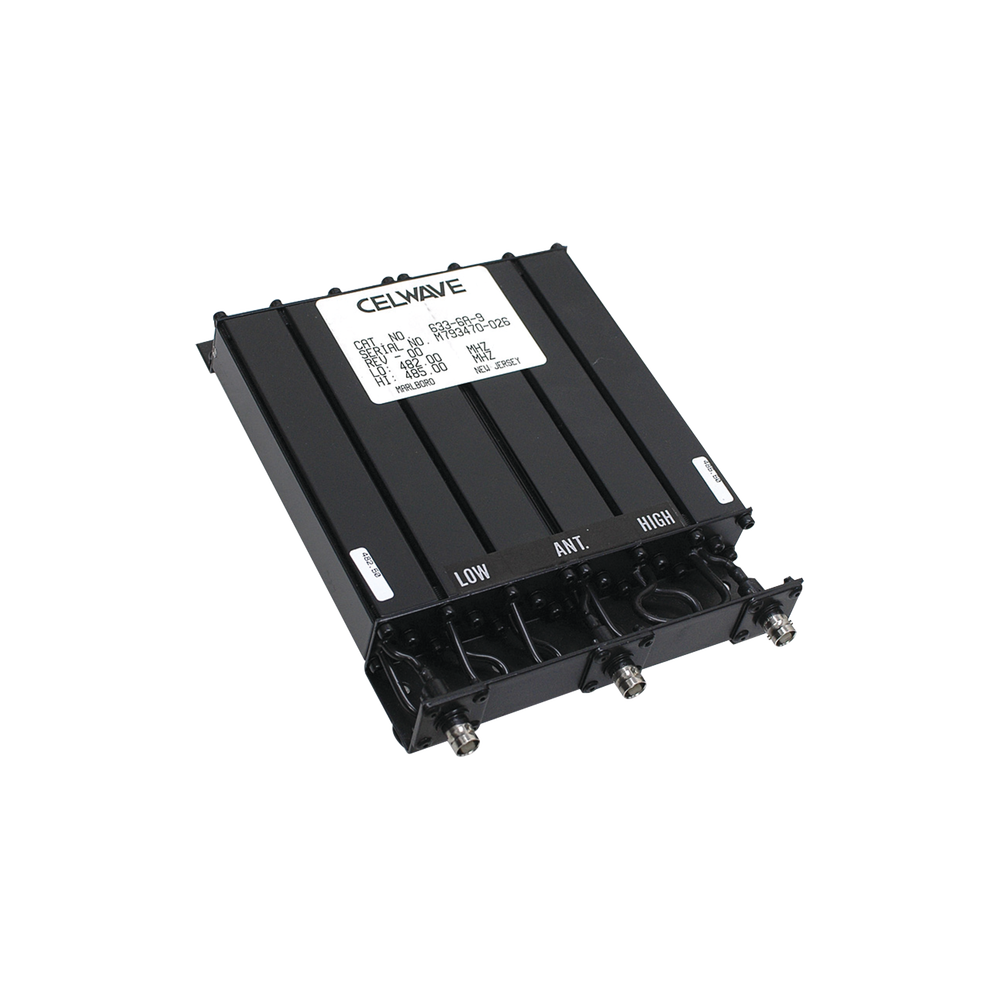

Compact Band Rejection Duplexer, 406-450 MHz , 6 cavities, 50 Watt.

• Frequency separation from 4.5 to 8 MHz.
• Maximum insertion loss of 1.2 dB.
• Maximum input power of 50 W.
• Isolation between Tx-Rx of 80 dB.
• Minimum frequency shift due to temperature changes.
• Silver-plated copper resonators.
• Teflon insulation (UHF).
• Semi-rigid cables reduce insertion loss.
• Shielding with Iridium Aluminum cavities.
• BNC Female connectors with N Female option upon special request.

*Ask for availability.
