EPCOM POWERLINE
Aluminum mounting kit for a concrete roof or floor for a 2 x 4 40mm thick photovoltaic module array
Aluminum mounting kit for a concrete roof or floor for a 2 x 4 40mm thick photovoltaic module array
Regular price
$3.856.469 COP
Regular price
$4.218.013 COP
Sale price
$3.856.469 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

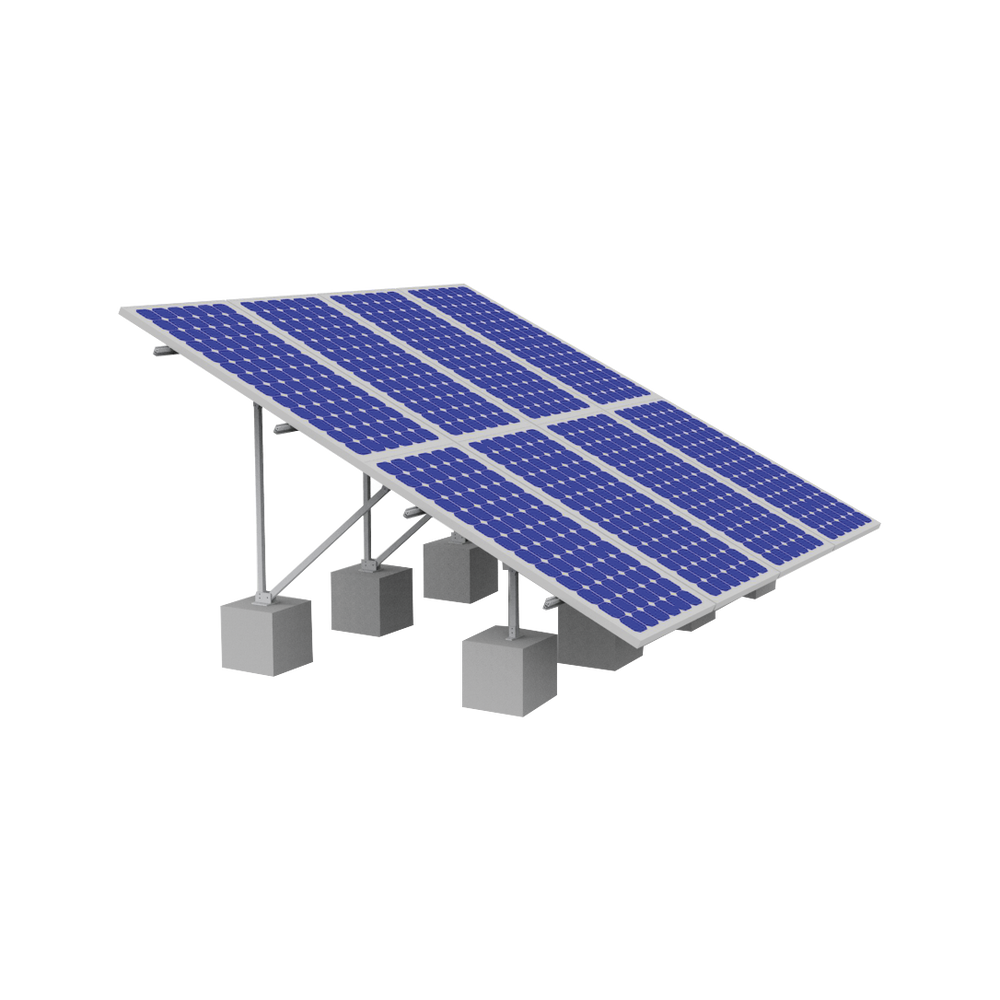

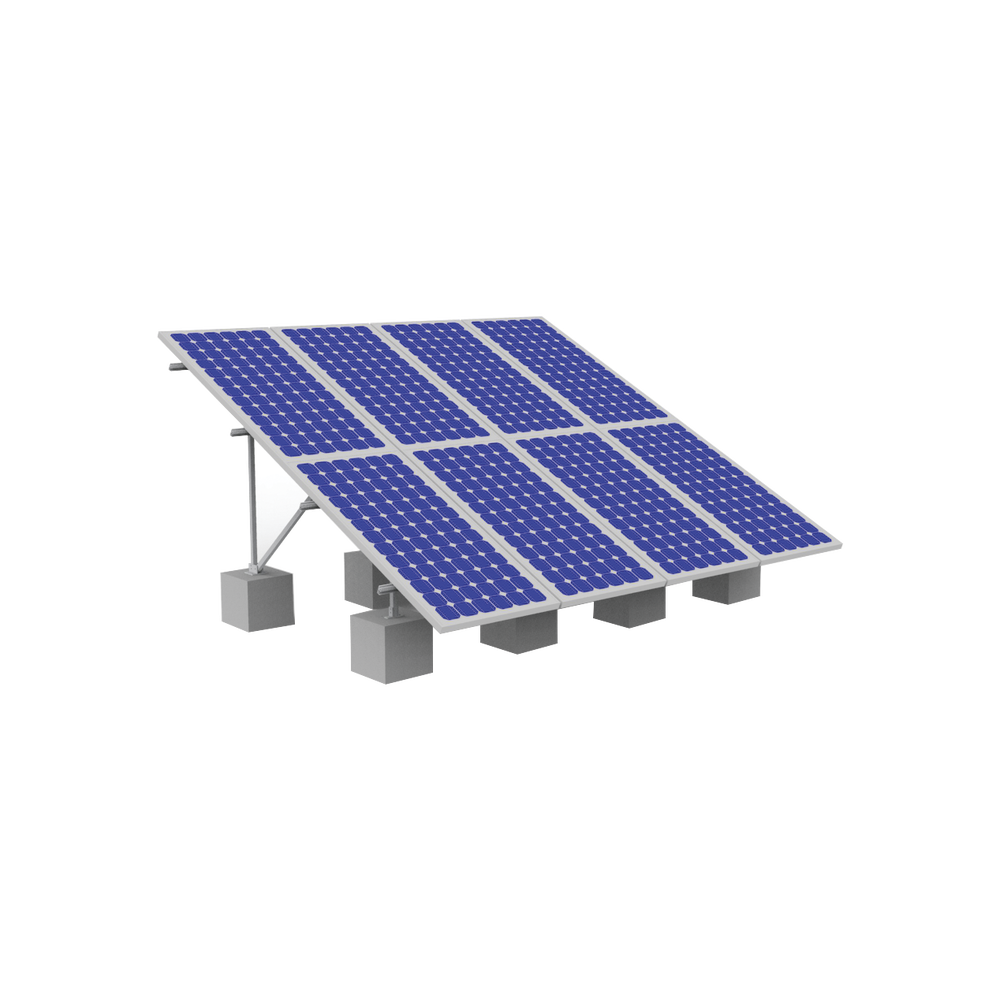

Aluminum mounting kit for a concrete roof or floor for a 2 x 4 40mm thick photovoltaic module array
Roof or concrete floor mounting kit for 8 photovoltaic modules (2x4) 1956 x 992 x 40mm
-For arrangement of 2x4 photovoltaic modules.
- Inclination 25 °
- Max wind speed 42 m/s
-Recommended photovoltaic module dimensions: 1956 x 992 x 40mm model TSM-320-PD14 (320W), TSM340DE14A(II) (340W). Not included
Note: For 40mm thick photovoltaic modules
Includes:
| COMPONENT | DESCRIPTION | COMPONENT QTY |
| EPL-SR7-2100 | Rail 7 (2100 mm) | 8 |
| EPL-FF2-A120 | A120 Support Fixer | 4 |
| EPL-SL1-A2990 | Main tube 2990 mm | 4 |
| EPL-SL1-A1210 | Support Tube 1210 mm | 4 |
| EPL-SL1-A400 | Front post 400 mm | 4 |
| EPL-SL1-A1275 | Rear post 1275mm | 4 |
| EPL-FF-U45 | U connector | 12 |
| EPL-FF-A40 | A40 bracket fixer | 4 |
| EPL-BOLTS-65 | (EPL-DIN912) Screw M8X65 | 32 |
| EPL-BOLTS-55 | (EPL-DIN912) Screw M8X55 | 12 |
| EPL-M8-FLAT Washer(SS304) | (EPL-M8) Flat washer M8 | 44 |
| EPL-M8-SPRING | (EPL-M8) Pressure washer | 44 |
| EPL-M8-NUT | (EPL-M8) M8 Nut | 44 |
| EPL-LFG2-03 | L bracket | 16 |
| EPL-SCG2-01 | Connector for splicing | 4 |
| EPL-ECG2-40 | End fastener (40mm) | 8 |
| EPL-MCG2-40 | Intermediate Fastener (40mm) | 12 |
| EPL-ES-10 | M10 expansion screw | 24 |
| EPL-ELG2-01 | Grounding connector | 4 |
| EPL-GC-01 | (EPL-GC2-01) Grounding Clip | 12 |
Note: This assembly does not include the photovoltaic modules.
Equipment on request
Share
Out of stock
MODELO: EPL-GM01-2X4
