e501S Outdoor Sector

802.11ac
Standard + MESH 256
Sectoral users
90-120º Controller
gratuitous

MANAGEMENT IN cn-MAESTRO Comprehensive management of the entire network for inventory management, device onboarding, daily operations, maintenance, configuration, and provisioning, as well as ticket and/or voucher creation, time and bandwidth control, and a captive portal.	DESIGNED FOR HIGH CAPACITY Supports up to 256 active users and 16 SSIDs.
IP67 RATING Designed to withstand demanding outdoor environments, resistant to wind, sand and rain, and prevent internal damage from moisture buildup.	ADVANCED BACKHAUL Backhauling capability for MESH designs and centralized network deployments
The BEST RADIO FOR ITS PRICE. e501S Delivers a reliable, high-capacity outdoor Wi-Fi networking solution at a significantly lower cost than its high-quality competitors	2x2 MIMO

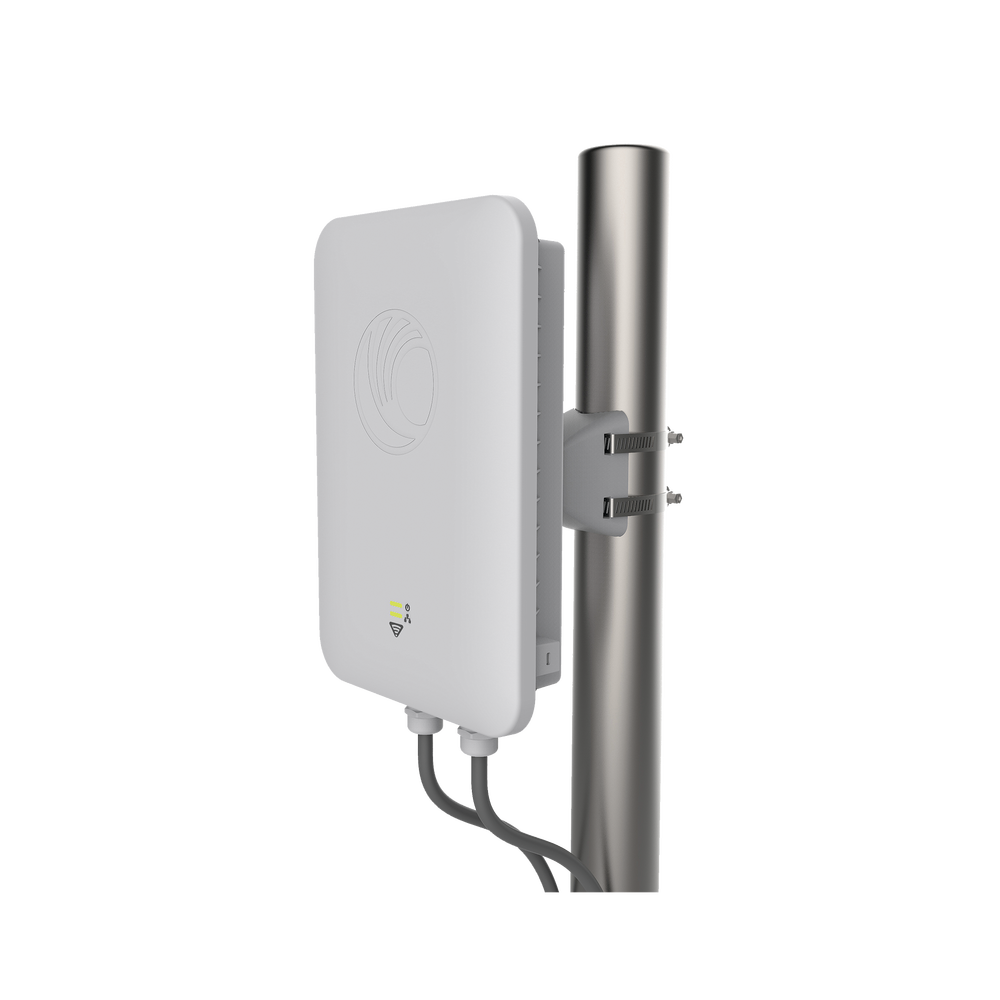

The cnPilot e501S is a simultaneous dual-band 2x2 MIMO 802.11ac outdoor access point with up to 1.167 Gbps. It combines the simplicity and ease of installation with the cloud management of cnMaestro. The E500 is perfect for operators looking to extend their network into business environments, providing Wi-Fi connectivity to devices such as smartphones, tablets, and laptops.

Mode of operation: Access Point and MESH.

Maximum number of connected devices: 256 Wi-Fi devices.

Main features:

• LTE interference filter; helps prevent interference from LTE equipment.
• IP67, with industrial-grade hardware for temperatures from -30 to 60°C.
• Coverage 90-120°.
• Secondary PoE port to power ePMP, PMP 450 or 802.3af devices (to activate, the equipment must be powered with PoE model POE-450I and you must install protective gland model N000065L033A)
• ESD protection to prevent electrostatic discharge.
• Kensington slot to secure the equipment in place.

General characteristics:

• 802.11 a/b/g/n/ac standard
• 2X2 MIMO
• Output power: 2.4 GHz: 29 dBm (794 mW), 5 GHz: 28 dBm (630 mW).
• Integrated 10.5 dBi sector antenna at 2.4 GHz and 13 dBi at 5 GHz.
• Performance: 300 Mbps @ 2.4 GHz, 867 Mbps @ 5 GHz.
• Consumption: 13W without activating secondary PoE or 61W if activating secondary PoE with POE-450I source
• Supports up to 16 SSIDs.

Package includes the following:

* Includes PoE power supply.

cnPilot comparison for outdoors.
