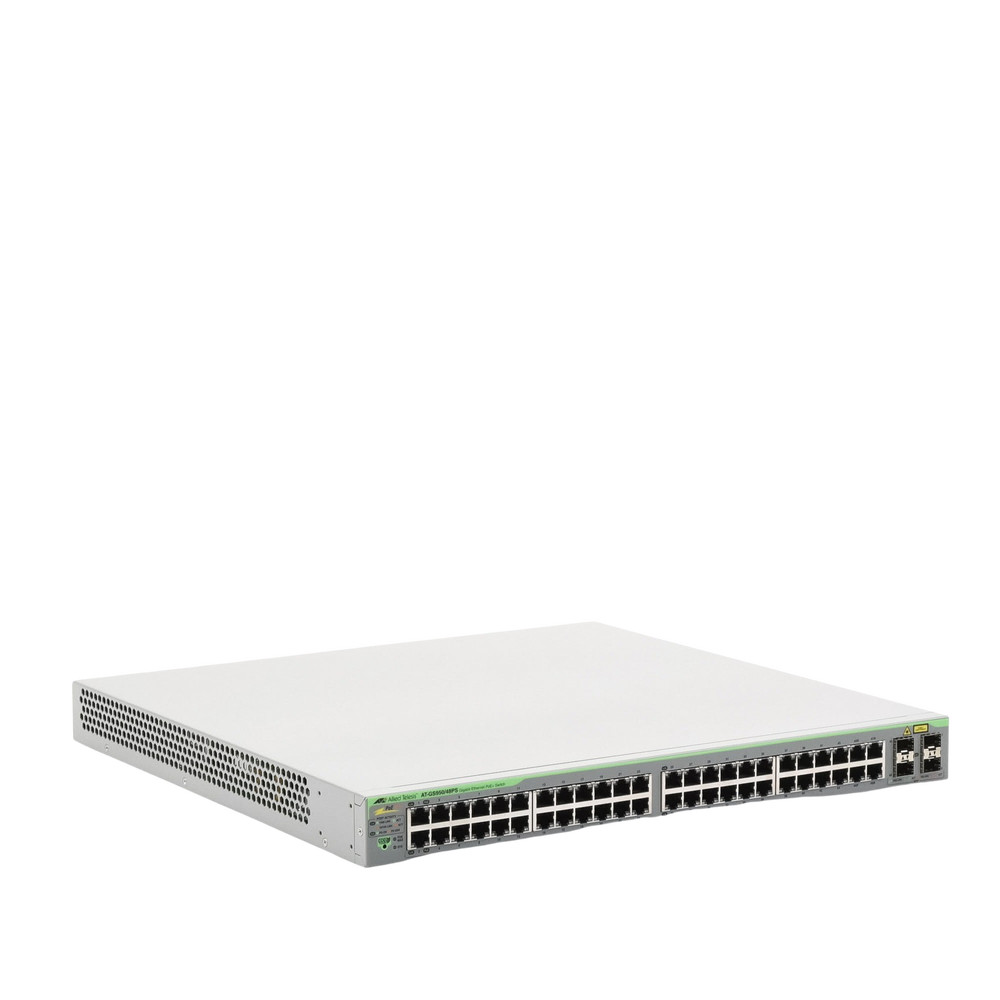

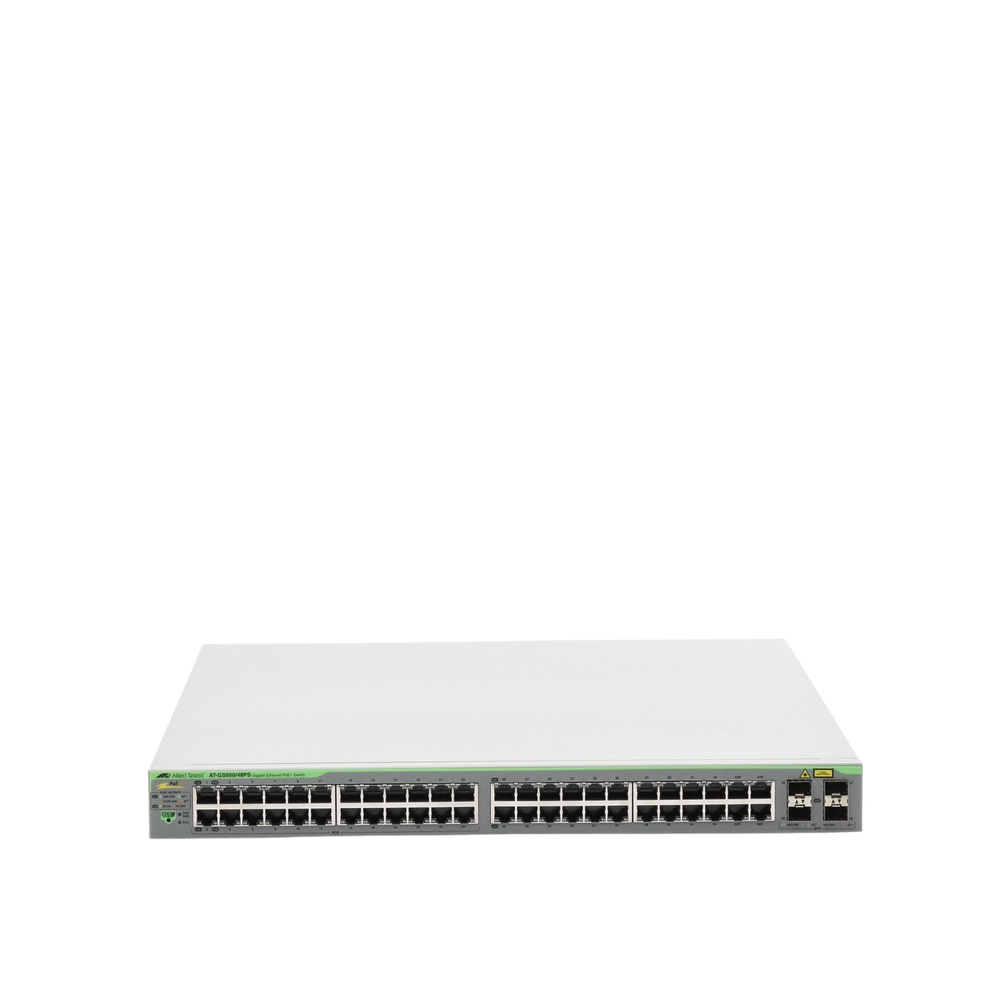

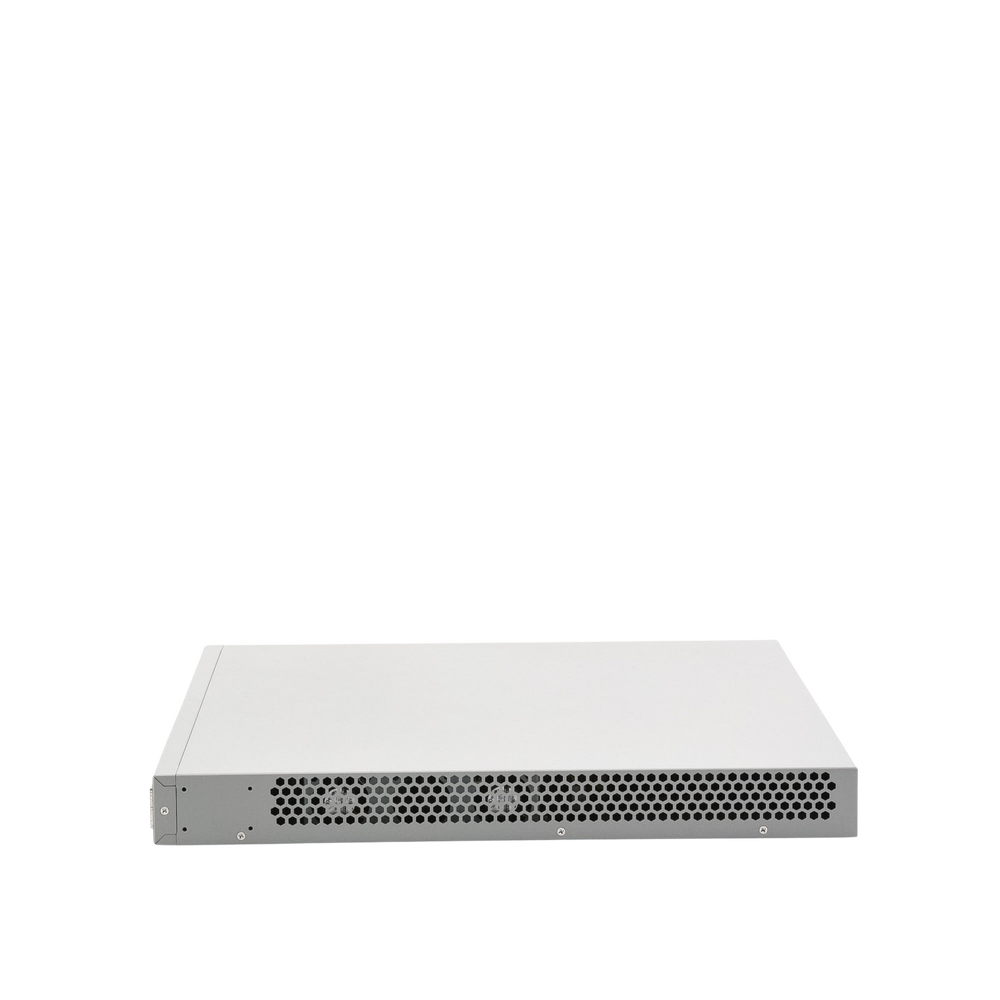

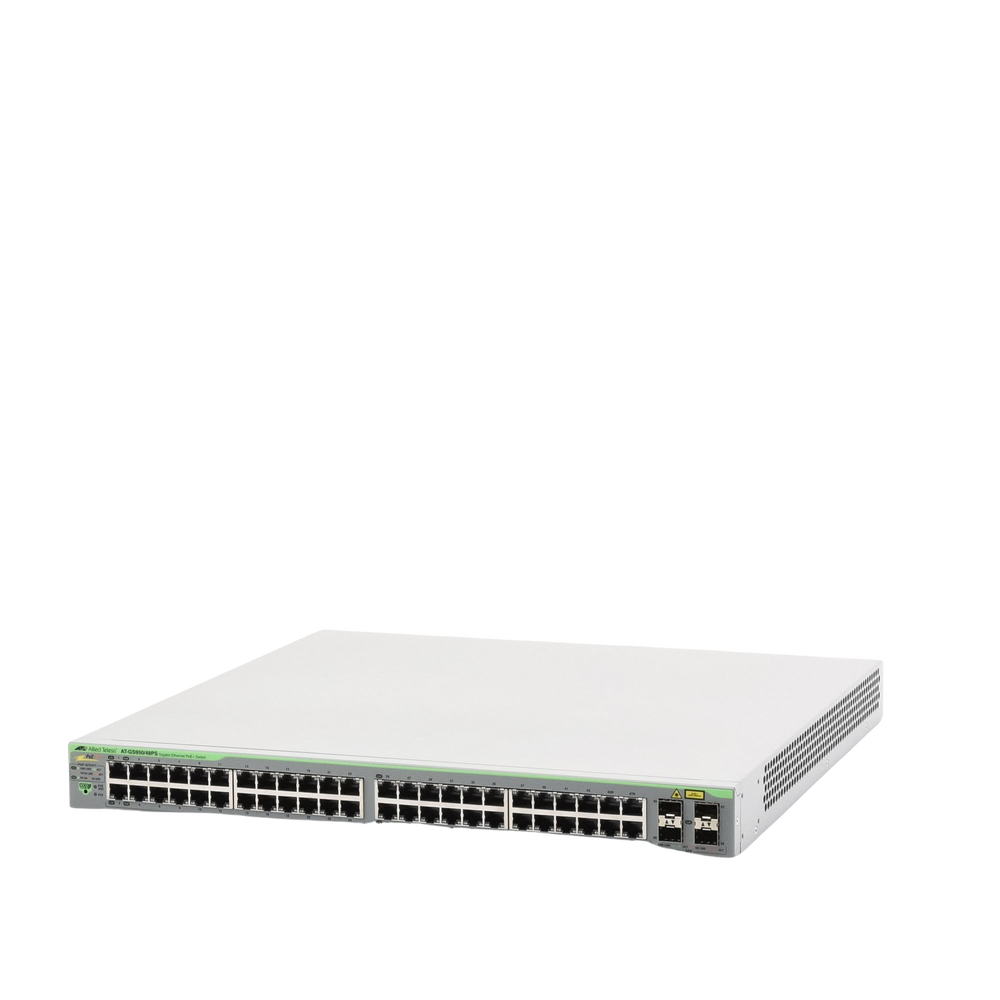

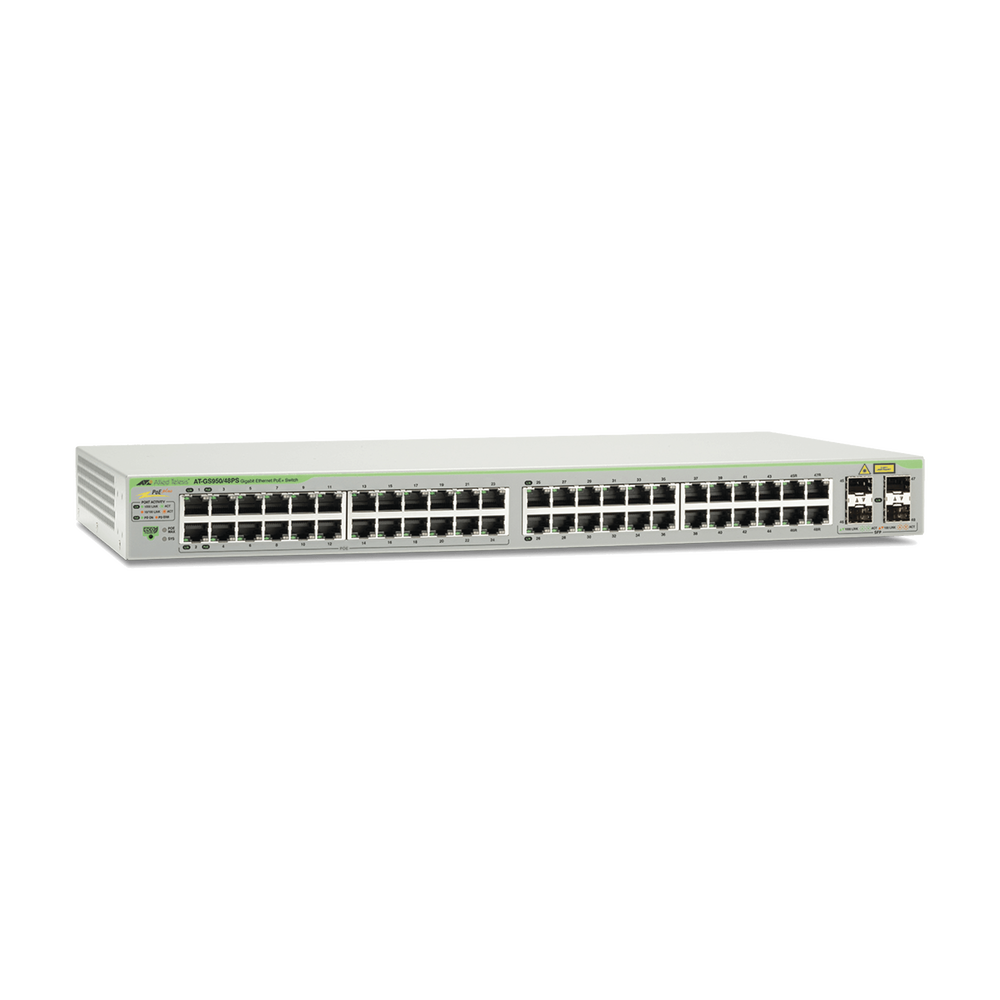

WebSmart 48-port Gigabit PoE+ Switch 10/100/1000 Mbps (24 PoE Ports) + 4 gigabit SFP ports (Combo), 370 W

WebSmart 48-port Gigabit PoE+ Switch 10/100/1000 Mbps (24 PoE Ports) + 4 gigabit SFP ports (Combo), 370 W

Ports:

48 10/100/1000 Mbps ports (4 x Combo).

4 Gigabit SFP ports (Combo).

Forwarding rate: 71.42 Million packets per second (Mpps).

Switch Fabric: 96 Gbps.

PoE:

IEEE 802.3af Power Over Ethernet (PoE).

IEEE 802.3at Power Over Ethernet plus (PoE+).

Total power: 370 W.

Administration:

Graphical user interface (GUI).

SNMP v1, v2c & v3 monitoring.

Characteristics:

VLAN (up to 256 groups).

QoS (Quality of Service Classification).

• IEEE 802.1p labeling.
• Port-based priority.
• Four priority queues per port.


IP Multicast Support (IPv4) IGMP snooping (v1/v2).

Port mirroring.

Link Aggregation.

Ingress/egress rate limiting.

RADIUS Client.

DHCP Client.

Jumbo Frames up to 10K.

Access Control List (240 shared entries).

Physical and electrical characteristics:

Power supply: 100-240 VAC, 50-60 Hz.

Dimensions: 1 U Rack, 44 x 430 x 440 mm.

Weight: 6.62 kg.

Operating Temperature: 0 to 45° C.

Includes:

Rack mount, brackets and screws.

Power cable.

Warranty:

1 year, for an additional year register the product at the following link:

http://www.alliedtelesis.com/support/maintenance-and-warranty/register

Ideal for small and medium-sized businesses.

Smart, energy-efficient, and cost-effective solutions for network access.

Configuration via Web interface., VLANs: Up to 256 groups., RMON Groups (1, 2, 3, 9)., IPv4 Multicast support (IGMP snooping)., Management IP: DHCP client for Web interface.
