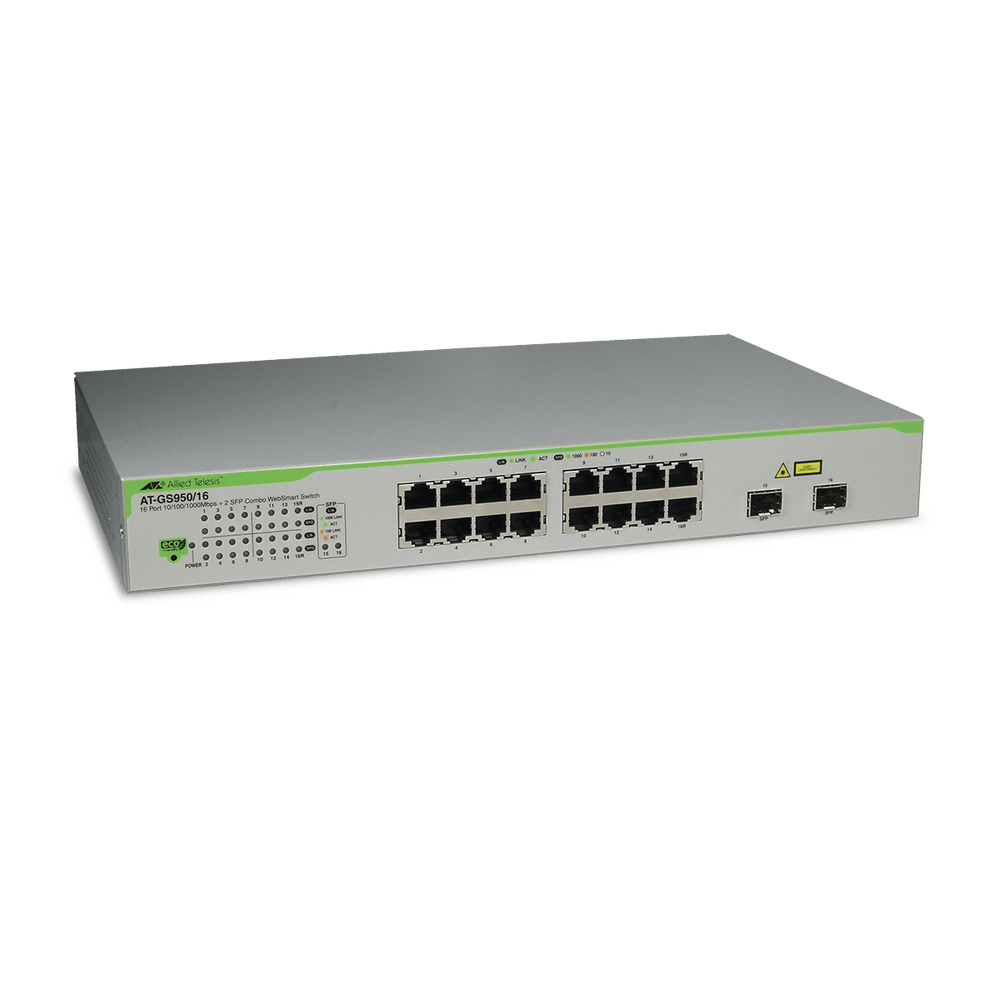

WebSmart Gigabit Switch with 16 ports 10/100/1000 Mbps (2 x Combo) + 2 gigabit SFP ports (Combo)

WebSmart Gigabit Switch with 16 ports 10/100/1000 Mbps (2 x Combo) + 2 gigabit SFP ports (Combo)

Ports:

16 10/100/1000 Mbps ports (2 x Combo) .

2 Gigabit SFP ports (Combo).

Forwarding rate: 23.8 Million packets per second (Mpps).

Switching fabric: 32 Gbps.

Administration:

Graphical user interface (GUI).

SNMP v1, v2c & v3 monitoring.

Characteristics:

VLAN (up to 256 groups).

QoS (Quality of Service Classification).

• IEEE 802.1p labeling.
• Port-based priority.
• Four priority queues per port.


IP Multicast Support (IPv4) IGMP snooping (v1/v2).

Port mirroring.

Ingress/egress rate limiting.

RADIUS Client.

DHCP Client.

Jumbo Frames up to 10K.

Access Control List (240 shared entries).

Physical and electrical characteristics:

Power supply: 100-240 VAC, 50-60 Hz.

Dimensions: 1 U Rack, 44 x 200 x 330 mm.

Weight: 2.1 kg.

Operating Temperature: 0 to 45° C.

Includes:

Rack mount, brackets and screws.

Power cable.

Warranty:

1 year, for an additional year register the product at the following link:

http://www.alliedtelesis.com/support/maintenance-and-warranty/register

Ideal for small and medium-sized businesses.

Smart, energy-efficient, and cost-effective solutions for network access.

Configuration via Web interface., VLANs: Up to 256 groups., RMON Groups (1, 2, 3, 9)., IPv4 Multicast support (IGMP snooping)., Management IP: DHCP client for Web interface.
