MIKROTIK
(SXTsq Lite5) CPE and PtP, 5GHz 802.11 a/n MIMO with Integrated 16dBi Antenna, Up to 316 mW Power
(SXTsq Lite5) CPE and PtP, 5GHz 802.11 a/n MIMO with Integrated 16dBi Antenna, Up to 316 mW Power
Regular price
$288.872 COP
Regular price
$315.954 COP
Sale price
$288.872 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
(SXTsq Lite5) CPE and PtP, 5GHz 802.11 a/n MIMO with Integrated 16dBi Antenna, Up to 316 mW Power

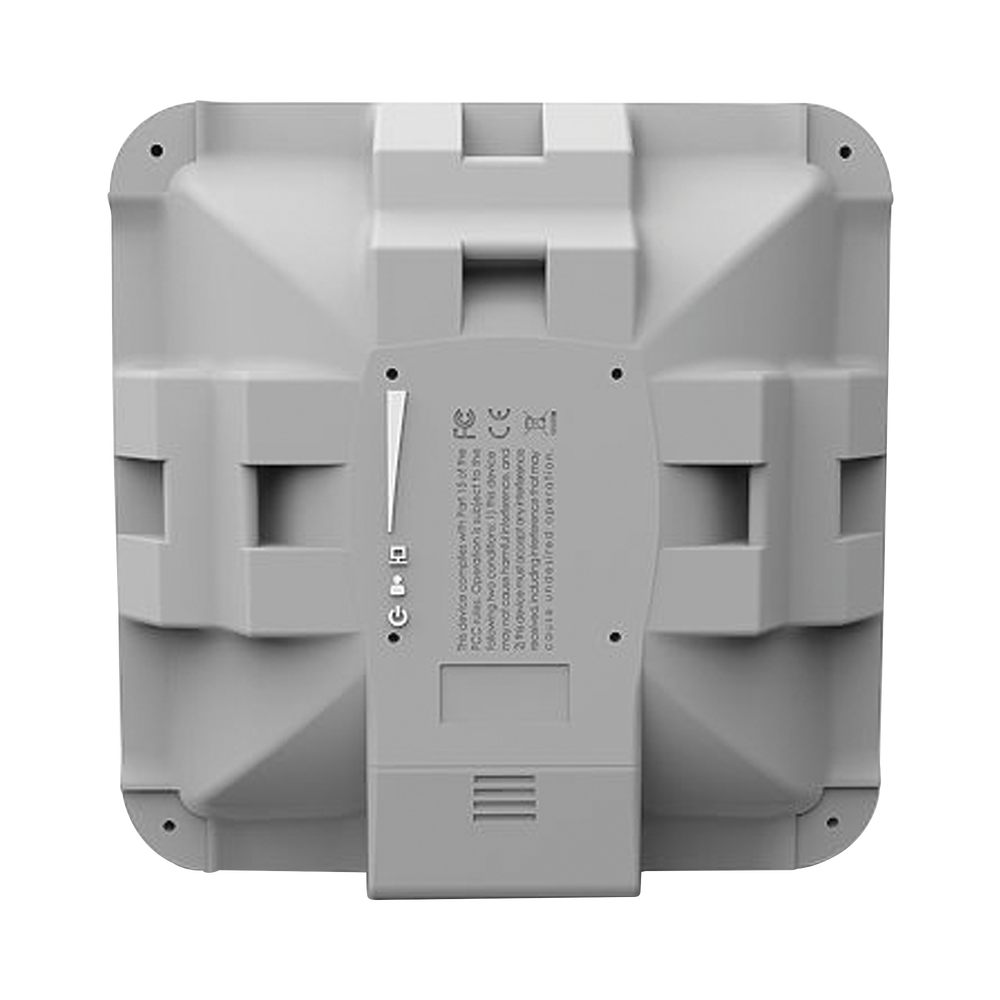

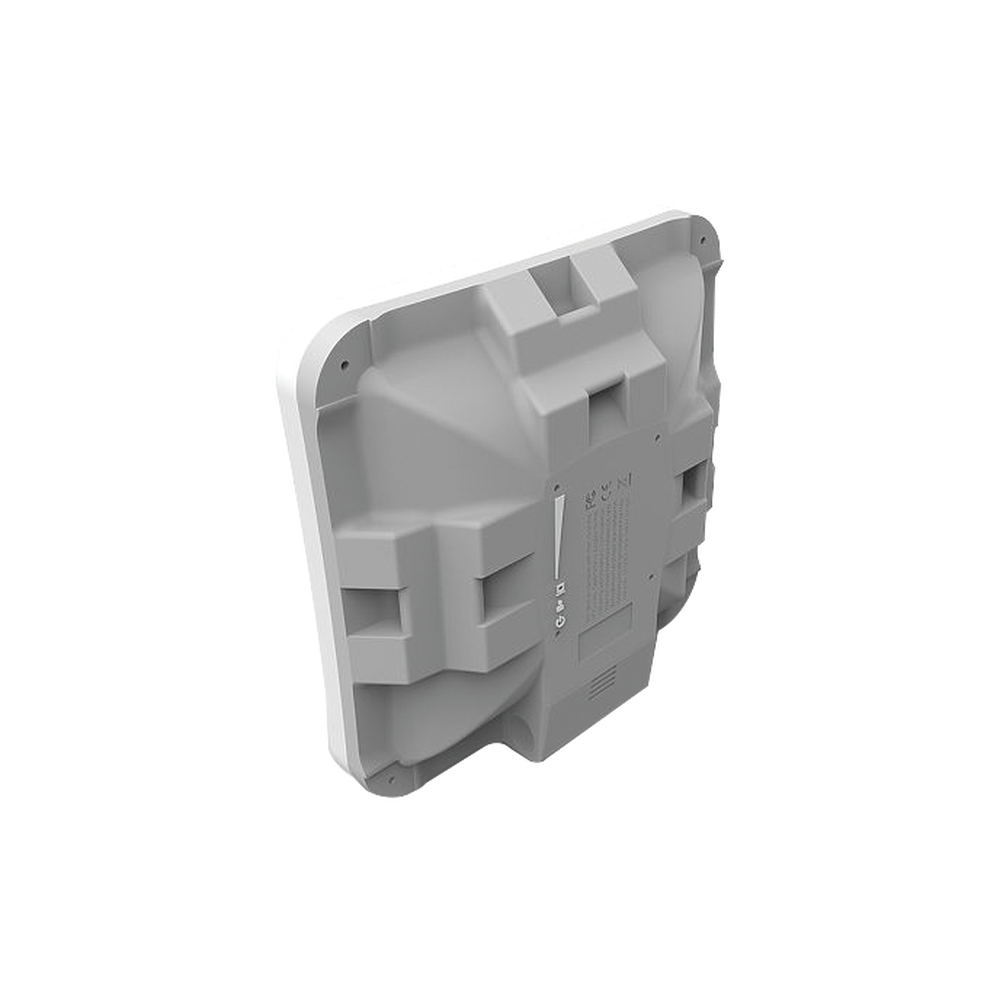

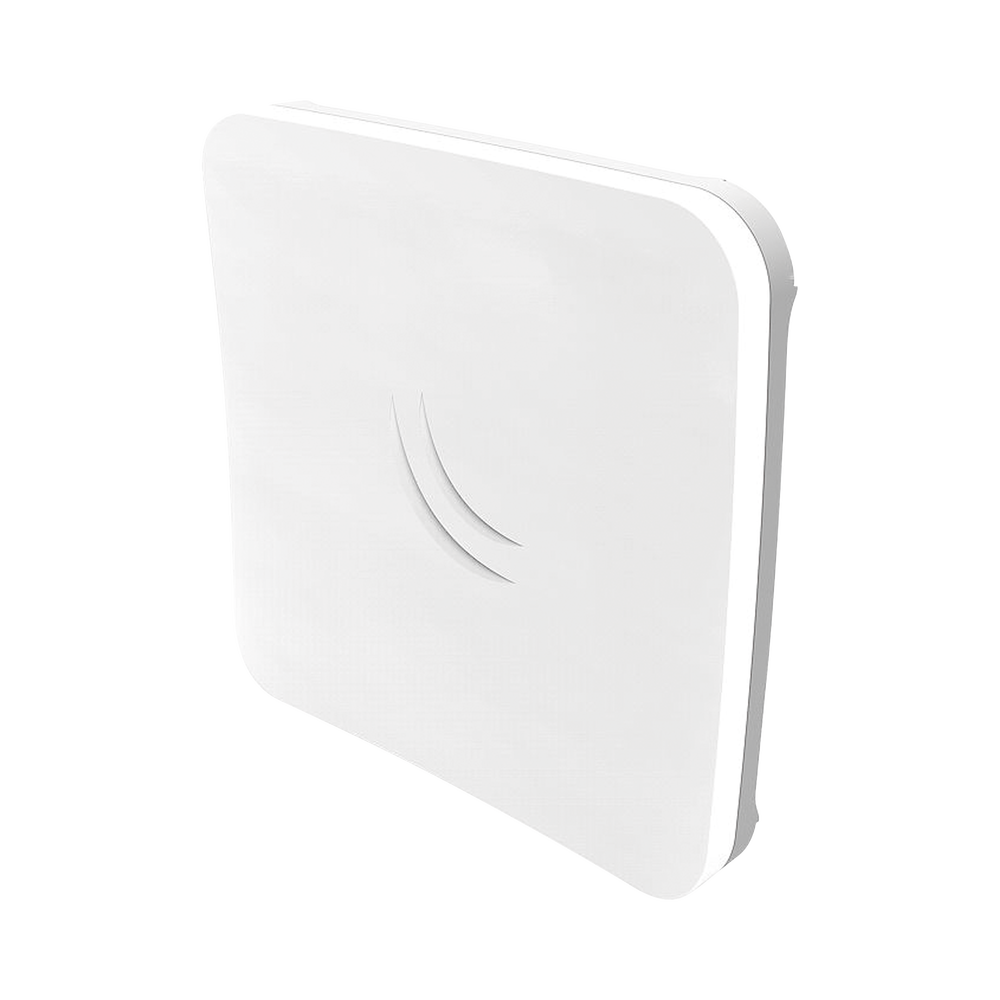

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links of up to 12 kilometers or as a CPE unit, it's compact, weatherproof, and easy to mount. The SXTsq Lite5 retains the 16dBi antenna of our previous model, the SXT Lite5, but the antenna design has been improved and the physical size has been dramatically reduced—the SXTsq is twice as thin (see photos for comparison).
The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, the QuickMount Pro is available separately, allowing adjustment at all angles (see photo and related product).
Specs
| Details | |
|---|---|
| Product code | RBSXTsq5nD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| Nominal CPU frequency | 600 MHz |
| Dimensions | 129x129x34mm |
| RouterOS License | 3 |
| Operating system | RouterOS |
| RAM size | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 100,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 10-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 6 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 300 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | sixteen |
| 5GHz Wireless Chip Model | AR9344 |
| 5 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive sensitivity |
|---|---|---|
| 6 MBit/s | 25 | -96 |
| 54 MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
Parts included
Low stock: 8 left
MODELO: RBSXTSQ5ND
