(LHG XL HP5) High Power Client and PtP, Enhanced 27 dBi Grid Antenna at 5GHz 802.11 a/n

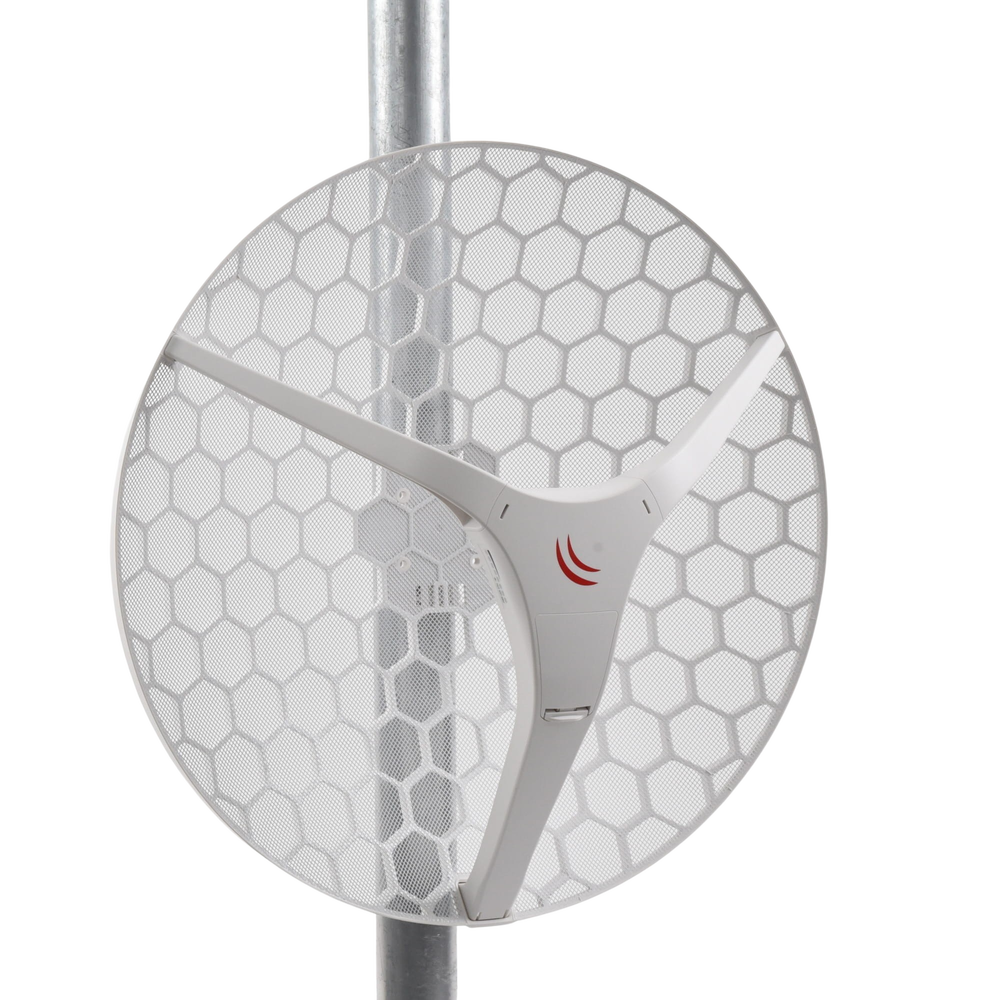

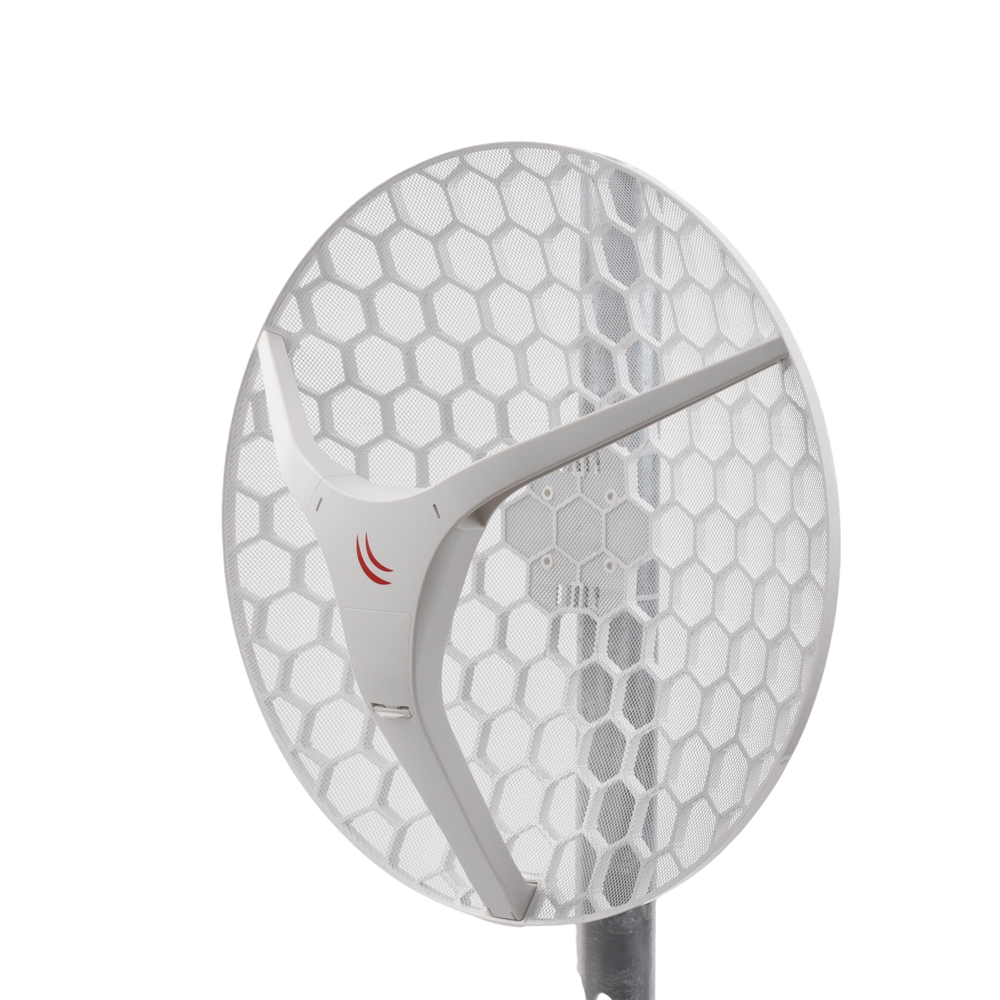

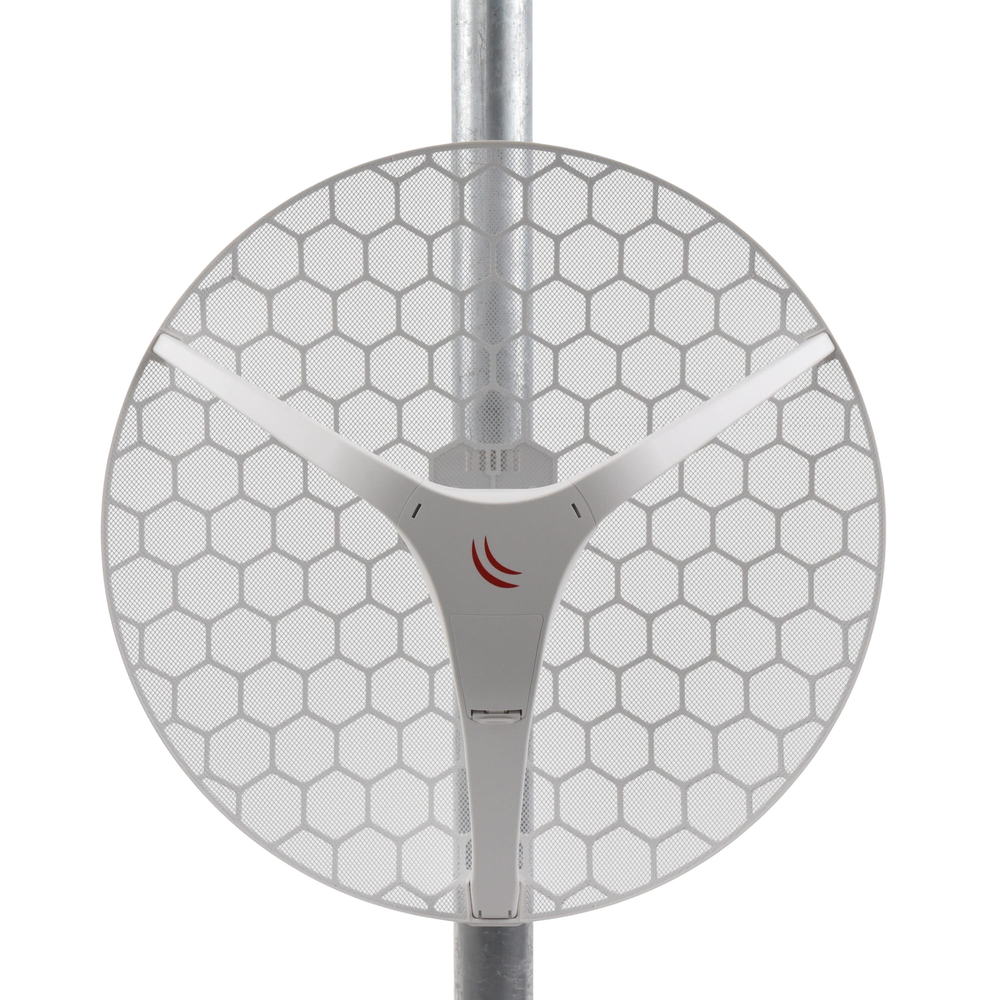

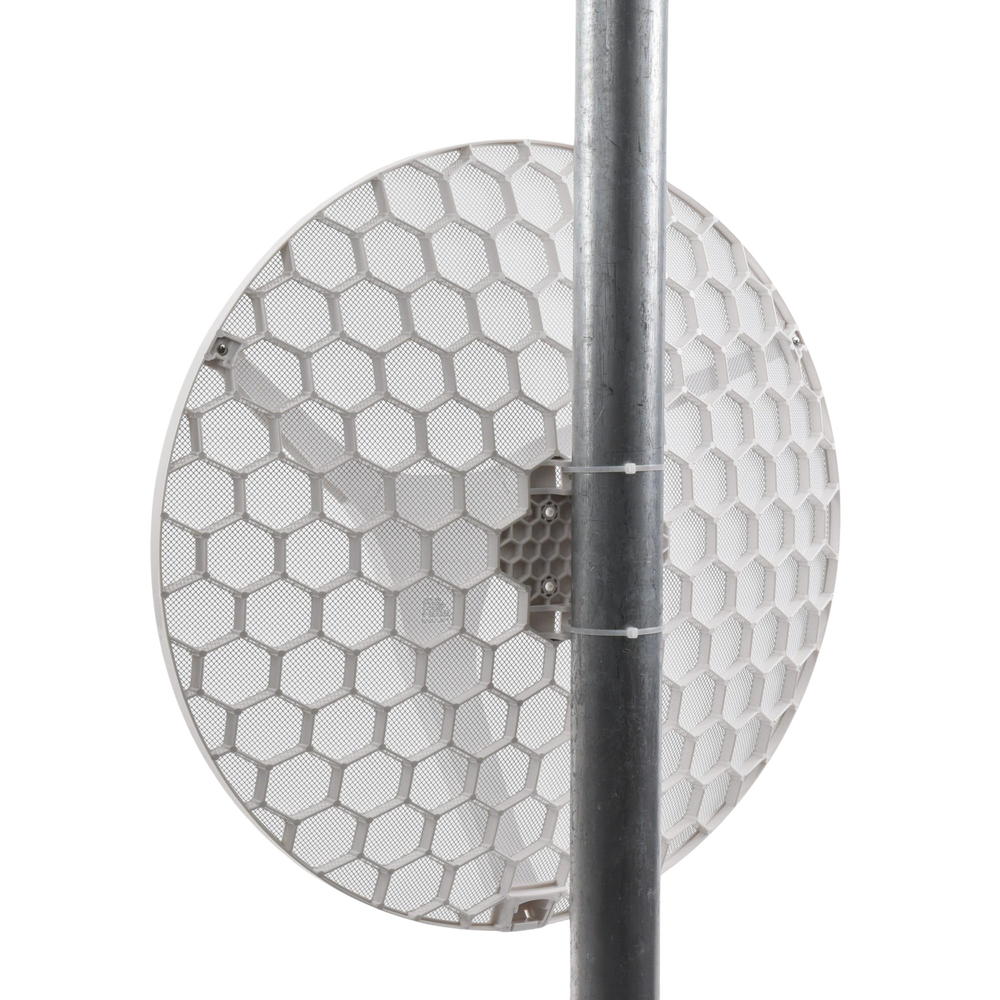

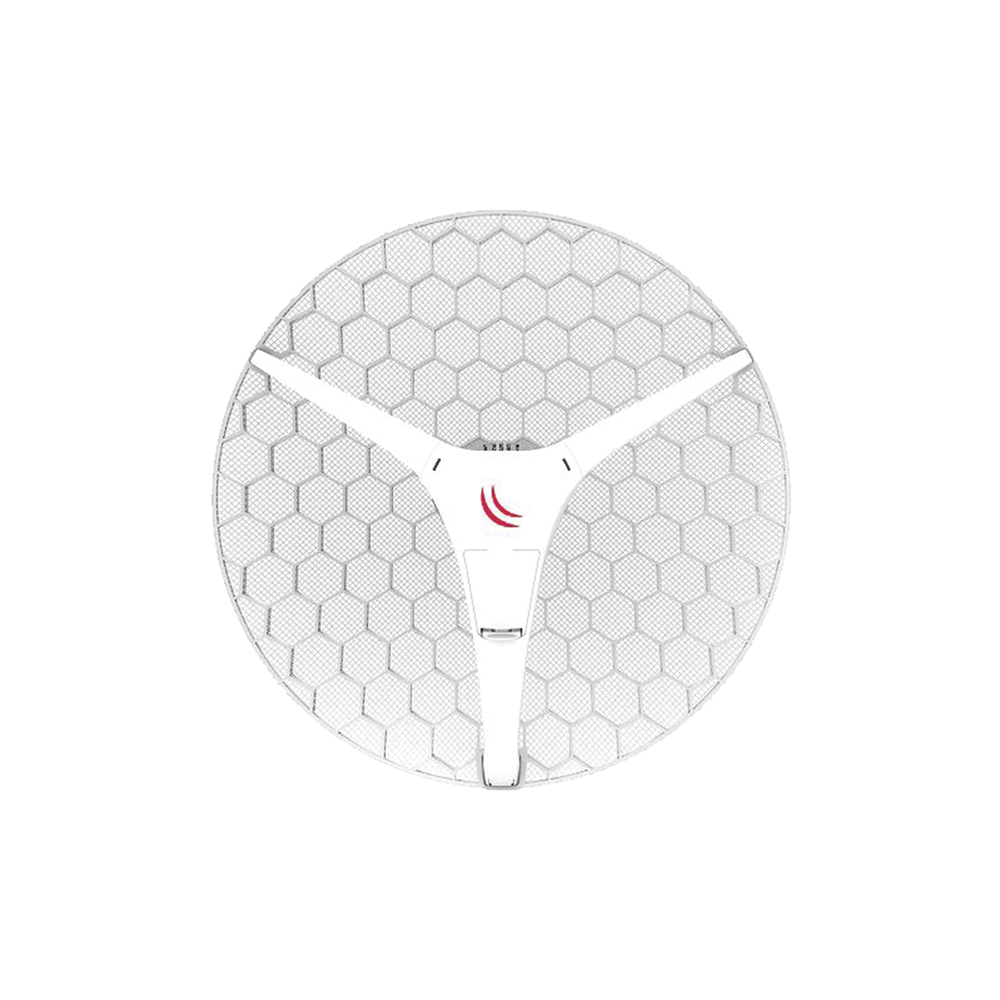

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated 27 dBi dual-polarization array antenna and high TX output power, designed to reach up to 40 km in full-speed point-to-point configurations.
The mesh design ensures wind protection, and the fact that the antenna element is integrated into the wireless unit means there is no cable loss.
Specs
| Details | |
|---|---|
| Product code | RBLHG-5HPnD-XL |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| Nominal CPU frequency | 600 MHz |
| Dimensions | Ø 550 x 245 mm; |
| RouterOS License | 3 |
| Operating system | RouterOS |
| RAM size | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100,000 hours at 25C |
| Room temperature tested | -40 °C to 70 °C |
Feeding
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Maximum energy consumption | 7 W |
| Fan count | Passive |
| PoE in | Passive PoE |
| PoE on input voltage | 10-28 V |
Wireless specifications
| Details | |
|---|---|
| Maximum 5 GHz wireless data rate | 300 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 27 |
| 5GHz Wireless Chip Model | AR9344 |
| 5 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Certification and approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive sensitivity |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54 MBit/s | 25 | -80 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -75 |
Parts included
The device comes with a pre-installed and licensed operating system. No separate purchase is required, and the product is ready to use. The device includes free software updates for the life of the product, or for a minimum of 5 years from the date of purchase.
Out of stock
MODELO: RBLHG-5HPND-XL
