MIKROTIK

RB1100AHx4, 4-Core CPU, 13 Gigabit Ethernet Ports, 1 GB Memory, Level 6 License

RB1100AHx4, 4-Core CPU, 13 Gigabit Ethernet Ports, 1 GB Memory, Level 6 License

$2.758.853 COP
$3.017.496 COP $2.758.853 COP
Sale Sold out
Shipping calculated at checkout.

RB1100AHx4, 4-Core CPU, 13 Gigabit Ethernet Ports, 1 GB Memory, Level 6 License

RB1100AHx4

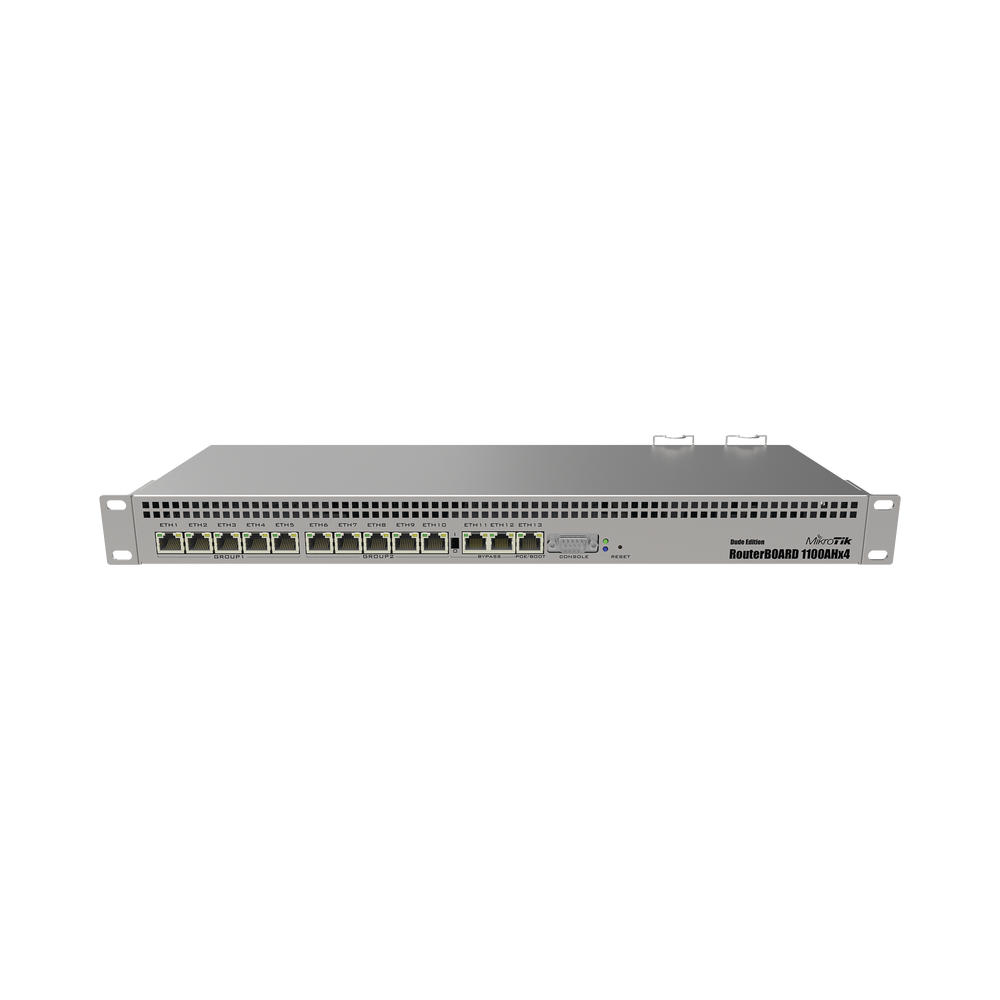

The new RB1100AHx4 features an Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4 GHz each, for a peak throughput of up to 7.5 Gbps. The device supports IPsec hardware acceleration, which is faster than any previous RouterBOARD device (up to 2.2 Gbps with AES128).

The unit comes with 1U rackmount enclosure, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with 48V DC telecom power and 802.3at /af support).

* This edition does not have a hard drive or SATA cable.

RouterBOARD Architecture: ARM
Important Note:
Architecture Type Not Compatible with User Manager.
Experimental support for SMIPS, ARM and MMIPS architectures (RB1100AHx4, RB3011, RB750Gr3 etc.) will be available starting with version 6.42rc14.



Main features of RouterOS


General Specifications

Details
Product Code RB1100Dx4
Architecture ARM 32bit
CPU AL21400-1400-A0-E-1AN-8-C
Number of CPU Cores 4
CPU frequency 1.4 GHz
Dimensions 444 x 148 x 47 mm
License Level 6
Operating System RouterOS
RAM memory 1 GB
Storage 128 MB
Storage Type NAND

Feeding

Details
Energy consumption 25W
Power supplies 2 (PoE-IN, 2-pin terminal)
PoE Power Type 802.3af/at
PoE supply voltage 20-57 V
Terminal block supply voltage -48, 12-57 V
Number of AC inputs 2
AC supply voltage 100-240 V

Ethernet

Details
Ethernet ports 13 x 10/100/1000 Mbps

Peripherals

Details
Extended storage 60GB M.2 SSD (included)
M.2 Slots 2
SATA ports 2x SATA3
Serial Port (Console) RS232

Others

Details
Current monkeys Yeah
PCB Temperature Monitor Yeah
Voltage Monitor Yeah

Ethernet Test Results

RB1100Dx4 AL21400 1G all port test
Mode Configuration 1518 bytes 512 bytes 64 bytes
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 606.5 7,365.3 1,736.4 7,112.3 5,509.7 2,821.0
Bridging 25 bridge filter rules 606.5 7,365.3 1,107.8 4,537.5 1,153.2 590.4
Routing none (fast path) 606.5 7,365.3 1,736.4 7,112.3 5092.3 2,607.3
Routing 25 simple queues 606.5 7,365.3 933.6 3,824.0 960.3 491.7
Routing 25 IP filter rules 543.7 6,602.7 561.8 2,301.1 564.6 289.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values ​​in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results


Included parts


  • K10 R2 screw kit

  • Rack ears

  • 2x IEC cords

    ARM Quad Core 1.4GHz Processor, 1GB RAM, 13 x 10/100/1000Mbps Ports, Redundant Power Supply, License Level: 6, License Level: 6

Out of stock

MODELO: RB1100AHX4
