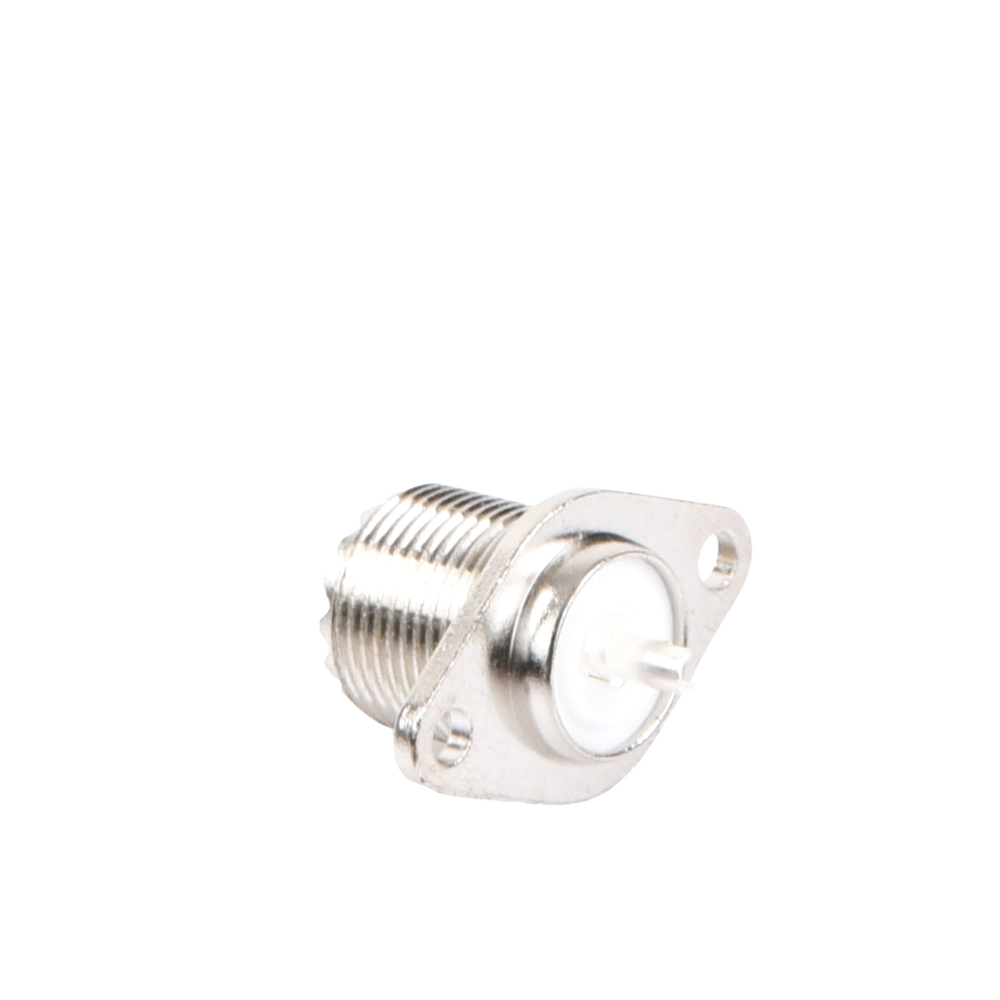

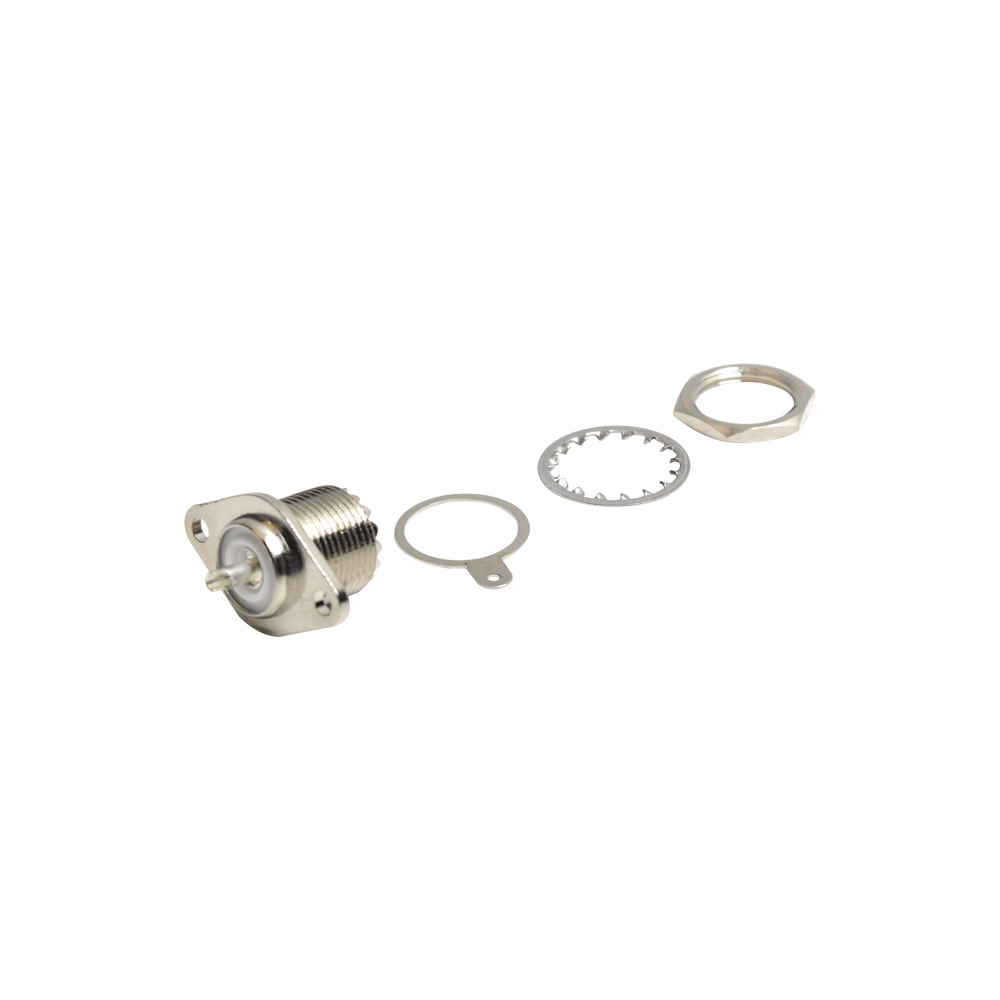

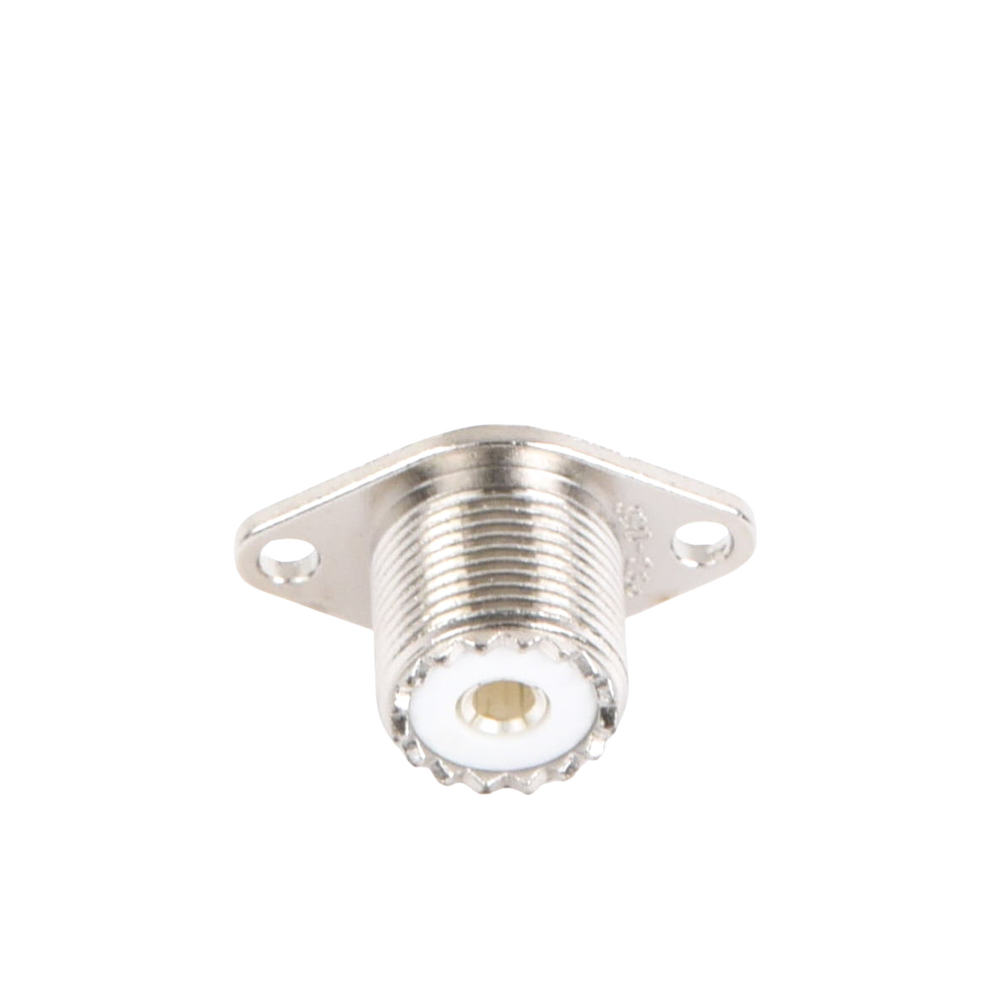

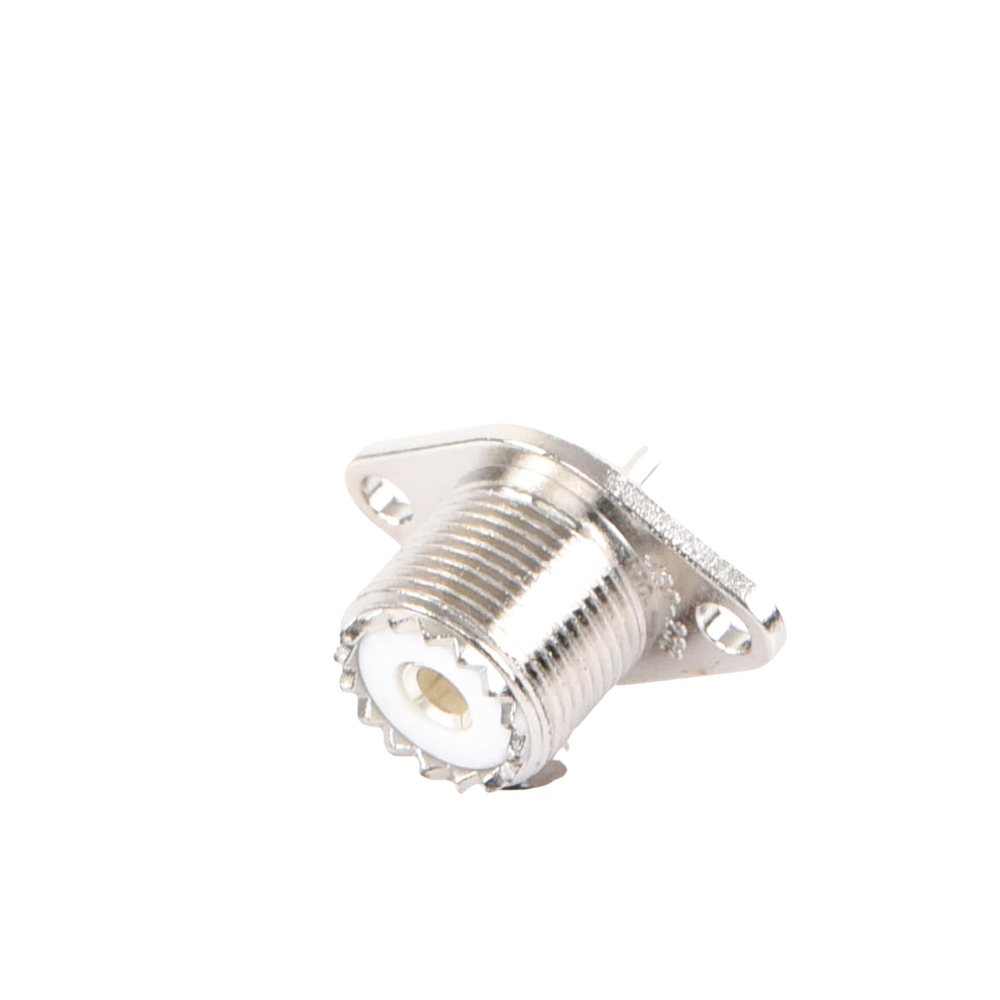

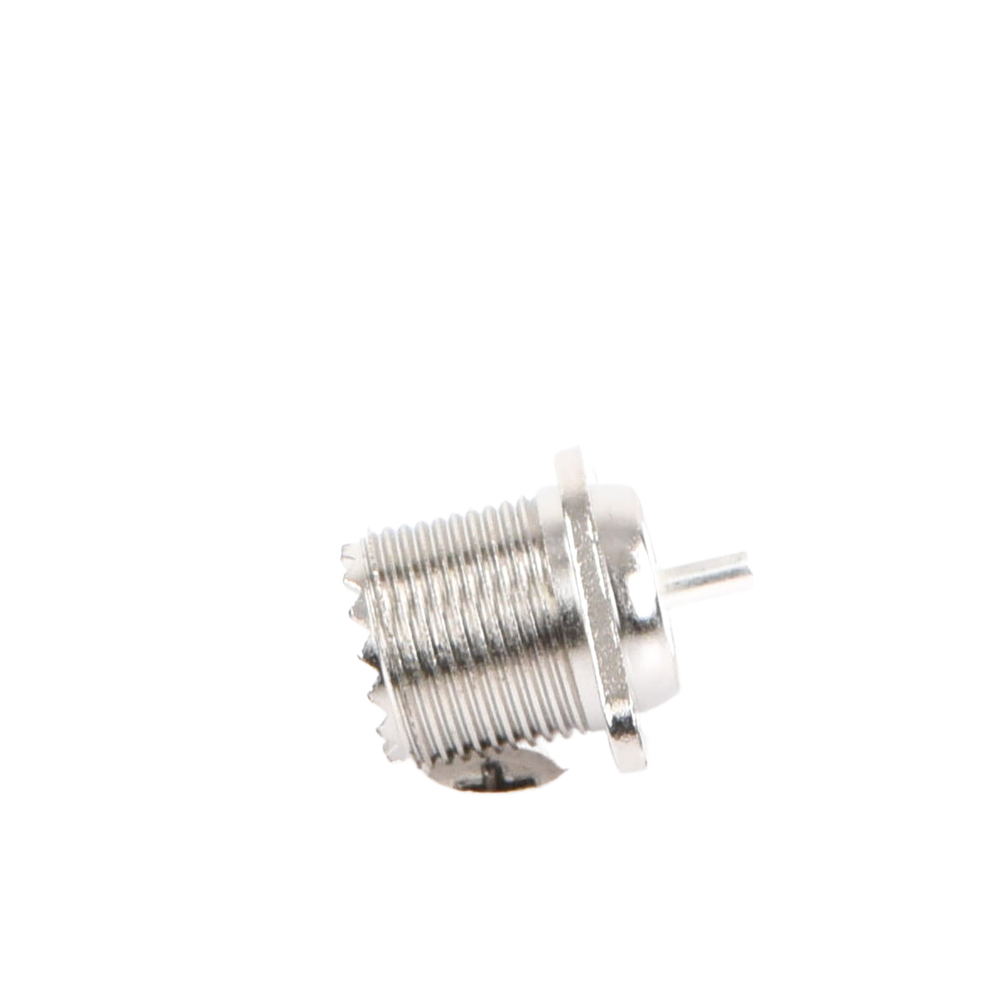

UHF Female (SO-239-2H) Chassis Connector, Double Drilled, Solderable Center Conductor, Nickel/Silver/PBT.

UHF Female (SO-239-2H) Chassis Connector, Double Drilled, Solderable Center Conductor, Nickel/Silver/PBT.

UHF Female Connector (SO-239-2H) for Double Drilled Chassis, Solderable Pin.

Technical Specifications

• Type: UHF Female (SO-239-2H).
• Style: Tab.
• Coupling: Panel Mount with 2 Holes.
• Zinc body stamped with sheet: Nickel.
• Bronze Center Conductor Plating: Silver.
• Dielectric: (PBT) Polybutylene Terephthalate.
• Gender: Female.
• Dimensions (Length/Height/Depth): 57.15 x 25.4 x 25.4 mm.
• Weight: 22.7 gr.

*Ask for delivery time.
