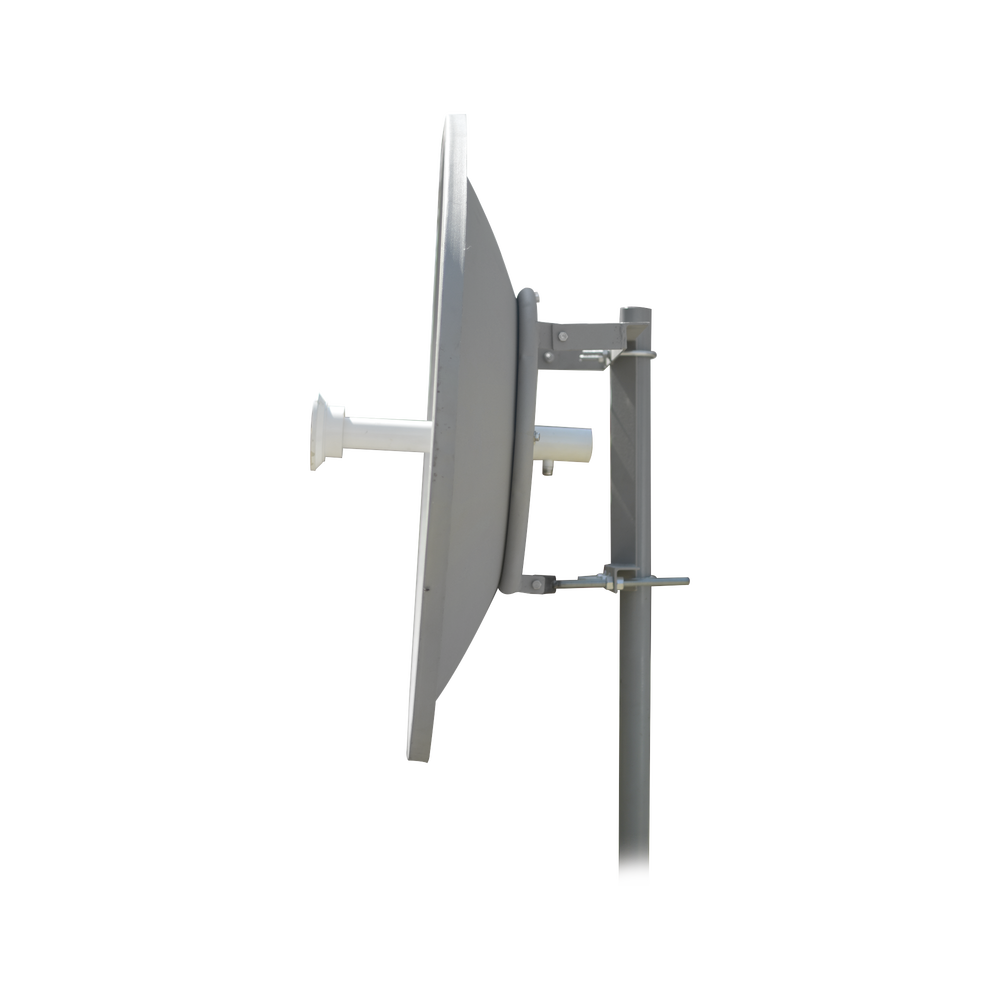

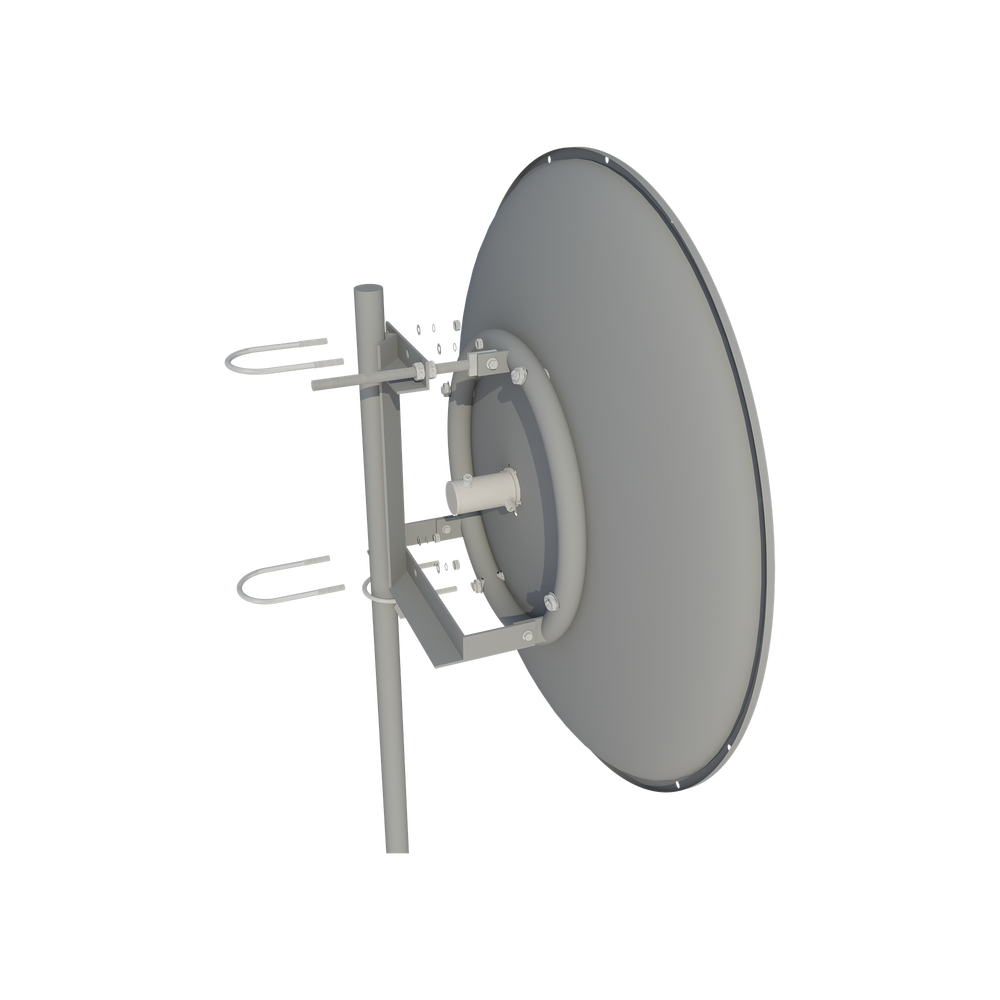

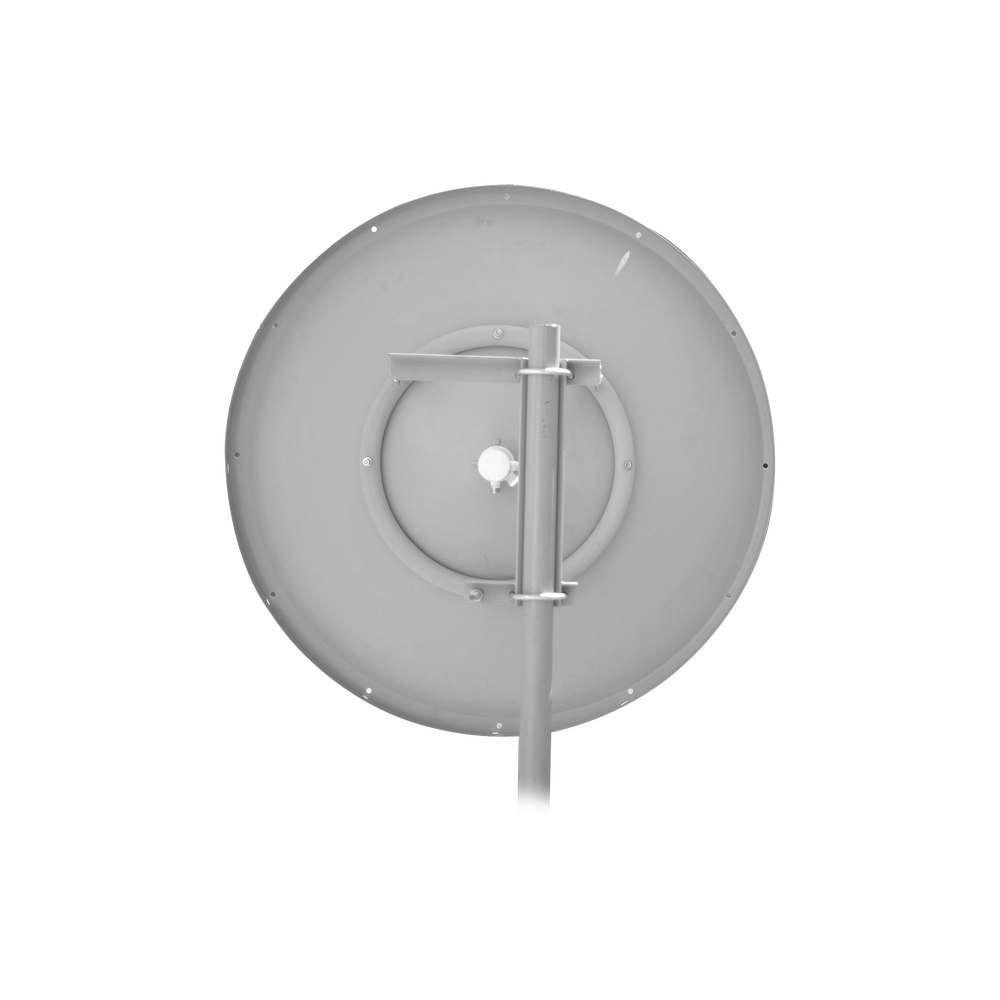

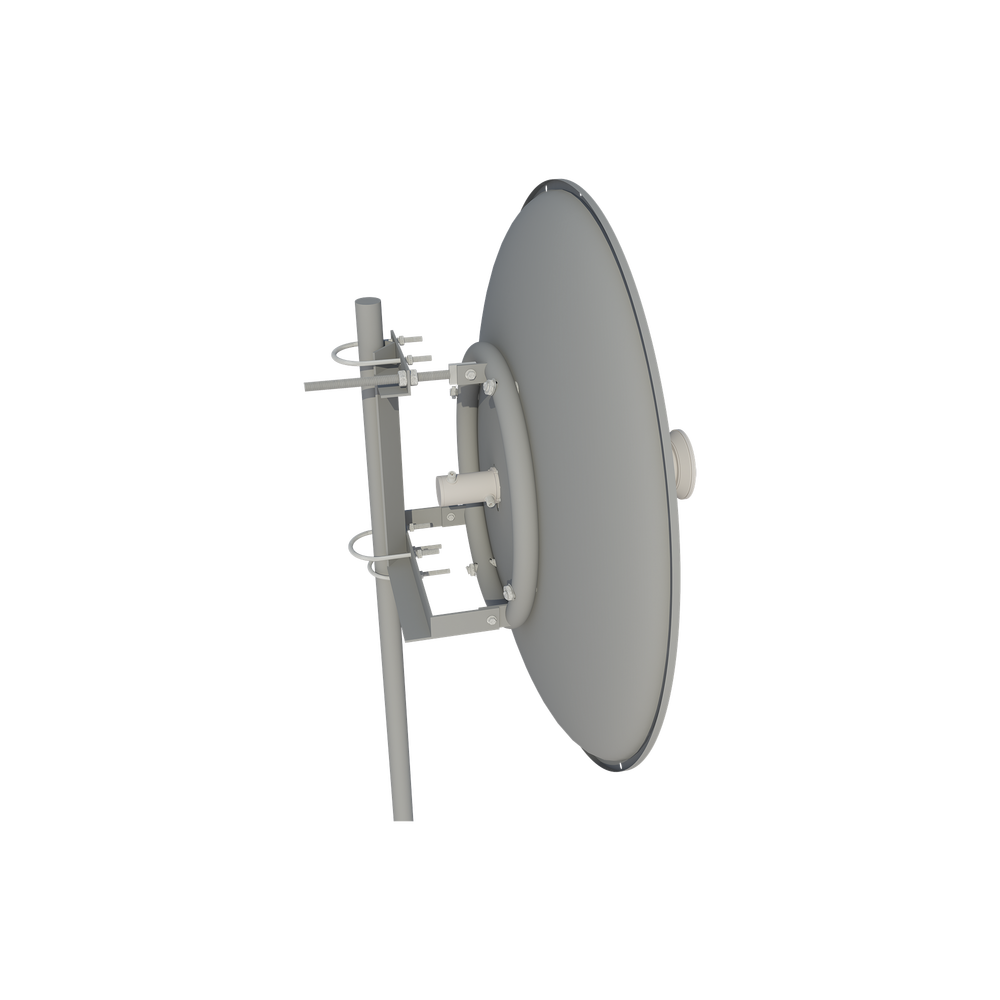

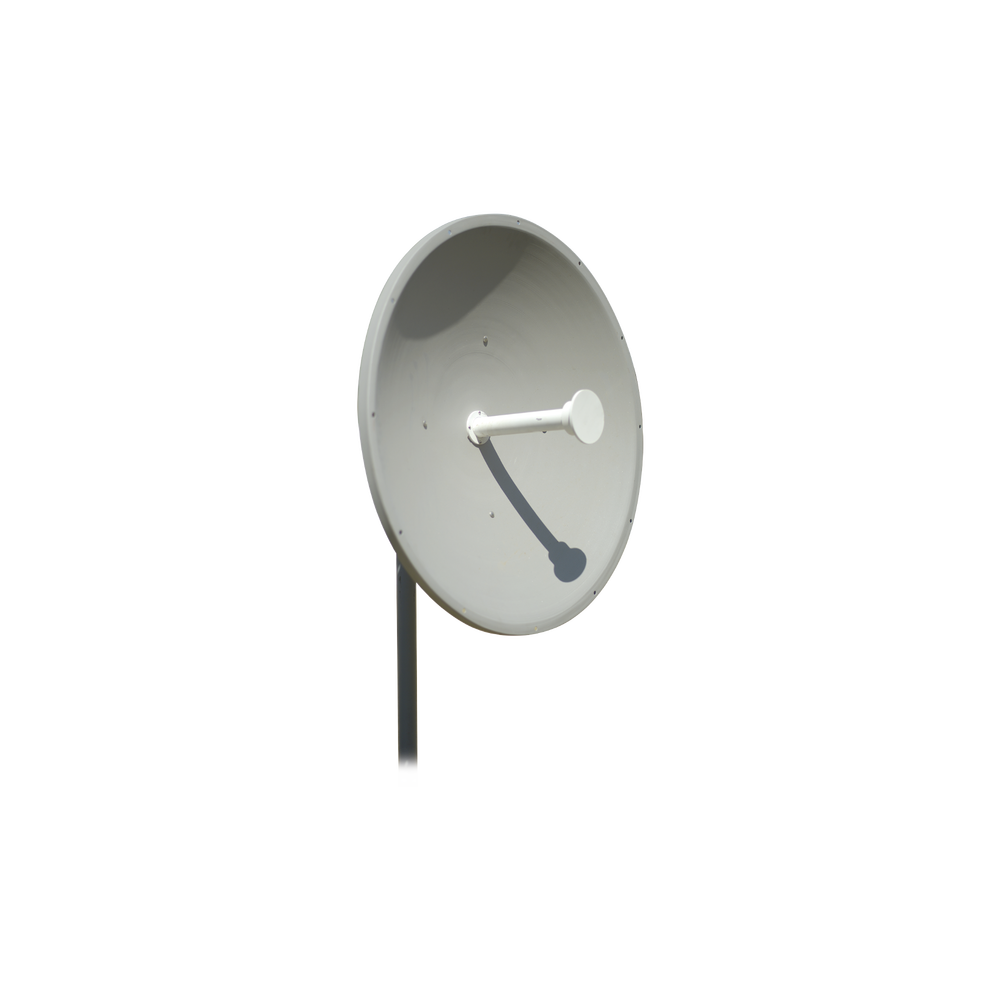

60 cm Diameter Directional Antenna for frequency from 4.9 to 6.2 GHZ, 30 dBi (Slant: 45°).

60 cm Diameter Directional Antenna for frequency from 4.9 to 6.2 GHZ, 30 dBi (Slant: 45°).

Main Features:
High-precision parabolic reflector
Manufactured in extruded aluminum
V/H Dual Polarization
Includes assembly
Includes support for Universal Radio
Ability to set polarization at 45°

Electrical Specifications:
Frequency Range: 4.9 - 6.2 GHz
Antenna Type: Parabolic
Connector Type: N - Female
Revenue:
Low: - 28.0 dBi
Average: - 29.3 dBi
High: - 30.0 dBi

VSWR: 1.03
Return loss: 14 dB
ISO:25 dB
F/B Radio: 36 dB
XPD: 30 dB
Polarization: Dual

Mechanical Specifications:
Wind resistance speed: 120 km/hr
Azimuth Adjustment: 360°
Elevation Adjustment: ±15°
Suggested mast diameter: 50 - 70, 100 - 114 mm
Operating Temperature: -45 to +60 °C
Gross Weight: 6.5 Kg
Net Weight: 5.5 Kg

Includes the following components:
