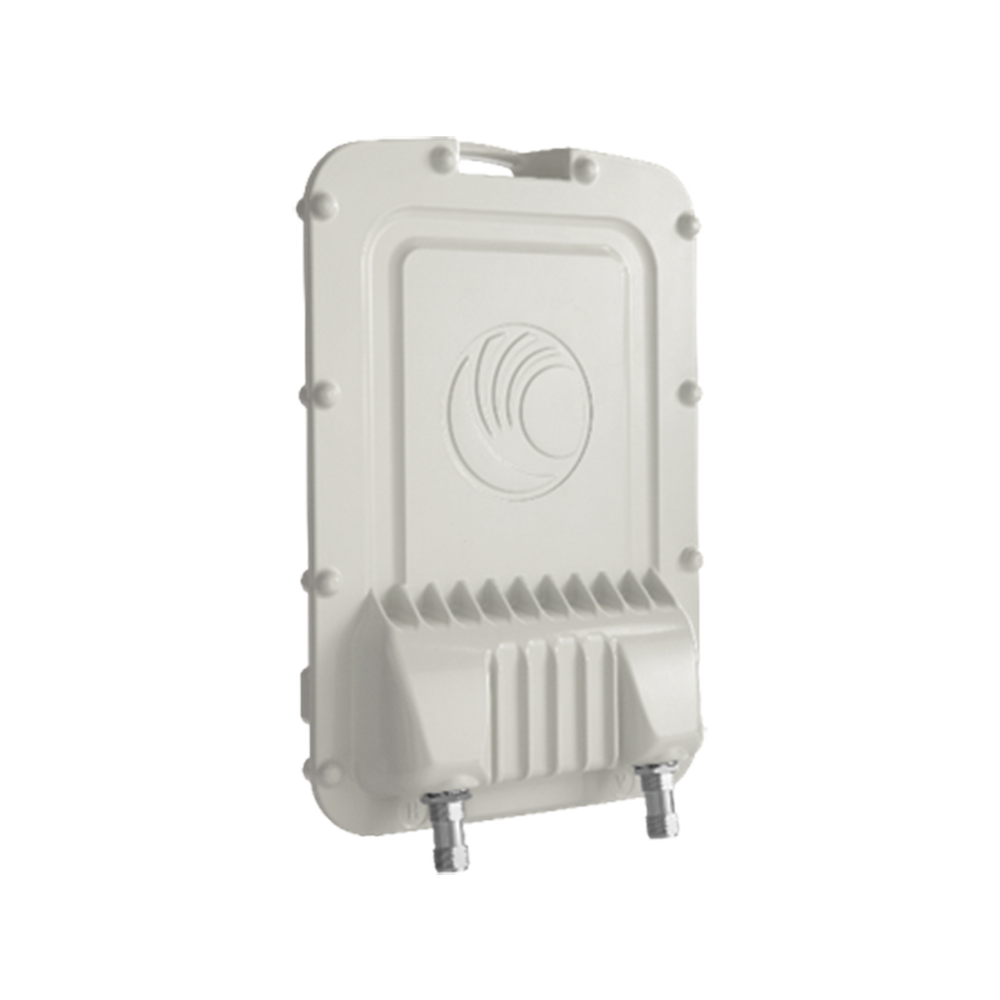

Backhaul radio conecterizado, 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Reales, incluye fuente avanzada AC/DC - (C050067H008C)

Connectorized backhaul radio, 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Real, includes advanced AC/DC power supply - (C050067H008C)

Sale price  $21,153,618 Regular price  $26,101,405
Skip to product information
Backhaul radio conecterizado, 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Reales, incluye fuente avanzada AC/DC - (C050067H008C)

Connectorized backhaul radio, 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Real, includes advanced AC/DC power supply - (C050067H008C)

Sale price  $21,153,618 Regular price  $26,101,405
Shipping calculated at checkout.
Marca
CAMBIUM NETWORKS
Referencia / SKU
PTP-670CE
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Connectorized backhaul radio, 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Real, includes advanced AC/DC power supply - (C050067H008C)




PTP670 Connected AC + DC

4.9-6.05
GHz 450
Mbps
HCMP
High-capacity multipoint

  • PTP and HCMP mode
  • High capacity - 450 Mbps transmission speed with 10bps/Hz, NO license required to reach 450 Mbps
  • Broadband - frequency band between 4.9 and 6.05 GHz
  • Security - 128/256-bit AES encryption, remote over-the-air rekeying (OTAR), HTTPS/TLS and SNMPv3 management, RADIUS authentication, and password policy settings.
  • Interfaces - Two Gigabit Ethernet ports and one SFP port for optional fiber interface. Supports 802.3at PoE output port.
  • Versatility – The easy-to-deploy layer 2 bridge supports symmetric and asymmetric time division duplexing (TDD) operation, 1588v2, and simultaneous Ethernet precision timing and frequency.
  • Each unit INCLUDES Mounting and advanced AC+DC power supply (for solar cell applications)
Band of operation 4.9 - 6.05 Ghz
Channel Width 5, 10, 15, 20, 30, 40, and 45 Mhz
Spectral Efficiency 10 bps/Hz
Channel Selection Automatic, via DSO (Dynamic Spectrum Optimization) or manual mode
Maximum power Up to 27 dBm
Exterior protection IP66 - IP67
Protocol IEEE 802.3
Latency 1-3 ms
Frame Support Jumbo packets up to 9600 bytes
Ports 2 x Gigabit Ethernet:
- Gigabit Port 1: Data + PoE power (Input)
- Gigabit Port 2: 802.3at PoE (Output)
1 x SFP :
single-mode / multi-mode
T1/E1 TDM 8 x T1/E1 TDM (Network Indoor Unit (NIDU))
Dimensions Width: 204mm (8.0”), Height: 318mm (12.5”), Depth: 90mm (3.5”)
Weight 3.1 kg (6.8 lbs) including stand
Feeding AC + DC power injector: -40° to 140° F (-40° to +60° C); 70W; 90-240 VAC, 50/60 Hz
Consumption 30W maximum (up to 70W using the auxiliary port with 802.3at)

HCMP
High-capacity multipoint

Remote Modules Up to 8 Nodes
Channel Width 20 and 40 MHz
Data capacity on subscribers with 1:1 symmetry
Number of Nodes @40 MHz 2 3 4 5 4 7 8
Mbps 162 106 80 66 56 45 42
Spectral Efficiency in HCMP 8 bps/Hz
Latency 2 - 4 ms


*1 year warranty.
