Cost-effective solution for the integration of Modbus TCP/RTU/ASCII industrial networks

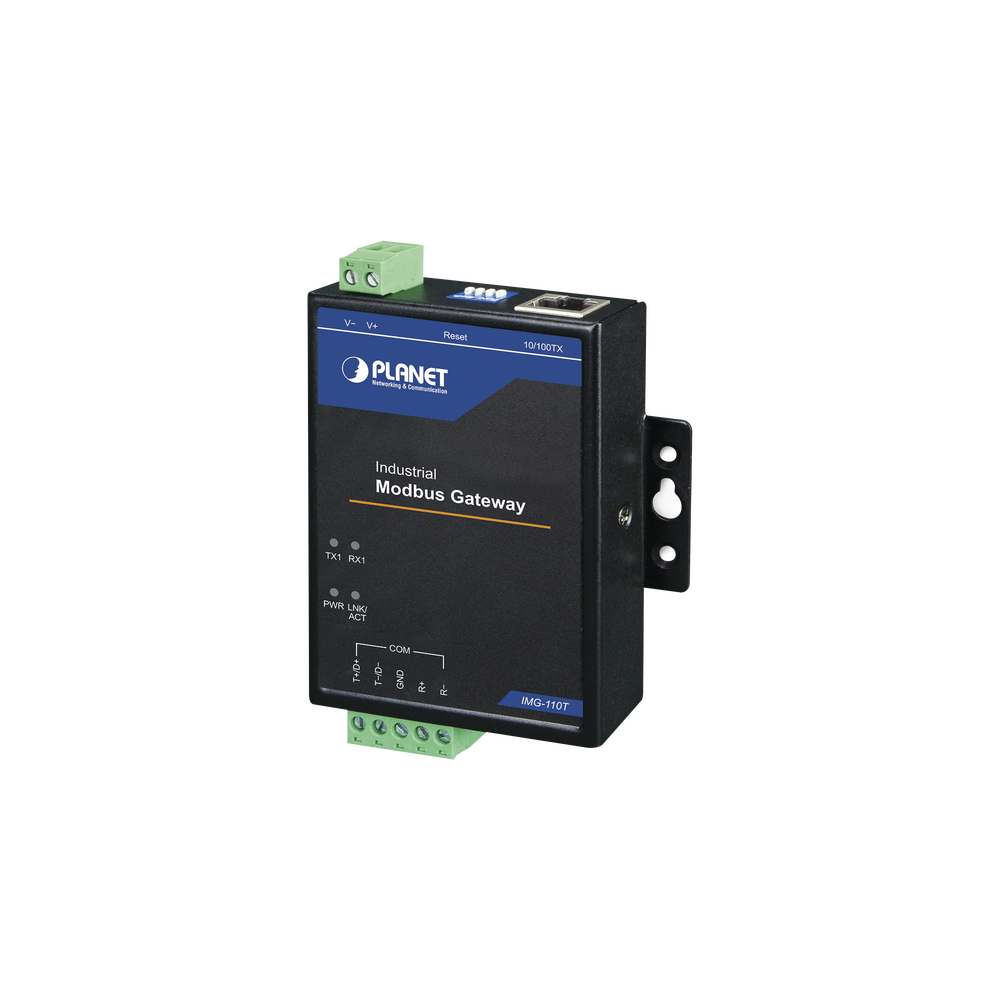

PLANET has added the Industrial Modbus TCP/IP protocol to its industrial management-grade products to provide industrial management-grade products that are easily integrated with SCADA/HMI systems and other data acquisition systems in factory floors. In addition, the Industrial IT SNMP network has been upgraded to the Industrial Automation Modbus TCP/IP network. PLANET’s industrial management-grade products with the Modbus TCP/IP protocol offer a flexible network connectivity solution for industrial automation environments. To complete the industrial automation environment application solution, PLANET has announced its first single-port industrial-grade RS422/485 Modbus bridge – the IMG-110T, a bridge that converts between the Modbus TCP/IP protocol and the Modbus RTU/ASCII protocol. It features a wide operating temperature range of -40 to 75 degrees C and a compact yet robust IP40 metal housing.

Modbus TCP/IP to Modbus RTU/ASCII Network Environment Implementation
The IMG-110T can be a conversion bridge between industrial equipment running Modbus RTU/ASCII protocol and administrator workstations running Modbus TCP/IP protocol. The IMG-110T's RS422/485 serial interface provides Modbus RTU/ASCII operation mode and various baud rate options to meet the integration demand between Modbus TCP/IP protocol, Modbus RTU Master/Slave Protocol, and Modbus ASCII Master/Slave Protocol.

The advantage of having the IMG-110T is to help users easily build an industrial environment between Modbus TCP/IP protocol and Modbus RTU/ASCII protocol, thus providing an application solution for industrial control equipment without Ethernet ports and industrial control equipment can only be controlled through an industrial PC workstation or industrial control panel.

In addition, the effective integration solution for Modbus Ethernet devices, Modbus serial devices, or multiple Modbus master/slave devices into an industrial hybrid network offers the following:
Master mode supports up to 32 TCP slave connection requests
Slave mode supports up to 16 TCP connections

• One RS422 /485 port with 5-pin terminal block
• Cost-effective for RS422/RS485 to Fast Ethernet 10/100BASE-TX application
• Supports 4-wire RS422 or 2-wire RS485 with 5-pin terminal block operation
• Baud rate of 300 bps ~ 115200 bps and non-blocking communication

Ethernet interface

• Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX
• Supports one 10/100BASE-TX RJ45 port with a distance of up to 100m

Hardware

• LED indicators for system, network and RS422/585 port diagnostics
• DIP switch on the top panel to reset to factory default value
• Wall mounting kit

Industrial housing and installation

• IP40 type wall-mounted metal box
• The 2-pin terminal block connector on the top panel of the Industrial Modbus Gateway is used for DC power input ( 9-48V ) (Power supply not included)
• -40 to 75 degrees C operating temperature

1 RS422/485 port with 5-pin terminal block, 1 Fast Ethernet 10/100BASE-TX port, baud rate 300 - 115200bps, IP40 metal wall mount, DC power supply (9-48v), Operating temperature (-40 to 75ºC)
