(NetMetal 5SHPn triple) 5GHz 802.11 a/n/ac 3X3 Connectorized Access Point, "Up to 2000mW of Power"
(NetMetal 5SHPn triple) 5GHz 802.11 a/n/ac 3X3 Connectorized Access Point, "Up to 2000mW of Power"
Couldn't load pickup availability
(NetMetal 5SHPn triple) 5GHz 802.11 a/n/ac 3X3 Connectorized Access Point, "Up to 2000mW of Power"

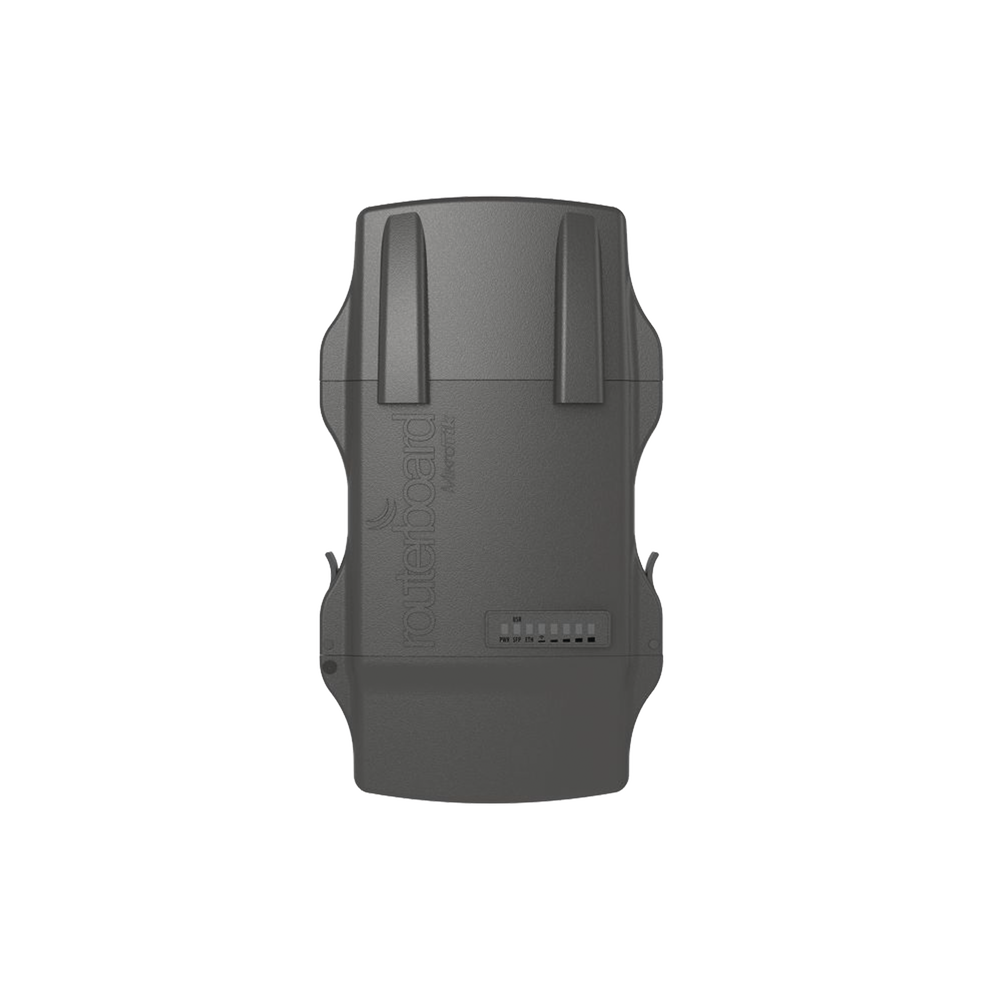

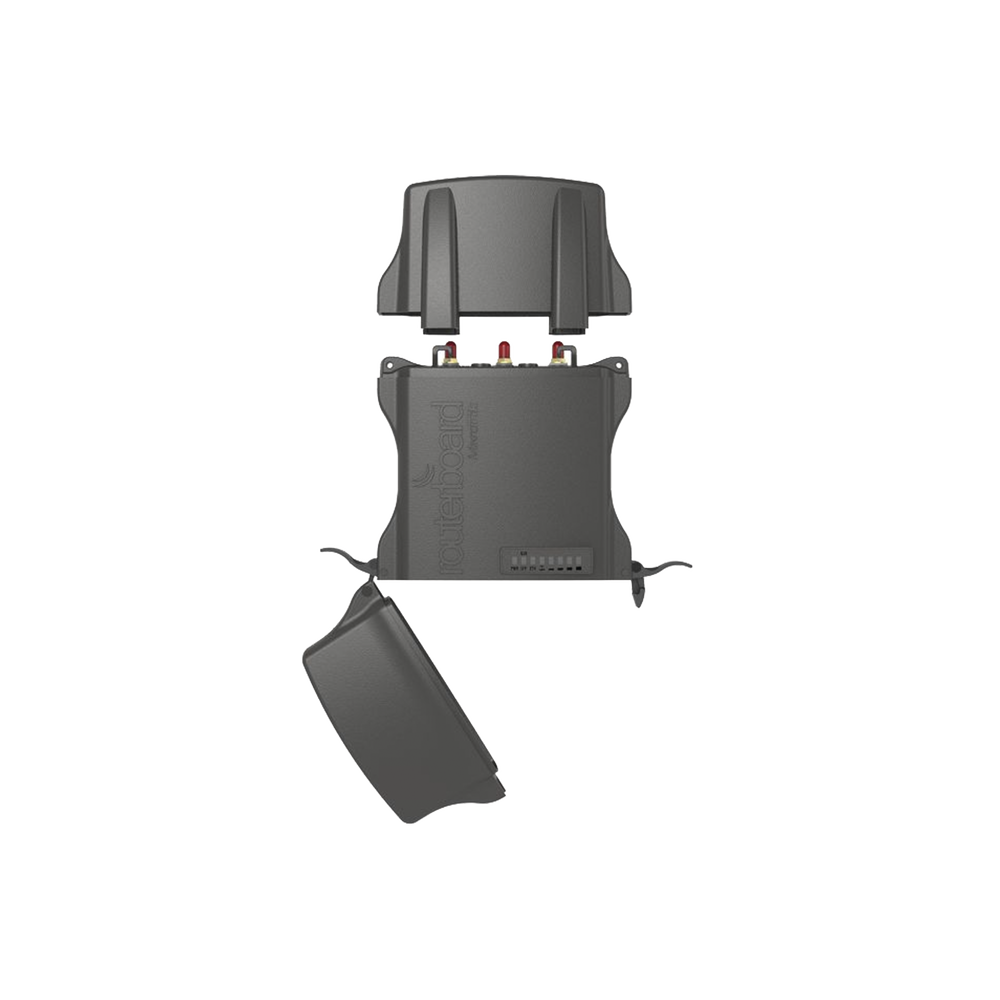

NetMetal is an 802.11a/n/ac wireless device in a weatherproof metal housing. Its rugged design is built to withstand the harshest conditions, yet it's easy to use and can be opened and closed with one hand. The solid aluminum housing also acts as a reliable heat sink for its high-powered radio. It's sealed to meet the IP54 standard.
The NetMetal is equipped with a powerful 720Mhz CPU, 128MB of RAM, a Gigabit Ethernet port, 802.11ac wireless, an SFP cage, USB, RP-SMA connectors for external antennas, and a RouterOS L4 license.
The RB921UAGS-5SHPacT-NM version is equipped with 3x3 Tripple Chain high-power 802.11ac wireless and three RP-SMA connectors for external antennas.
Specs
| Details | |
|---|---|
| Product code | RB921UAGS-5SHPacT-NM |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| Nominal CPU frequency | 720 MHz |
| Dimensions | 143x247x48mm (PCB) |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 8-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 25 W |
| Maximum power consumption without accessories | 21W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 1300 Mbit/s |
| Number of 5 GHz wireless chains | 3 |
| 5 GHz Wireless Standards | 802.11a/n/ac |
| 5GHz Wireless Chip Model | QCA9880 |
| 5 GHz wireless generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yeah |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yeah |
| USB slot type | USB Type A |
| Maximum USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | |
Out of stock
MODELO: RB921UAGS-5SHPACT-NM
