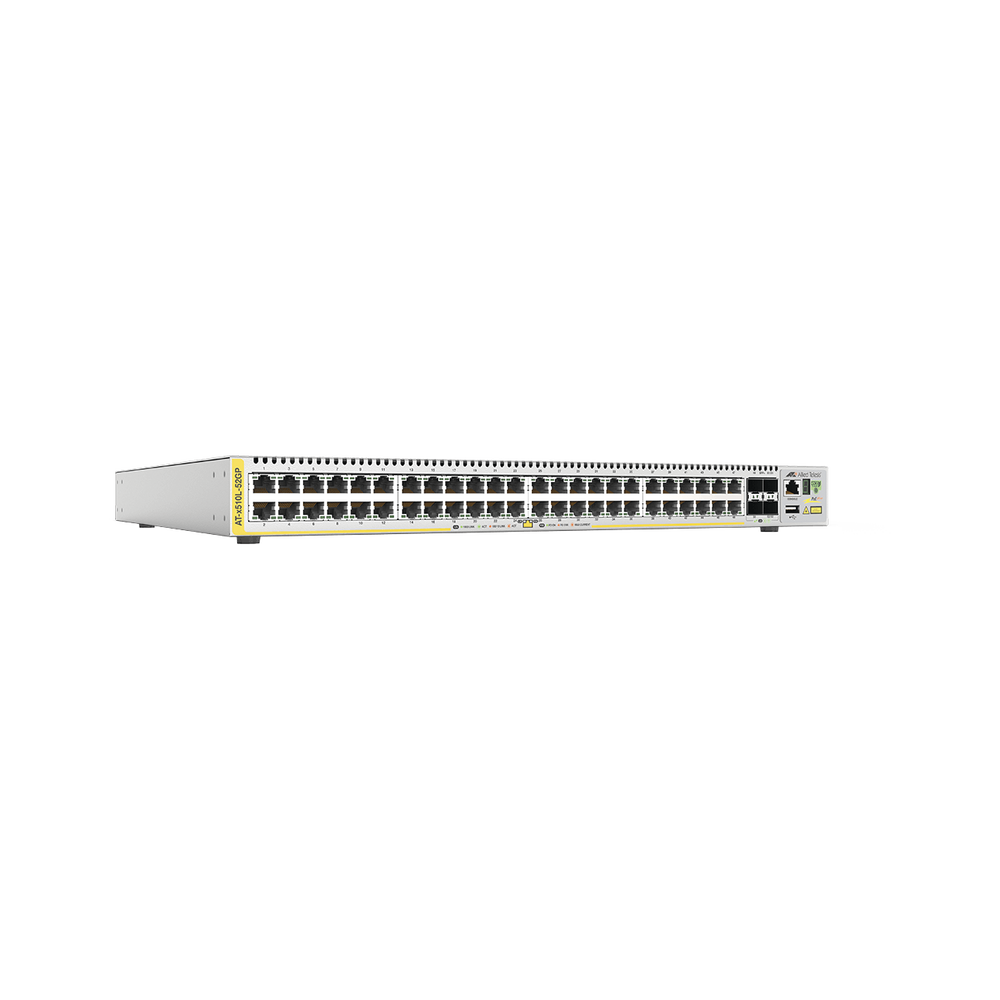

Layer 3 PoE+ Switch, 48 10/100/1000 Mbps ports + 4 10G SFP+ ports, 185W, single power supply

Layer 3 PoE+ Switch, 48 10/100/1000 Mbps ports + 4 10G SFP+ ports, 185W, single power supply

---

Ports:

48 10/100/1000 Mbps ports.

4 x 10G SFP+ ports (2 are stacked, requires firmware version 5.4.8-0.3.rel or higher ).

Forwarding rate: 130.9 Million packets per second (Mpps).

Switching fabric: 228 Gbps.



PoE:

IEEE 802.3af Power Over Ethernet (PoE) up to 15.4 W per port.

IEEE 802.3at Power Over Ethernet plus (PoE+) up to 30 W per port.

Total power: 185 W.



Operating system:

AlliedWare Plus™.



Administration:

Command Line Interface (CLI).

Graphical user interface (GUI).

Telnet.

SSH.

SNMP v1, v2c & v3 monitoring.



General characteristics:

OpenFlow for Software Defined Network (SDN).

Voice VLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Multicast support -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

• 8 priority queues.
• Limit bandwidth by port or traffic class.



Routing protocols :

Static routing.

Routing Information Protocol (RIP).

Open Shortest Path First (OSPFv3).

AT-FL-X510-01 Premium Layer 3 License.



Redundancy features:

G.8032 Ethernet Ring Protection.

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).



Physical and electrical characteristics:

Power supply: 90-260 VAC, 47-63 Hz.

Dimensions: 1 U Rack, 44 x 400 x 440 mm.

Weight: 5.7 kg.

Operating Temperature: 0 to 45° C.



Warranty:

1 year.

---

Example of a high-performance business network.

---

Stackable up to four switches., Up to 4094 VLANs., Routing protocols (OSPF, RIP)., Multicast support (IGMP snooping)., Restrictions on Hazardous Substances (RoHS) Compliance.
