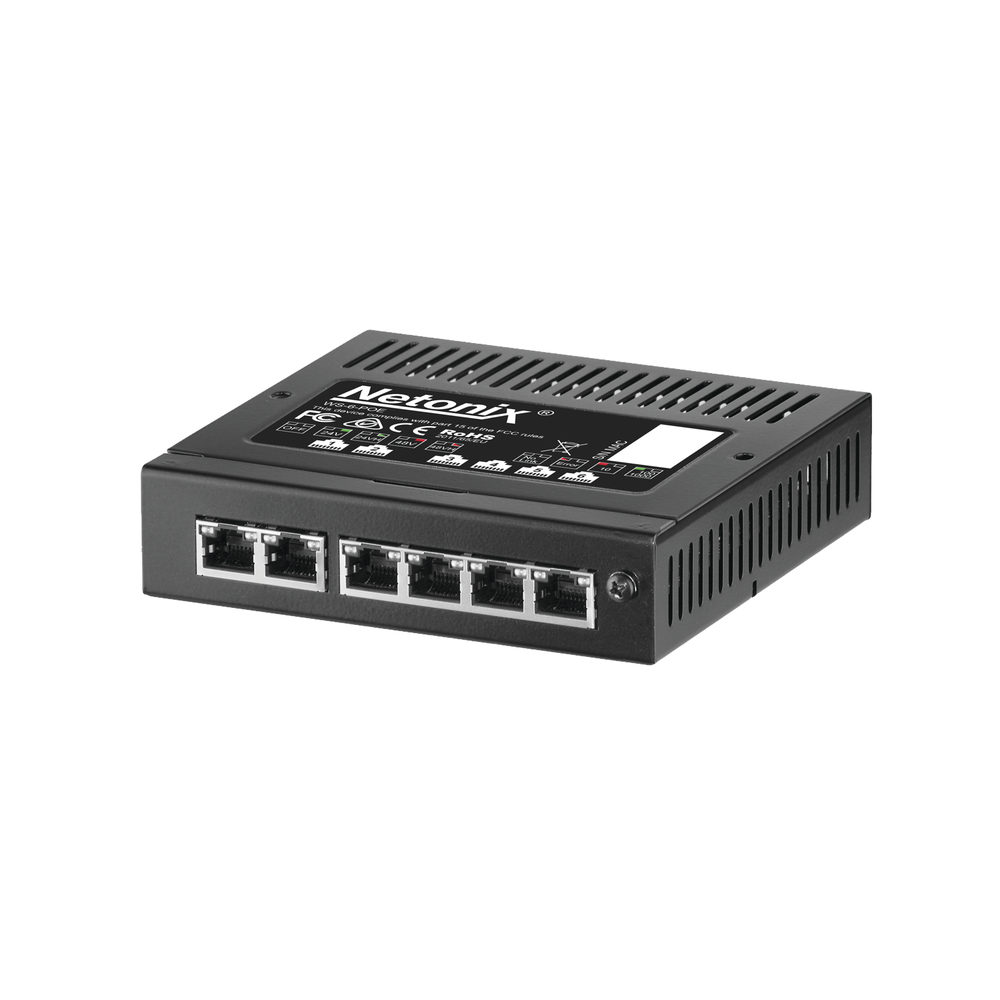

WISP PoE switch 6 Gigabit ports, 37-53 Vdc passive PoE input

WISP PoE switch 6 Gigabit ports, 37-53 Vdc passive PoE input

Main features:
1 Gigabit PoE IN port and 5 Gigabit PoE ports to power equipment from various manufacturers; Ubiquiti Networks, Altai, Mimosa, Cambium Networks, IgniteNet, Mikrotik, etc.
Withstands wide temperature range: -25° C to 55° C.
Input voltage: 37 – 53 Vdc.
PoE output voltage: 48 - 50 Vdc / 22 - 24 Vdc.

Administration functions:
UDP - Ubiquiti Discovery Protocol.
CDP - Cisco Discovery Protocol.
LACP.
Limit bandwidth per port.
STP / RSTP.
VLAN.
SNMP.
Ping Watch Dog.
Cable diagnosis.

Hardware:
6 10/100/1000 Ethernet ports.

PoE Pair Configuration:
Ports 03 to 06: 24V 0.75A pins 4,5(+) 7,8(-)
Ports 03 to 06: 48V 0.75A pins 4,5(+) 7,8(-)
Port 02: 24VH 1.5A pins 1, 2, 4, 5(+) 3, 6, 7, 8(-)
Port 02: 48VH 1.5A pins 1, 2, 4, 5(+) 3, 6, 7, 8(-)
*Powers equipment with 802.3af/at standard by activating 48 V PoE

General characteristics:
Dimensions: 127 mm X 118 mm X 32 mm.

Does not include PoE power supply.

*1 year warranty.
