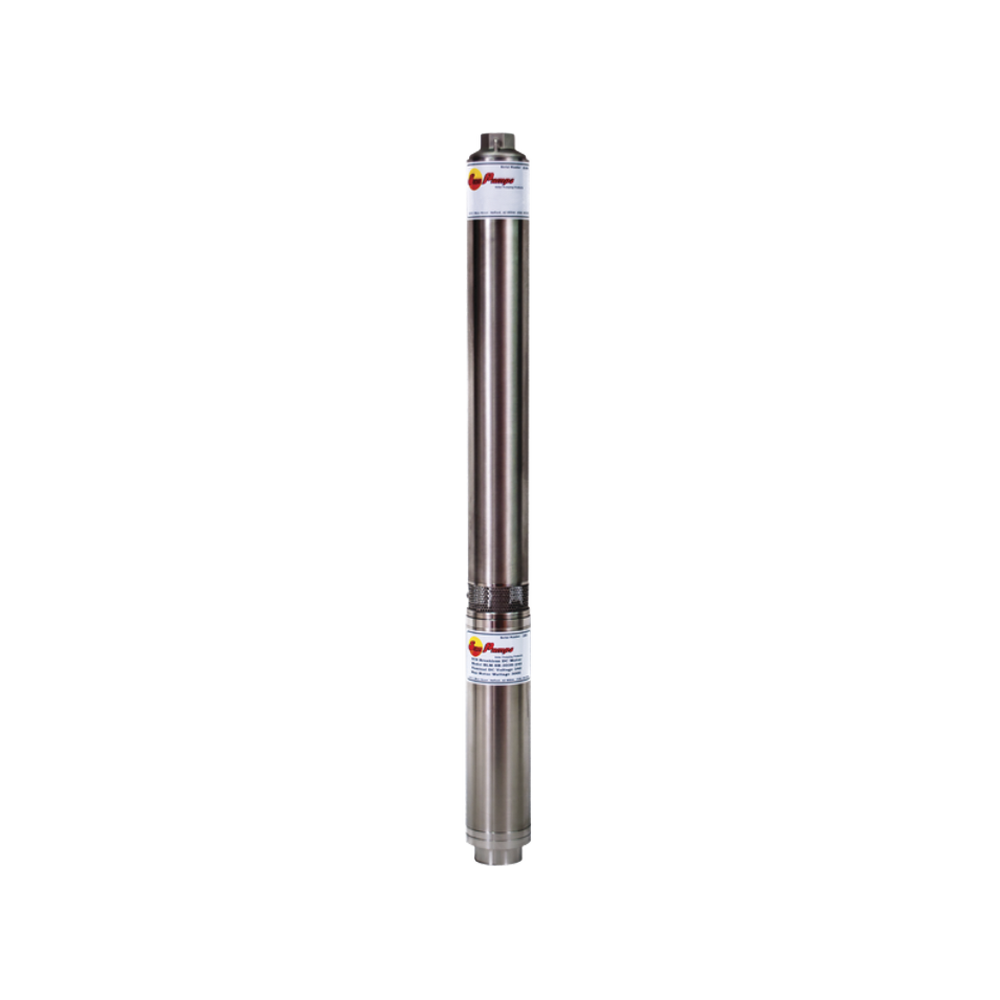

Submersible Solar Water Pump, Dynamic Head up to 213 m, 1 1/4-inch Discharge, 57 Lpm max, requires PCC 240-BLS-M2S controller
Sale price
$15,511,646
Regular price
$21,304,868
Skip to product information
The SCS Series submersible pumps are high-quality, maintenance-free, direct current (DC) powered pumps specifically designed for water delivery in remote locations. The 240-volt SCS Series pump systems operate between 1200 and 3000 watts of power, with options from 180 to 240 VDC.
Submersible motors incorporate the latest in high-efficiency technology: a permanent magnet, sensorless, brushless electric motor, and no electronics inside the motor. They are constructed of corrosion-resistant stainless steel.
PCC controllers incorporate the latest technology. The controllers are microprocessor-based with MPPT (Maximum Power Point Tracking) to keep the solar array operating at maximum efficiency at all times. The control box is dust-proof, constructed of die-cast aluminum with a large, extra-large heat sink, and is IP65-rated for outdoor use.
Submersible Solar Water Pump, Dynamic Head up to 213 m, 1 1/4-inch Discharge, 57 Lpm max, requires PCC 240-BLS-M2S controller
Sale price
$15,511,646
Regular price
$21,304,868
Shipping calculated at checkout.
- Marca
- SUN PUMPS
- Referencia / SKU
-
SCS-10-600-240BL
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones
Submersible Solar Water Pump, Dynamic Head up to 213 m, 1 1/4-inch Discharge, 57 Lpm max, requires PCC 240-BLS-M2S controller
Flow range: 6-15 GPM (21-57 LPM)
Depth Range: 250-700 Ft. (76-213 Mt.)
Direct Current Voltage Range: 180-240
Controller: PCC 240-BLS-M2S
Minimum diameter of the well: 4" (100mm)
Discharge diameter: 1 1/4" NPT.
BE CAREFUL WITH THE VOLTAGE AND CURRENT THAT THE CONTROLLER HANDLES,
WHEN CONSIDERING THE PHOTOVOLTAIC ARRAY.
USE ONLY PRO8512 MODULES.
BE CAREFUL WITH THE VOLTAGE AND CURRENT THAT THE CONTROLLER HANDLES,
WHEN CONSIDERING THE PHOTOVOLTAIC ARRAY.
USE ONLY PRO8512 MODULES.
The SCS Series submersible pumps are high-quality, maintenance-free, direct current (DC) powered pumps specifically designed for water delivery in remote locations. The 240-volt SCS Series pump systems operate between 1200 and 3000 watts of power, with options from 180 to 240 VDC.
Submersible motors incorporate the latest in high-efficiency technology: a permanent magnet, sensorless, brushless electric motor, and no electronics inside the motor. They are constructed of corrosion-resistant stainless steel.
PCC controllers incorporate the latest technology. The controllers are microprocessor-based with MPPT (Maximum Power Point Tracking) to keep the solar array operating at maximum efficiency at all times. The control box is dust-proof, constructed of die-cast aluminum with a large, extra-large heat sink, and is IP65-rated for outdoor use.
- Motor: 3.5 Hp brushless., Discharge: 1 1/4 "NPT
