PCC-180-BLS-M2S solar pump controller. Only for SCS10440180BL submersible pumps.

PCC-180-BLS-M2S solar pump controller. Only for SCS10440180BL submersible pumps.

The PCC-BLS series pump controllers are high-quality DC power converters and microcontrollers designed to interface a sensorless brushless submersible pump motor with the photovoltaic array. The primary purpose of a PCC-BLS series controller is motor commutation, maximum power point tracking for the PV modules, and providing controller protection.

The PC series controllers will increase the current to the solar modules in low sunlight conditions while maintaining the voltage at the maximum power point. This allows a pump to start much earlier in the morning and remain running longer into the afternoon.

The PCC-BLS series pump controllers have many exclusive features designed specifically for water pumping. All PCC series controllers include a pump speed control circuit, a remote switch circuit, a low-level cutoff circuit (sensor NOT included), an electronic circuit breaker, and indicator lights. PCC series controllers also include an LCD display that shows motor voltage, current, motor speed, and horsepower.

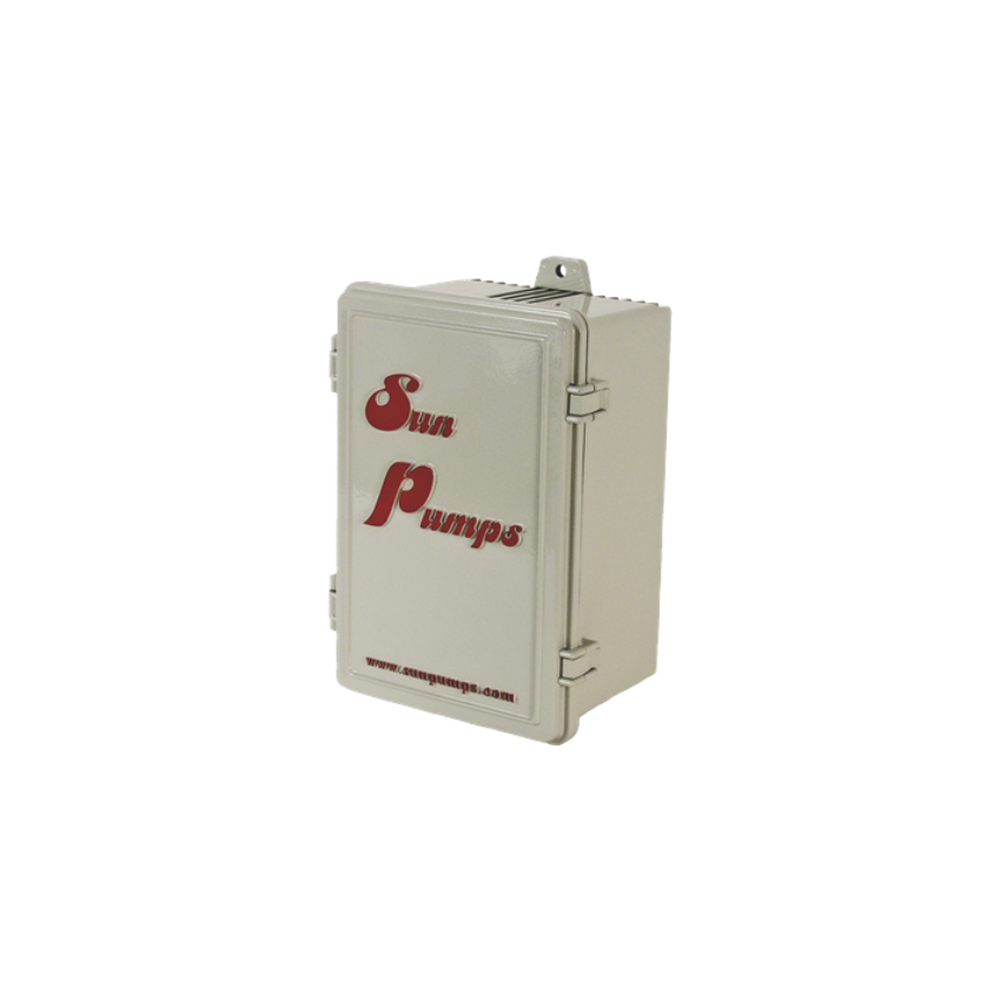

The controller is mounted in a high-quality, baked-on, cast aluminum housing rated for outdoor use.
