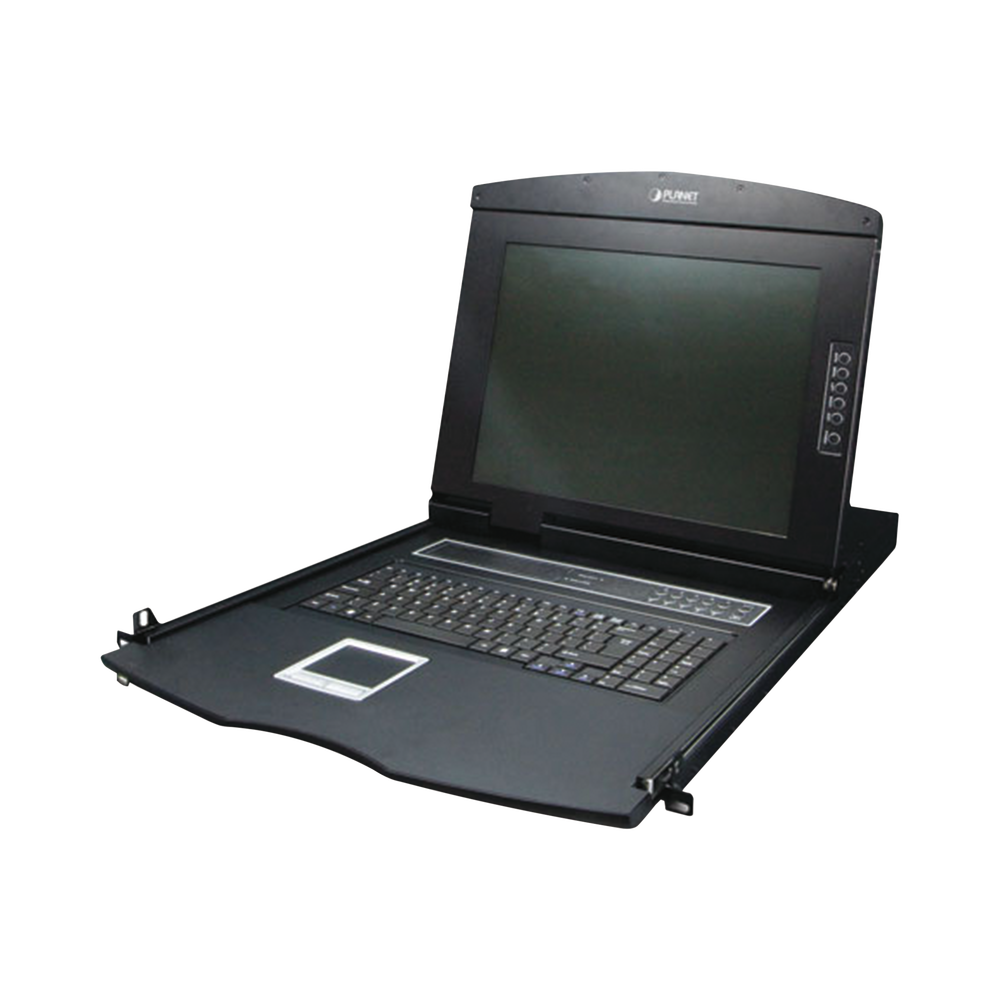

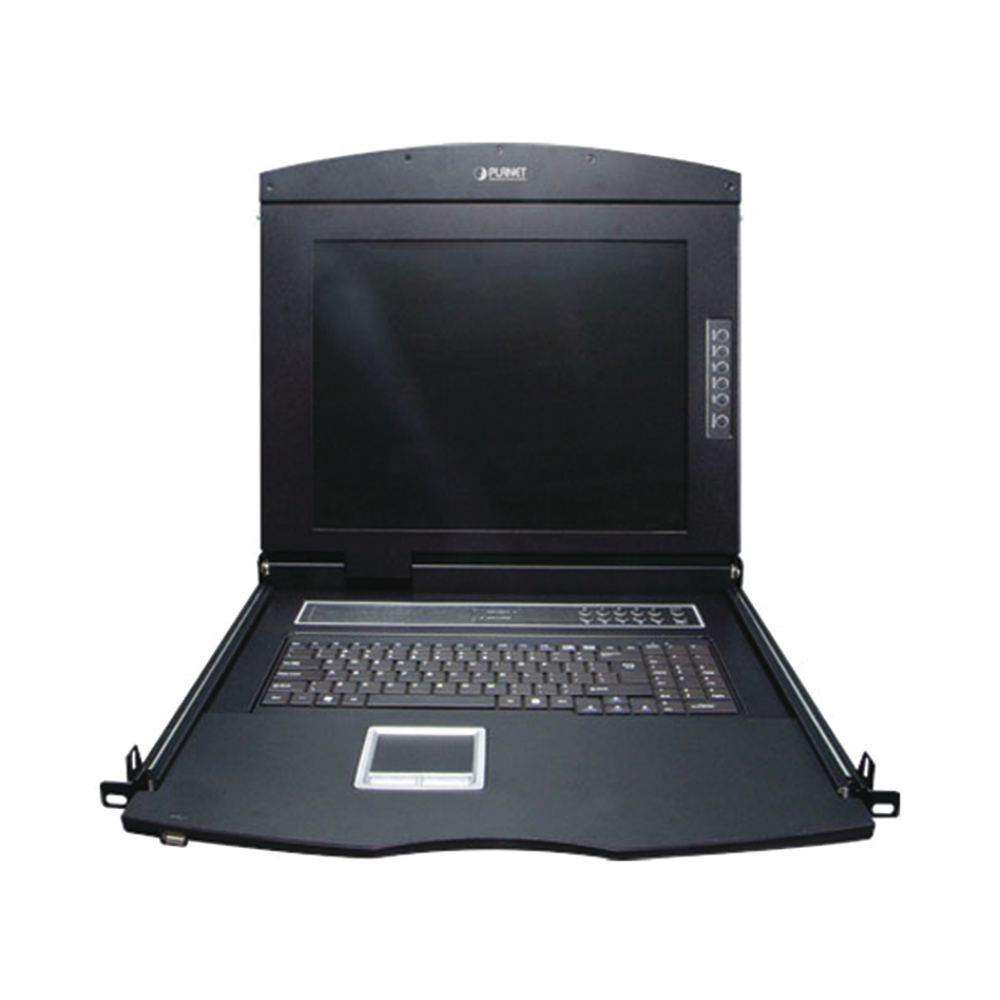

17" Monitor KVM Switch with Keyboard and Trackpad for 1U Four-Post Rackmount, 8 VGA Ports to Access and Control Up to 8 Computers from a Single Console

17" Monitor KVM Switch with Keyboard and Trackpad for 1U Four-Post Rackmount, 8 VGA Ports to Access and Control Up to 8 Computers from a Single Console

$3,983,853 $5,294,972
Shipping calculated at checkout.

17" Monitor KVM Switch with Keyboard and Trackpad for 1U Four-Post Rackmount, 8 VGA Ports to Access and Control Up to 8 Computers from a Single Console

Easy to install
The unique split-rail design makes installing the KVM console easy. Additionally, when the console needs maintenance, the administrator can easily uninstall the device without affecting the server upstream or downstream.

Autonomous operation

The KVM-210-08M allows you to access and control up to 8 computers from the LCD control platform.

Cascade operation

By cascading 8 KVM switches, you can control up to 64 servers.

Computer change

There are three convenient methods to access any computer connected to the facility:

Port selection button.

Hotkeys on the keyboard.

OSD (On Screen Display).

Hardware

Number of ports 8
Maximum 64 cascaded (KVM-210-08 x 8)

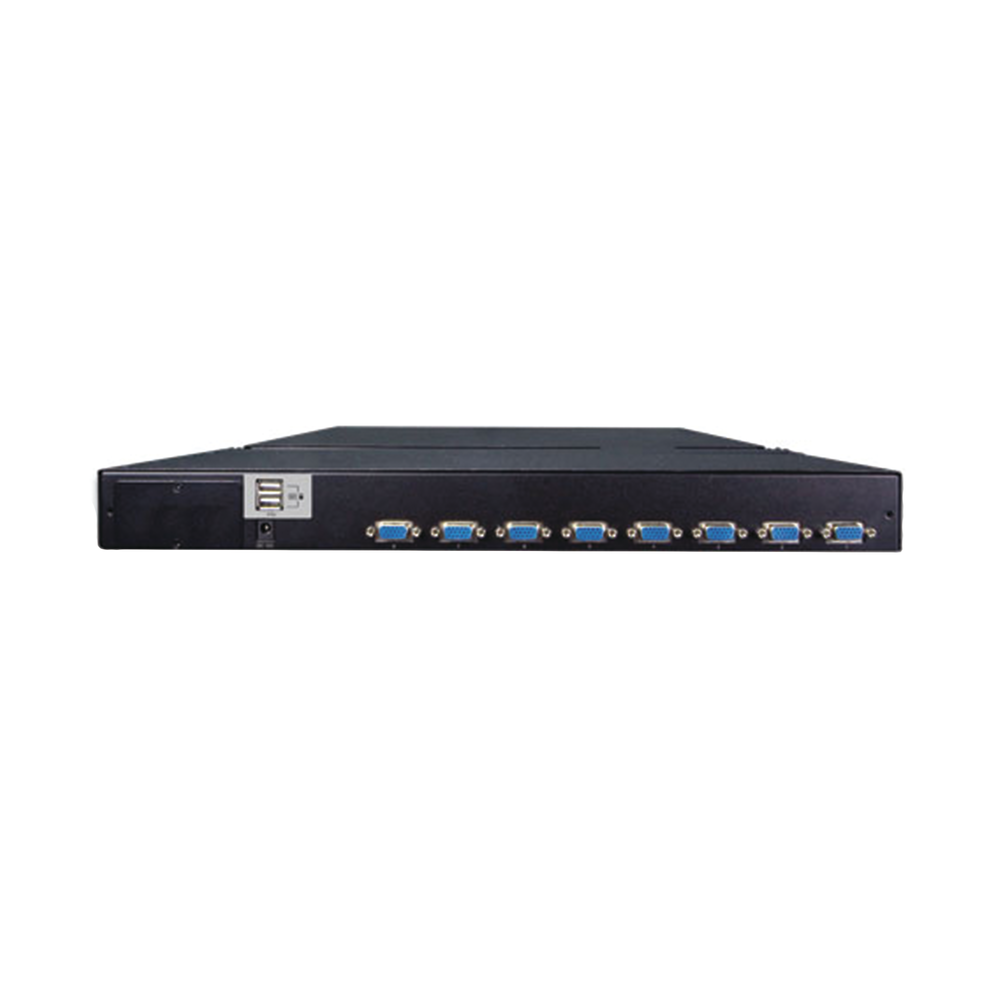

PC ports
Keyboard: PS/2 female + USB type A female
Mouse: PS/2 female + USB type A female
Video: 8 x HDB-15 female

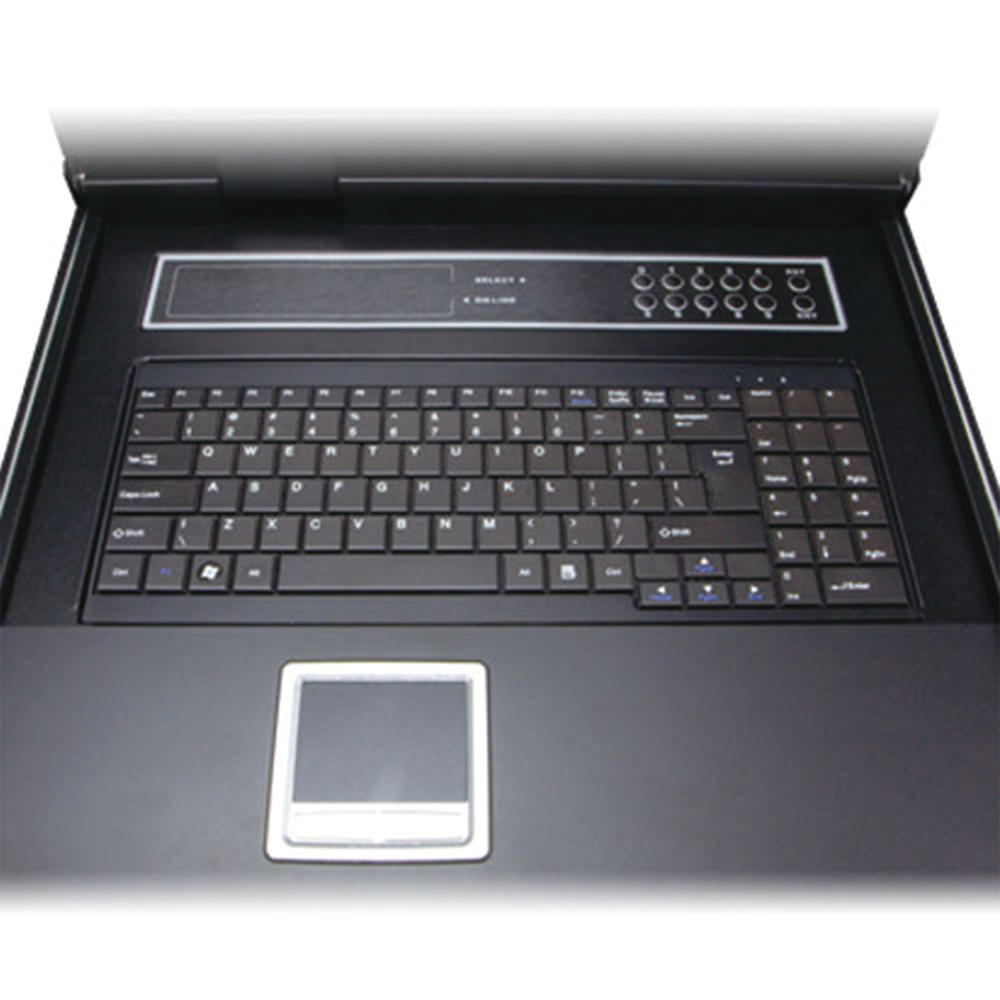

Port Selection Panel
Numeric key: 10
Reboot: 1
Get into: 1
DIRECTED BY: 8
Segment display: 1
LCD panel
Monitor: 17' SXGA color TFT-LCD
Video resolution: 1280 x 1024
Pixel size: 0.297 x 0.297 mm
Support color: 16.2M / 262K colors
Contrast ratio: 1000:1
LCD button
6
Console USB Hub Ports 3 x USB 2.0 Type A Female
Keyboard 100
Dimensions 445 x 611 x 44.5 mm
Weight 17.52 kg
Power requirements 12 V DC, 4 A
Facility

1U Rack Mount (4 Post)
Operating temperature 0 ~ 50 degrees C
Operating humidity 0 ~ 80%

    Easy to install, Windows, MAC, Linux compatible, Stackable, Lockable front panel to prevent accidental damage., 1280 x 1024 resolution, Includes power supply
