CAMBIUM NETWORKS
Fully Configured 5GHz Point-to-Point Wireless Link - C050900B171A
Fully Configured 5GHz Point-to-Point Wireless Link - C050900B171A
Couldn't load pickup availability
Fully Configured 5GHz Point-to-Point Wireless Link - C050900B171A
Bridge 180
2 x FORCE180 Programmed and ready to install!
5
GHz 200
16 Mbps
dBi

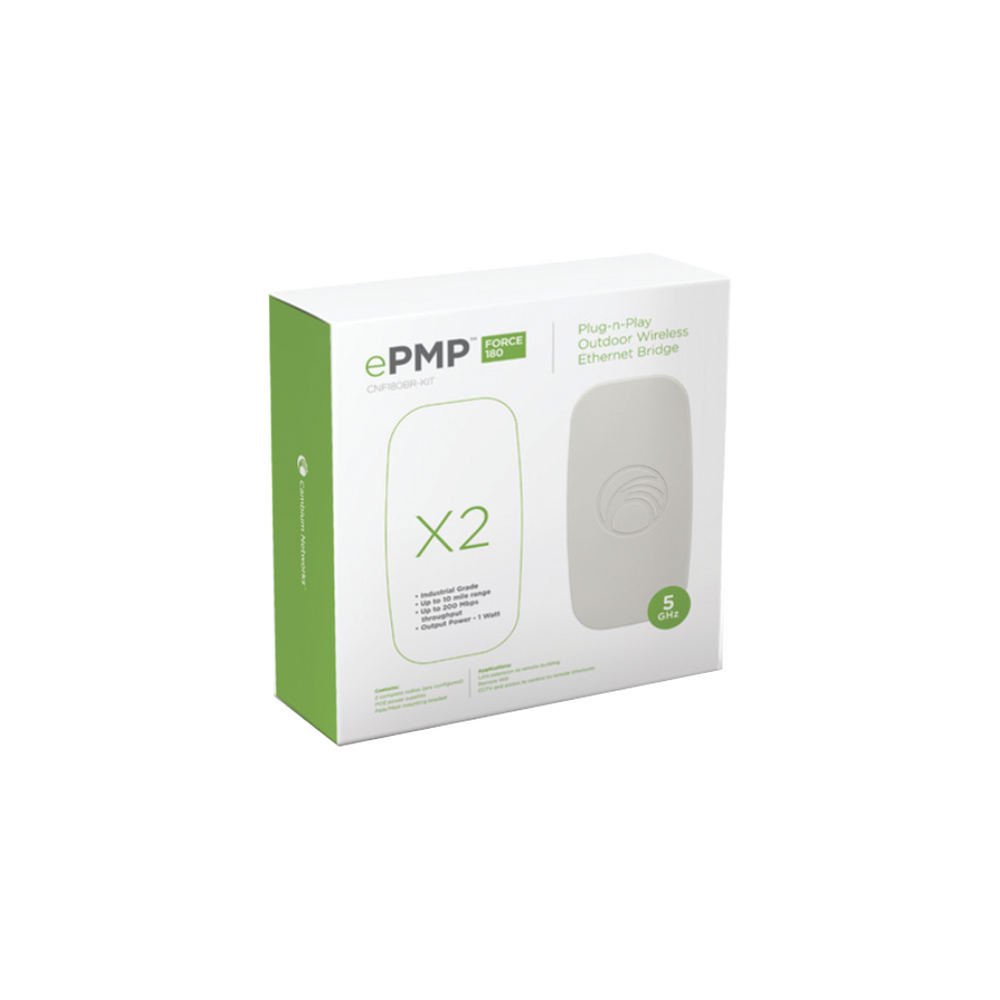

The ePMP Bridge-in-a-Box is a pre-configured Point-to-Point wireless link consisting of two ePMP Force 180 devices, designed to extend networks between two points up to 16 kilometers apart.
This solution can be quickly installed for:
- Bring megapixel video surveillance cameras from a remote location to the recording site.
- Extend a local network to another building.
- Make a low-cost wireless backhaul.
- Any application that requires extending the network to another point.
Frequency range 4910~5970 MHz.
Aggregate throughput of up to 200 Mbps.
Flexible channel widths: 5, 10, 20, 40 MHz.
Highly secure with AES128 Encryption.
*PoE power supply included.
|
cnMaestro |
LINKPlanner |
cnArcher |
cnHeat |
cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers. |
LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool. LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide. |
Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules. |
Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world. |
Out of stock
MODELO: BRIDGE-180
