CentreCOM GS970M Managed Switch, Layer 3 with 16 Ports 10/100/1000 Mbps + 2 Gigabit SFP ports

CentreCOM GS970M Managed Switch, Layer 3 with 16 Ports 10/100/1000 Mbps + 2 Gigabit SFP ports

Ports:

16 10/100/1000 Mbps ports.

2 Gigabit SFP ports.

Forwarding rate: 26.8 Million packets per second (Mpps).

Switching fabric: 36 Gbps.

Operating System:

AlliedWare Plus™.

Administration:

Command Line Interface (CLI).

Graphical user interface (GUI).

Telnet.

SSH.

SNMP v1, v2c & v3 monitoring.

Characteristics :

Access Control Lists (ACLs) based on Layer 2, 3 and 4.

Features of IPv6.

Eco-friendly with the environment.

IEEE 802.1x/MAC/Web authentication support.

Multicast support - IGMP snooping (IGMPv1, v2 and v3).

Storm protection.

Bridge Protocol Data Unit (BPDU) protection.

Tri-authentication.

QoS (Quality of Service):

• Eight priority queues.
• Bandwidth limit per port.
• Low latency traffic classification.

Redundancy features:

Ethernet Protection Switched Ring (EPSRing).

Loop protection.

Link Aggregation.

Spanning Tree Protocol (STP).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Supported Layer 3 functions:

Static routing.

RIP.

Physical and electrical characteristics:

Power supply: 100-240 VAC, 50-60 Hz, 2.4 A.

Dimensions: 1 U Rack, 44 x 231 x 341 mm (Requires rack mounting model AT-RKMT-J13 )

Weight: 2.4 kg.

Operating temperature: 0 to 50° C.

Warranty:

1 Year.

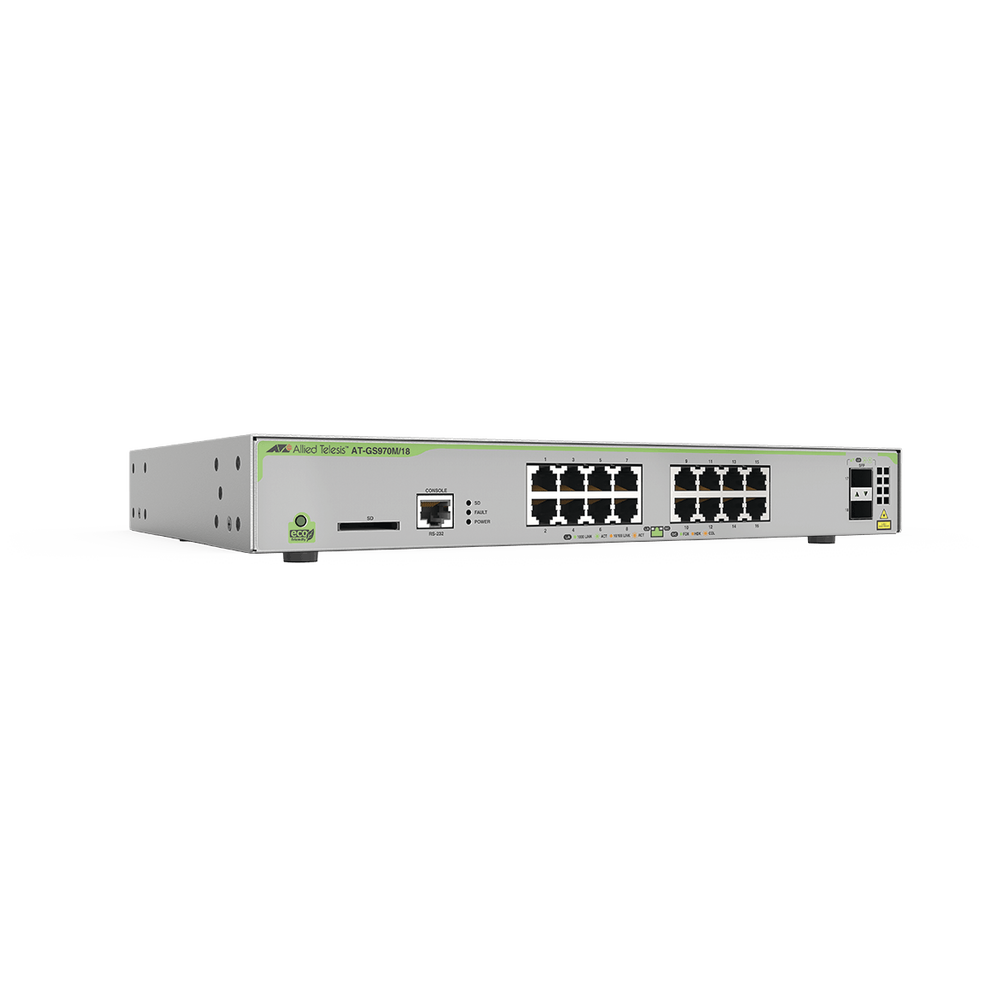

Front panel of the GS970M/18 switch.

Graphical user interface (GUI) for easy management., Up to 4094 VLANs., Layer 3 functions supported: Static routing and RIP., Multicast support (IGMP snooping).
