JetStream PoE+ Managed Layer 2 Switch, 24 10/100/1000 Mbps Ports + 4 SFP Ports 384 W

JetStream PoE+ Managed Layer 2 Switch, 24 10/100/1000 Mbps Ports + 4 SFP Ports 384 W

The TP-LINK T2600G-28MPS is a 24-port 10/100/1000Mbps JetStream L2 Managed Switch that supports 802.3at/af PoE+, with a total power output of 384W, allowing customers the power and flexibility to deploy wireless access points or an IP surveillance camera network. It also provides high-performance static routing, enterprise-grade QoS, and other advanced L2 security strategies and features. With all these advanced features, the JetStream Gigabit Managed L2 PoE Switch is an ideal choice as a networking solution for small and medium-sized businesses.

This switch delivers high performance, powerful L2 and L2+ features such as static routing, enterprise-grade QoS, and other advanced security strategies. OAM, L2TP, and sFlow meet the requirements of ISPs with large clients, and IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storms, ARP, and Denial of Service (DoS) attacks. Quality of Service (QoS, L2 to L4) offers enhanced traffic management capabilities to move your data faster and more smoothly. Additionally, easy-to-use web-based management interfaces, along with CLI, SNMP, RMON, and Dual Image, enable faster setup and configuration with less downtime. For workgroups and departments that require a cost-effective, gigabit-capable L2 switch, the TP-LINK T2600G-28MPS 24-Port Gigabit L2 PoE+ Managed Switch offers the ideal network solution.

Ports

• 24 10/100/1000 Mbps Ports
• 4 SFP ports
• Throughput: 41.7 Mpps

PoE Features

• Standard: 802.3at/af compliant with up to 30W per port
• PoE+ Ports: 24 Ports
• Power Supply: 384 W
• PoE Schedule (Time-Based Settings)

Characteristics

• Support for the 802.3at/af POE+ standard on all 24 ports, with a total power supply of 384W
• L2+ Features —— Static Routing, helps route internal traffic for more efficient use of network resources
• Port-MAC-IP Binding, ACL, Port Security, DoS Defense, Storm Control, DHCP Snooping, 802.1X Authentication and Radius that provide robust security strategies
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• Supports IPv6 with dual stack IPv4/IPv6, MLD snooping, IPv6 neighbor discovery
• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies

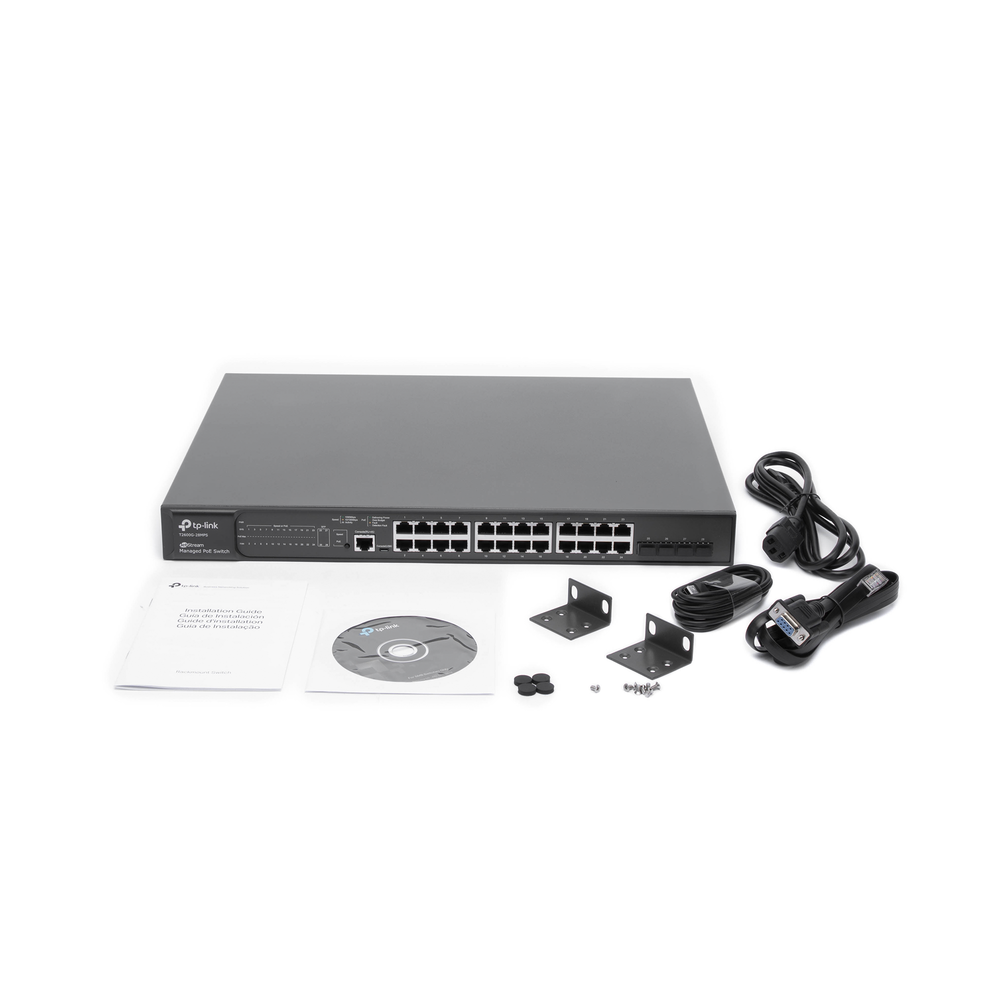

Includes

• T2600G-28MPS
• Power Cable
• Installation Guide
• Installation CD
• Rack Mount Kit
• Rubber feet

Physical and Electrical Characteristics:

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Power Supply: 100~240VAC, 50/60Hz
• Power Consumption: Max (PoE on): 468.7W (110V/50Hz)
• Dimensions (WXDXH):440*330*44 mm (17.3*13*1.7 in.)
