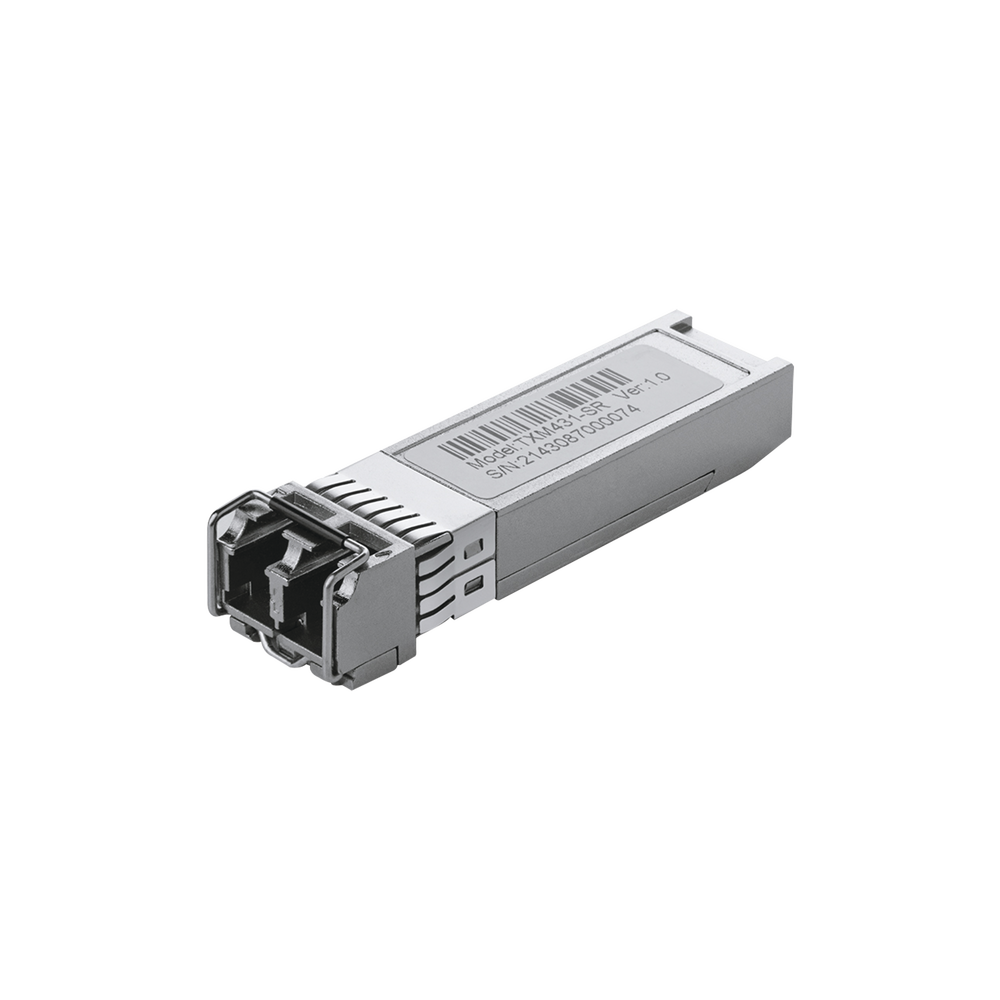

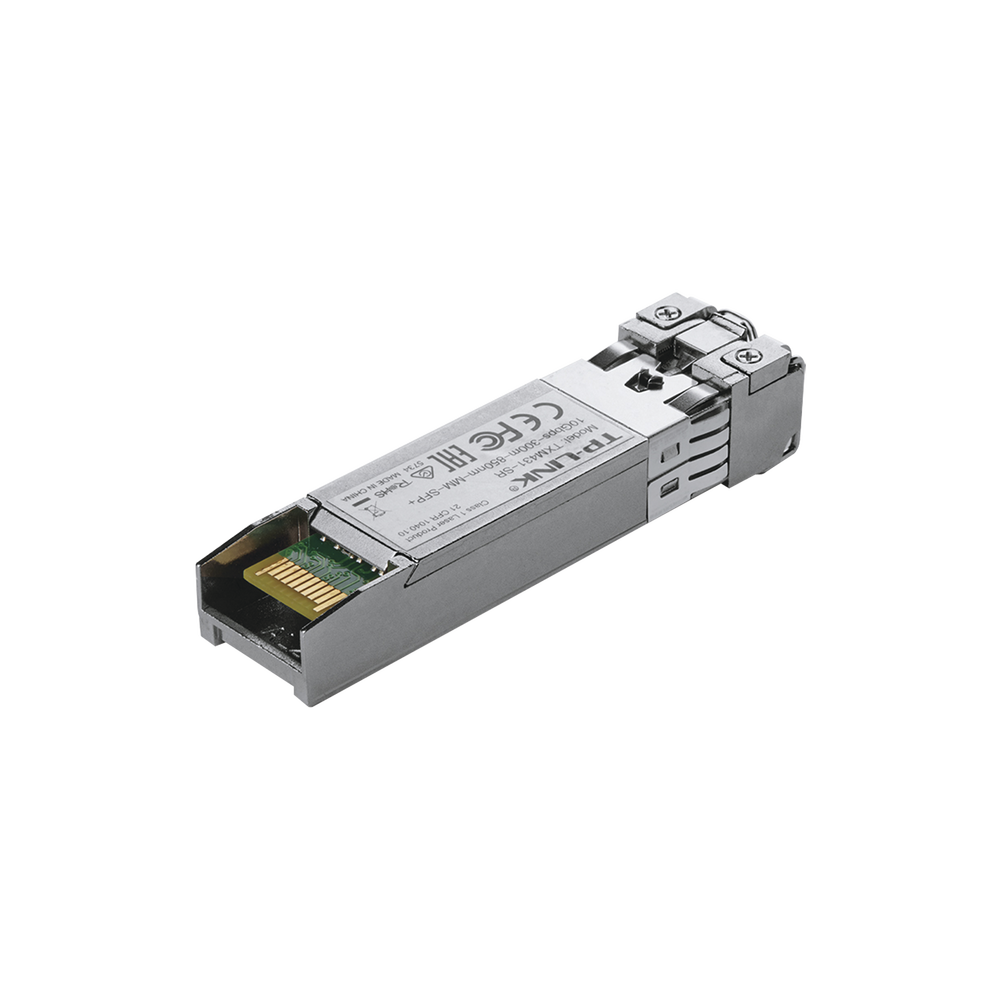

SR-SFP+ Duplex Multimode 10G Base Mini-GBIC Transceiver, Up to 300M Distance, LC Connector

SR-SFP+ Duplex Multimode 10G Base Mini-GBIC Transceiver, Up to 300M Distance, LC Connector

The TXM431-SR is designed to extend transfer distances based on 10 Gbps Ethernet connectivity. It is a high-performance 850 nm multi-mode 10GBASE-SR SFP+ transceiver. It supports full-duplex, 10G Ethernet connections up to 300 meters or 33 meters using 50/125um or 62.5/125um fiber cables, respectively.

• SFP+ LC Multimode Transceiver
• Plug with maximum flexibility
• Compatible with multiple models of TP-LINK/SFP+ modules

Characteristics

• 850nm multimode transceiver
• 300m max distance
• Supports full duplex
• LC/UPC connector
• 10Gbps Ethernet connectivity
• SFP+ Form Factor
• Energetic Connectivity
• IEEE 802.3ae, CSMA/CD, TCP/IP Standards and Protocols
• Wavelength 850nm
• 3.3V power supply
• Fiber Type Multi-mode 50/125um or 62.5/125um Max.
• Cable length 300 or 33 m
• Data speed 10 Gbps
• Port type LC/UPC
• Transmit power -1.0dBm (Max) -7.3dBm (Min)
• Reception power -1.0dBm (Max) -9.9dBm (Min)
• Sensitivity -11.1dBm
• Safety and Emission FCC, CE
• Operating temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~ 158 ℉)
• Storage temperature: -40 ℃ ~ 80 ℃ (-40 ℉ ~ 176 ℉)
• Operating humidity: 10% ~ 90% non-condensing
• Storage humidity: 5% ~ 90% non-condensing
