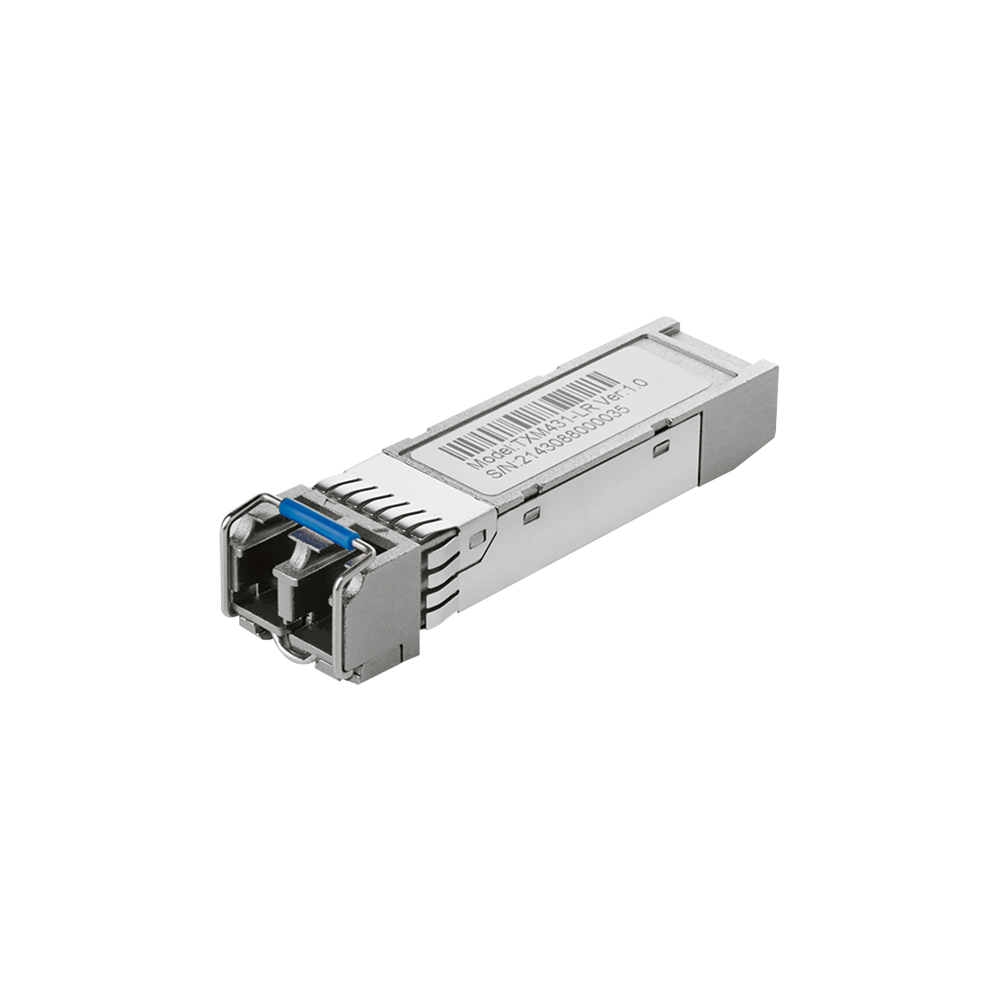

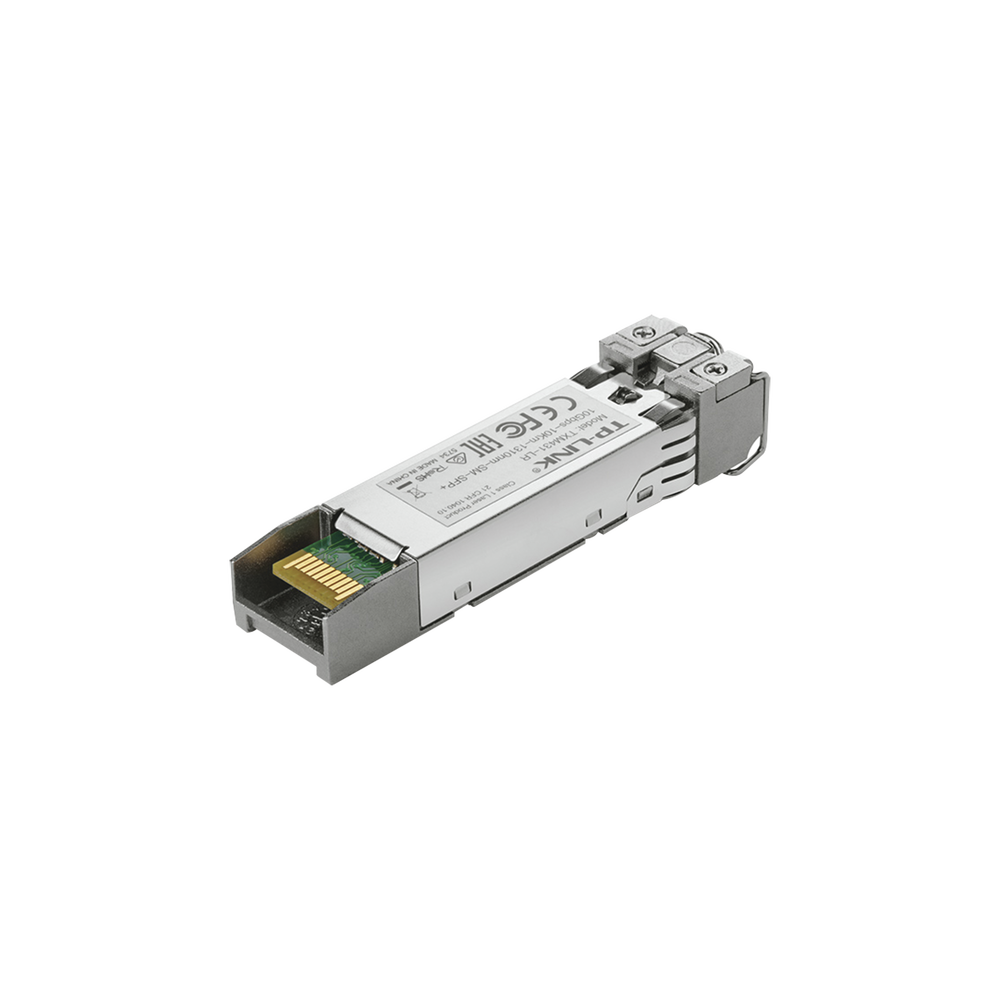

Mini-GBIC LR-SFP+ Duplex Single-Mode 10G Base Transceiver, Distance up to 10km, LC Connector

Mini-GBIC LR-SFP+ Duplex Single-Mode 10G Base Transceiver, Distance up to 10km, LC Connector

The TXM431-LR is designed to extend transfer distances based on 10 Gbps Ethernet connectivity. It is a high-performance 10GBASE-LR 1310 single-mode SFP+ transceiver. It supports full duplex and 10G Ethernet connections of up to 10 kilometers using 9/125um fiber cables.

• Mode- Single SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Compatible with multiple models of TP-LINK switches/SFP+ modules

Characteristics

• 1310 single-mode transceiver
• Max distance 10km
• Full duplex support
• LC/UPC connector
• 10 Gbps Ethernet connectivity
• SFP+ form factor
• IEEE 802.3ae, CSMA/CD, TCP/IP Standards and Protocols
• Wavelength 1310nm
• 3.3V power supply
• Fiber Type 9/125um Singlemode Max.
• Cable length 10km
• Data speed 10 Gbps
• Port type LC/UPC
• Transmit power 0.5 dBm (Max) -8.2 dBm (Min)
• Reception power 0.5dBm (Max) -14.4dBm (Min)
• Sensitivity -12.6dBm
• Safety and Emission FCC, CE
• Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~ 158 ℉)
• Storage Temperature: -40 ℃ ~ 80 ℃ (-40 ℉ ~ 176 ℉)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
