Multi-mode Multimedia Converter, 1 RJ45 10/100 Mbps port, SC fiber connector, up to 2 KM

Multi-mode Multimedia Converter, 1 RJ45 10/100 Mbps port, SC fiber connector, up to 2 KM

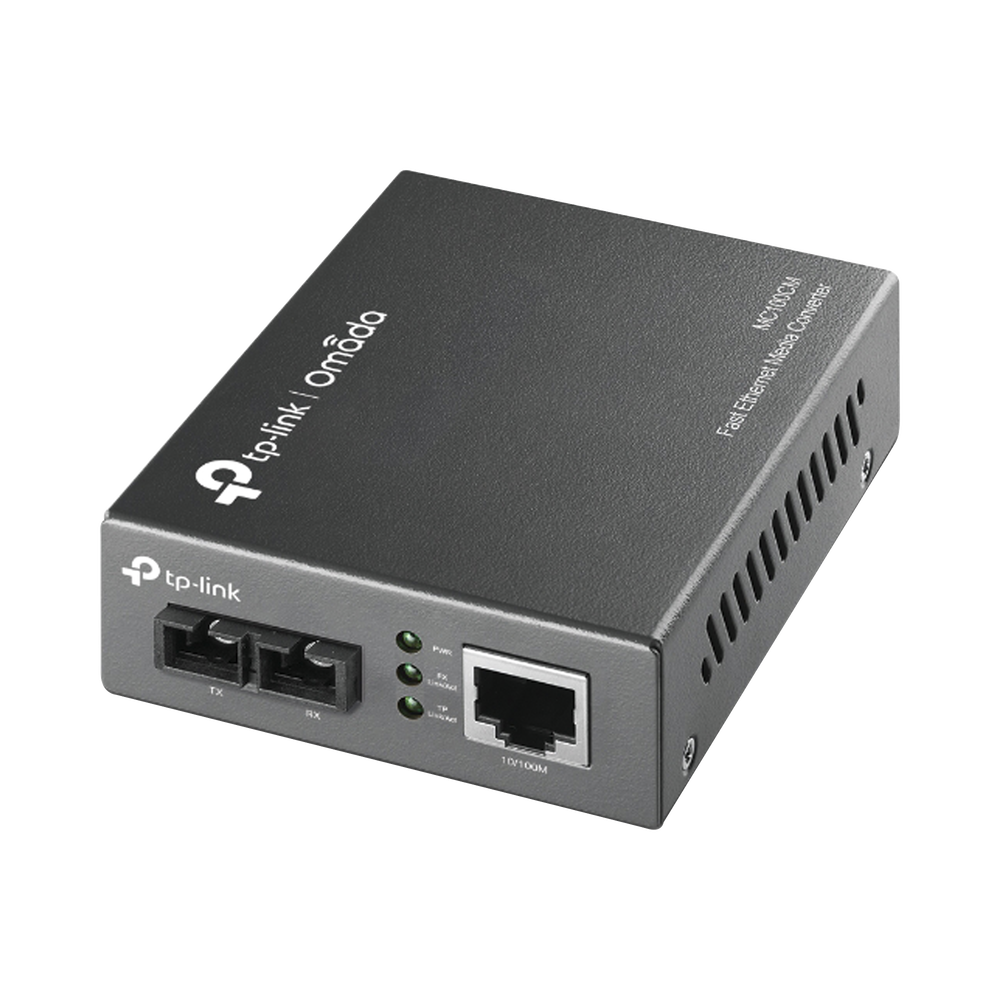

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100BASE-TX copper media or vice versa. Designed to comply with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multimode fiber cables and utilizes an SC connector. The MC100CM supports the longwave (LX) laser specification at a high cable transmission rate. It operates at 1310 nm for both transmit and receive data.

• Compatible with 802.3u 10/100 Base-TX, 100Base-FX standards.
• The link failure and error step minimize the loss caused by link failure in a timely manner.
• Provides Half Duplex/Full Duplex Transfer Mode switch configuration for the FX port.
• Extends fiber distance up to 2 km

Characteristics

• Half/Full-Duplex transfer mode for FX port
• Full duplex flow control (IEEE 802.3x)
• Half-duplex flow control (back pressure)
• Extends fiber distance up to 2 km
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure in a timely manner.
• Wavelength 1310 nm

Ports

• 1 port 100 Mbps SC/UPC
• 1 100 Mbps RJ45 port (Auto MDI/MDIX)

Physical and electrical characteristics

• Dimensions (W*D*H) 9.5*7.4*2.8cm. (94.5*73.0*27.0mm)
• Maximum power consumption 2.5W
• Operating temperature: 0 ℃ ~ 40 ℉ (32 ℉ ~ 104 ℉)
• Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating humidity: 10% ~ 90% non-condensing
• Storage humidity: 5% ~ 90% non-condensing
