Single-mode Multimedia Converter, 1 RJ45 10/100 Mbps port, SC fiber connector, up to 20 km

Single-mode Multimedia Converter, 1 RJ45 10/100 Mbps port, SC fiber connector, up to 20 km

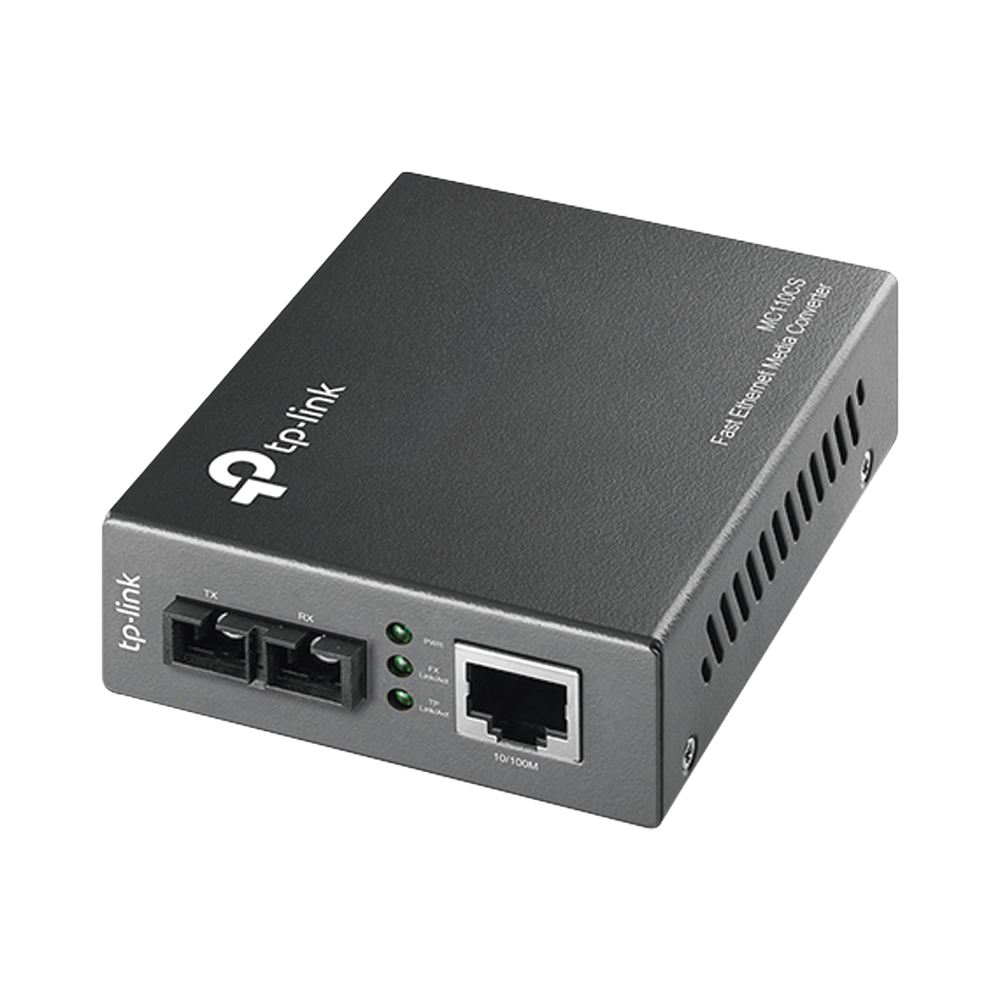

The MC110CS is a media converter designed to convert 100BASE-FX fiber cable to 100Base-TX copper cable or vice versa. The MC110CS is designed to comply with IEEE 802.3u 10/100Base-TX and 100Base-FX standards and uses single-mode fiber cable with an SC connector. The MC110CS supports the longwave (LX) laser specification at full transmission speed. It operates at 1310 nm for both data transmission and reception.

Characteristics

• Compatible with 802.3u 10/100 Base-TX, 100Base-FX standards.
• The link failure and error step minimize the loss caused by link failure in a timely manner.
• Provides Half Duplex/Full Duplex Transfer Mode switch configuration for the FX port.
• Extends fiber distance up to 20-60km
• Wavelength 1310nm

Ports

• 1 port 100 Mbps SC/UPC
• 1 10/100 Mbps RJ45 port (Auto MDI/MDIX)

Physical and electrical characteristics

• Dimensions (W * D * H) 3.7 * 2.9 * 1.1 in. (94.5*73.0*27.0mm)
• Maximum power consumption 1.52 W
• Operating temperature: 0 ℃ ~ 40 ℉ (32 ℉ ~ 104 ℉)
• Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating humidity: 10% ~ 90% non-condensing
• Storage humidity: 5% ~ 90% non-condensing
