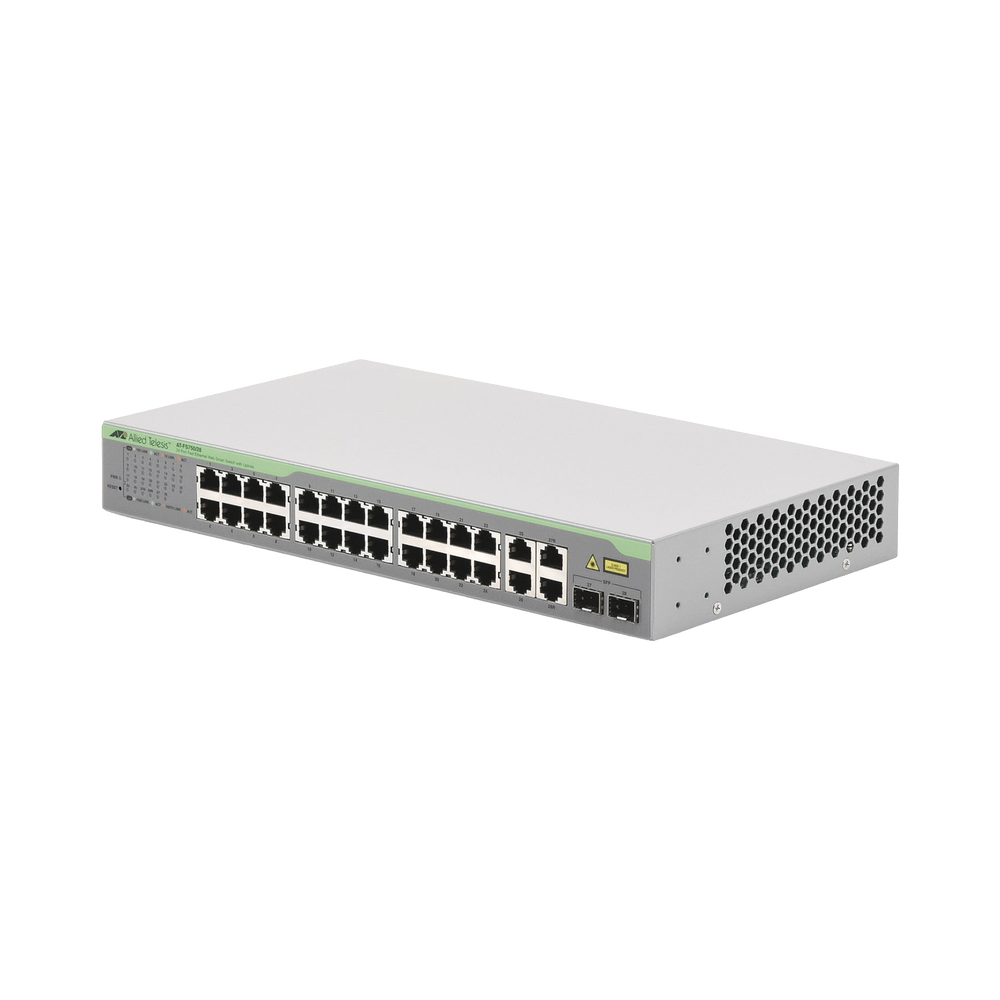

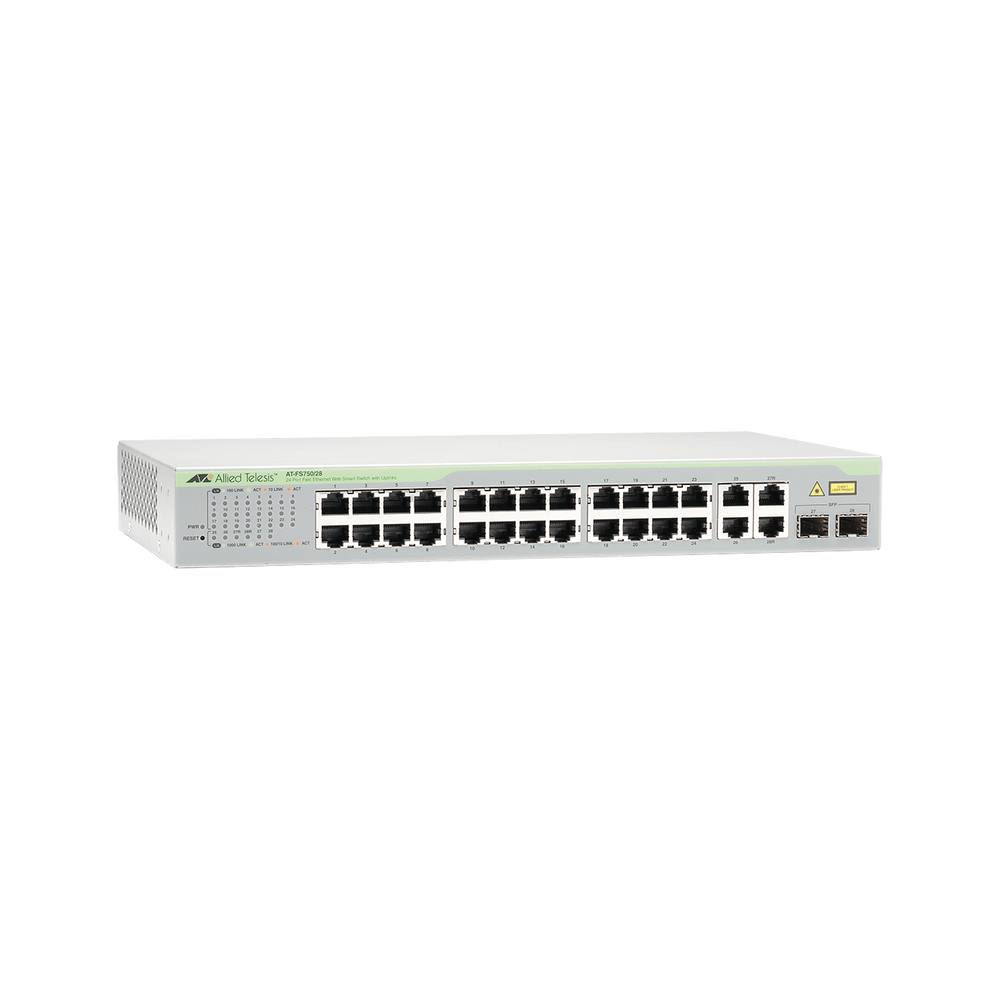

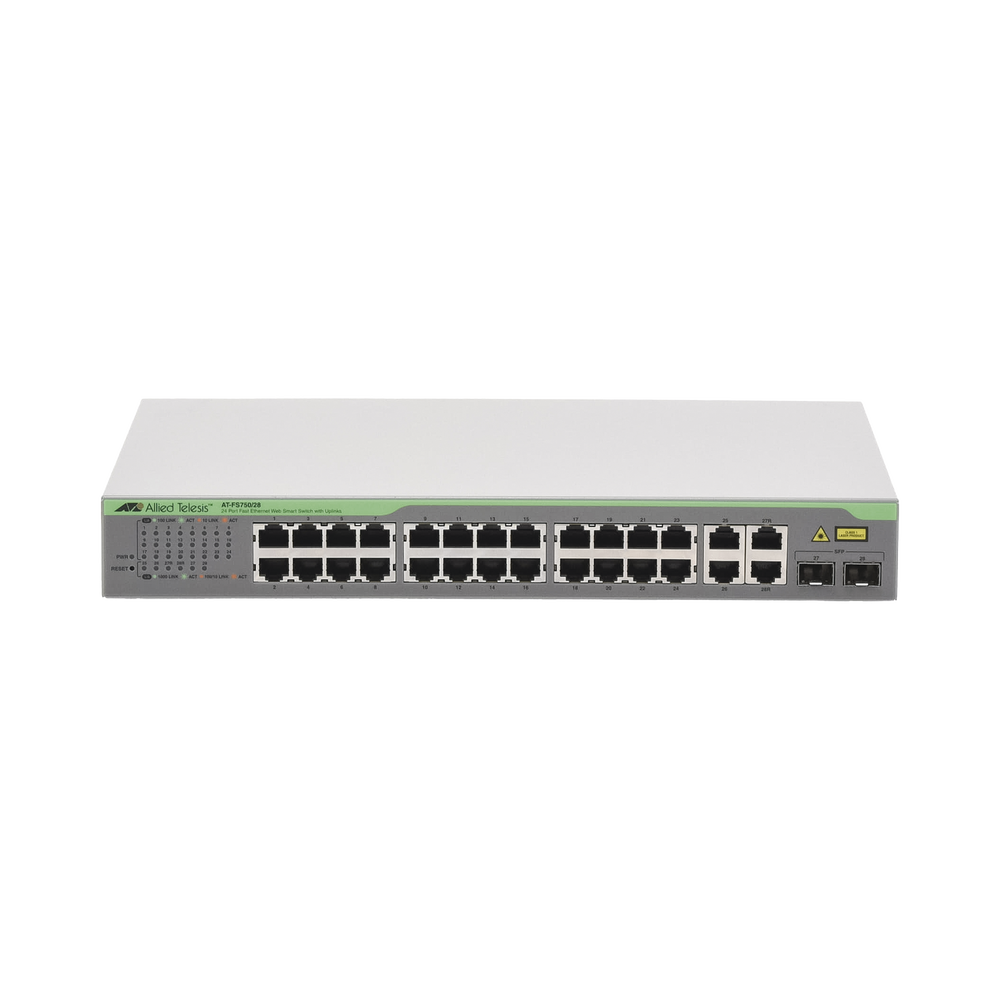

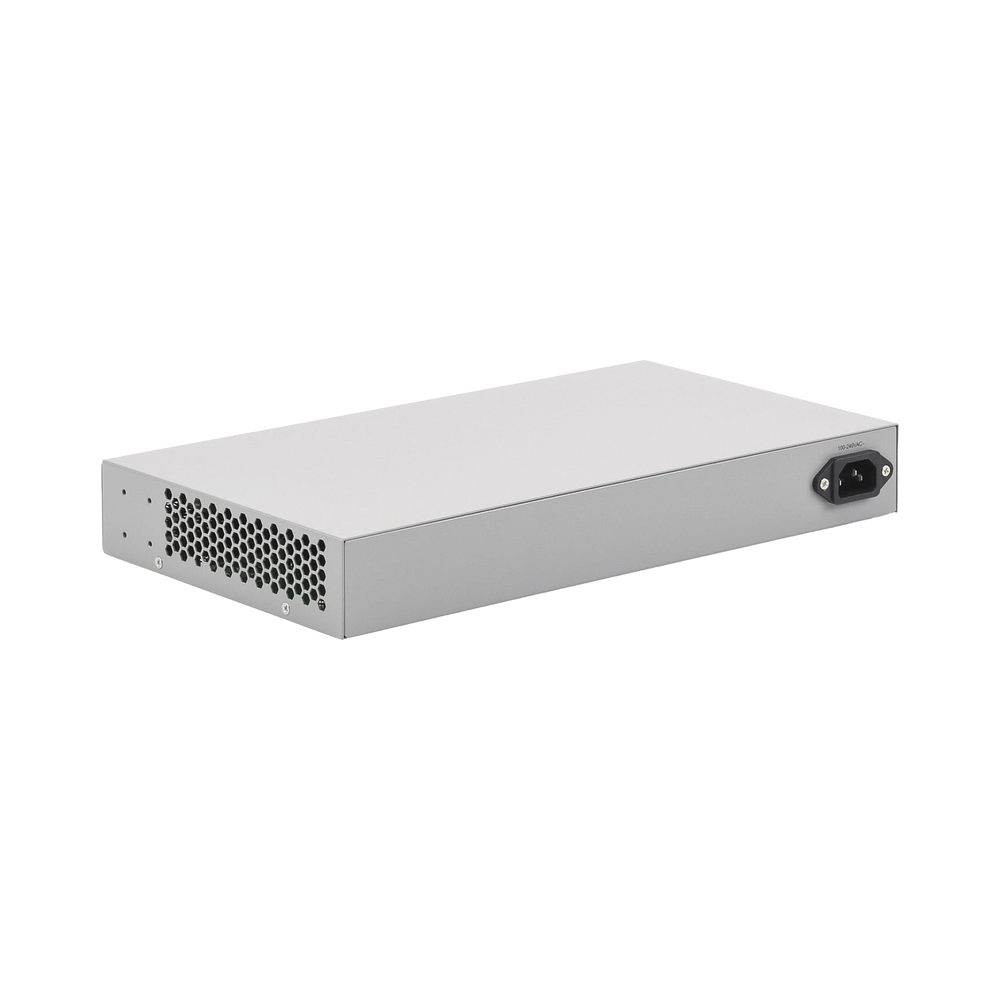

24-Port 10/100 Mbps WebSmart Switch + 2 10/100/1000 Mbps Ports + 2 Gigabit SFP Combo

24-Port 10/100 Mbps WebSmart Switch + 2 10/100/1000 Mbps Ports + 2 Gigabit SFP Combo

Ports:

24 10/100 Mbps ports.

2 10/100/1000 Mbps ports.

2 Gigabit Combo SFP ports.

Forwarding rate: 9.5 Million packets per second (Mpps).

Switching fabric: 12.8 Gbps.

Administration:

Graphical user interface (GUI).

SNMP v1, v2c & v3 monitoring.

Characteristics:

VLAN (up to 256 groups).

QoS (Quality of Service Classification).

IP Multicast Support (IPv4).

Link Aggregation.

Port Mirroring.

Network Access Control.

RADIUS Client.

DHCP Client.

Jumbo Frames up to 10K.

Access Control List (200 shared entries).

Includes:

Rack mount, brackets and screws.

Power cable.

Physical and Electrical Characteristics:

Power supply: 100-240 VAC, 50-60 Hz.

Dimensions: 1 U Rack, 44 x 180 x 330 mm.

Weight: 2.2 kg.

Operating Temperature: 0 to 40° C.

1-year warranty, for an additional year register the product at the following link:

http://www.alliedtelesis.com/support/maintenance-and-warranty/register

Ideal for small and medium-sized businesses.

Smart, energy-efficient, and cost-effective solutions for network access.

Configuration via Web interface., VLANs: Up to 256 groups., RMON Groups (1, 2, 3, 9)., IPv4 Multicast support (IGMP snooping)., Management IP: DHCP client for Web interface.
