High Availability Controller for UCM6510

High Availability Controller for UCM6510

The HA100 offers an automated failover solution for the UCM6510 IP PBX. When connected between two UCM6510 devices, the HA100 constantly monitors the operating status of both UCM6510 devices and automatically switches system control (including all connected telecom lines, network links, auxiliary devices, and all SIP devices previously registered to the primary UCM6510) to the hot standby secondary UCM6510 in the event of a primary UCM6510 failure. It can complete the entire system switchover in 10 to 50 seconds depending on the number of registered SIP devices. With its intelligent monitoring and automated failover capabilities, the HA100 is an ideal high-availability solution for the UCM6510, ensuring maximum system reliability and optimal uptime.

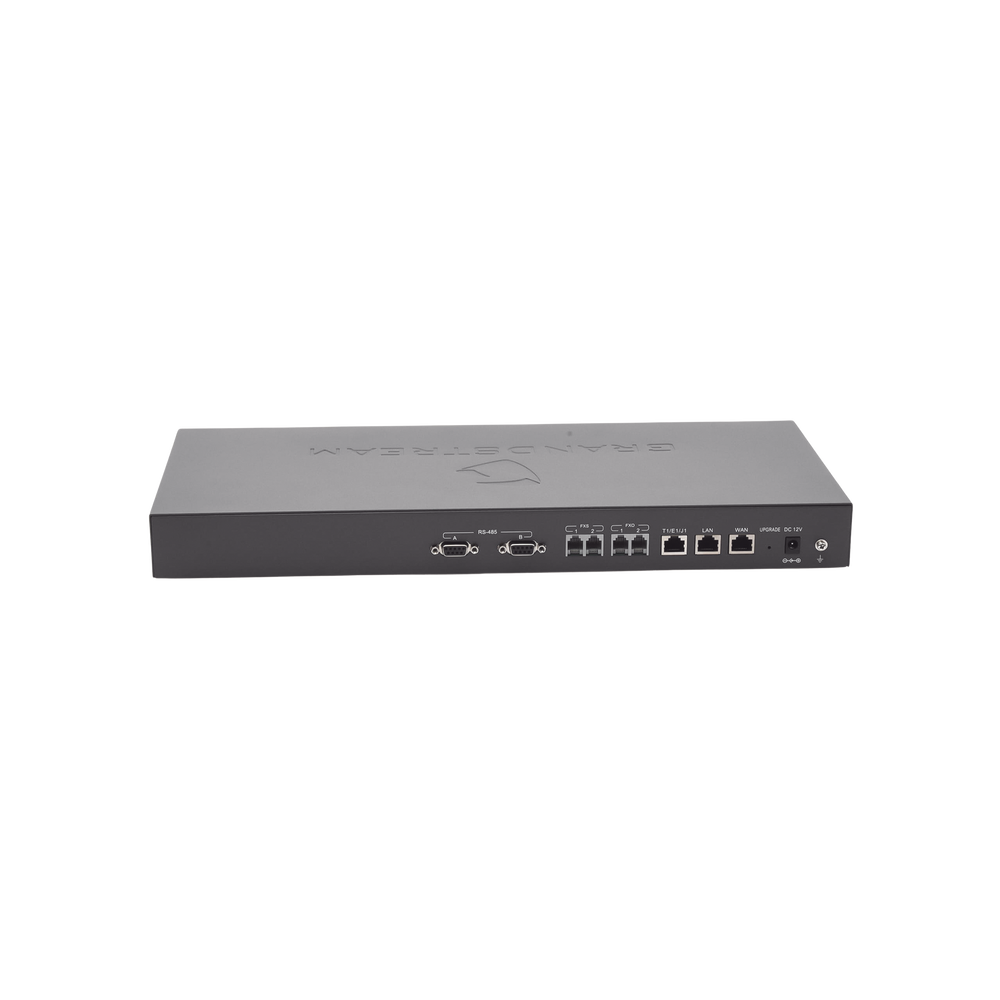

INTERFACES: REAR PANEL

• FXS Ports for Analog Telephone 2 ports
• FXO Ports for PSTN Line 2 ports
• T1/E1 interface 1 port
• Network Interfaces 1 LAN/ 1 WAN
• RS-485 2; 1 for UCM6510 Primary; 1 for UCM6510 Secondary
• Reset Switch Yes
• Universal Power Supply DC Port

INTERFACES: FRONT DASHBOARD

• FXS Ports for Analog Telephone 2; 1 FXS A, 1 FXS B
• FXO Ports for PSTN Line 2; 1 FXO A, 1 FXO B
• T1/E1 interface 2 ports; T1/E1 A, T1/E1 B
• LED Indicators Power, T1/E1, FXS, FXO, LAN, WAN

1 Year Warranty
