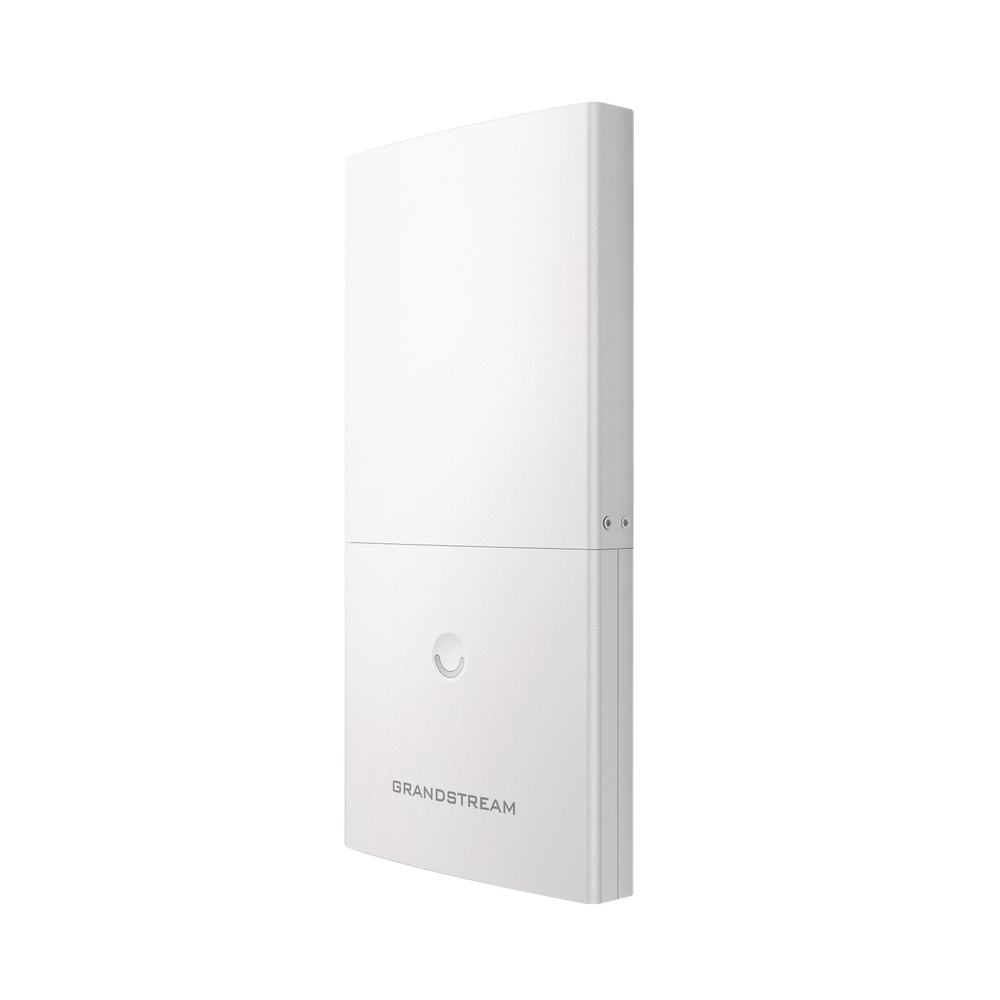

802.11ac Outdoor Long-Range Wave-2 Wi-Fi Access Point with 450 Users

802.11ac Outdoor Long-Range Wave-2 Wi-Fi Access Point with 450 Users

This long-range Wi-Fi access point is designed to provide extended coverage support. Ideal for outdoor Wi-Fi solutions thanks to its weatherproof enclosure and heat-resistant technology. The GWN7600LR comes equipped with dual-band 2x2:2 MU-MIMO technology with beamforming and a sophisticated antenna design for maximum network performance and extended Wi-Fi coverage range of up to 300 meters. To ensure ease of installation and operation, the GWN7600LR employs a controller-less distributed network management design and an integrated controller within the product's web-based user interface. This allows each access point to independently manage a network of up to 30 GWN access points without the need for separate controller hardware/software and without a single point of failure. Its ease of installation and operation, combined with additional coverage support and advanced performance features, make the GWN7600LR an ideal outdoor access point for medium-sized wireless network installations.

GENERAL

Antennas 2x2.4 GHz, gain 4 dBi, internal antenna
2x5 GHz, gain 5 dBi, internal antenna

Wifi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), Secure Boot anti-hacking feature and critical data security lock/control via digital signatures, unique security certificate and default random password per device

MIMO 2x2:2 2.4GHz (MIMO), 2x2:2 5GHz (MU-MIMO)

Coverage Range: 360° .

SSIDs 16 SSIDs per radio

Simultaneous Clients More than 450

Mounting Base stand and box support included for outdoor use

Network Management The controller integrated into the GWN7600LR allows you to automatically discover, provision, and manage up to 30 GWN series WiFi access points on a network.

Clean Energy and Power Efficiency
Compatible with Power-over-Ethernet 802.3af and 802.3at
Maximum Power Consumption: 12.9 W (PoE supply); 23.0 W (PoE+ supply)

Environmental Conditions
Operation: -30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% non-condensing

Physical Specifications
Unit Dimension: 290x150x35mm; Unit Weight: 708g
Unit Dimensions + Mounting Kits: 290 x 150 x 56 mm; Unit Weight + Mounting Kits: 1528.2 g

Package Contents 802.11ac Outdoor Long Range Wave-2 Wi-Fi Access Point, Wi-Fi Kits
Assembly, Quick Start Guide

Water Resistance Grade IP66 level waterproof capacity when installed vertically

1 YEAR WARRANTY
