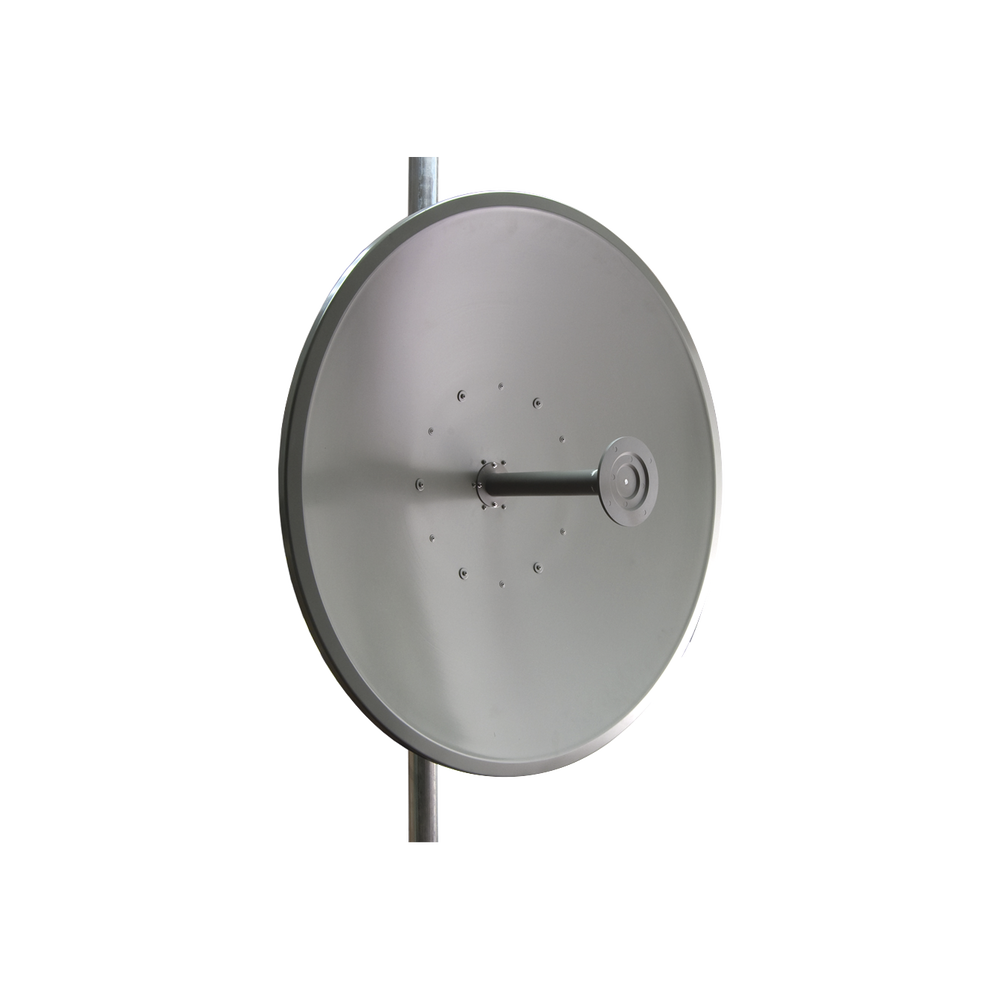

Antenna for Carrier Class links, Freq. 3.3 - 3.8 GHz Gain 25 dBi

Antenna for Carrier Class links, Freq. 3.3 - 3.8 GHz Gain 25 dBi

Laird's HD Series antennas are built to deliver a HIGH PERFORMANCE link. The antennas meet the strict specifications of ETSI EN 302.326-3 for Point-to-Point antennas classes DN1 to DN5. The specially designed feed system provides dual polarization, vertical on the first port and horizontal on the second port, making it ideal for Point-to-Point links.

*Ideal for AF-3X and ROCKETM3 equipment.

Characteristics;

-Frequency Range: 3.3 – 3.8 GHz.
-High Performance Simultaneous Dual Polarity (Vertical and Horizontal).
-Diameter: 648 mm.
-Weight: 8 kg.
-Gain: 25 dBi.
-It has 2 N-Female connectors.
-Includes Tower Assembly.
-For Outdoors.

*It is recommended to install directly on the tower (Do not use side arms with an external diameter smaller than 80 mm)
