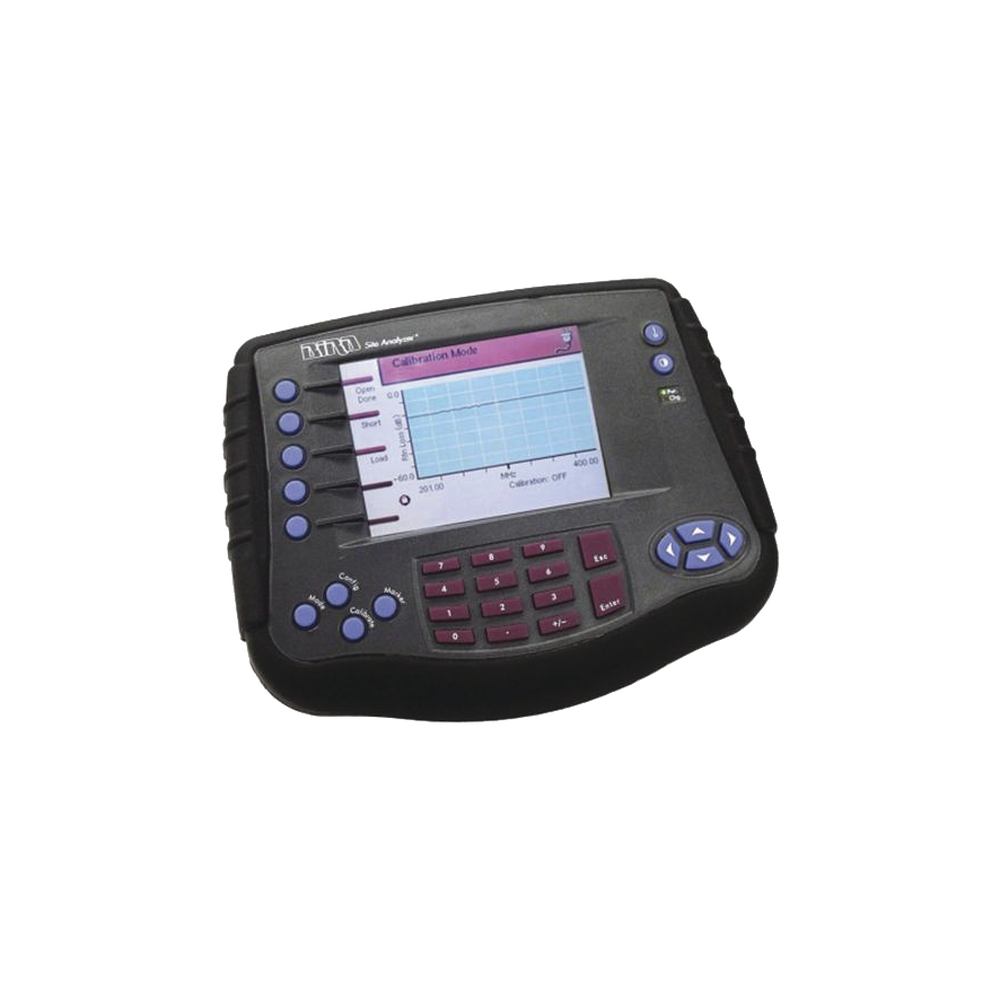

Antenna Systems Analyzer, 25-6000 MHz.

Antenna Systems Analyzer, 25-6000 MHz.

Antenna Systems Analyzer, 25-6000 MHz.

• The SA-6000EX is the latest in Bird's extensive line of reliable wireless products developed and manufactured.
• It is an invaluable tool in the installation and maintenance of radio communication and mobile telephony systems.
• Frequency Range: 25-6000 MHz.
• Frequency resolution: 50 kHz.
• Tracking Speed: 238 Points / 2 sec, 949 Points / 6 sec.
• VSWR Measurement: 1.00 to 99.9.
• Return Loss Measurement: 0 to -60 dB.
• Input port: N type female connector.
• Impedance: 50 Ohms.
• Peripheral port: RS232 (DB9) Serial Type.
• Operating Time: 3 hours minimum with included Li-Ion battery.
• Temperature Range: -10ºC to +50ºC.
• Maximum operating altitude: 4,572 meters above sea level.
• Measurement accuracy.
• Analyzes the basic parameters of the antenna (VSWR and Return Loss).
• Analyzes the cable along its entire length, detecting where the fault exists (DTF)
• Measures your insertion loss (Cable Loss).
• Compact and ergonomic design for field operation.
• Large High Resolution Color Display (320 x 250 pixels), visible in sunlight and also in the dark.
• High capacity Li-Ion battery pack.
• Versatile data storage and reporting capabilities.
• Stroke Comparison on Screen.

*Ask for delivery time.
