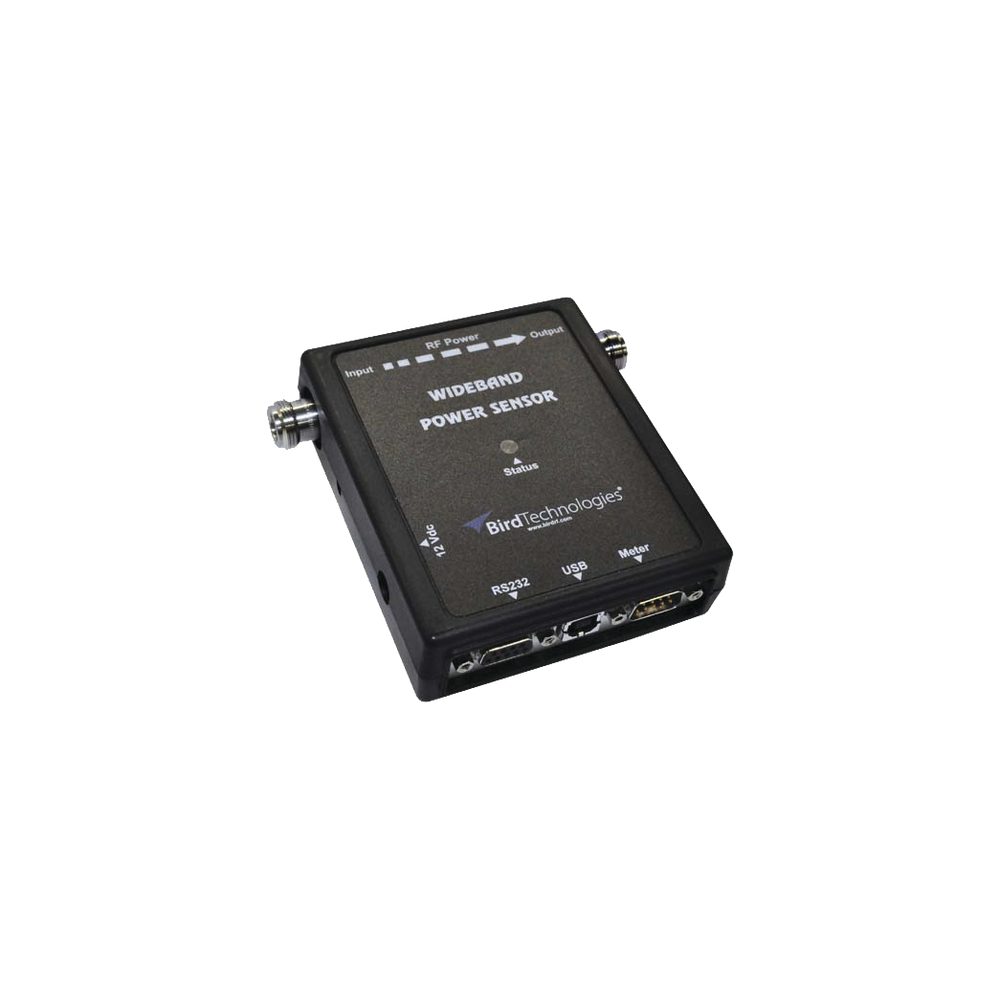

Broadband Power Sensor 25-1000 MHz, 0.5 to 500 Watt.

Broadband Power Sensor 25-1000 MHz, 0.5 to 500 Watt.

Broadband Power Sensor 25-1000 MHz, 0.5 to 500 Watt.

Specs:

• Frequency Range: 25 MHz - 1000 MHz.
• Power Range: 500mW-500 Watt Avg., 1300 Watt Peak
• Insertion Loss: <0.05 dB.
• VSWR per Insertion: <1.05
• Directivity: 28dB up to 100 MHz, 30dB from 100 to 1000 MHz.
• Impedance: 50 Ohm.
• Connectors: N Female.
• Interfaces: (1)RS-232, 9600 baud, (2)USB 2.0 type B.
• Data Logging: Requires 5000-XT, VPM3
• Power: USB port; 7-18 V DC charging input USB connector.
• Dimensions (Height x Width x Depth): 122 x 117 x 33 mm
• Weight: 0.55 kg.

Included accessories:

• User Manual (920-5012S)
• VPM3 - Virtual Power Meter Software
• VPM3 Manual (920-VPM3).
• 3 m (10 ft) USB cable (5A2653-10).

Applications:
Analog and Digital Cellular Signals, 3G, 4G, Tetra, DMR, MOTOTRBO, APCO/P25 Phase 1 & 2, Trunking, CDMA, TDMA, WCDMA, GSM, Transportation, Military Tactical, Radar, Aviation, Marine, LMR, Analog Broadcasting, Digital Broadcasting, GSM, GPRS, EDGE, UMTS, HSDPA, Bluetooth, Fire, GPS, NPSPAC, Paging, Public Safety, Telematics, Utilities, WIMAX and WLAN.
