Virtual Power Meter (VPM) Sensor via USB on PC for 350-4000 MHz.

Virtual Power Meter (VPM) Sensor via USB on PC for 350-4000 MHz.

USB to PC Virtual Power Meter (VPM) Sensor 350-4000 MHz.

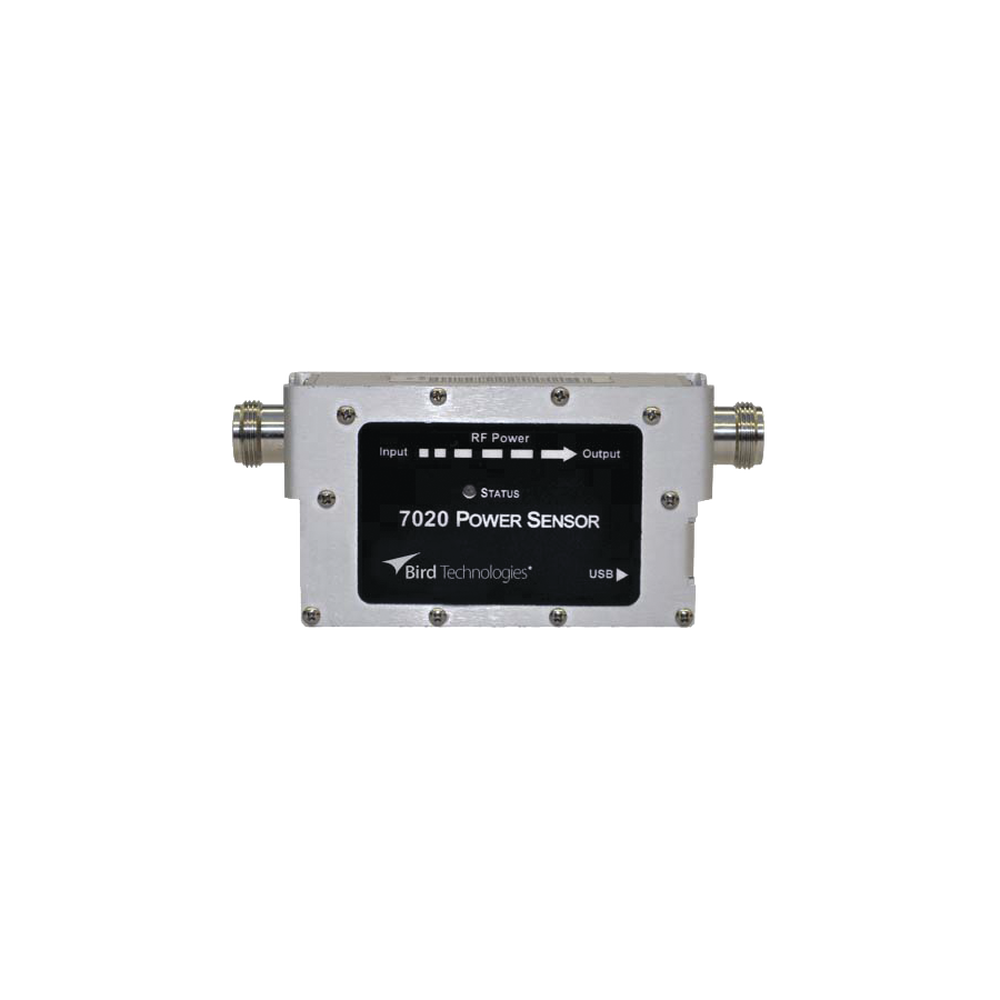

• The 7020 Basic Power Sensor Series determines and displays true average forward and reflected power, as well as VSWR, over a wide frequency range—from 25 MHz to 1.0 GHz or 350 MHz to 4.0 GHz—and is a cost-effective, plug-and-play solution for your power measurement needs.
• It never requires field calibration, only factory calibration once a year, and is traceable to the National Institute of Standards and Technology (NIST).
• Measurements made: Output and reflected power
• Calculations performed: VSWR and True Average Power.

Standard Accessories (Included):

• 5A2653-6L2 SeaLATCH USB Cable.
• VPM3 Virtual Power Meter.
• 920-7020S Instruction Manual (sensor).
• 920-VPM2 Instruction Manual (VPM2).

Applications:

• WPS measures: Analog Cellular, Digital Cellular, 3G, 4G, Tetra, APCO/P25, Trunking, CDMA, TDMA, WCDMA, GSM, Transport, Military Tactical, Radar, Avionics, Marine, LMR, Analog Broadcasting, Digital Broadcasting, GSM, GPRS, EDGE, UMTS, HSDPA, Bluetooth, Fire, GPS, NPSPAC, Public Address, Project 25, Public Safety, Telematics, Utilities, WIMAX, and WLAN.

Specs:

• Frequency range:
• 7020-1-030301: 25 MHz - 1.0 GHz
• 7020-1-010101: 350 MHz - 4.0 GHz
• Power measurement range
• 7020-1-030301: 0.5 W to 500 W
• 7020-1-010101: 0.15 W to 150 W
• Measurement Accuracy: +/- (4% of reading + 0.05 W) (above 35ºC or below 15ºC, add 3%).
• Minimum Direct Power for Reflected Measurement: 5.0 W
• Peak/Average Ratio (Max): 12 dB.
• Insertion loss (max): 0.1 dB
• VSWR Insertion: 1.10 max.
• Impedance, Nominal: 50 Ohm.
• Response time: 100 ms.
• VSWR Range: 1.15 to 99.9
• PIM value: -130 dBc @ 460 MHz
• RF Connector: N Female.
• Directivity (min.): 28 dB.
• Recommended Calibration Interval: Annually.
• Power supply: 5Vdc (35 mA) from USB port.
• Interface: USB 2.0 protocol, USB Type 'B' connector with 'SeaLATCH'
• Data logging: VPM3 Software
• Dimensions: 122 x 66 x 32 mm (4.8' x 2.6' x 1.3').
• Weight, nominal: 0.45 kg (1.0 lbs.).

Compatible with:

• SA-XT Series Site Analyzer
• VPM3 Virtual Power Meter
• 5000-XT Digital Power Meter
• Bird RF Meter Android App

*Ask for delivery time.
