Card-type power supply with 24VDC @ 10A output

Card-type power supply with 24VDC @ 10A output

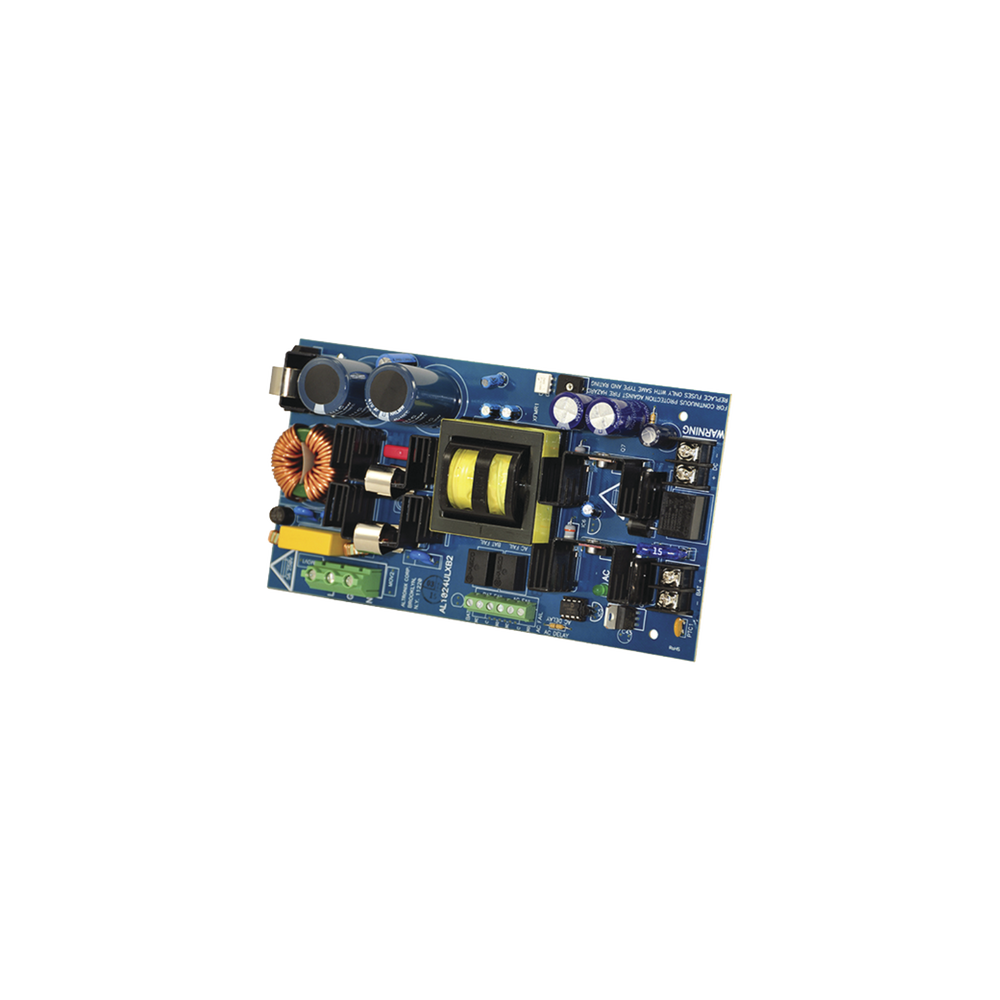

The AL1024ULXB2 UL Listed sub-assembly power supply/charger converts 115VAC, 60Hz input to a single 24VDC output without power limiting. It also offers a host of features including AC fail supervision, battery presence, and low battery supervision.

Characteristics :

• Input 115VAC / 60Hz, 4.2A.
• 24VDC output.
• Continuous supply current of 8 A with supply current of 10 A during alarm.
• Electronically regulated and filtered output.
• Short circuit and thermal overload protection.
• Maximum ripple: 250mV P/P

• Built-in charger for sealed lead acid or gel batteries.
• Automatic switch to standby battery when AC fails.
• Zero voltage drop when switching to backup battery.

• AC input and DC output LED indicators.

• AC Fail Supervision (Form "C" Contacts).
• The notification trigger can be selected for 30 seconds (factory set) or 6 hours.
• Low battery presence and battery presence supervision (forms "C" contacts).

• Operating: 0°C to 49°C (32°F to 120°F).
• Storage: -20°C to 70°C (-4°F to 158°F).
• Relative humidity 85% +/- 5%.
• BTU/Hr (approx.): 123 BTU/Hr.

• 4.505" W x 8.4" L x 1.955" H (114.427 mm W x 213.36 mm L x 49.657 mm H).

• Product Weight: 1.15 lbs. (0.52 kg).
