PIMA Hunter6 Alarm Kit Includes Battery, Transformer, Keypad, Siren, 2 Magnetic Contacts and a Motion Sensor

PIMA Hunter6 Alarm Kit Includes Battery, Transformer, Keypad, Siren, 2 Magnetic Contacts and a Motion Sensor

Undisputed World Leader in Radio Alarms

It is a complete Alarm System designed for the residential and small business market.

• 3 Communication Modes to the Monitoring Center: Via Telephone, Radio and GSM.

System

• Programming via Alphanumeric keyboard, Software Downloading and PRG-22 rapid programmer (not included).

• Auto-arming function.

• Maximum 8 keyboards; supports alphanumeric and LED keypads.

• Programmable entry time from 1 to 254 sec.

• 40 events in memory. The memory can be read from alphanumeric keypads and with COMAX upload and download software in Spanish.

• 1 auxiliary output programmable by event and one more for powering smoke detectors with automatic reset.

• 2 sub-partitions with different ID numbers.

• Programmable using COMAX Software.

• 1 A siren output.

• Telephone line cut detection.

• Auxiliary current of 750 mA.

• 14 - 16.5 Vac power input.

• Menu-driven Spanish programming.

Zones

• 6 programmable zones.

• Configurable with or without end-of-line resistor.

• With capacity for two resistors for wiring supervision, one more for tamper.

• Zones can be configured for fast or slow response, from 50 msec to 12.75 sec.

• 10 types of configurable zones.

• Supports 4-wire smoke detectors.

Users

• 8 user codes.

• 1 coercion code.

• 2 levels of authority: master and standard user.

• Quick arming with short code; does not allow disarming.

• Keyboard information of: Zone status - Exit time - Time and date - Event log

• Configurable open door alert by access zone (chime).

• Configuration beep on LED keypads.

Communication

• TRIPLE communicator to the TELCO, RADIO and GSM Monitoring Center with GSM-200.

• Supported communication formats: - Contact ID - 4 + 2, 4 + 2 Express - PAF/NEW PAF

• Compatible with any monitoring center that handles the formats described.

• Supports radio communication. Requires TRU-100 radio (not included).

• Dual, split reporting capabilities.

• Ability to report by radio and telephone simultaneously.

• Compatible with PIMA’s SAT-N standalone communicator.

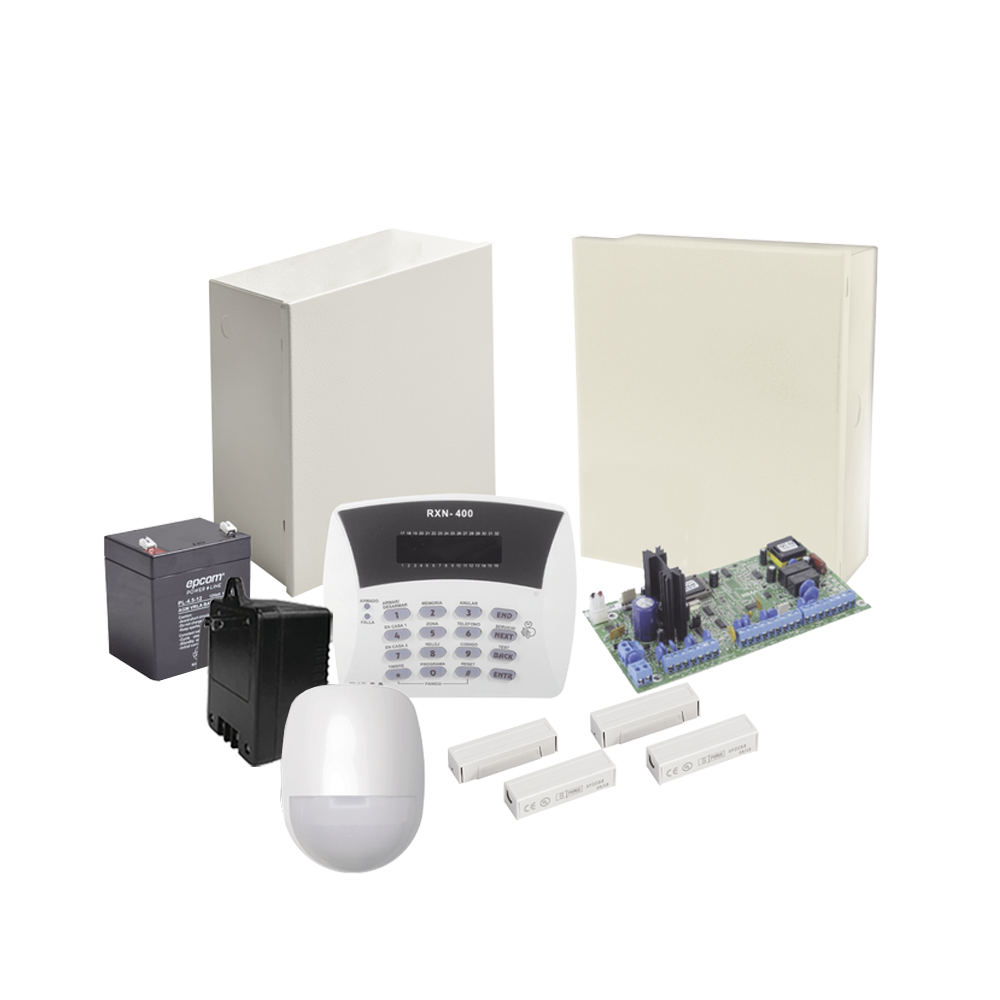

Includes:

» HUNTER6PCB 6-Zone PIMA Alarm Panel.

» RNX400 Alphanumeric Keyboard for Pima panel.

» SGRPRUV4 Cabinet for PIMA panel

» RT1640LS 16VAC 40VA Transformer

» PL4.512 Backup Battery 12 V 4Ah.

»DS-PDP18-EG2(P) Indoor motion detector



» SF2031 (2) Magnetic Contacts for Door or Window

» SF581A 30 Watt Siren

» IMP30V3 30 Watt Siren Cabinet

» SFTAMP01 Tamper





6 Wired Zones, 8 Users, Radio/Telephone/GSM Communication, 2 Partitions, 2 PGM Outputs
