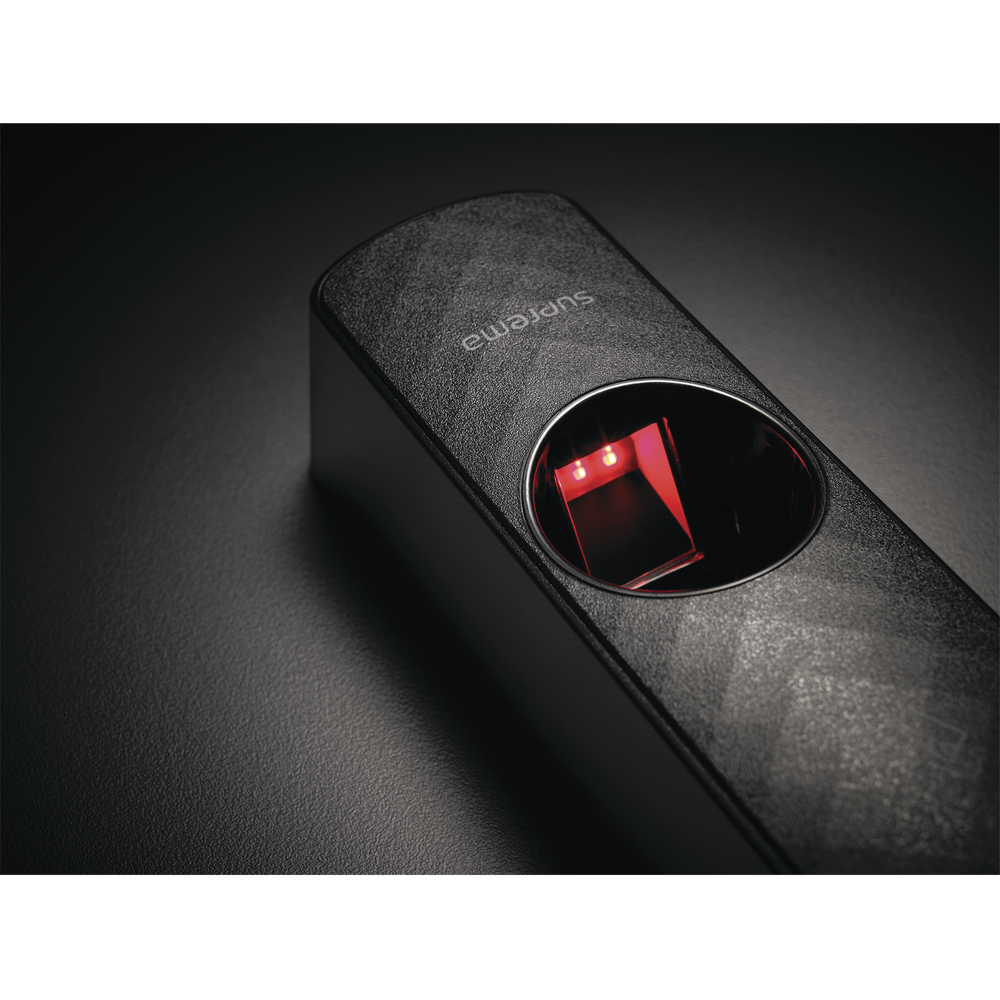

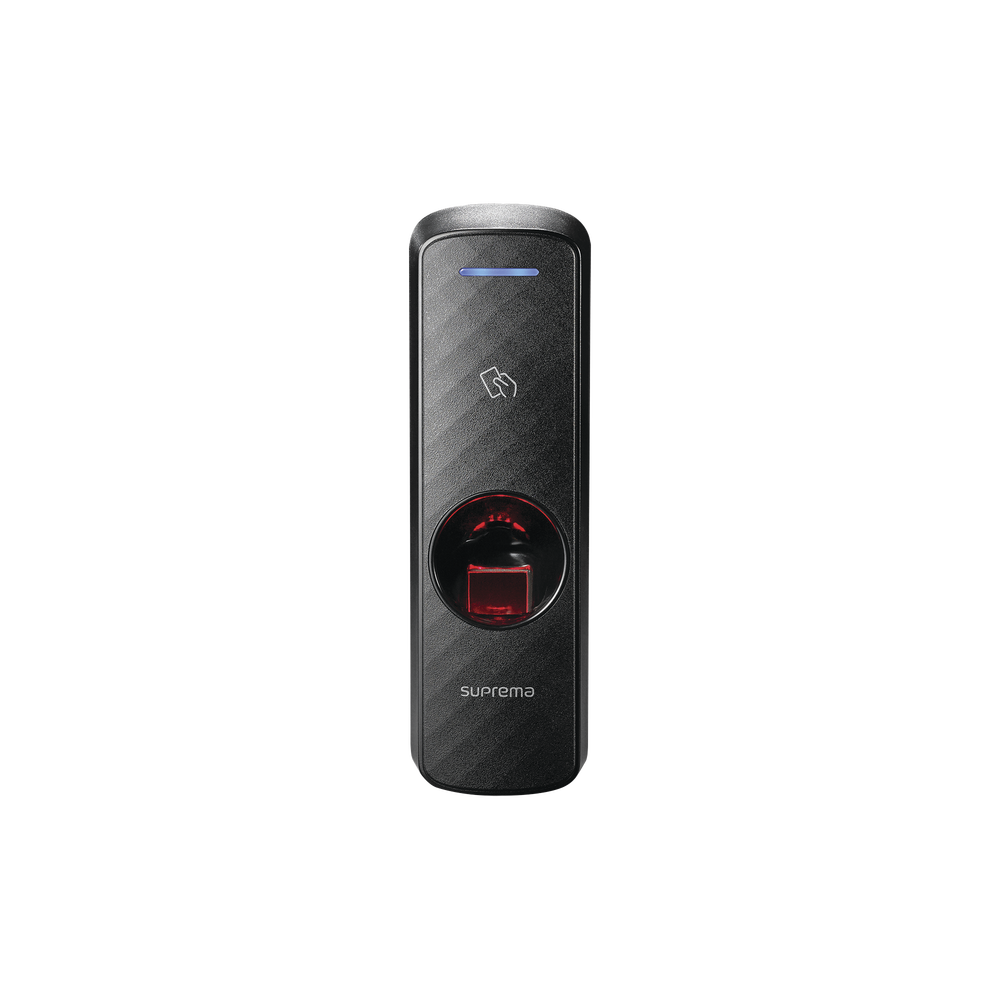

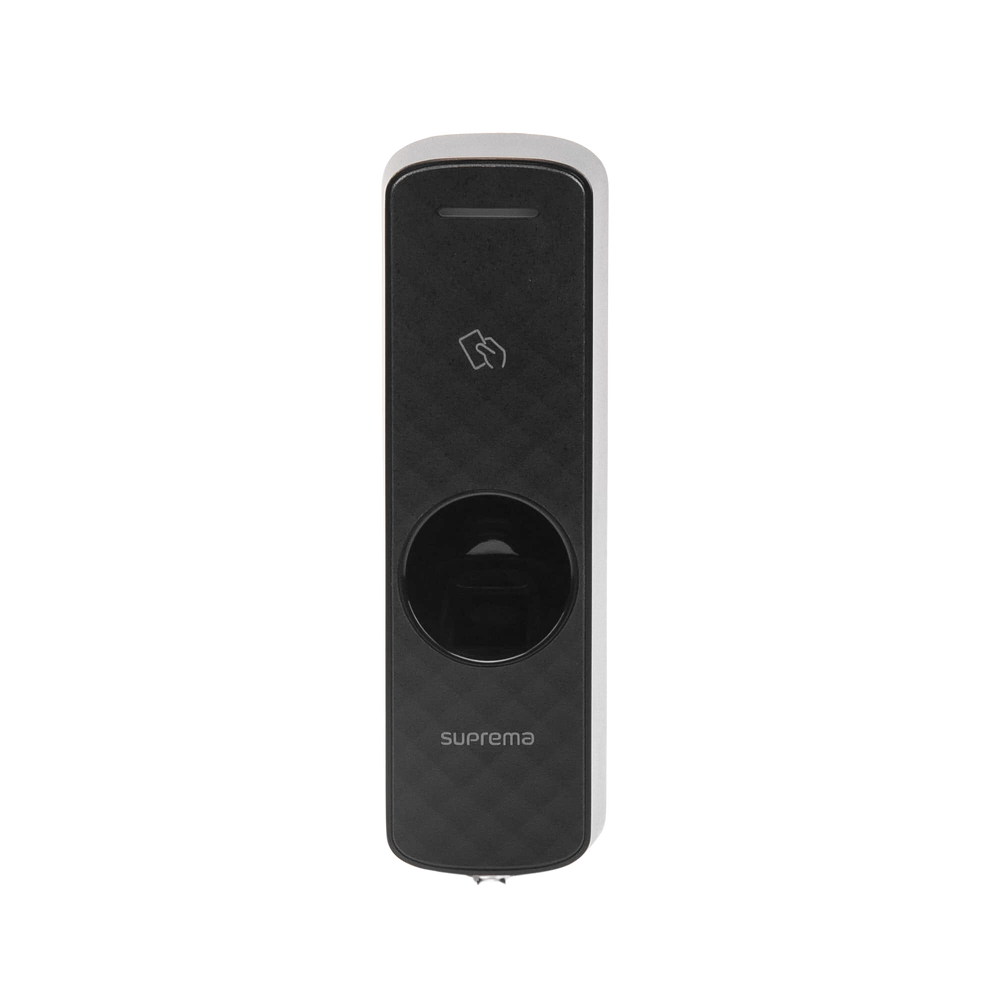

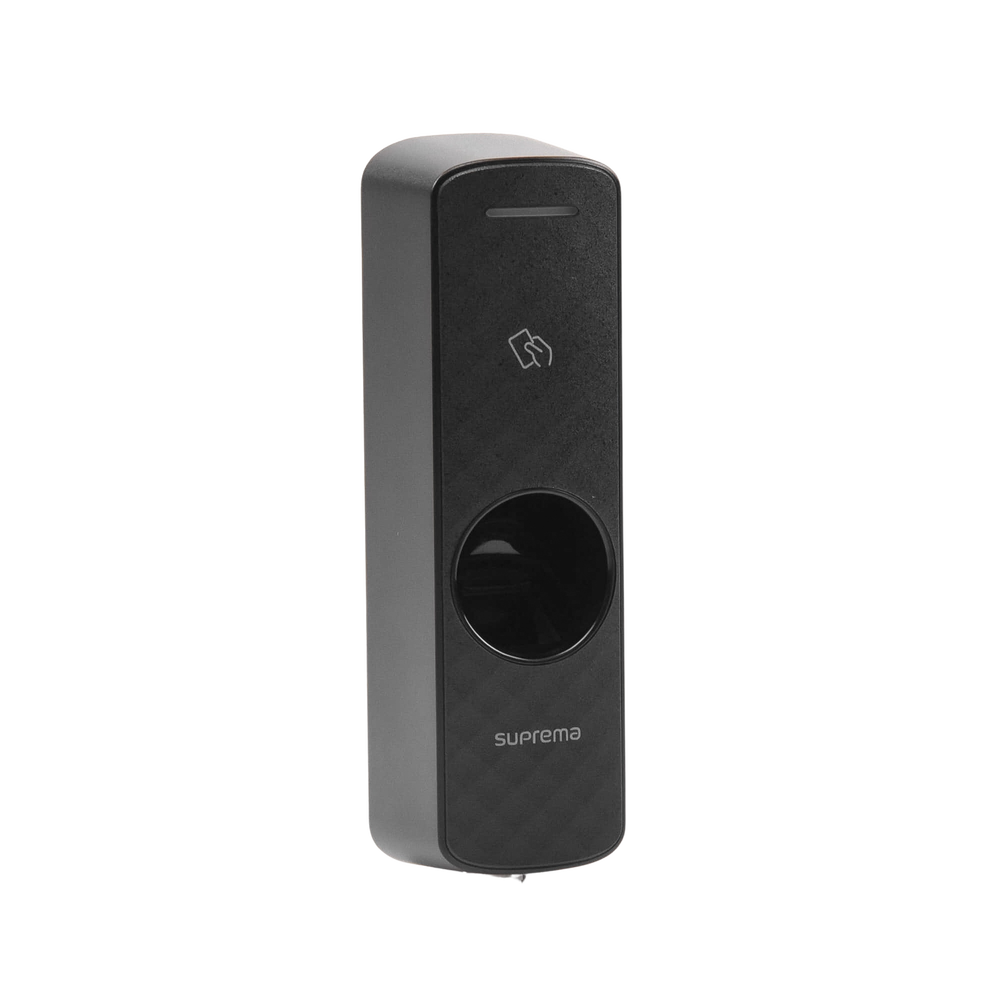

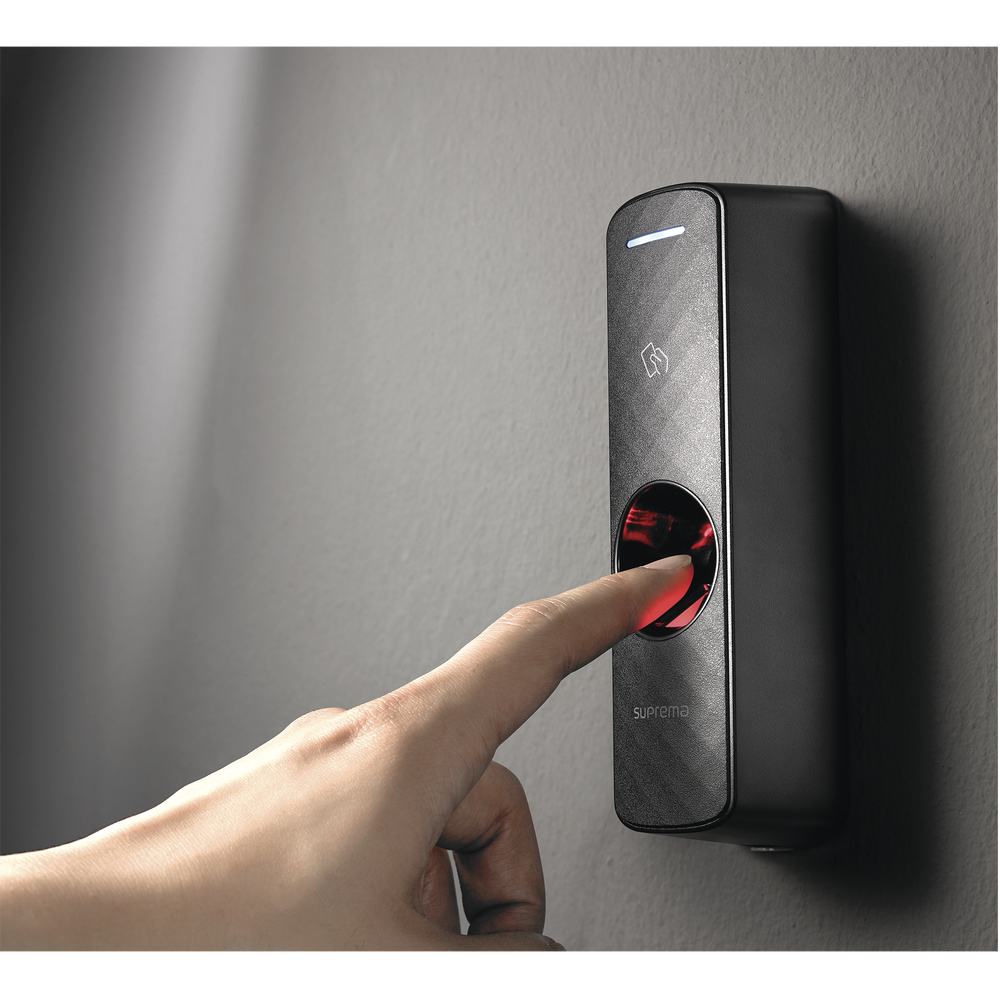

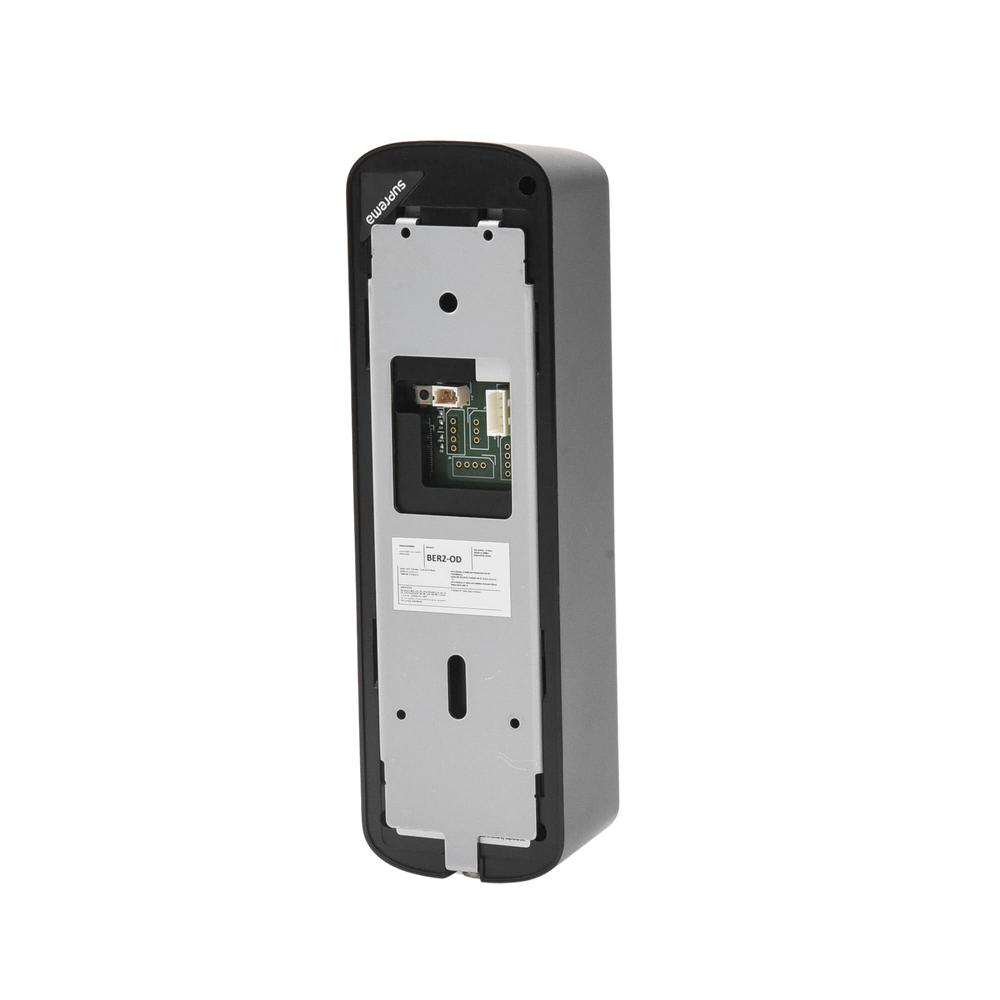

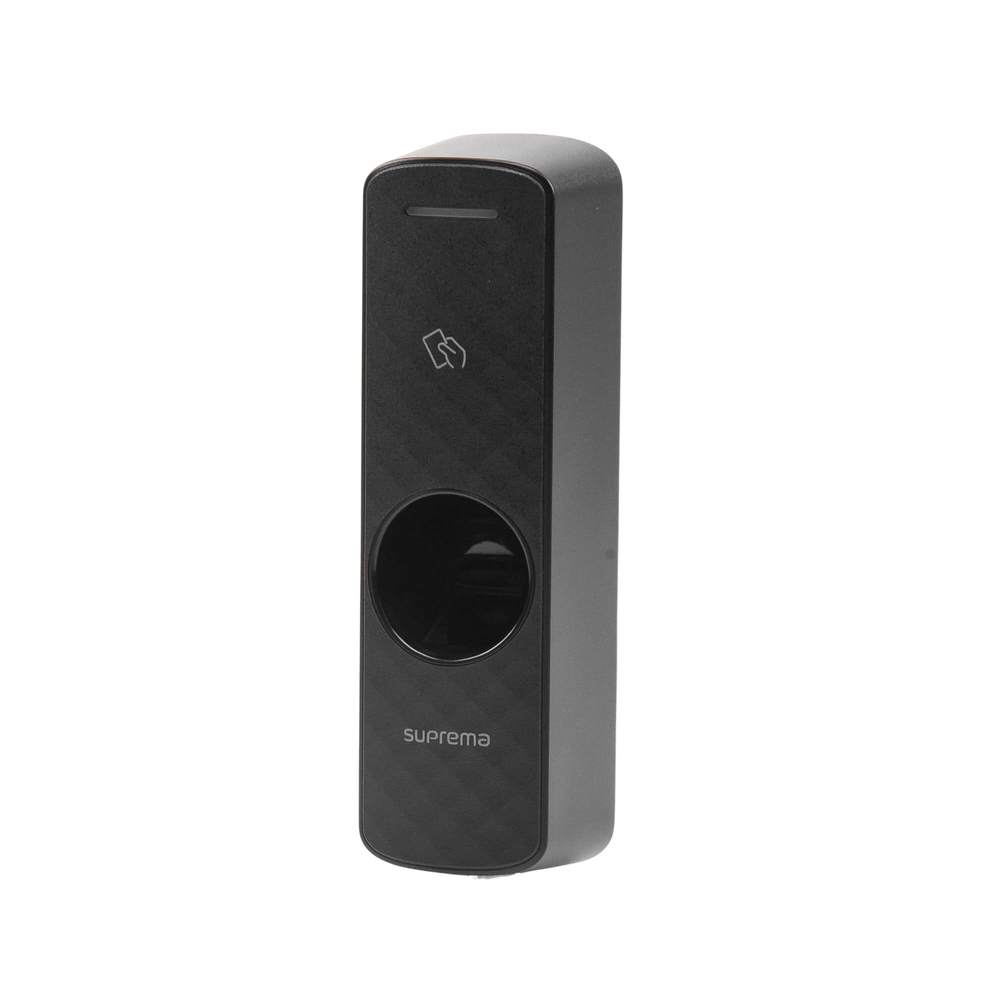

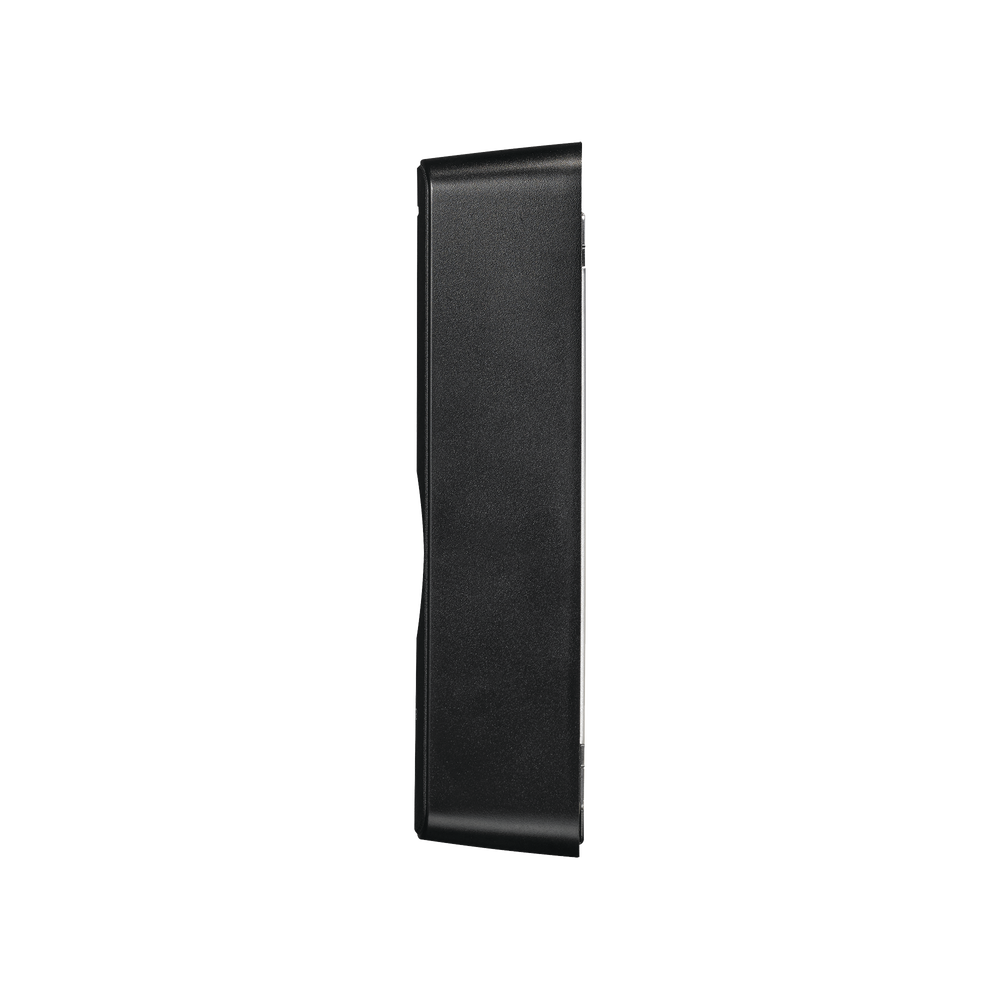

Slave Fingerprint Reader, compatible with any 2nd-generation Suprema reader. Multi-format (125KHz EM) (13.56MHz MIFARE, DESFire/EV1, FeliCa, NFC)

Slave Fingerprint Reader, compatible with any 2nd-generation Suprema reader. Multi-format (125KHz EM) (13.56MHz MIFARE, DESFire/EV1, FeliCa, NFC)

Specs:

Credentials:
Biometrics: Fingerprint
RF Option: 125kHz EM (ACCESSISOCARD, ACCESSPROXCARD, ACCESKFBPROX) & 13.56MHz MIFARE (ACCESSCARM1K ACCESSCARDM4K), MIFARE Plus, DESFire/EV1, FeliCa, NFC

Hardware:
LED: Multicolor
Sound: Multi-tone Buzzer
Operating Temperature: -20° ~ 50°C
Operating Humidity: 0% ~ 80%, non-condensing
Dimensions: 164 x 50 x 37.5 mm
Power supply: 12V DC, 1A (Power supply not included)
Weight: 158 g
Certificates: CE, FCC, KC, RoHS, REACH, WEEE

Interface:
RS-485: 1 Slave Channel
Tamper: Supported

Compatible Devices:
With the CS40 Controller and all SUPREMA Second Generation Readers

Note: Use with Biostar version 2.6


Configuration diagram:
