Door Control Module / 2 Weigand Inputs/Outputs / 4 Type C Relay Outputs / Use with BioStar 2

Door Control Module / 2 Weigand Inputs/Outputs / 4 Type C Relay Outputs / Use with BioStar 2

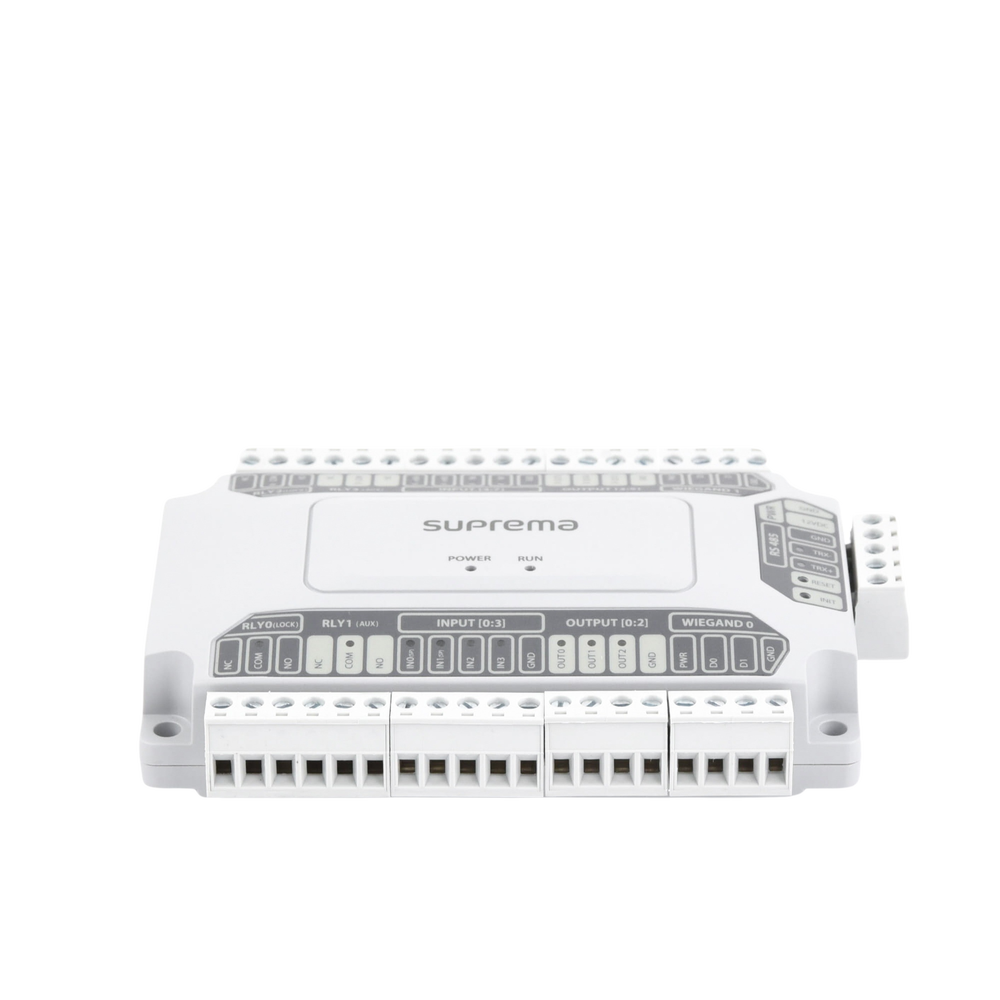

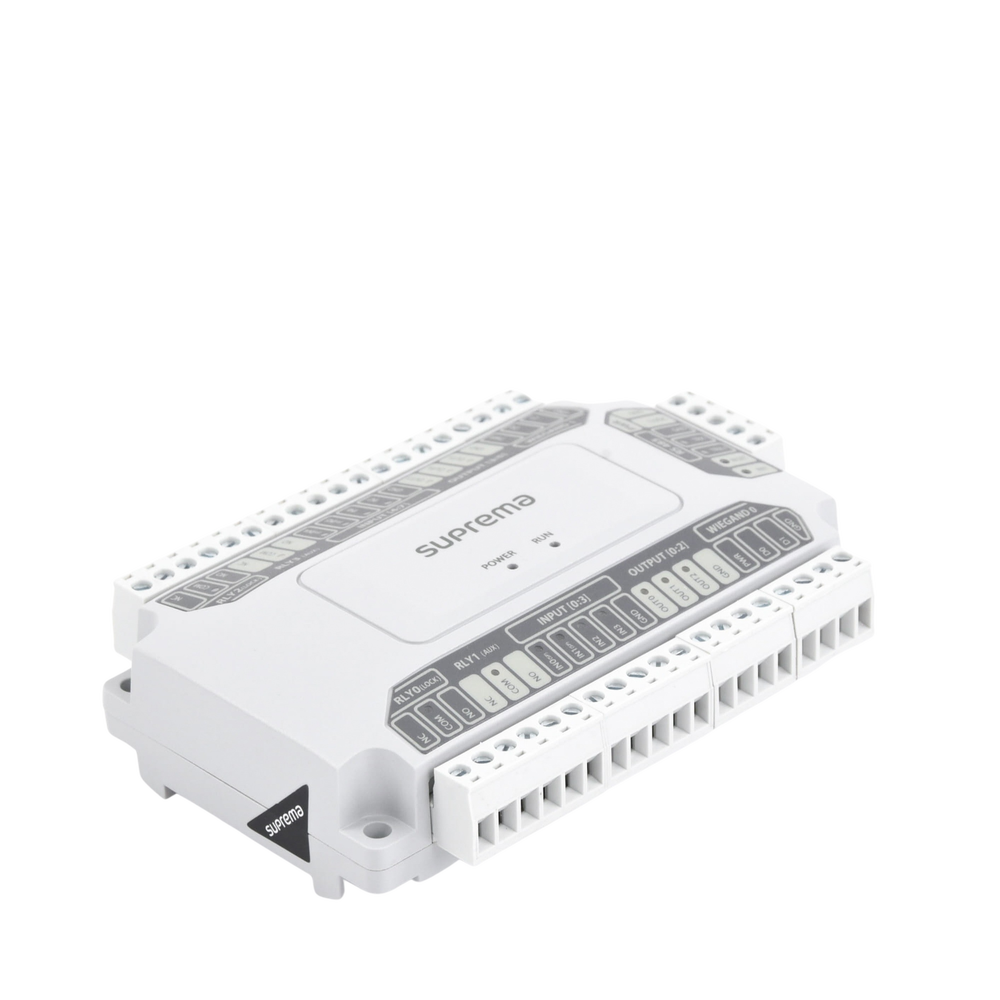

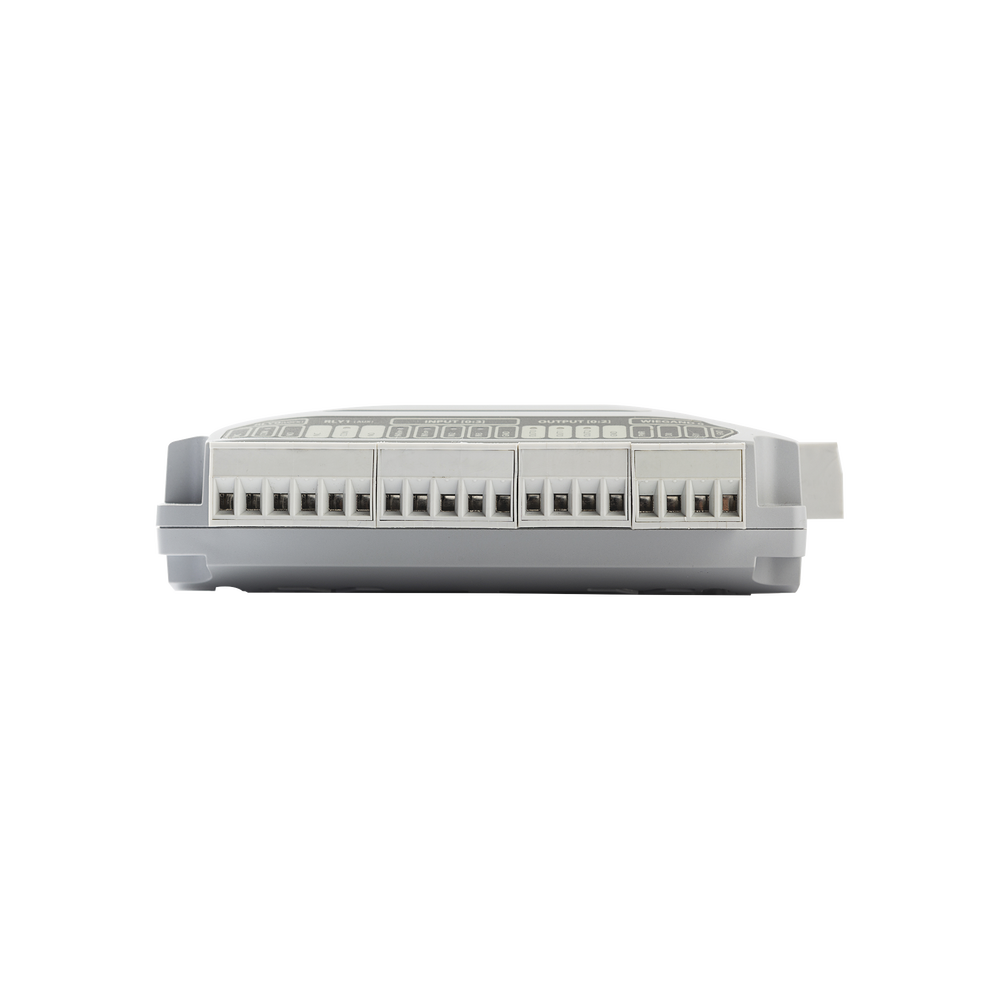

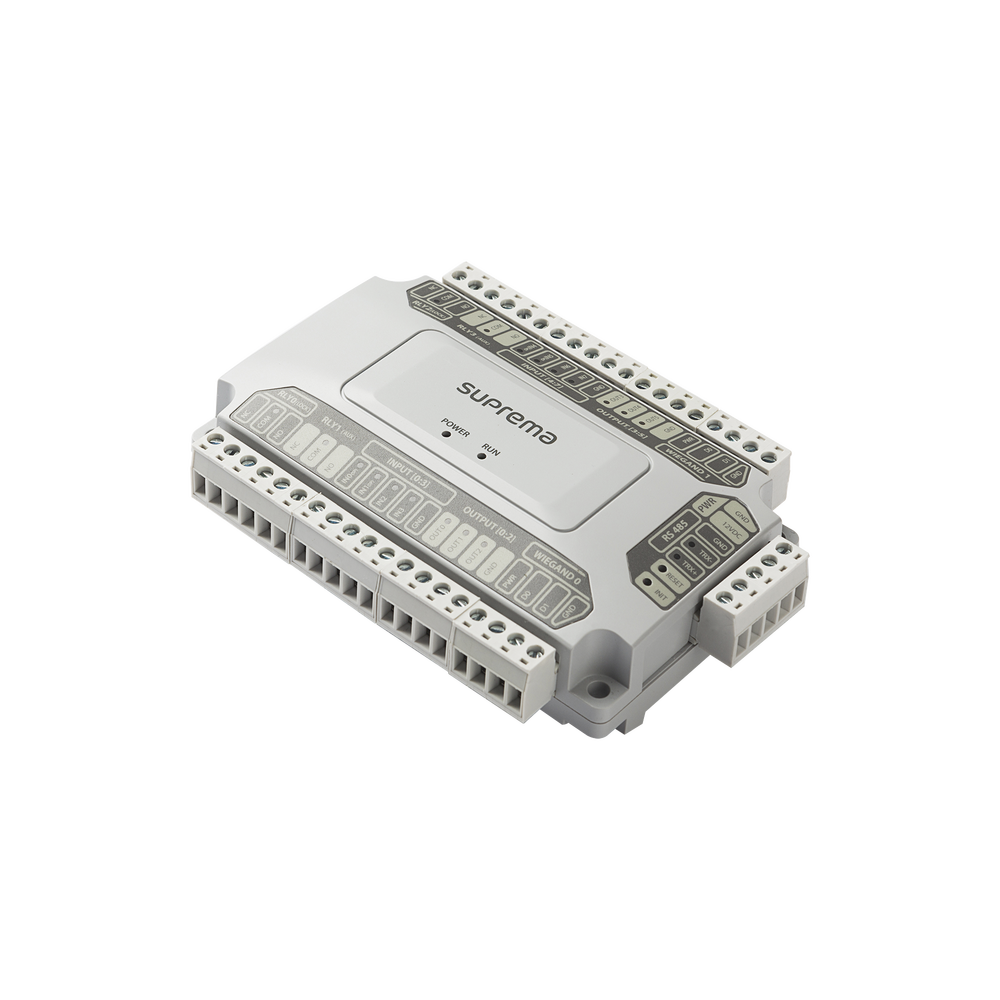

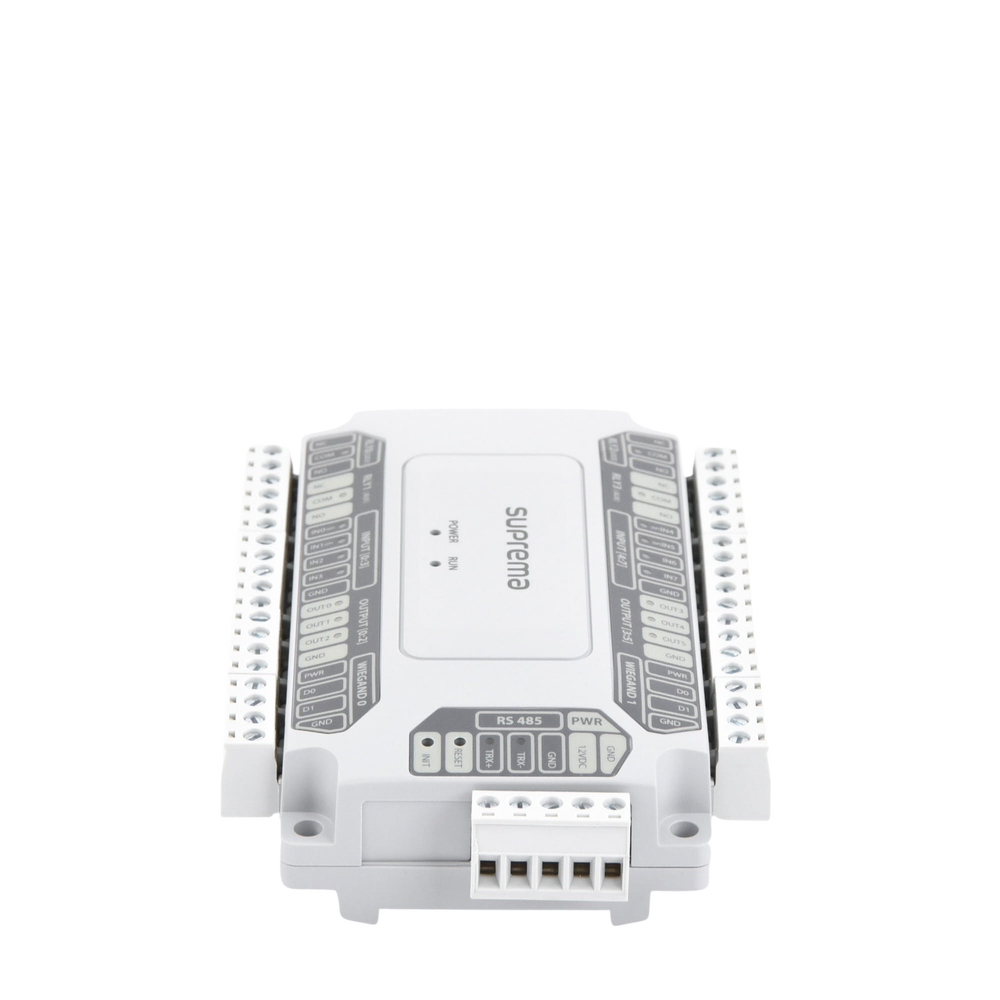

The DM-20 provides secure door control for up to four doors via encrypted communication and also includes two Wiegand reader interfaces for use with third-party readers. Its wide variety of I/O interfaces allows the DM-20 to be integrated into a variety of system configurations.

Specs:

Interface:
Communication: RS485
Inputs: 4 TTL Inputs and 4 Supervised Inputs
Outputs: 6 TTL outputs

Hardware:
Relays: 4 type C relay outputs.
Wiegand: 2 configurable inputs/outputs.
Reader power output: 2 outputs at 750 mA 12 Vdc.
Power supply: 12 Vdc.
Operating temperature: -20 to 60 °C.
Dimensions: 120 x 70 x 36 mm.

Supported devices:
BS2OEPW , BSA2OEPW , BSL2OE , BEW2OAP , CS40 , XPMPOEV2

Configuration diagram:
