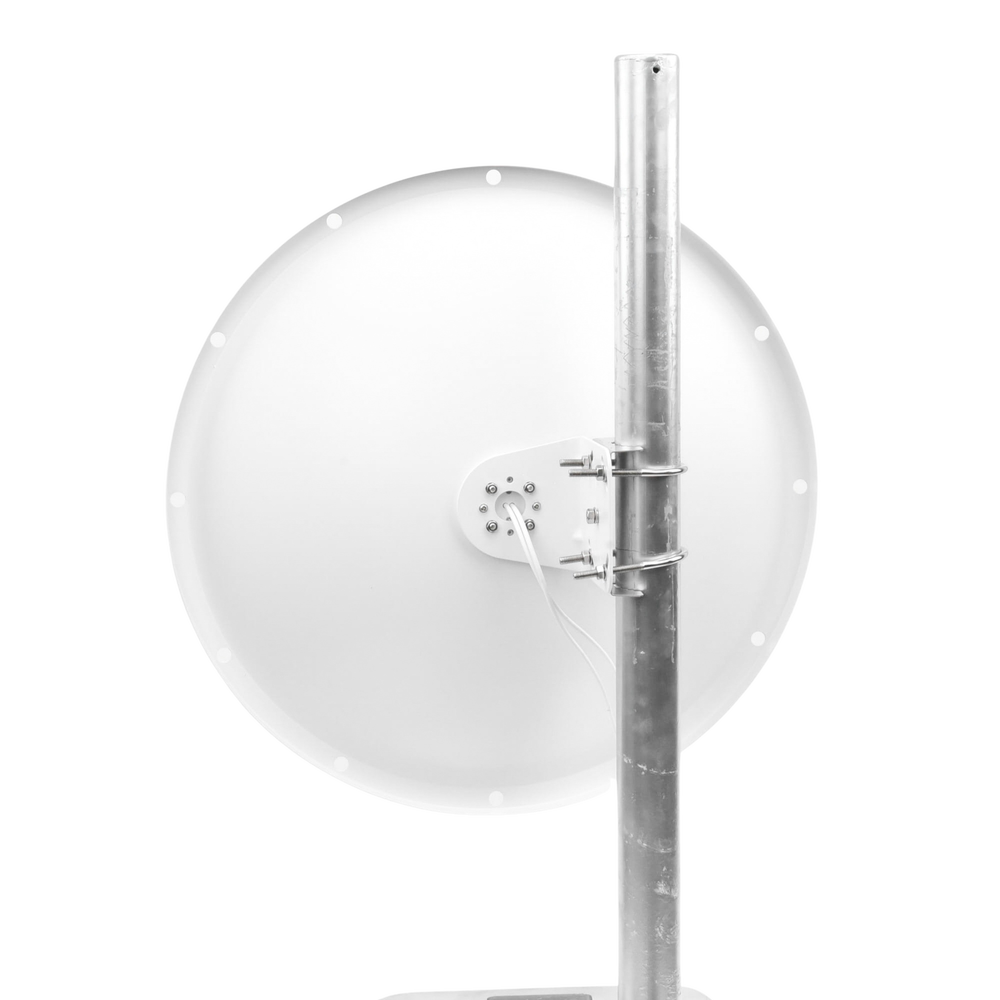

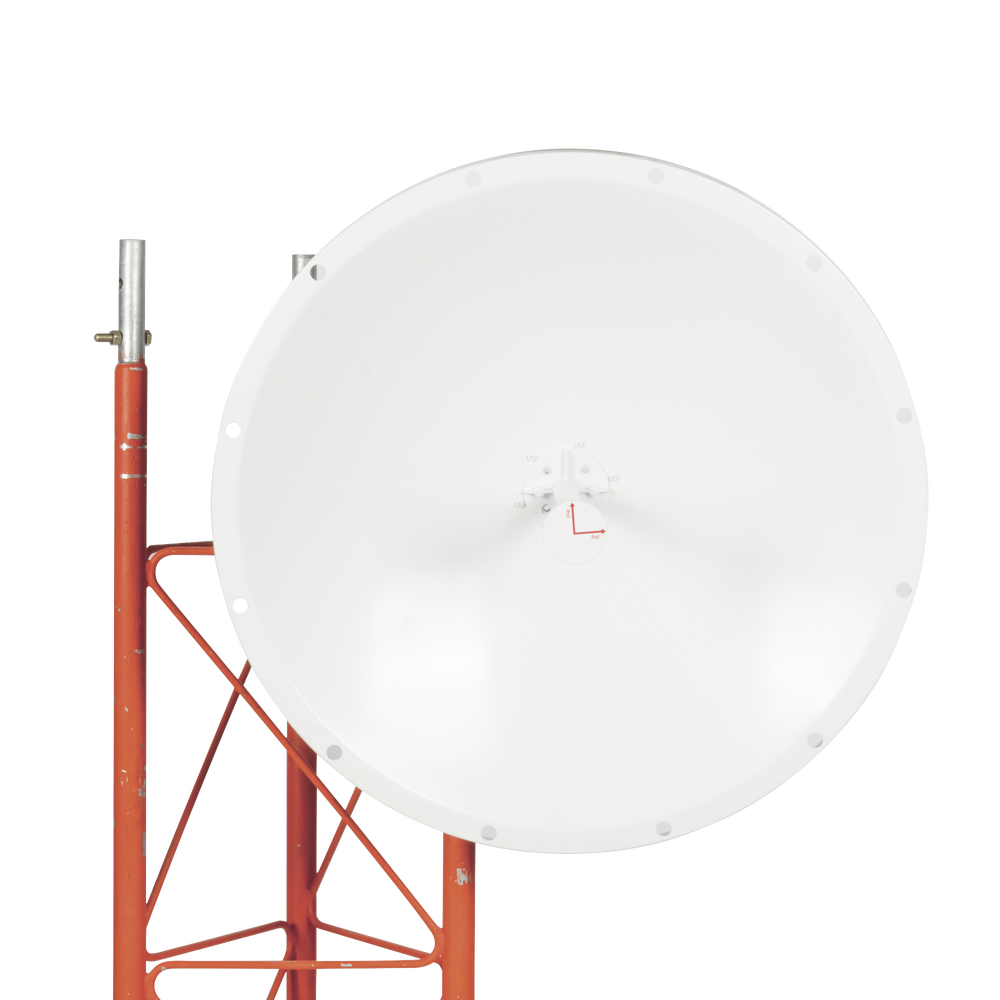

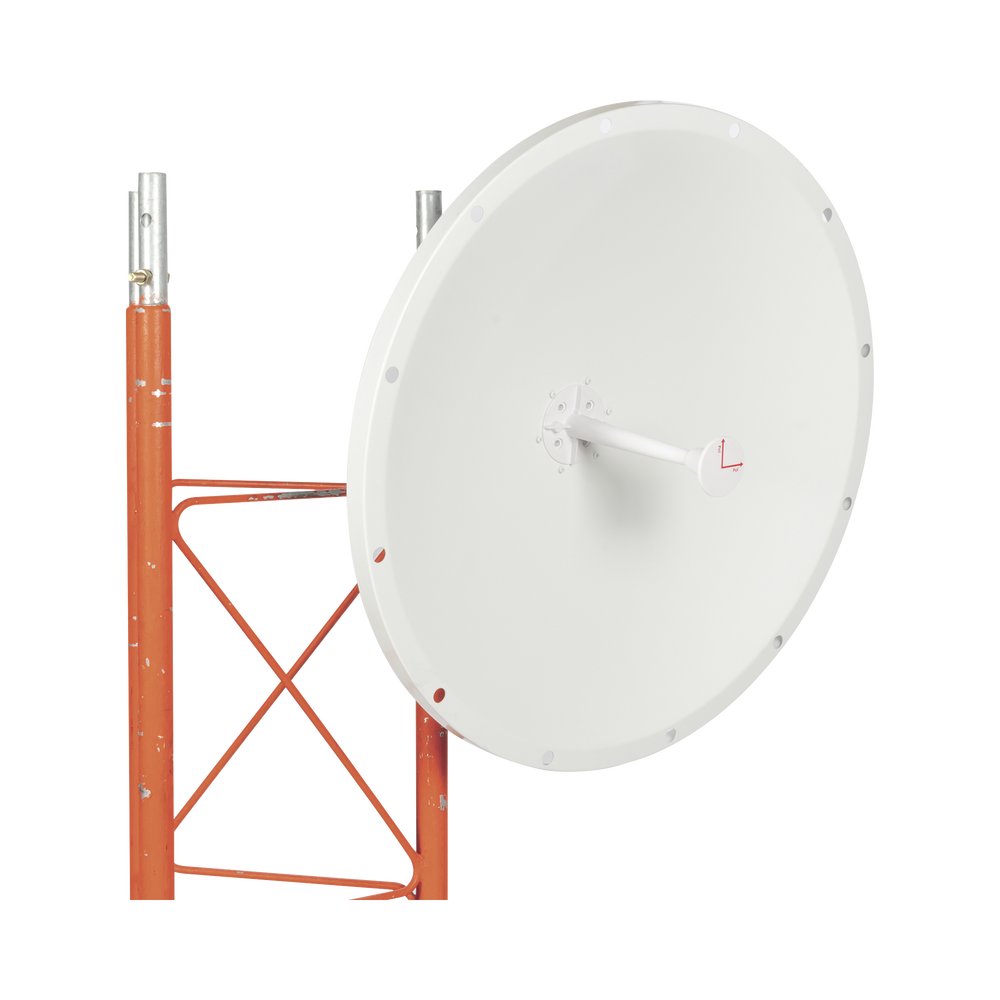

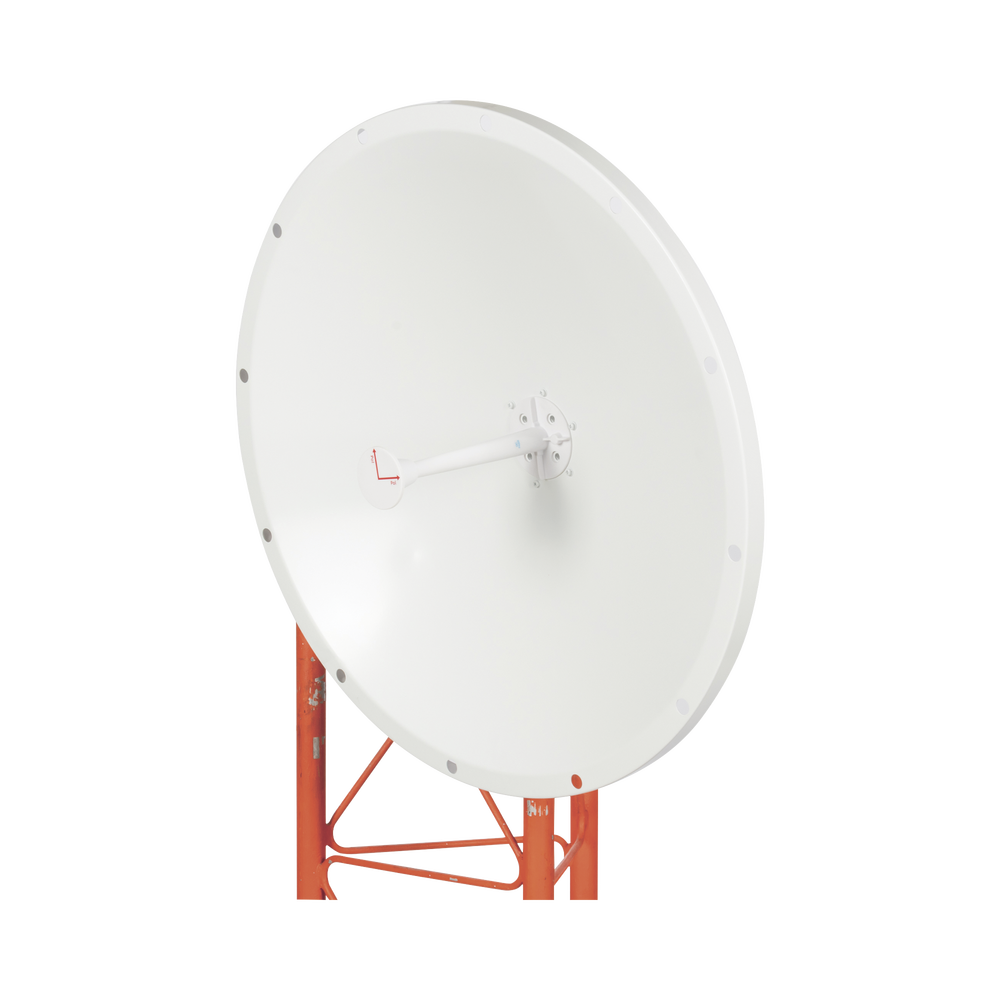

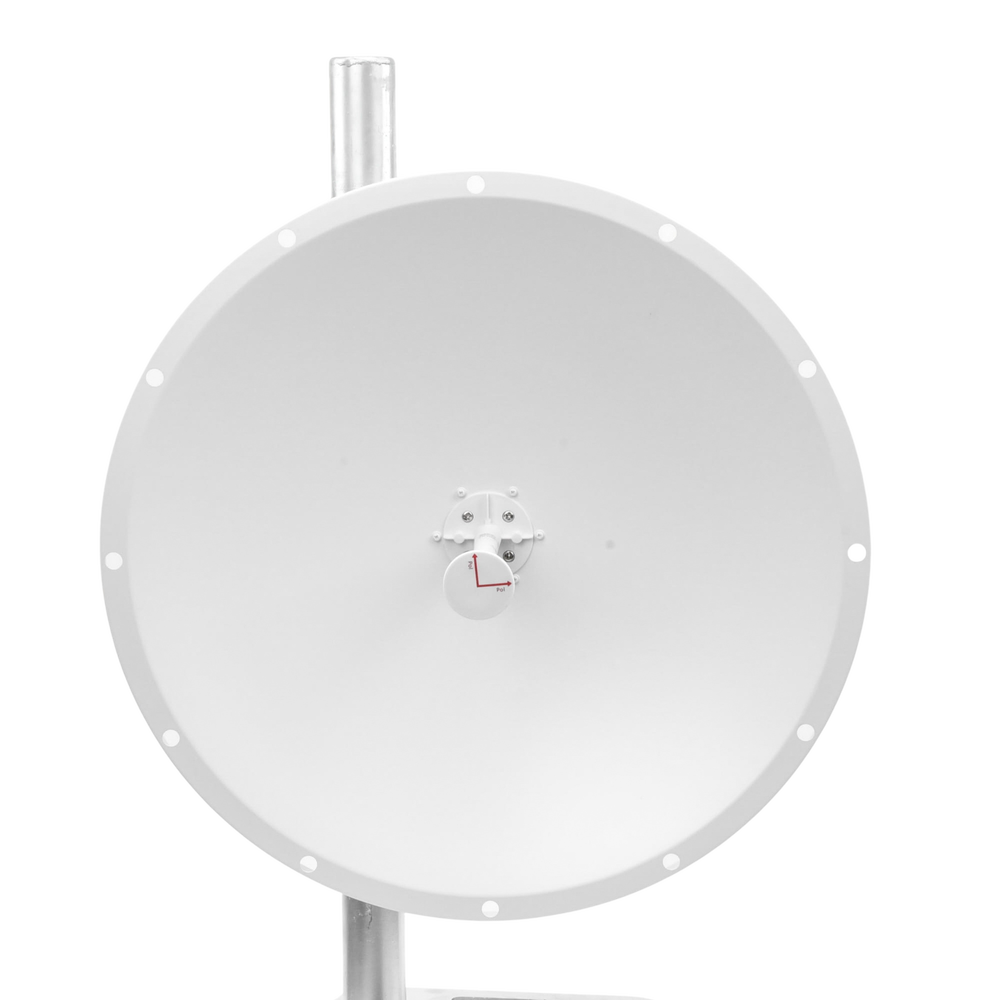

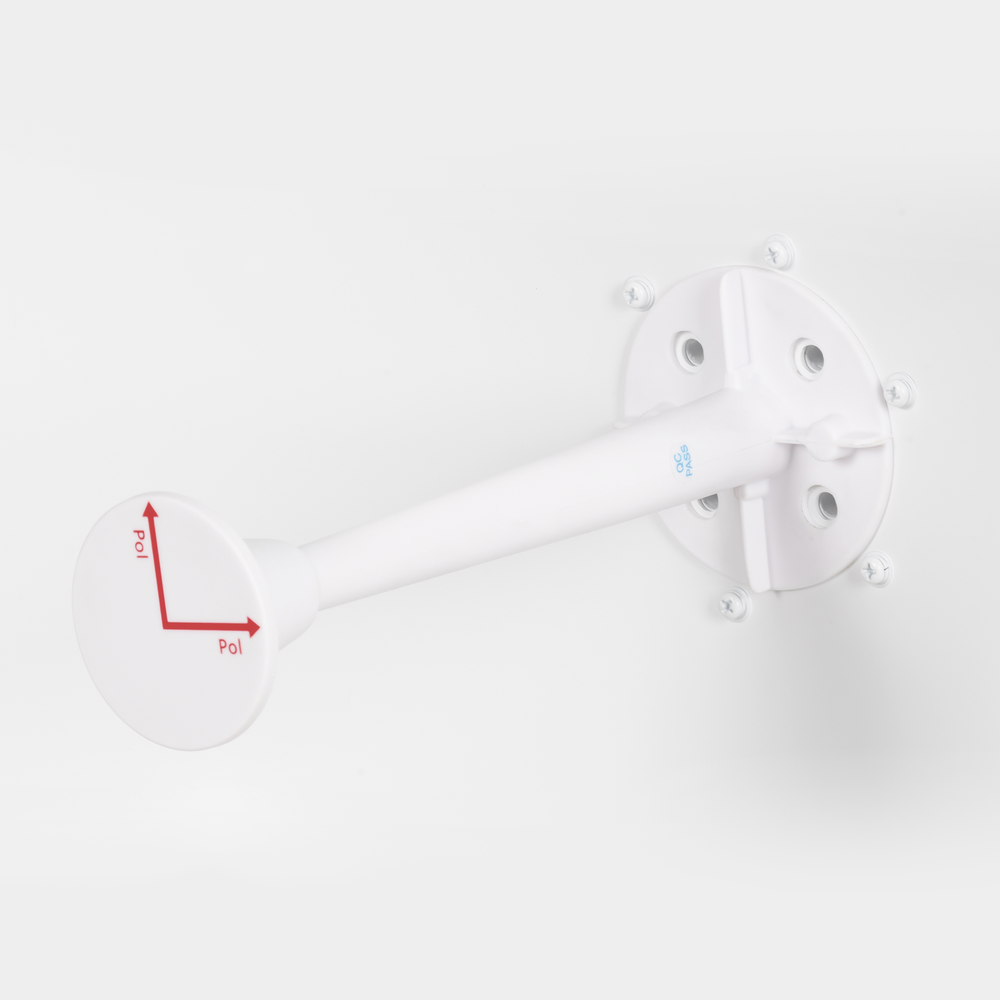

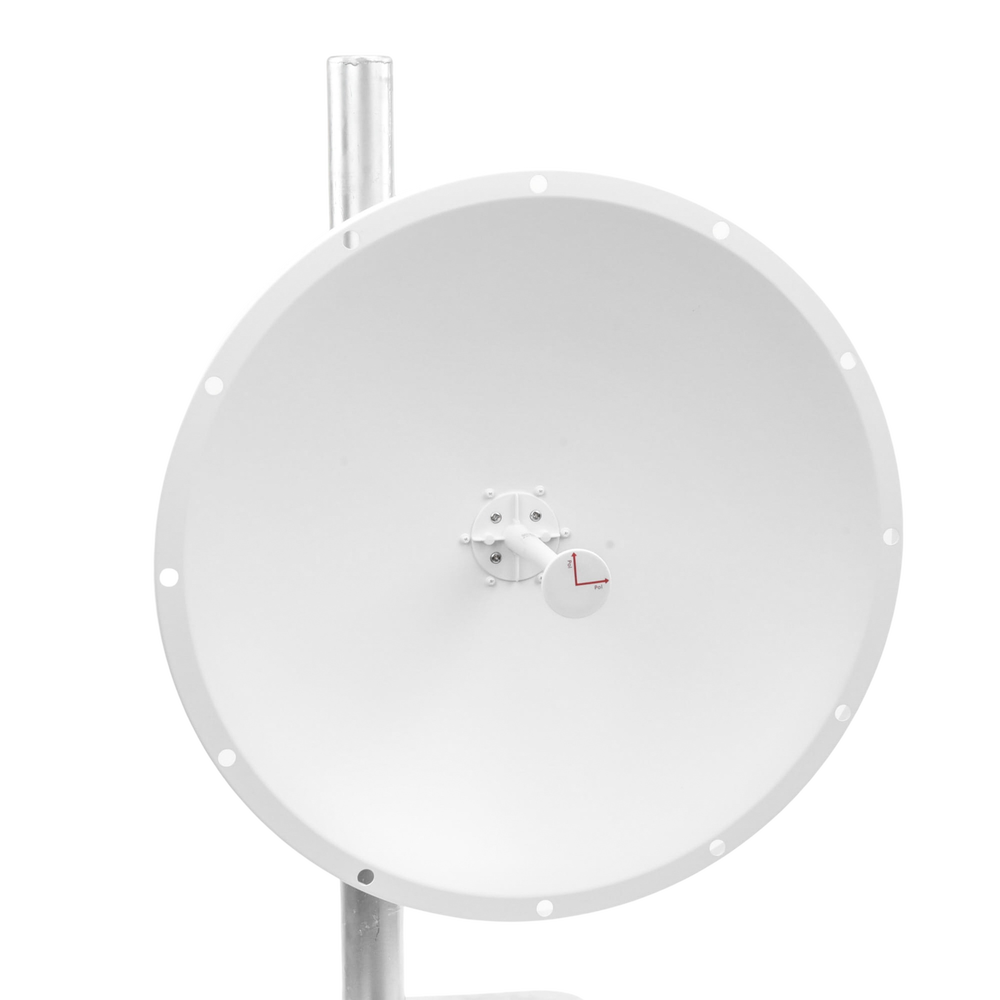

Extended Frequency Directional Antenna / 4.8 - 6.5 GHz / 28 dBi / N-Male connector with jumper included / 90º and 45º polarity / Mounting included for tower or mast
Extended Frequency Directional Antenna / 4.8 - 6.5 GHz / 28 dBi / N-Male connector with jumper included / 90º and 45º polarity / Mounting included for tower or mast
TXPRO antennas are ideal for low-noise environments such as rural or remote areas where radio frequency spectrum availability is high.
Technical Specifications

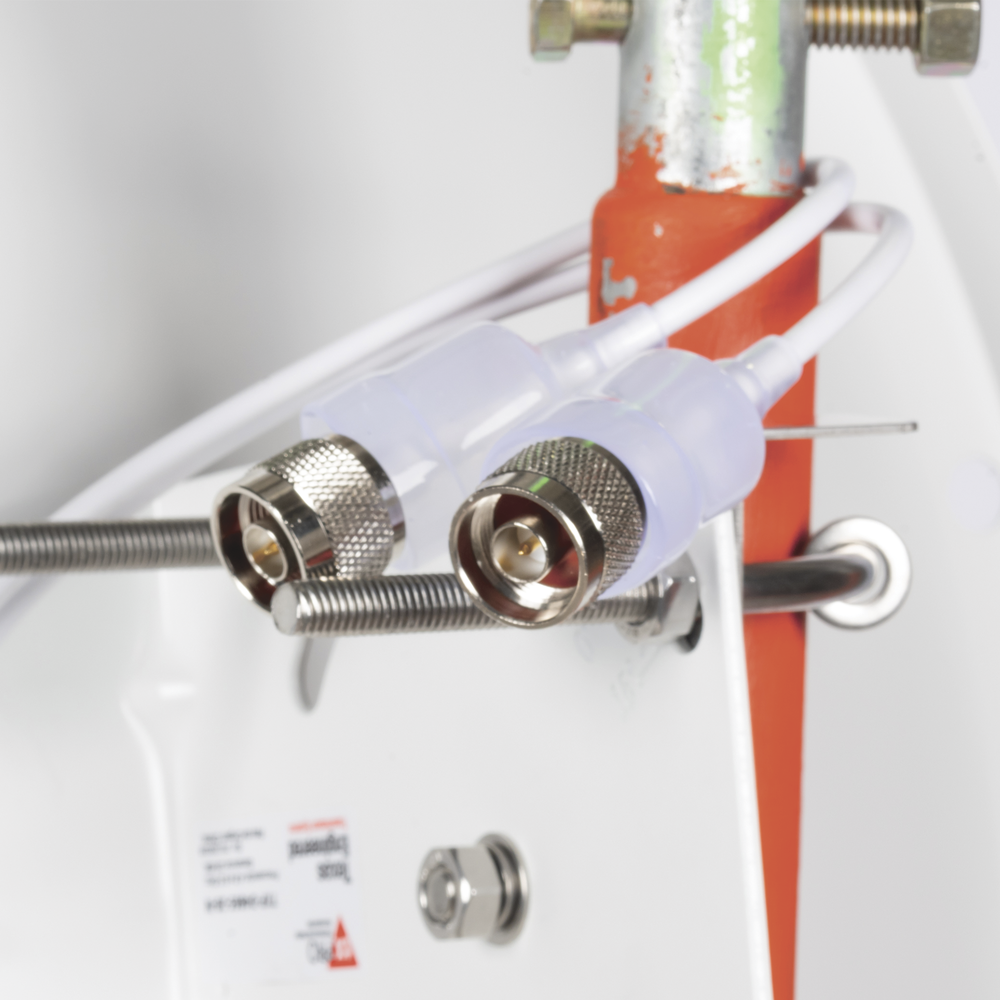

Frequency range: 4.8 - 6.5 GHz. Gain: 28 dBi. Polarization: (V/H or ± 45°). Vertical beam spread: 7°. Horizontal beam spread: 7°. Front to rear gain ratio: > 28 dB. Isolation: > 20 dB. VSWR: ≤ 1.5:1; max. 2.0. Maximum power per port: 50 W. Impedance: 50 Ω. Dimensions: φ 0.6m. Weight: 2.5 kg. Color: White. Connectors: Includes two N-Male RF cables. Temperature range: -55 to 70°C.
Withstands winds of: 200 km/h.
Shipping Dimensions: 70 Height x 72 Width x 20 Depth cm.
*1 year warranty

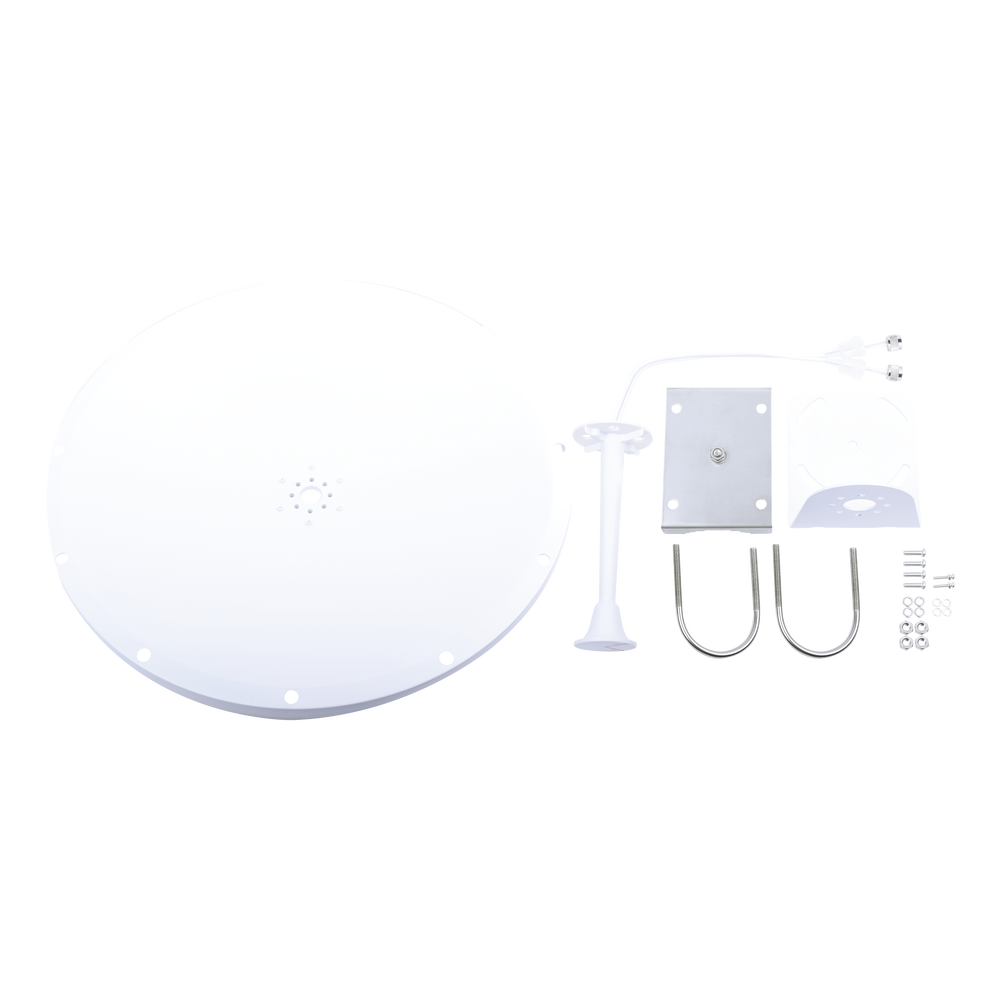

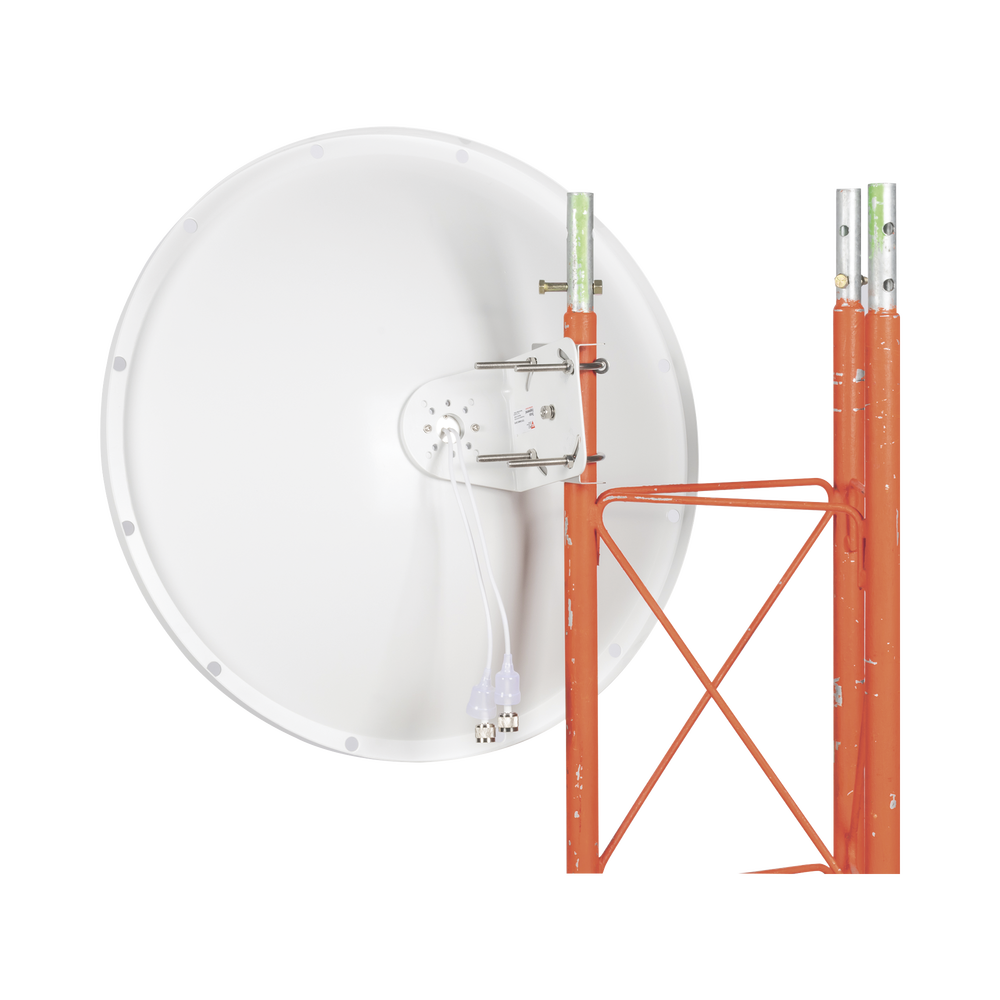

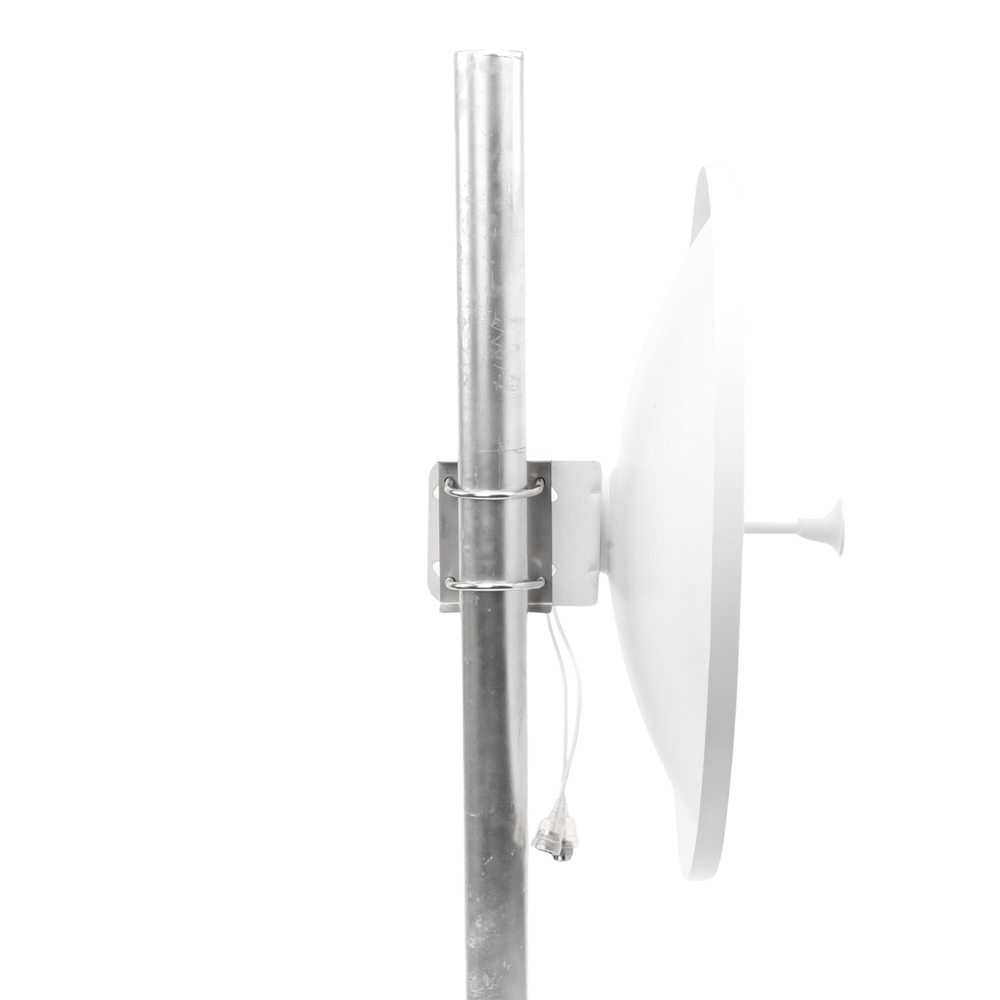

Jumper and mount included, Compatible with Ubiquiti, Cambium and Mimosa
