TXPRO

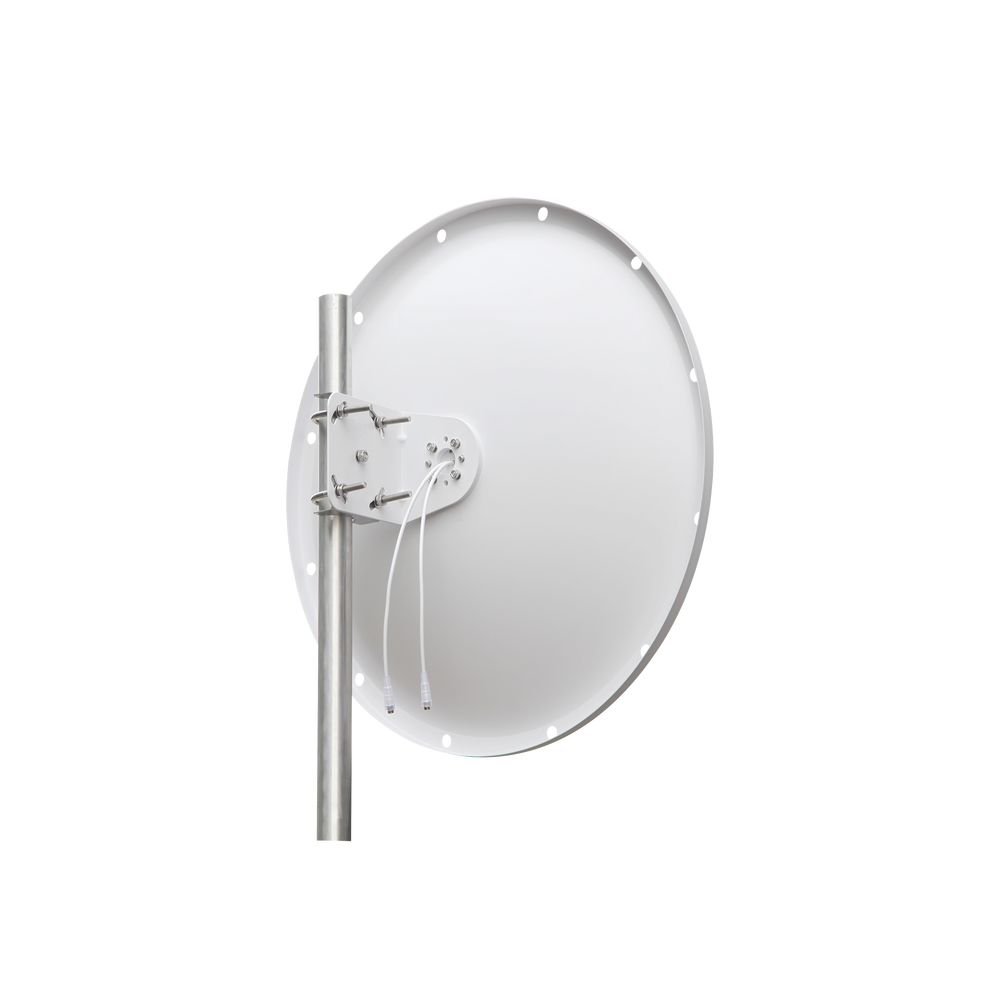

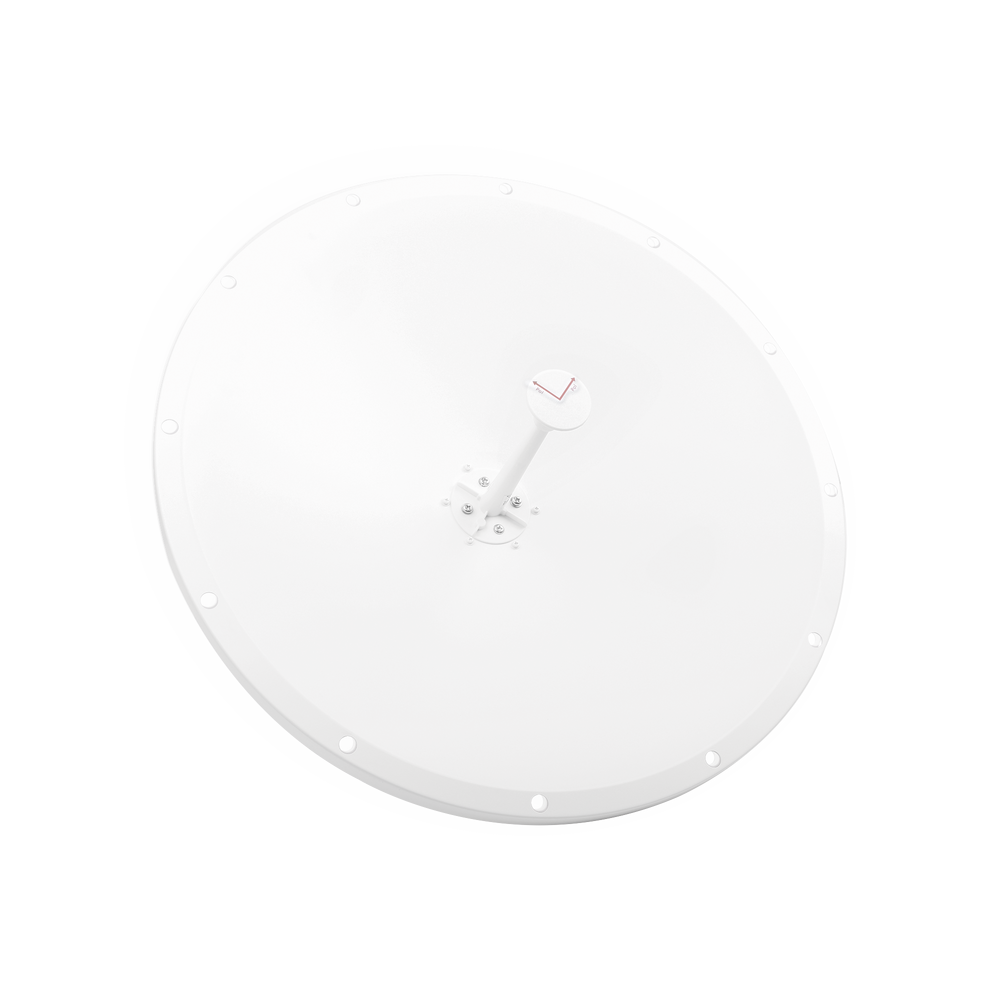

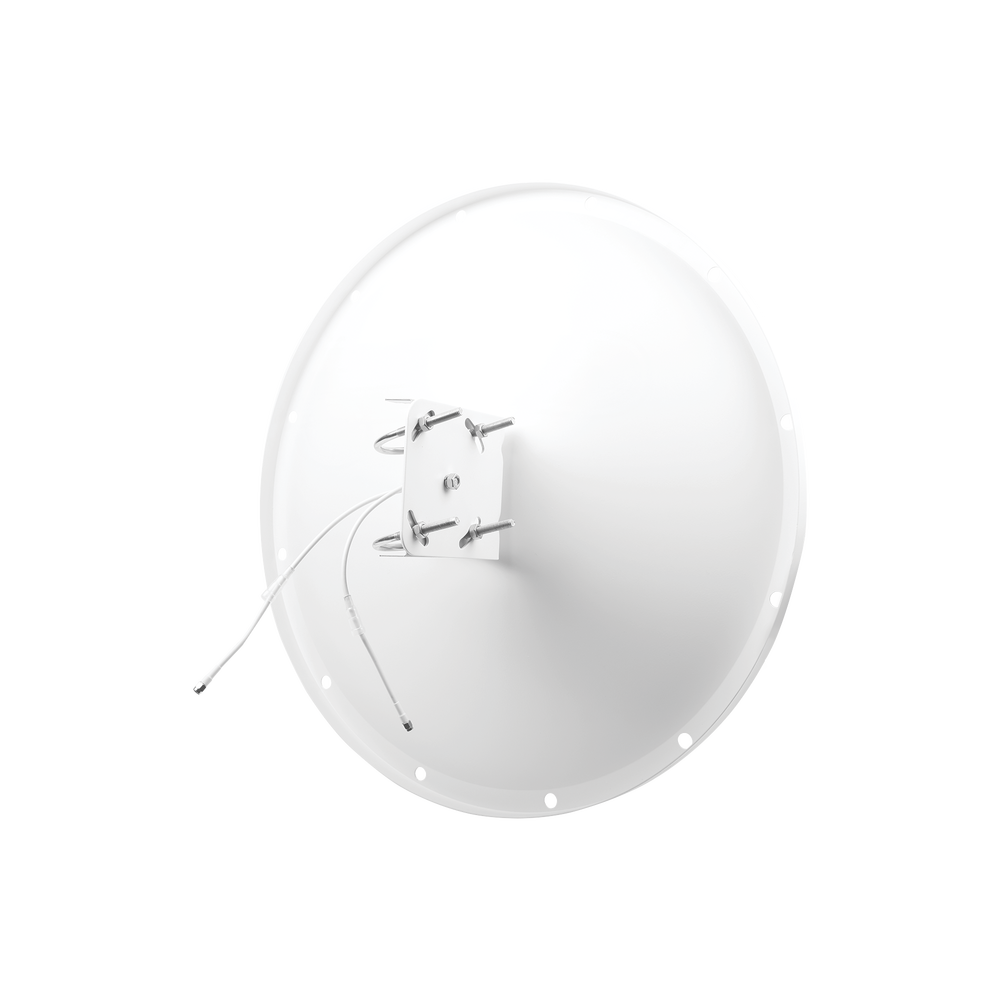

Extended Frequency Directional Antenna / 4.8 - 6.5 GHz / 28 dBi / Connector with SMA-Male Reverse jumper included / Polarity in 90º and 45º / Mount included for tower or mast
Extended Frequency Directional Antenna / 4.8 - 6.5 GHz / 28 dBi / Connector with SMA-Male Reverse jumper included / Polarity in 90º and 45º / Mount included for tower or mast
Regular price
$424.579 COP
Regular price
$464.383 COP
Sale price
$424.579 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Extended Frequency Directional Antenna / 4.8 - 6.5 GHz / 28 dBi / Connector with SMA-Male Reverse jumper included / Polarity in 90º and 45º / Mount included for tower or mast
TxPRO antennas are ideal for low-noise environments such as rural or remote areas where radio frequency spectrum availability is high.
These ultra-lightweight satellite dishes operate in an extended frequency range from 4.8 to 6.5 GHz, providing a wide variety of applications, including Internet transmission in the WISP market and video and data transmission. Their light weight makes installation very simple and fast, reducing tower weight. They feature integrated RF coaxial cables for direct connection to PTP access points, depending on the connector type used.
Connects directly to Mimosa Networks C5c radio !
Average distance up to 15 km.
Frequency range: 4.8 - 5.1 GHz / 5.1 – 6.5 GHz.
Gain: 26 ± 1 dBi / 28 ± 1 dBi.
Polarization: (V/H or ± 45°).
Vertical beam spread: 7°.
Horizontal beam spread: 7°.
Front to rear gain ratio: > 28 dB.
Isolation: > 20 dB.
VSWR: ≤ 1.5:1; max. 2.0.
Maximum power per port: 50 W.
Impedance: 50 Ω.
Dimensions: φ 0.6m.
Weight: 2.5 kg.
Color: White.
Pole mount (Diameters 30 - 70 mm).

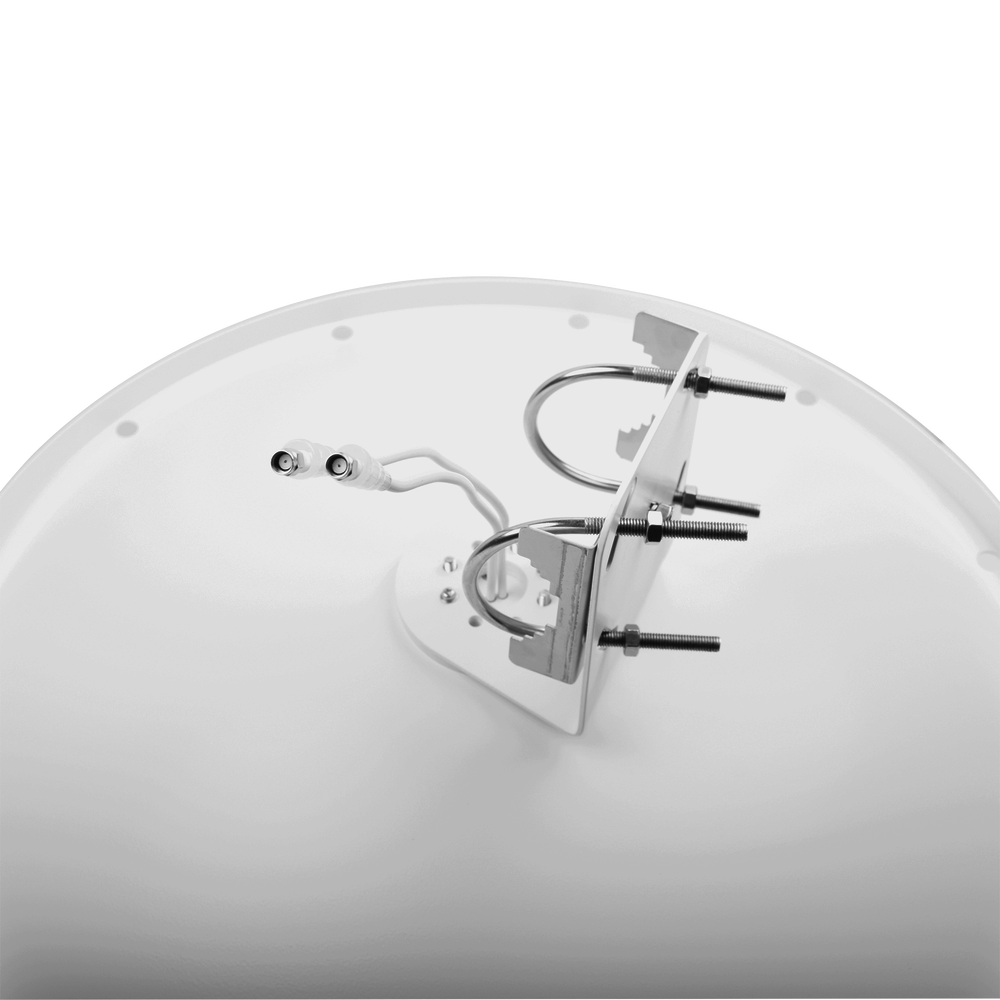

Connectors: Includes two RF cables in Reverse SMA Male connectors.
Temperature range: -55 to 70°C.
Humidity: < 95 %.
Wind survival: 200 km/h.
Shipping Dimensions: 70 Height x 72 Width x 20 Depth cm.
*1 year warranty

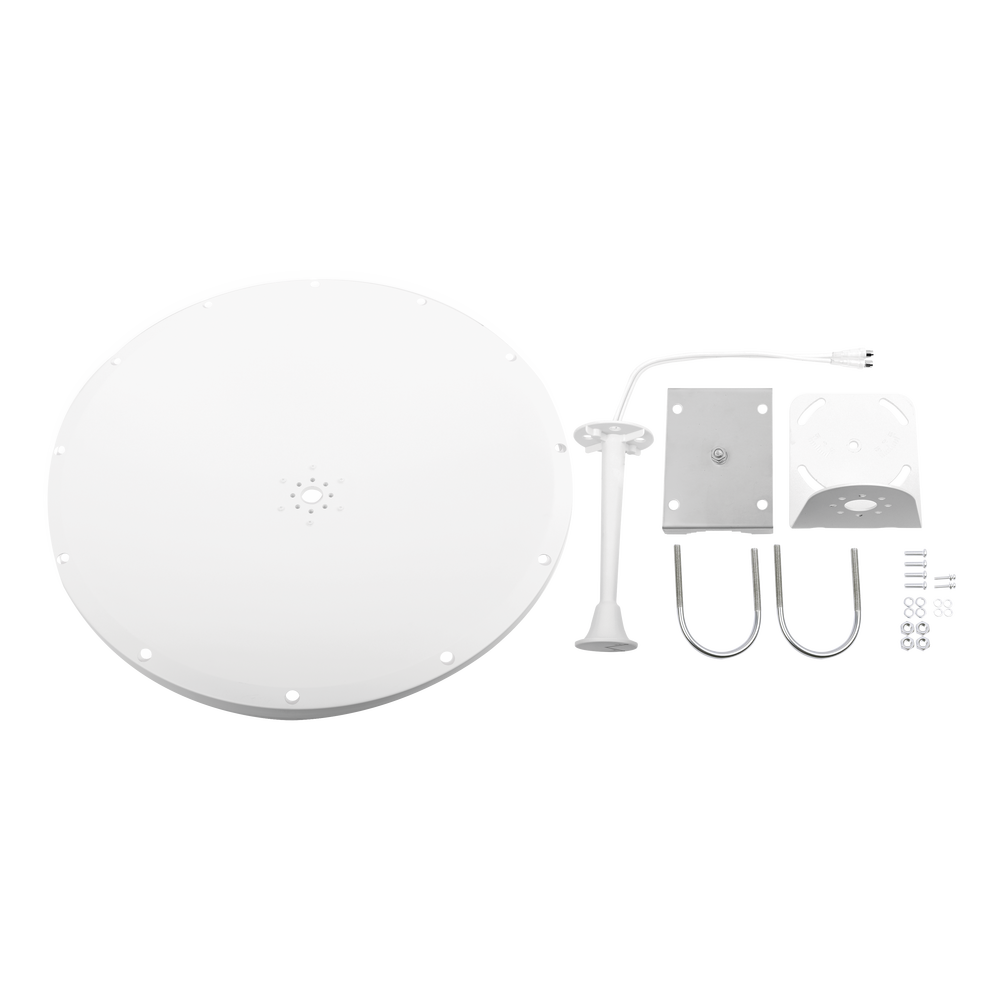

- Jumper and mount included, Compatible with Ubiquiti, Cambium and Mimosa
Share
71 in stock
MODELO: TXP-D4865-28-SMA
