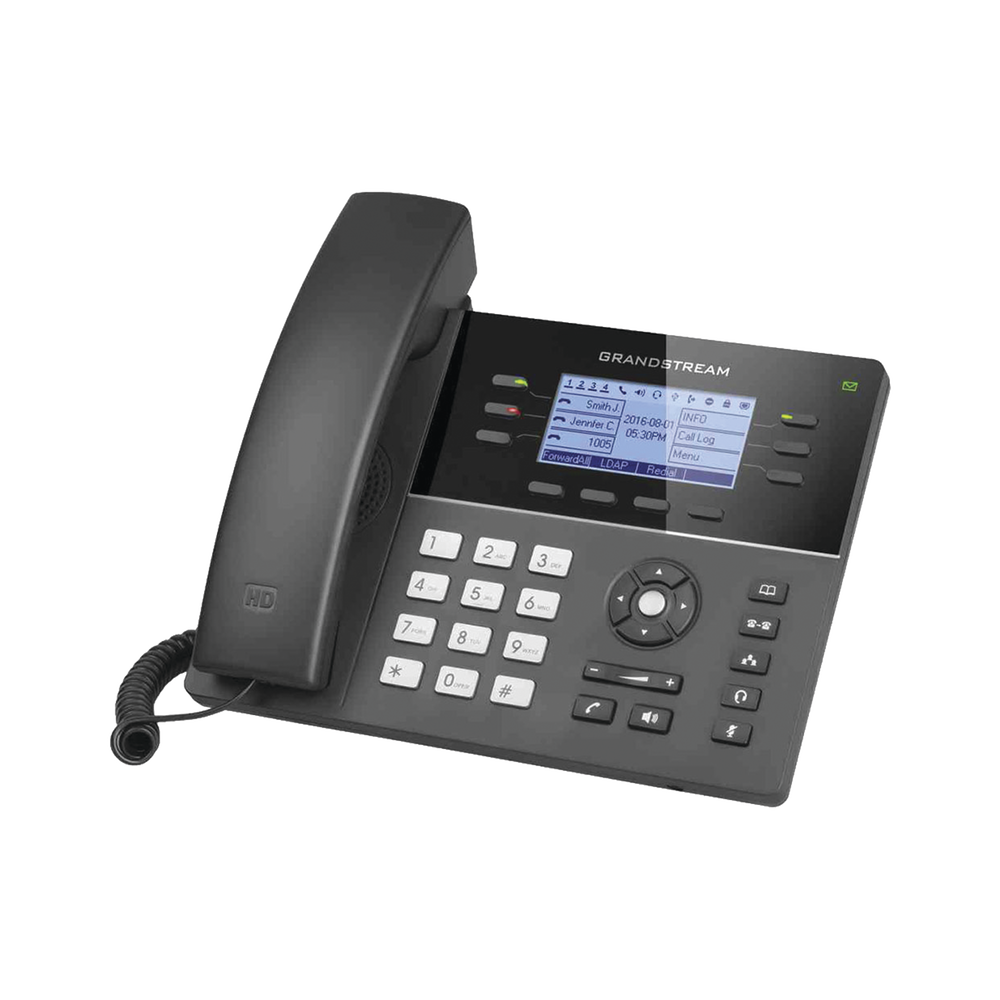

Mid-range 6-line WiFi IP phone with 4 feature keys, 24 digital BLF extension keys, and 5-way PoE conferencing

Mid-range 6-line WiFi IP phone with 4 feature keys, 24 digital BLF extension keys, and 5-way PoE conferencing

Ideal for growing businesses, the GXP1760W is a mid-range IP phone with Wi-Fi that features a sleek design and moderate call volume features. It comes equipped with 6 lines, 3 SIP accounts, 6 dual-color line keys, and 4 XML programmable keys along with a 200 x 80 pixel (3.3") backlit LCD display. For added customization, the GXP1760W features custom ringtone/music ringback tone and integration with advanced web and business applications as well as local weather services. The GXP1760W offers two auto-sensing 10/100Mbps network ports and supports auto-provisioning features with media access control. This mid-range IP phone delivers exceptional performance and design for users worldwide at an affordable price.


Main:
- Connect to the VoIP network wirelessly via WiFi
- 6 Lines, 3 SIP accounts, 4 programmable XML function keys and 5-way conferencing.
- 24 Digitally programmable BLF extension keys.
- 200 x 80 Pixelex LCD display with backlight
- HD Audio.
- Dual 10/100 Mbps network ports.


Telephone functions:
Hold, transfer, forward, 5-way conference, call park, call retrieve, shared call status (SCA)/bridged line status (BLA), downloadable phonebook (XML, LDAP, up to 2000 contacts), call waiting, call logging
Call logs (up to 500 records), XML screen customization, auto-dial on pick-up, auto-answer, click-to-dial, flexible dialing plan, hot desking (shared workstations), custom music ringtones and music on
standby, server redundancy and failover.

Codecs:
Support for G.729A/B, G.711μ/a-law, G.726, G.722 (broadband), G.723,
iLBC, OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Interfaces:
Two auto-sensing 10/100Mbps switched Ethernet ports
with integrated POE

Security:
User and administrator level passwords, authentication based on
MD5 and MD5-sess, 256-bit AES encrypted configuration file,
SRTP, TLS, 802.1x Media Access Control, Security Sockets support
Kensington (Kensington Lock)

Quality of service:
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Languages:
Spanish, English, German, Italian, French, Portuguese, Russian, Croatian, Simplified and Traditional Chinese, Korean, Japanese.

Protocols and standards:
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP,
TR-069, 802.1x, TLS, SRTP, IPV6 .

Accordance:
FCC: Part 15 (CFR 47) Class B
CE: EN55022 Class B; EN55024 Class B; EN61000-3-2; EN61000-3-3;
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1

Physical and electrical characteristics:
- Universal power supply; Input: 100~240VAC 50-60Hz; Output: .5VDC, 1A. / PoE 802.3af .
- Base or wall mountable.
- Dimensions: 167 x 231 x 86 mm.
- Weight: 0.925 kg.
- Operating temperature: 0~40ºC.

Package contents:
GXP1760 telephone, corded handset, stand base, universal power supply, network cable, Quick Installation Guide, GPL license

*1 year warranty.

Connection to the VoIP network via WiFi
