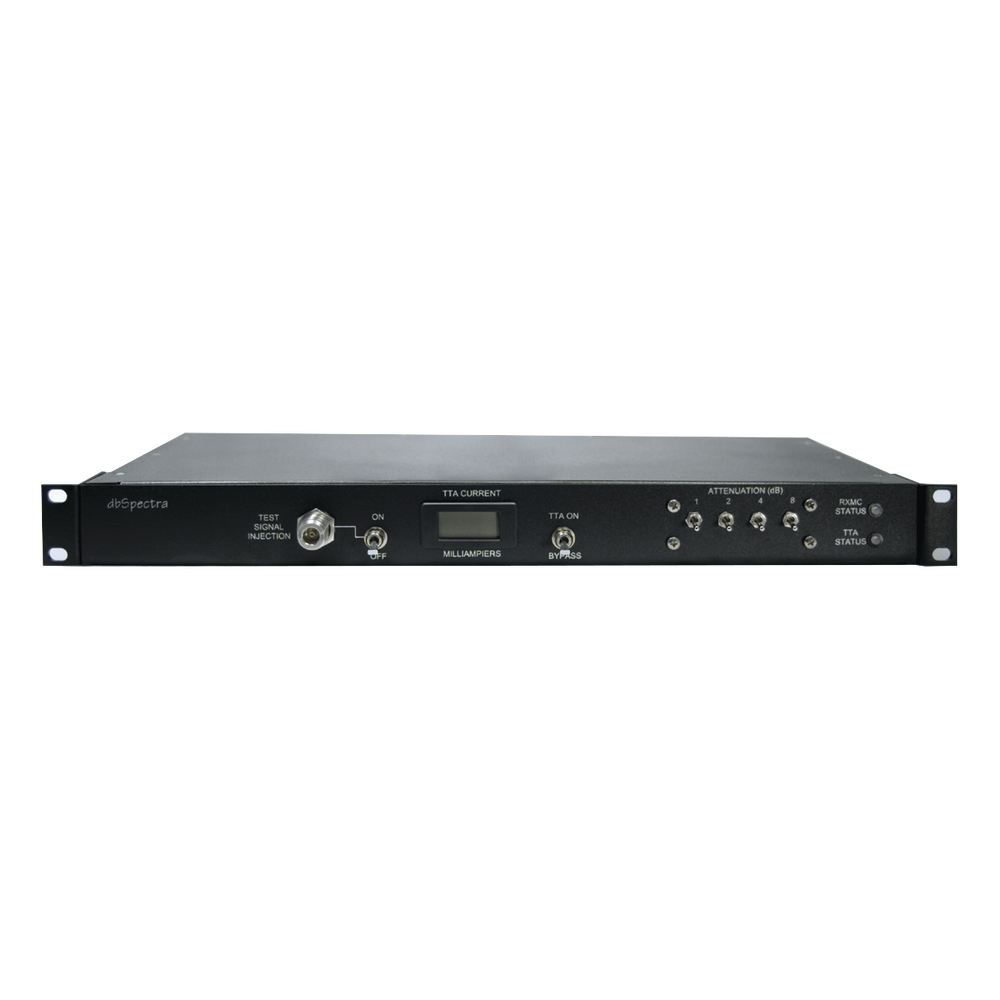

Multicoupler 380-512 MHz, 16C, 1UR, with Power Distribution Unit /TTA, 13.8Vdc (15W), N/BNC Females.

Multicoupler 380-512 MHz, 16C, 1UR, with Power Distribution Unit /TTA, 13.8Vdc (15W), N/BNC Females.

Multicoupler 380-512 MHz, 16C, 1UR, Power Distribution Unit for TTA.

• For use with Tower Amplifiers.
• Quadrature coupled low noise amplifier (LNA).
• Alarm sensors monitor amplifier current and power supply voltage.
• Status LEDs on the front panel indicate the status of the multi-connector receiver, the top of the amplifier tower, and the power supply.
• 1RU 19-inch rack mount.
• Step adjustable attenuator is provided in front of the LNA for net gain adjustment of the system.
• PolyPhaser® Bias-T surge protector.
• Remote alarm monitoring through dry contacts.
• Frequency range: 380-512 MHz.
• Number of channels: 8.
• LNA Noise Figure (typical): 2.4 dB.
• LNA Gain (typical): 31 dB.
• Amplifier IP3 (typical): 40 dB.
• Receiver to Receiver Isolation: 20 dB.
• Return Loss (typical): 14 dB.
• Impedance: 50 Ohm.
• Compression Point at 1 dB (typical): +24 dBm.
• Power Supply: 90-240 Vac / 12 Vdc.
• Power Requirements: <30 VA ( AC ) / <15 Watts ( DC ).
• Adjustable Attenuator: 0-15 dB in 1 dB Increments.
• Finish: Black / Alodine Gold.
• Input Connector / Output Connector: N (F) / BNC-Female.
• Mounting: EIA 19-inch Rack.
• Temperature Range: -30 ºC to +60 ºC.
• Dimensions (H x W x D): 482.6 x 44.5 (1RU) x 260.4 mm.
• Net Weight / Shipping Weight: 2 / 6.3 kg.

* Ask about Delivery Time.
